Truth tables construction: Foundations — Hardware deep dive

Before you can build a truth table you must be able to read every mark that appears in one. Below is every symbol and idea the parent note leans on, ordered so each one rests on the previous. Nothing is used before it is drawn.

1. The two values: $0$ and $1$

The picture: a single switch. Down = $0$ = OFF. Up = $1$ = ON. There is no "half-on".

Why the topic needs it: every column entry in a truth table is one of these two marks. If you did not know that "on/off" and " $1$ / $0$ " mean the same thing, the whole table would be gibberish. See also Binary Number System.

2. Input, output, and a Boolean function

The picture: a box. Arrows go in on the left (the inputs), one arrow comes out on the right (the output). The box hides the rule.

Why the topic needs it: a truth table is exactly "for every possible set of arrows-in, what is the arrow-out?" Without the input/output split there is nothing to tabulate.

3. Naming signals: $A$ , $B$ , $C$ and $F$

Why the topic needs it: every column heading in the parent note is a letter like these. Once we have letters, the next four sections give us the operations that combine them into a rule for $F$ .

4. NOT — the bar $\overline{A}$

The picture: flip the switch to its other position. Whatever it was, it is now the reverse.

$A$	$\overline{A}$
0	1
1	0

Why the topic needs it: the parent's worked examples use $\overline{A}$ and $\overline{C}$ as intermediate columns. You must know a bar means "flip" to fill them in. More at Logic Gates AND OR NOT.

5. AND — the dot $A \cdot B$

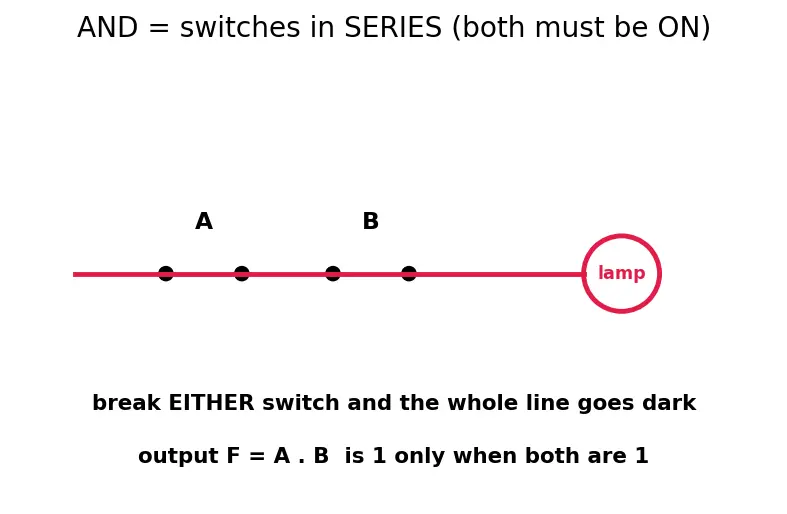

The picture: two switches wired in series in a line — the lamp lights only if both are closed. Break either one and the circuit is dead.

Why the topic needs it: AND is one of the two combining operations you will meet everywhere, e.g. the $A \cdot B$ piece of an expression.

6. OR — the plus $A + B$

The picture: two switches wired in parallel — two separate paths to the lamp. Close either path and current flows.

Now that NOT, AND and OR are all defined, we can finally read the parent's headline expression $F = A \cdot B + \overline{C}$ : "output = (A AND B) OR (NOT C)" — but which piece groups with which still needs a rule, and that rule is precedence, coming in Section 8.

7. XOR — the ringed plus $A \oplus B$

$A$	$B$	$A \oplus B$
0	0	0
0	1	1
1	0	1
1	1	0

Why the topic needs it: the parent's Forecast-then-Verify exercise asks you to predict the XOR column ( $0, 1, 1, 0$ ). You must recognise the $\oplus$ symbol to attempt it.

8. Precedence and parentheses: NOT → AND → OR

Worked read of $A + B \cdot C$ :

$\cdot$ (AND) binds tighter than $+$ (OR), so this means $A + (B \cdot C)$ , not $(A + B) \cdot C$ .
Check with $A = 0, B = 1, C = 0$ : default gives $0 + (1 \cdot 0) = 0$ ; the bracketed version $(0 + 1) \cdot 0 = 0$ — here they agree, so try $A = 1, B = 0, C = 1$ : default gives $1 + (0 \cdot 1) = 1$ , but $(1 + 0) \cdot 1 = 1$ too. The difference shows with $A = 1, B = 1, C = 0$ : default $1 + (1 \cdot 0) = 1$ , forced $(1 + 1) \cdot 0 = 0$ . Brackets changed the answer.

Why the topic needs it: the entire "intermediate columns" trick exists to respect this order (and any brackets) so you don't mis-evaluate.

0

and

1

(OFF and ON) — nothing in between.

What does a Boolean function do?

Takes input bits and produces one fixed output bit by a rule.

Why use letters like

A

B

for wires?

A letter is a placeholder for "whatever value this wire has right now", which changes per row.

What does the bar

\overline{A}

do?

Flips the bit —

0

becomes

1

1

becomes

0

(NOT).

When is

A \cdot B

equal to

1

Only when both

A

and

B

are

1

(AND = all).

When is

A + B

equal to

0

Only when both are

0

; otherwise it is

1

(OR = at least one).

Does

1 + 1 = 2

in Boolean algebra?

No —

1 + 1 = 1

; the

+

means OR, not arithmetic addition.

When is

A \oplus B

equal to

1

Exactly when the two inputs differ (XOR).

State the operator precedence.

NOT first, then AND, then OR (XOR rides with OR).

What do parentheses do?

They group a piece and force it to be evaluated first, overriding the default NOT→AND→OR order.

How many rows does an

n

-input table have, and why?

2^{n}

, because each added input doubles the rows.

What guarantees you list every input combination once?

Counting in binary from

0

2^{n} - 1

, padded to

n

bits.
