Forward bias behavior: Foundations — Hardware deep dive

Before you can read Forward bias behavior comfortably, you need to own about a dozen symbols and ideas. The parent note throws them at you fast — this page builds each one from nothing, in an order where every symbol is earned before it is used.

1. Charge, and the symbol $q$

Picture it: imagine one tiny bead that carries the smallest "unit" of electricity nature allows. Every current, every voltage effect in a diode, is really billions of these beads moving.

Why the topic needs it: the barrier in a diode is a voltage (a hill measured in volts). To turn that voltage into an energy — how hard it is to climb — you multiply by charge. That is where $q V$ comes from. Hold that thought; we return to it in §5.

2. Two kinds of movable charge: electrons and holes

Picture it (figure above): think of a row of chairs. If every chair has a person (electron), nobody can shuffle. Remove one person and now the empty chair can "move" as people shift into it — that travelling empty chair is the hole.

Why the topic needs it: the parent note says "holes in P, electrons in N." These are the two carrier types that flood across the junction. Without knowing a hole is a movable positive charge, "majority carriers roll uphill" is meaningless.

3. Doping, and the P-side / N-side

Why the topic needs it: "forward bias raises P above N" only makes sense once you know which side is which and who lives there. See PN Junction at Equilibrium for how doping creates these two regions.

4. The depletion region and the built-in field

When P and N are joined, electrons near the border fall into nearby holes. That leaves behind fixed, charged ions — a stripe emptied of movable carriers.

Picture it (figure): a strip of "+" ions on the N-side facing a strip of "−" ions on the P-side. Fixed + and − charges facing each other create an electric field — an arrow pointing from + to −, i.e. from N toward P. This is the built-in field.

Why the topic needs it: forward bias works by fighting this built-in field with the battery's field. No built-in field ⟹ nothing to fight ⟹ no story.

5. Voltage $V$ , the built-in potential $V_{bi}$ , and turning voltage into energy

Why the topic needs it: the parent writes the barrier energy as $q (V_{bi} - V)$ . Now you can read it: it is the charge $q$ (§1) times the net hill height $(V_{bi} - V)$ — the built-in hill $V_{bi}$ minus how much the battery $V$ has lowered it. See Built-in potential.

6. Temperature $T$ , Boltzmann's constant $k$ , and thermal energy $k T$

Picture it: hotter material = beads bouncing harder = more of them have enough energy to climb the hill. $k T$ is the "typical kick" a carrier gets from heat.

Why the topic needs it: whether a carrier can climb the barrier is a race between the barrier energy $q (V_{bi} - V)$ and the thermal kick $k T$ . That race is written as a ratio $\frac{q V _{B}}{k T}$ — we meet it next.

7. The exponential $e^{x}$ and the Boltzmann factor

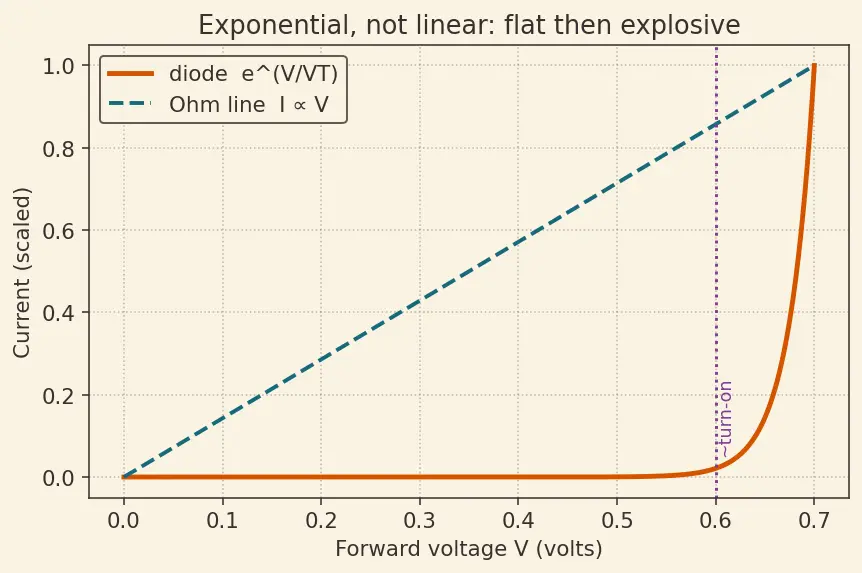

Picture it (figure): a straight line (Ohm's law) climbs steadily; the exponential curve is flat-then-explosive. Below "turn-on" almost nothing; past it, a rocket. That shape is the diode.

Why the topic needs it: this single factor, with $V_{B} = V_{bi} - V$ , is the engine of the whole Shockley equation. See Boltzmann distribution.

8. Thermal voltage $V_{T} = k T / q$

The exponent $\frac{q V _{B}}{k T}$ mixes charge, energy and temperature. We tidy it by grouping the constants:

$\frac{q V _{B}}{k T} = \frac{V _{B}}{k T / q} = \frac{V _{B}}{V _{T}}, V_{T} \equiv \frac{k T}{q}$

Why the topic needs it: it lets us write the clean exponent $e^{V / V_{T}}$ instead of the cluttered $e^{q V / k T}$ — same thing, tidier. It also sets the "60 mV per decade" rule. See Thermal voltage $V_T$.

Recall Check: why is

$q V / k T$ the same as $V / V_{T}$ ? Because $V_{T} = k T / q$ , dividing $V$ by $V_{T}$ means dividing $V$ by $k T / q$ , which is multiplying by $q / k T$ — exactly $q V / k T$ . ::: They are algebraically identical; $V_{T}$ just packages the constants.

q

and its value?

The charge of one electron,

\approx 1.6 \times 1 0^{- 19}

What is a hole, physically?

A missing electron that behaves like a movable positive charge.

Who are the majority carriers on the N-side and P-side?

Electrons on N, holes on P.

What sets the tiny current

I_{S}

The minority carriers (the small opposite-type crowd on each side).

What is the depletion region?

The thin stripe near the junction emptied of movable carriers, leaving fixed charged ions.

Which way does the built-in field point?

From N toward P (from + donor ions to − acceptor ions).

How do you turn a voltage

V

into an energy for one carrier?

Multiply by charge:

E = q V

What is

V_{bi}

roughly for silicon?

About 0.6–0.7 V, the built-in barrier at equilibrium.

What does

k T

represent?

The typical thermal (jiggling) energy of a carrier at temperature

T

Why an exponential (Boltzmann factor) and not a line?

The fraction of carriers with enough energy to cross a barrier falls off as

e^{- q V_{B} / k T}

What is

V_{T}

, its formula, and value at 300 K?

Thermal voltage,

V_{T} = k T / q \approx 25.9

mV.

Why is

e^{q V / k T}

the same as

e^{V / V_{T}}

Because

V_{T} = k T / q

, so dividing

V

V_{T}

equals multiplying by

q / k T

Connections

Forward bias behavior — the parent topic these foundations unlock.
PN Junction at Equilibrium — where doping, the depletion region and $V_{bi}$ come from.
Built-in potential — the barrier $V_{bi}$ defined in §5.
Boltzmann distribution — origin of the exponential in §7.
Thermal voltage $V_T$ — the $k T / q$ scale of §8.
Diode I-V characteristics — the full curve the Shockley equation draws.
Reverse bias behavior — the opposite polarity, where only $I_{S}$ flows.
