Intuition The one-line idea
Any messy linear two-terminal network — no matter how many resistors and sources — behaves, as seen from its two output terminals, like a single current source in parallel with a single resistor . That pair is the Norton equivalent . Replace the mess, keep the behavior.
Intuition Why it must be true
A linear network's terminal behavior is fully described by the relationship between the terminal voltage V V V and terminal current I I I . For a linear circuit this relationship is a straight line : I = a V + b I = a\,V + b I = a V + b . A straight line needs only two numbers (slope and intercept). So any linear network needs only two components to reproduce that line:
a current source (the intercept → current when terminals shorted),
a resistor (the slope → how current falls as voltage rises).
That's exactly a current source in parallel with a resistor. There is nothing left to describe.
Definition Norton equivalent
A linear two-terminal network is equivalent to a current source I N I_N I N in parallel with a resistance R N R_N R N , where
I N I_N I N = Norton current = the current that flows through a short circuit placed across the terminals.
R N R_N R N = Norton resistance = the resistance seen looking into the terminals with all independent sources deactivated (voltage sources → short, current sources → open).
Worked example The 3-step method
Step 1 — Find I N I_N I N : short the two output terminals; compute the current through that short.
Why this step? A short forces V = 0 V=0 V = 0 , so I L = I N − 0 = I N I_L = I_N - 0 = I_N I L = I N − 0 = I N . The short reads off the intercept directly.
Step 2 — Find R N R_N R N : turn off all independent sources (V-source → wire, I-source → gap) and find the equivalent resistance between the terminals.
Why this step? The slope of the I I I –V V V line is set only by the resistors; the sources only shift the line, they don't tilt it. Deactivating them isolates the pure resistance.
Step 3 — Draw I N ∥ R N I_N \parallel R_N I N ∥ R N . That's your equivalent.
Worked example Two resistors and a source
A 12 V 12\text{ V} 12 V source feeds R 1 = 4 Ω R_1 = 4\,\Omega R 1 = 4 Ω in series to a node; from that node R 2 = 6 Ω R_2 = 6\,\Omega R 2 = 6 Ω goes to the bottom rail. The output terminals are across R 2 R_2 R 2 . Find the Norton equivalent.
Step 1 (I N I_N I N ): Short the output terminals. This shorts out R 2 R_2 R 2 (both its ends now joined), so all current goes through the short:
I N = 12 4 = 3 A . I_N = \frac{12}{4} = 3\text{ A}. I N = 4 12 = 3 A .
Why? With the short, R 2 R_2 R 2 carries no voltage, so it's invisible; only R 1 R_1 R 1 limits the source.
Step 2 (R N R_N R N ): Kill the source (12 V → wire). Now R 1 R_1 R 1 and R 2 R_2 R 2 both connect the two terminals — they are in parallel :
R N = 4 ⋅ 6 4 + 6 = 2.4 Ω . R_N = \frac{4\cdot 6}{4+6} = 2.4\,\Omega. R N = 4 + 6 4 ⋅ 6 = 2.4 Ω.
Why parallel? Deactivating the source ties the tops of R 1 R_1 R 1 and R 2 R_2 R 2 together and the terminals are across R 2 R_2 R 2 , so both resistors bridge the same two nodes.
Result: I N = 3 A ∥ R N = 2.4 Ω I_N = 3\text{ A} \parallel R_N = 2.4\,\Omega I N = 3 A ∥ R N = 2.4 Ω .
Worked example Add a load and forecast

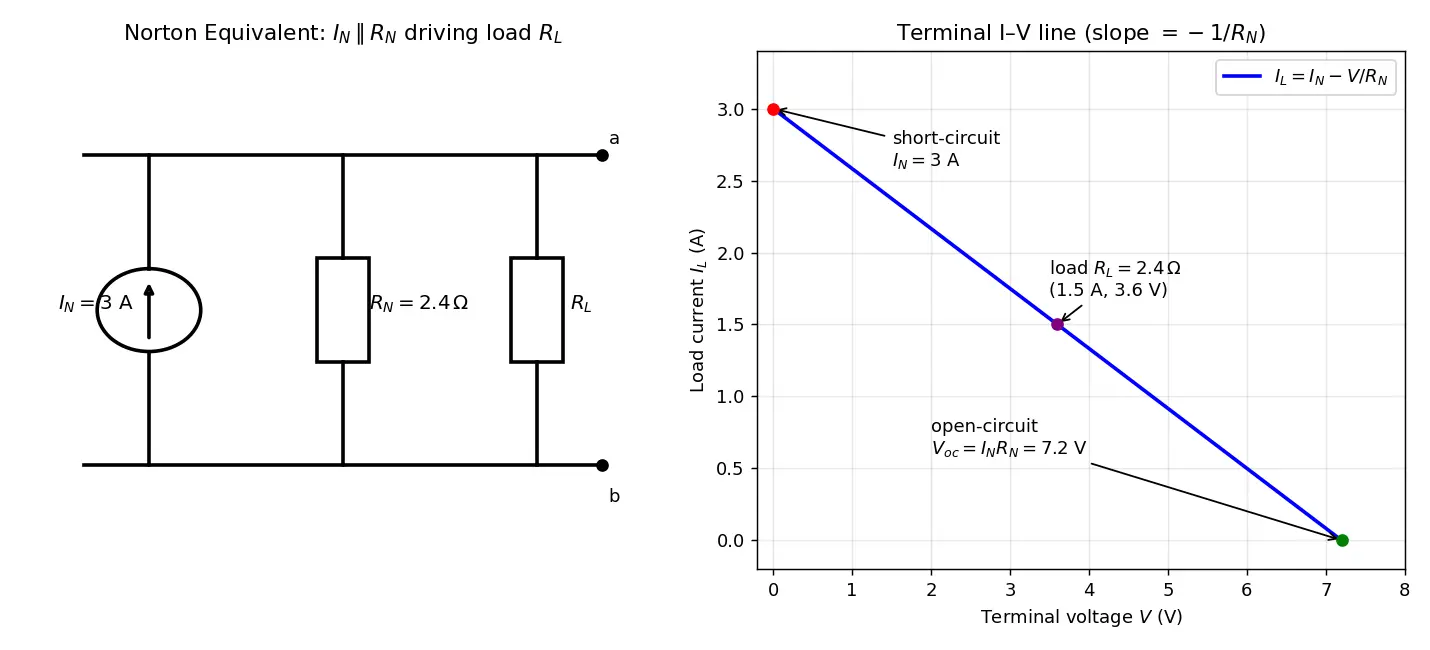

Attach a R L = 2.4 Ω R_L = 2.4\,\Omega R L = 2.4 Ω load to the equivalent above.
Current splits between R N R_N R N (2.4 Ω) and R L R_L R L (2.4 Ω) equally:
I L = I N ⋅ R N R N + R L = 3 ⋅ 2.4 4.8 = 1.5 A . I_L = I_N\cdot\frac{R_N}{R_N+R_L} = 3\cdot\frac{2.4}{4.8} = 1.5\text{ A}. I L = I N ⋅ R N + R L R N = 3 ⋅ 4.8 2.4 = 1.5 A .
Why current-divider? Two equal resistances share the 3 A 3\text{ A} 3 A equally. Forecast: equal resistors ⇒ half each ⇒ 1.5 A. ✓ Verified.
Load voltage: V = I L R L = 1.5 × 2.4 = 3.6 V V = I_L R_L = 1.5\times2.4 = 3.6\text{ V} V = I L R L = 1.5 × 2.4 = 3.6 V .
Common mistake Leaving sources ON when finding
R N R_N R N
Why it feels right: "The sources are part of the circuit, so keep them." Why it's wrong: R N R_N R N is a slope , purely resistive; live sources add a fixed offset that corrupts a simple resistance reading. Fix: deactivate independent sources (V→short, I→open) before computing R N R_N R N . (Keep dependent sources — use a test source method for those.)
Common mistake Forgetting
R 2 R_2 R 2 is shorted out for I N I_N I N
Why it feels right: R 2 R_2 R 2 is a real resistor, surely it limits current. Why it's wrong: a short across the terminals places a 0 Ω 0\,\Omega 0 Ω path in parallel with R 2 R_2 R 2 , diverting all current around it. Fix: redraw with the short; any element parallel to a short can be deleted.
Common mistake Using the load resistor while computing
I N I_N I N or R N R_N R N
Fix: the Norton equivalent is the network minus the load. Remove the load first, then find I N I_N I N and R N R_N R N ; only after that do you reconnect the load.
Recall Feynman: explain to a 12-year-old
Imagine a water tank feeding pipes to your sink. Instead of drawing every pipe, I hand you one card: "this tap pushes 3 cups per second, and there's a leaky pipe of 'thickness 2.4' that steals some of it." Now you can predict how much water reaches any cup you attach — without ever looking at the tank again. Norton = the smallest honest summary of a circuit's outlet.
"Short for the current, kill for the resistance."
I N I_N I N : short the terminals. R N R_N R N : kill (deactivate) the sources. Then draw N orton = current source N ext to (parallel) a resistor.
What is the Norton equivalent of a linear two-terminal network? A current source
I N I_N I N in parallel with a resistance
R N R_N R N .
How do you find the Norton current I N I_N I N ? Short the output terminals and compute the current through the short.
How do you find the Norton resistance R N R_N R N ? Deactivate all independent sources (V→short, I→open) and find the resistance between the terminals.
What is the Norton terminal equation? I L = I N − V / R N I_L = I_N - V/R_N I L = I N − V / R N .
How does R N R_N R N relate to R T h R_{Th} R T h ? They are equal:
R N = R T h R_N = R_{Th} R N = R T h .
Convert Thévenin to Norton. I N = V T h / R T h I_N = V_{Th}/R_{Th} I N = V T h / R T h , and
R N = R T h R_N = R_{Th} R N = R T h .
Why is the terminal I–V relationship a straight line for a linear network? Superposition/linearity makes
I I I an affine function of
V V V :
I = a V + b I=a V+b I = aV + b , needing only two parameters.
When finding I N I_N I N , why can a resistor across the terminals be ignored? A short in parallel with it carries all the current, so it has 0 V and is invisible.
Current-divider for a Norton source into load R L R_L R L ? I L = I N ⋅ R N / ( R N + R L ) I_L = I_N \cdot R_N/(R_N+R_L) I L = I N ⋅ R N / ( R N + R L ) .
Thévenin equivalent circuits — the voltage-source twin; convert freely.
Source transformation — the bridge V T h = I N R N V_{Th}=I_N R_N V T h = I N R N .
Ohm's Law — supplies the V / R N V/R_N V / R N leak term.
Kirchhoff's Current Law — justifies I L = I N − V / R N I_L = I_N - V/R_N I L = I N − V / R N at the node.
Maximum power transfer — uses R L = R N R_L=R_N R L = R N for max load power.
Superposition — why terminal behavior is linear/affine.
Linear two-terminal network
Terminal law I equals aV plus b straight line
I_L equals I_N minus V over R_N
Intuition Hinglish mein samjho
Dekho, Norton equivalent ka funda simple hai: koi bhi complicated linear circuit — chahe usme 20 resistor aur 5 source ho — agar tum sirf uske do output terminals se dekho, toh woh bas ek current source parallel me ek resistor jaisa behave karta hai. Kyunki linear circuit ka terminal behaviour ek seedhi line hoti hai (I = a V + b I = aV + b I = aV + b ), aur seedhi line ko describe karne ke liye sirf do number chahiye — bas isliye do component kaafi hain.
Do number nikalne ka tarika yaad rakho: "Short for current, kill for resistance." I N I_N I N nikalne ke liye output terminals ko short kar do aur us short me flowing current find karo. R N R_N R N nikalne ke liye saare independent sources ko off kar do (voltage source ko wire bana do, current source ko open kar do) aur terminals ke beech ki resistance nikaalo. Bas ho gaya — I N I_N I N parallel R N R_N R N tumhara Norton equivalent.
Ek common galti: log R N R_N R N nikaalte waqt source ko ON rakhte hain — galat! R N R_N R N toh sirf slope hai, purely resistance, isliye sources ko band karna zaroori hai. Doosri galti: load resistor ko bhi calculation me shaamil kar dete hain — nahi, pehle load hatao, phir I N I_N I N aur R N R_N R N nikaalo, uske baad load wapas jodo.
Yeh cheez exam aur real design dono me kaam aati hai: ek baar equivalent ban gaya, toh alag-alag load ke liye current (I L = I N ⋅ R N / ( R N + R L ) I_L = I_N \cdot R_N/(R_N+R_L) I L = I N ⋅ R N / ( R N + R L ) ) turant nikal sakte ho, poora circuit dobara solve kiye bina. Aur Thévenin se relation bhi yaad rakho: R N = R T h R_N = R_{Th} R N = R T h aur I N = V T h / R T h I_N = V_{Th}/R_{Th} I N = V T h / R T h .
