Series vs parallel resistor combinations

WHY do we combine resistors at all?

Real circuits have many resistors. To predict current and voltage we want to replace a cluster of resistors with one equivalent resistor $R_{eq}$ that behaves identically as seen from two terminals. "Behaves identically" means: apply the same voltage across the two terminals, and the same total current flows.

Everything below is derived from just two laws:

SERIES — deriving $R_{eq}=R_1+R_2+\dots$

WHAT is series? Resistors are in series if they share the same current — they lie end-to-end on a single path with no branch between them.

HOW to derive: Put $R_1,R_2$ in a line, drive current $I$ through both (same $I$ — that's the definition). By KVL the total voltage is the sum of the drops:

$V = V_1 + V_2 = IR_1 + IR_2 = I(R_1+R_2)$

But the equivalent resistor must satisfy $V = I R_{eq}$ . Matching:

PARALLEL — deriving $\frac{1}{R_{eq}}=\frac{1}{R_1}+\frac{1}{R_2}+\dots$

WHAT is parallel? Resistors are in parallel if they share the same voltage — both connected between the same two nodes.

HOW to derive: Apply voltage $V$ across both. Each carries its own current (Ohm):

$I_1 = \frac{V}{R_1}, \qquad I_2 = \frac{V}{R_2}$

By KCL the total current is the sum:

$I = I_1 + I_2 = \frac{V}{R_1} + \frac{V}{R_2} = V\left(\frac{1}{R_1}+\frac{1}{R_2}\right)$

The equivalent must give $I = V/R_{eq}$ , so dividing by $V$ :

WHY smaller? Adding a parallel path gives current another way to flow — you never make it harder to get through, only easier, so resistance can only go down.

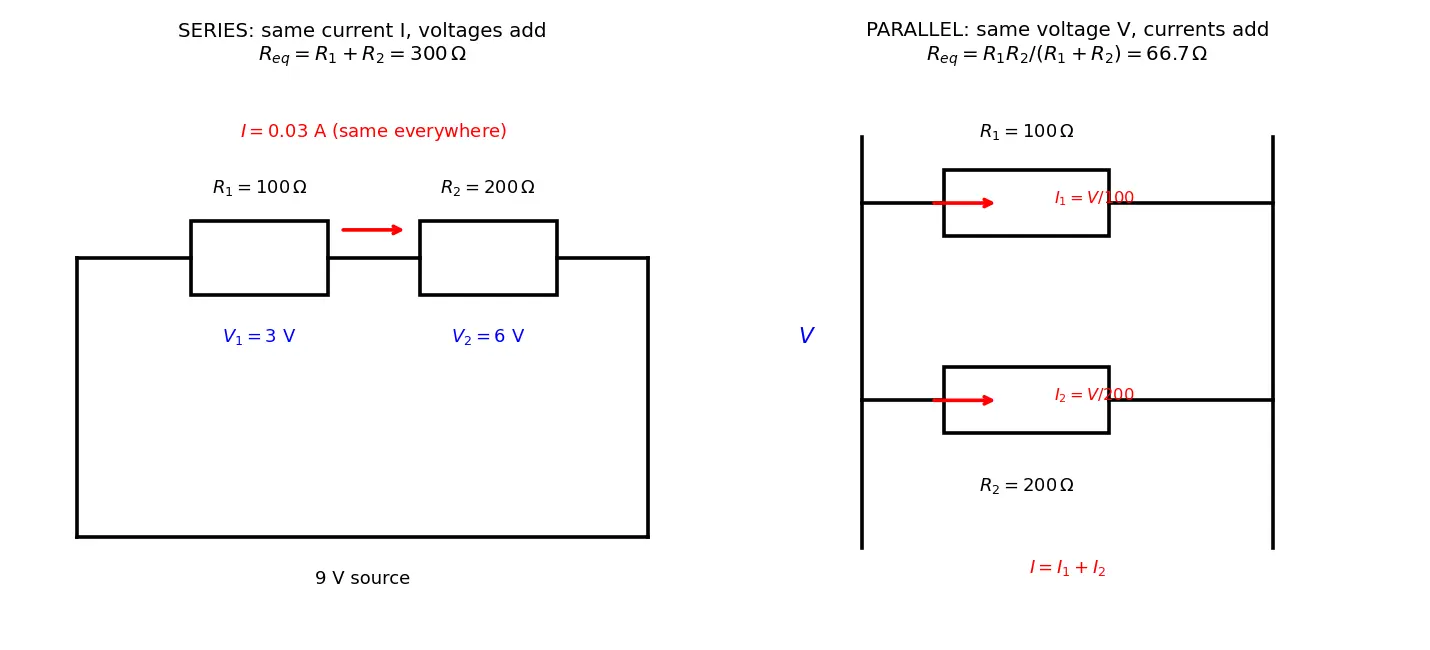

Figure — Series vs parallel resistor combinations

Worked examples

Forecast-then-Verify

Recall Forecast before computing

Q: You have $6\,\Omega$ and $3\,\Omega$ . Which arrangement gives $2\,\Omega$ ? Which gives $9\,\Omega$ ? Verify: Parallel: $\frac{6\cdot3}{9}=2\,\Omega$ . Series: $6+3=9\,\Omega$ . Parallel < smallest (3), series > largest (6). ✓

Common mistakes (Steel-manned)

Feynman

Recall Explain to a 12-year-old

Imagine water pipes. Series is one long pipe made of narrow sections joined end to end — the whole thing is harder to push water through than any one section, so the "resistances" pile up. Parallel is like drilling extra pipes side by side between the same two tanks — now water has more openings to rush through, so it's easier, and the combined "resistance" is smaller than even the easiest single pipe. That's why: series adds, parallel drops below the smallest.

Flashcards

In series, what is shared by all resistors?

The same current (voltages add via KVL).

In parallel, what is shared by all resistors?

The same voltage (currents add via KCL).

Series equivalent resistance formula?

R_{eq}=R_1+R_2+\dots

Parallel equivalent resistance formula?

\frac{1}{R_{eq}}=\frac{1}{R_1}+\frac{1}{R_2}+\dots

Two-resistor parallel shortcut?

R_{eq}=\dfrac{R_1R_2}{R_1+R_2}

(product over sum).

Is series

R_{eq}

bigger or smaller than each resistor?

Bigger (always ≥ largest).

Is parallel

R_{eq}

bigger or smaller than each resistor?

Smaller (always < smallest).

n

equal resistors

R

in parallel give?

R/n

Why does parallel resistance drop when you add a resistor?

It gives current another path, which can only make flow easier.

Which law makes series voltages add?

Kirchhoff's Voltage Law (KVL).

Which law makes parallel currents add?

Kirchhoff's Current Law (KCL).

In a series divider, which resistor drops more voltage?

The larger one (

V_i=IR_i

Connections

Ohms Law — the $V=IR$ foundation every derivation uses.
Kirchhoffs Voltage Law & Kirchhoffs Current Law — where "add voltages / add currents" come from.
Voltage Divider & Current Divider — direct consequences of series/parallel.
Equivalent Resistance and Network Reduction — collapsing ladders step by step.
Conductance — parallel is "series for conductances."
Power Dissipation in Resistors — $P=I^2R$ per resistor after you find the currents.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, resistors ko jodne ke do basic tareeke hote hain: series aur parallel. Series mein resistors ek hi line mein lage hote hain — jaise ek hi paip ke andar do narrow section. Yahan current ka sirf ek raasta hai, isliye har resistor mein same current behta hai, aur unke voltage drops add hote hain (KVL). Isi wajah se $R_{eq}=R_1+R_2+\dots$ — resistances seedhe jud jaate hain, aur total hamesha sabse bade resistor se bhi zyada hota hai.

Parallel mein resistors dono taraf same do nodes se jude hote hain — matlab har resistor par same voltage lagti hai, par current alag-alag branch mein baant jaata hai (KCL). Isliye currents add hote hain: $I=V/R_1+V/R_2$ , aur formula banta hai $\frac{1}{R_{eq}}=\frac{1}{R_1}+\frac{1}{R_2}$ . Yaad rakho — end mein ulta (reciprocal) karna zaroori hai! Do resistor ke liye shortcut hai "product upon sum": $\frac{R_1R_2}{R_1+R_2}$ .

Sabse important intuition: parallel mein resistance hamesha sabse chhote resistor se bhi kam ho jaati hai. Kyun? Kyunki naya parallel path current ko ek aur raasta deta hai — flow sirf aasaan ho sakta hai, mushkil nahi. Isse ulta series mein resistance hamesha badhti hai kyunki pipe lamba ho jaata hai.

Exam tip: jab bhi complex circuit dikhe, hamesha andar wala combination pehle solve karo (parenthesis ki tarah), fir bahar ki taraf badho. Aur ek quick sanity check rakho — parallel ka answer smallest R se kam hona chahiye, series ka largest se zyada. Isse galtiyaan turant pakad mein aa jaati hain.
