I - O management — polling, interrupt-driven, DMA: Worked examples

The scenario matrix

Every I/O costing question is one (or a mix) of these case classes. Think of it like the quadrants of a coordinate plane: we must cover them ALL, including the degenerate edges.

Cell	Case class	Distinguishing input	Which method should win?
A	Slow device, single unit	$T_{d e v}$ huge, $N = 1$	Interrupt
B	Fast device, almost-always-ready	$T_{d e v} \approx t_{p o l l}$	Polling
C	High-rate stream, per-byte interrupt	$N$ huge, one IRQ/byte	Polling beats interrupt (!)
D	Large block transfer	$N$ huge, block-capable	DMA
E	Crossover / break-even	solve for the tie point	depends — find threshold
F	Degenerate: $N = 0$	nothing to transfer	all cost $\approx$ setup only
G	Limiting: $T_{d e v} \to 0$	device instant	Polling (no wait to overlap)
H	Limiting: $T_{d e v} \to \infty$	device never ready	Polling waste $\to \infty$
I	Cycle-stealing correction	DMA + bus contention	DMA, but CPU not 100% free
J	Real-world word problem	pick the method	reasoning, not just arithmetic
K	Exam twist	mixed/misleading numbers	catch the trap

We now cover A–K with examples. Each example is tagged with the cell(s) it hits.

Worked examples

Worked example Example 1 — Cell A: slow device, one byte

A disk sensor produces one status byte. The device needs $T_{d e v} = 10, 000$ CPU-time-units to be ready. One poll costs $t_{p o l l} = 1$ unit. One interrupt costs $t_{in t} = 200$ units. Which is cheaper, polling or interrupt?

Forecast: guess before reading — a 10,000-unit wait vs a 200-unit interrupt. Which wins?

Polling cost. Wasted polls $\approx \frac{T _{d e v}}{t _{p o l l}} = \frac{10000}{1} = 10000$ units, all pure waste, then 1 transfer. Why this step? The parent's polling-cost formula: the CPU spins back-to-back until the last poll finds it ready.
Interrupt cost. CPU issues the command, does other work, pays $t_{in t} = 200$ once. Why this step? Overhead is paid once per unit, and here there is exactly one unit.
Compare. $10000 ≫ 200$ .

Verify: ratio $10000/200 = 50 \times$ cheaper with interrupts. A slow, rare device → interrupts. ✅

Worked example Example 2 — Cell B & Cell G: fast, almost-always-ready device

A status flag is ready almost immediately: $T_{d e v} = 1$ unit (essentially the next poll succeeds). $t_{p o l l} = 1$ , $t_{in t} = 200$ . Poll or interrupt?

Forecast: the device is basically instant. Does the fancy interrupt machinery still help?

Polling cost. Wasted polls $\approx T_{d e v} / t_{p o l l} = 1/1 = 1$ . So $\approx 1$ wasted poll + 1 transfer $\approx 2$ units. Why this step? When $T_{d e v} \to t_{p o l l}$ , the loop runs about once — no meaningful waste. This is the $T_{d e v} \to 0$ limit (Cell G).
Interrupt cost. Still $t_{in t} = 200$ units of fixed overhead every time. Why this step? Interrupt overhead does not shrink with a fast device — save/restore context is a fixed price.
Compare. $2 ≪ 200$ .

Verify: polling is $100 \times$ cheaper. Confirms the parent's claim: for a device that is almost always ready, polling can be the fastest option. ✅

Worked example Example 3 — Cell H: the never-ready limit

Same numbers, but a broken device: $T_{d e v} \to \infty$ (it never becomes ready). What happens under polling vs interrupts?

Forecast: which method hangs the CPU and which lets it survive?

Polling. Wasted polls $\approx T_{d e v} / t_{p o l l} \to \infty$ . The CPU spins forever in the busy-wait loop — the machine is frozen. Why this step? Polling gives up the CPU to nothing but checking; with no timeout it never exits.
Interrupt. The CPU issued the command and left. It keeps doing useful work; the interrupt simply never arrives. The CPU is not frozen. Why this step? Interrupt-driven I/O overlaps device idle time with real work, so a stuck device costs the CPU nothing (until a software timeout fires).

Verify: limiting behaviour: polling waste $\to \infty$ , interrupt CPU cost stays bounded. This is why real polling loops need timeouts. ✅

Worked example Example 4 — Cell C: high-rate stream, per-byte interrupts (the surprise)

A fast network card delivers $N = 1, 000, 000$ bytes, one byte ready every $T_{d e v} = 5$ units. Per-byte interrupt costs $t_{in t} = 200$ units; one poll costs $t_{p o l l} = 1$ . Compare total CPU cost for polling vs interrupt (no DMA yet).

Forecast: interrupts are supposed to be the "smart" upgrade over polling. For a firehose device, is that still true?

Polling cost per byte. Wait $\approx T_{d e v} / t_{p o l l} = 5/1 = 5$ polls + 1 move $\approx 6$ units/byte. Total $\approx 6 \times 1 0^{6} = 6, 000, 000$ units. Why this step? Device is fast so each busy-wait is tiny; total = per-byte cost $\times N$ .
Interrupt cost per byte. One IRQ per byte $= t_{in t} = 200$ units/byte. Total $= 200 \times 1 0^{6} = 200, 000, 000$ units. Why this step? The parent's catch — one interrupt per byte at high rate makes ISR overhead dominate.
Compare. $6 \times 1 0^{6}$ vs $2 \times 1 0^{8}$ : polling is $\approx 33 \times$ cheaper.

Verify: for a high-rate device, polling beats interrupt-driven — exactly the paradox the parent warned about, and precisely why DMA was invented. ✅

Worked example Example 6 — Cell E: find the break-even between polling and interrupts

A device becomes ready in $T_{d e v}$ units; $t_{p o l l} = 1$ , $t_{in t} = 200$ . For a single-byte transfer, at what $T_{d e v}$ do polling and interrupt cost the same?

Forecast: the tie is where "wasted spinning" first equals "interrupt overhead". Guess the number.

Set costs equal. Polling waste $\approx T_{d e v} / t_{p o l l} = T_{d e v}$ . Interrupt cost $= t_{in t} = 200$ . Break-even: $T_{d e v} = t_{in t}$ . Why this step? The parent's rule "interrupts win when $T_{d e v} ≫ t_{in t}$ " — the boundary is literally equality.
Solve. $T_{d e v} = 200$ units. Why this step? Below this the device is "fast enough" that spinning is cheaper; above it, interrupts win.

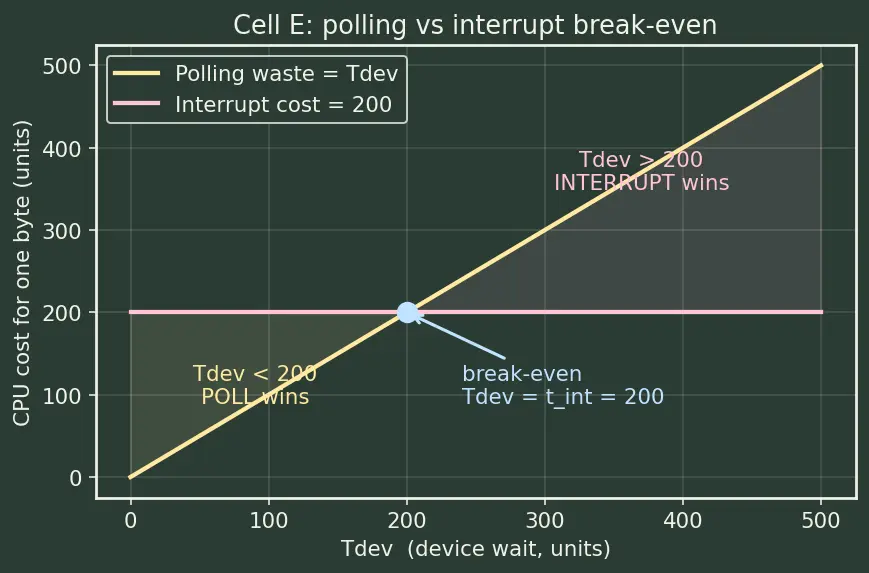

Verify: at $T_{d e v} = 200$ , polling waste $= 200 = t_{in t}$ . For $T_{d e v} < 200$ → poll; $T_{d e v} > 200$ → interrupt. ✅ This gives you a decision threshold, not just an answer. See figure.

Worked example Example 7 — Cell F: the degenerate zero-byte transfer

A driver issues a "transfer" but the count is $N = 0$ bytes (empty read). Cost under each method? $t_{p o l l} = 1, t_{in t} = 200$ , DMA setup $= 200$ .

Forecast: with nothing to move, is the cost truly zero?

Polling. $N = 0$ moves. It may still poll once to confirm "ready/no data" $\approx 1$ unit. Why this step? You can't move zero bytes for free — the status still gets checked at least once.
Interrupt. $N \cdot t_{in t} = 0 \times 200 = 0$ transfer interrupts, but a completion IRQ may still fire $\approx 200$ units depending on the device. Why this step? Per-byte work vanishes; only fixed protocol overhead can remain.
DMA. Setup $200$ + final IRQ $200 = 400$ units even though nothing moved. Why this step? DMA's cost is $O (1)$ by design — it does not drop to zero at $N = 0$ ; the setup is the same.

Verify: degenerate case shows the ordering flips at the low end — for $N = 0$ , polling is cheapest (1 unit) and DMA is most expensive (400), the exact opposite of the large- $N$ ordering. ✅

Worked example Example 8 — Cell I: the cycle-stealing correction

A DMA transfer moves $N = 1000$ words. Each word DMA grabs the memory bus for 1 cycle, stalling the CPU for that cycle (cycle stealing). The CPU runs at 1 cycle/unit. How much CPU time is lost to contention, and is the CPU "100% free"?

Forecast: the parent's mistake callout says DMA does not make the CPU fully free. Estimate the loss.

Stall cost. DMA steals 1 cycle per word $\times 1000$ words $= 1000$ stolen cycles $= 1000$ units. Why this step? Cycle stealing = DMA and CPU share one bus; each stolen cycle is a CPU stall.
Compare to interrupt-driven cost. Interrupt would have cost $1000 \times t_{in t} = 1000 \times 200 = 200, 000$ units of active CPU work. Why this step? Even with cycle stealing, DMA's stolen 1000 units $≪$ 200,000.
Interpretation. CPU is not 100% free (it lost 1000 units), but it lost $200 \times$ less than the interrupt method. Why this step? Corrects the "DMA = totally idle CPU" misconception while keeping DMA the clear winner.

Verify: stolen $= 1000$ units $> 0$ (so not 100% free), yet $1000 ≪ 200000$ (so still far better). ✅

Worked example Example 9 — Cell J: real-world word problem (choose the method)

A driver author must pick a technique for three devices: (a) a keyboard — one keystroke every ~200 ms, 1 byte each; (b) a 10 Gbps NIC — millions of packets/sec, large frames; (c) a temperature sensor polled by a tight control loop that reads a fresh value that is always ready within one poll. Choose polling / interrupt / DMA for each and justify.

Forecast: map each device onto a matrix cell before choosing.

Keyboard → interrupt-driven (Cell A). Rare events, one byte each. Polling wastes 200 ms of spinning; DMA is overkill for a single byte. Why this step? Match method to rate (rare) and block size (tiny). $T_{d e v}$ huge $\Rightarrow$ interrupts beat polling.

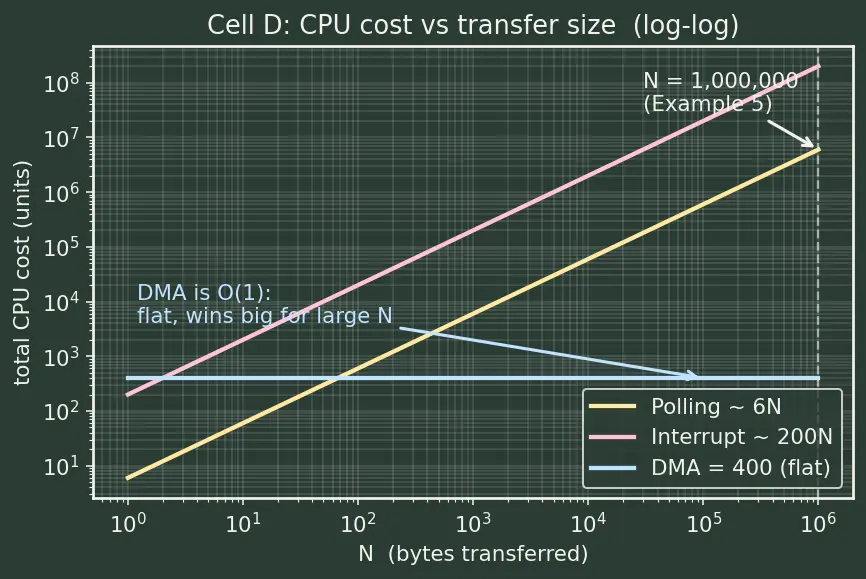

NIC → DMA (Cell D). Huge $N$ , block-capable. Per-byte interrupts would drown the CPU (Cell C); DMA gives 1 IRQ per frame. Why this step? High-rate + large block is the textbook DMA case.
Sensor → polling (Cell B/G). Always ready in one poll, $T_{d e v} \approx t_{p o l l}$ ; interrupt overhead $t_{in t}$ would exceed the tiny poll cost. Why this step? When the device is essentially instant, spinning once is cheaper than $t_{in t}$ .

Verify: each choice matches its matrix cell and the cost inequalities from Examples 1–5. ✅

Worked example Example 10 — Cell K: the exam twist (spot the trap)

"A student claims: since DMA needs 200 units of setup and polling needs only 1 unit per poll, polling is always cheaper." Refute with numbers for an $N = 100, 000$ -byte transfer where each byte's device-wait is $T_{d e v} = 5$ units, $t_{p o l l} = 1$ .

Forecast: the trap is comparing a per-unit number to a whole-transfer number. Find the flaw.

Real polling total. Per byte $\approx T_{d e v} / t_{p o l l} + 1 = 5 + 1 = 6$ units. Total $= 6 \times 100000 = 600, 000$ units. Why this step? Polling's "1 unit" is per poll, and there are many polls per byte times many bytes — it scales as $O (N)$ .
DMA total. $200$ setup $+ 200$ final IRQ $= 400$ units, independent of $N$ . Why this step? DMA is $O (1)$ ; its one-time 200 is a fixed cost, not per-byte.
Expose the fallacy. $600000 ≫ 400$ . The student compared DMA's total to polling's per-poll cost. Why this step? Always compare total CPU cost for the whole transfer, never per-unit vs whole.

Verify: polling $600, 000$ vs DMA $400$ → DMA wins by $1500 \times$ . The "polling always cheaper" claim is false for large $N$ . ✅

Recap of the whole matrix

Recall Which method wins in each limit?

$T_{d e v} \to 0$ (instant device) → wins? ::: Polling — nothing to overlap, interrupt overhead is wasted. $T_{d e v} \to \infty$ (never ready) → polling does what? ::: Spins forever, waste $\to \infty$ ; interrupts leave CPU free. High byte-rate, one IRQ/byte → polling vs interrupt? ::: Polling can beat interrupt because $t_{in t}$ per byte dominates. Large block transfer → best method? ::: DMA — interrupt count drops from $N$ to $1$ . $N = 0$ degenerate transfer → cheapest method? ::: Polling ( $\approx 1$ unit); DMA still pays its $O (1)$ setup. Break-even $T_{d e v}$ between poll and interrupt (single byte)? ::: $T_{d e v} = t_{in t}$ . Does DMA make the CPU 100% free? ::: No — cycle stealing steals bus cycles, but the loss is tiny vs interrupts.
