Foundations — I - O management — polling, interrupt-driven, DMA

This page assumes nothing. If the parent note used a word or a symbol, we build it here from the ground up, in the order that each idea needs the previous one.

0. What is a "device", really?

Picture two boxes that cannot see inside each other:

• The left box is the CPU — the brain that does calculations, running at ~nanosecond speed.
• The right box is the device — slow, running at ~millisecond speed.
• The red wire between them is the only way they communicate.

The whole topic lives on that red wire: how the CPU talks across it.

1. Bit and byte — the units of data

The picture: a byte is a row of 8 light switches.

• Each switch is a bit (up = 1, down = 0).
• Eight switches together = one byte.
• The parent note says "transfer one unit of data" — that unit is usually a byte (or a word, a few bytes the CPU handles at once).

KB in "4 KB" means kilobyte ≈ $1000$ bytes (precisely $1024$ in memory contexts). So $4$ KB $\approx 4096$ bytes — that number $4096$ in the parent's example is just $4\times 1024$.

2. Registers — the mailboxes on the device

The CPU cannot reach inside the device. Instead the device exposes a few tiny memory slots called registers. Think of them as labelled mailboxes bolted to the outside of the device.

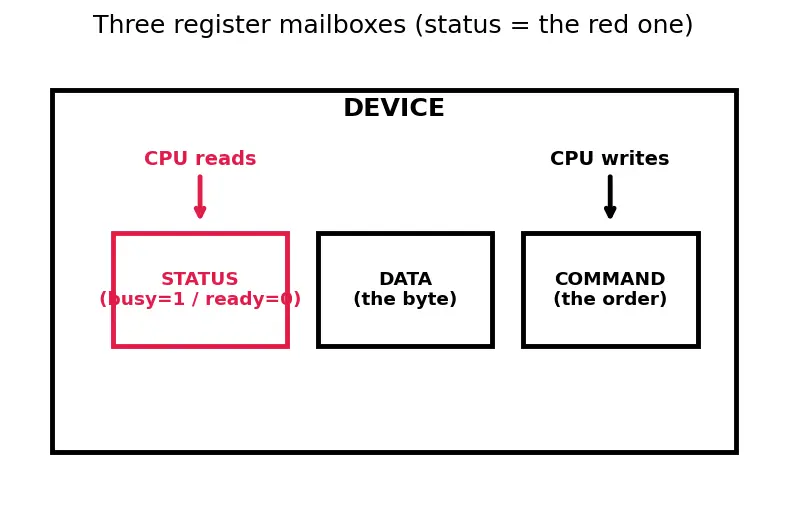

The picture shows three mailboxes:

• The red mailbox is the status register — it is red because the entire topic is about who keeps checking this one flag.
• The status register is set by the device, read by the CPU.
• The command register is written by the CPU, read by the device.

How the CPU reaches these mailboxes (special I/O instructions vs. treating them like ordinary memory addresses) is its own subject — see Memory-mapped I/O vs Port-mapped I/O.

3. The busy-wait loop and the symbol while

The parent shows:

while (status_register.busy == 1) ;

Let's read this like a sentence, symbol by symbol:

• while (condition) ; means "keep doing nothing, as long as the condition is true." The lone semicolon ; is an empty action — the loop's whole job is to check again.
• status_register.busy reads the busy flag out of the status mailbox.
• == 1 asks "is it equal to $1$?" (double-equals == is a question, not an assignment).

So the whole line means: "As long as the device says busy=1, loop back and check again, doing nothing useful." That is busy-waiting — the picture is a person refreshing a page over and over.

4. Time symbols — $T_{dev}$, $t_{poll}$, $t_{int}$

The parent's formulas use three time symbols. Each is just "how long some action takes".

Picture a long bar (the device's wait $T_{dev}$) chopped into many tiny slices (each slice = one poll $t_{poll}$):

The symbol $\gg$ in the parent ("$T_{dev}\gg t_{int}$") means "is very much bigger than" — not just bigger, overwhelmingly bigger. It marks the condition under which interrupts clearly beat polling.

5. Interrupt, ISR, and "context"

Saving and restoring this snapshot is itself work — that is a big chunk of $t_{int}$. The full mechanics are Context switching.

6. The bus and DMA

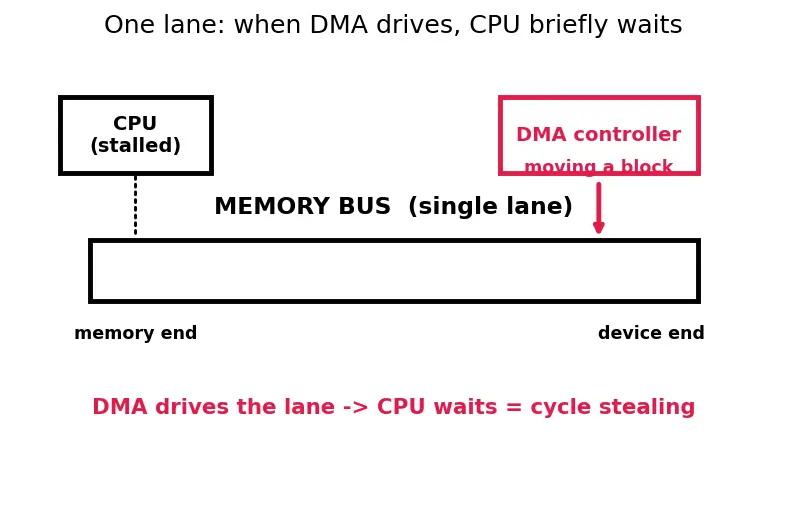

The picture shows the single-lane bus:

• Normally the CPU drives on it.
• During a DMA transfer the red DMA controller hops on to move a block.
• Because it's one lane, when DMA is driving, the CPU must briefly wait — this is cycle stealing (DMA "steals" a bus cycle). That's why the parent warns DMA does not make the CPU 100% free.

Prerequisite map

Equipment checklist

Before reading the parent note, you should be able to answer each of these. Cover the right side and test yourself.

Now you carry every symbol the parent note assumed. Return to the main I/O management note and the Hinglish version, and each formula will read like plain English.
