SOLID — Open - Closed Principle: Worked examples

This page is a drill floor. The parent note Open/Closed Principle told you the idea: add new behaviour by adding new code, not by editing code that already works. Here we hit every kind of situation that idea can land you in — the clean cases, the messy cases, the "wait, is this even a real OCP problem?" cases — and we work each one fully.

Before anything else, two words we lean on constantly.

Two Python tools appear in almost every example, so let us pin them down before using them:

Definition

ABC and @abstractmethod — where they come from These are not built-in words; you must import them from Python's standard library:

from abc import ABC, abstractmethod

ABC ("Abstract Base Class") is a class you inherit from to say "this is a contract, not a usable thing on its own." @abstractmethod marks a method that must be filled in by every subclass. Together they freeze the interface — the "frozen contract" the parent note talks about. Every code block below assumes this one import line at the top of the file.

Everything below is about recognising which situation you're in and applying (or NOT applying) OCP correctly.

The scenario matrix

Think of every OCP problem as landing in one cell of a grid. Read it as a decision journey, not a static table: first you ask "is this even a new feature?" (if it's a bug, you just edit — Case F). If it is a new feature, you count how many times this thing has varied: zero-or-one variation means don't abstract yet (Case B); a third variation is the trigger to refactor (Case C); an already-abstracted axis just takes a new class (Case A). Along the way you watch for two traps — abstracting when nothing ever varied (Case E) and cramming two independent variations into one hierarchy (Case G) — plus the special shapes: the degenerate "nothing happens" input (Case D), the plain-English word problem where you must spot the axis yourself (Case H), and the exam trick that tests whether you judge OCP by output or by extensibility (Case I).

The table below is that same journey pinned down. Each column is a question about the situation; each row is one landing spot, ending in the example that drills it.

Case class	What it looks like	Right move	Worked in
A. Clean new type	Add a shape/rule; abstraction already exists	Add one new class	Ex 1
B. First-ever variation ("count = 1")	Only one behaviour today, no `if` yet	Do nothing — no abstraction	Ex 2
C. Rule of Three trigger ("count = 3")	Third `elif` branch appears	Refactor to polymorphism now	Ex 3
D. Degenerate / zero case	Empty list, "no discount", null behaviour	Model it as a real class (Null Object)	Ex 4
E. Over-engineering trap	Interface with one implementation "just in case"	Delete the abstraction	Ex 5
F. Not-a-feature (bug fix)	Existing rule computes wrong number	Edit the code — OCP allows it	Ex 6
G. Hidden second axis	New requirement varies two things at once	Two abstractions, not one giant one	Ex 7
H. Word problem (real world)	Plain-English "add a payment method"	Spot axis → new class	Ex 8
I. Exam twist	"Is this OCP-compliant?" trick code	Judge: does new behaviour edit old code?	Ex 9

The same decision journey, drawn as a flow you can trace top-to-bottom, appears in the Scenario map diagram at the very bottom of this page. We now walk every row A → I. Read the "Forecast" and guess before scrolling.

Ex 1 — Case A: clean new type

Worked example Add a

Triangle to the area calculator from the parent note The abstraction already exists (recall the import line from abc import ABC, abstractmethod sits at the top of the file), and all existing shapes are shown here in full so nothing is undefined:

from abc import ABC, abstractmethod

class Shape(ABC):
    @abstractmethod
    def area(self): ...

class Circle(Shape):
    def __init__(self, r): self.r = r
    def area(self): return 3.14159 * self.r ** 2

class Rectangle(Shape):
    def __init__(self, w, h): self.w, self.h = w, h
    def area(self): return self.w * self.h

class AreaCalculator:
    def total(self, shapes):
        return sum(s.area() for s in shapes)

Task: support triangles, then compute the total area of a circle ( $r = 2$ ), a rectangle ( $5 \times 3$ ), and a triangle (base $4$ , height $6$ ).

Forecast: How many existing files must you open to edit? (Guess: 0, 1, or 2?)

Write a new class only. Why this step? Because "which shape?" is already the frozen variation axis — the contract area() is set, so a new shape is a new implementation, never an edit.

class Triangle(Shape):
    def __init__(self, b, h): self.b, self.h = b, h
    def area(self): return 0.5 * self.b * self.h   # triangle owns its own formula

Compute. Why? To prove AreaCalculator.total never changed yet still handles the newcomer.
- Circle: $3.14159 \times 2^{2} = 12.56636$
- Rectangle: $5 \times 3 = 15$
- Triangle: $\frac{1}{2} \times 4 \times 6 = 12$
- Total $= 12.56636 + 15 + 12 = 39.56636$

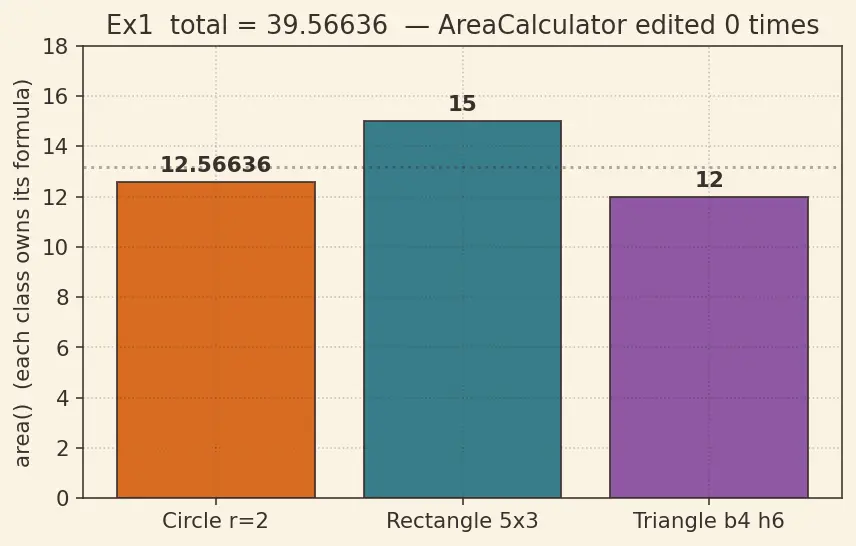

The figure shows each shape feeding its own area() into a calculator that never opens:

Figure — SOLID — Open - Closed Principle

Verify: total only calls s.area() — it cannot know a Triangle exists, so it literally could not have been edited. Sum $= 39.56636$ . Answer to the forecast: 0 files edited. ✅

Ex 2 — Case B: the FIRST variation (do nothing!)

Worked example A shop currently has exactly ONE discount rule: none.

def checkout(price):
    return price          # no discount, ever, today

Task: Should you introduce a Discount interface right now, "to be ready for OCP"?

Forecast: Yes, add the interface? Or no, leave it?

Count the variations. Why this step? OCP is fuel for predicted variation — variation you have actually seen. Here the count is one. There is no if, no axis yet.
Decide: leave it. Why? An interface with one implementation is pure indirection — the [!mistake] "over-engineering" trap from the parent note. Abstraction has upfront cost; you pay it only when variation is real.

Verify: Sanity check against the Rule of Three (defined above) — you refactor on the third variation, not the first (3 > 1, so not yet). Adding the interface now would create a one-implementation interface, which the parent note explicitly calls "speculative-generality bait." ✅ Correct move: do nothing.

Ex 3 — Case C: Rule-of-Three trigger

Worked example The discount code has grown a third branch.

def checkout(price, kind):
    if kind == "none":        return price
    elif kind == "premium":   return price * 0.80
    elif kind == "seasonal":  return price * 0.90   # ← third branch just appeared

Task: Refactor to OCP, then verify a premium price of $200$ and a seasonal price of $200$ give the same numbers as before.

Forecast: After refactoring, what does checkout look like — how many ifs remain?

Recognise the trigger. Why this step? The Rule of Three (defined at the top of this page) says: tolerate one branch, tolerate two, but on the third variation, refactor. We're at three. The if/elif on a "kind" field is the classic OCP smell.

Extract each branch into its own class. Why? So each rule owns its own number, and checkout depends only on the contract.

from abc import ABC, abstractmethod

class Discount(ABC):
    @abstractmethod
    def apply(self, price): ...

class NoDiscount(Discount):
    def apply(self, price): return price
class PremiumDiscount(Discount):
    def apply(self, price): return price * 0.80
class SeasonalDiscount(Discount):
    def apply(self, price): return price * 0.90

Make checkout depend on the abstraction. Why? Now a fourth rule = new class, zero edits here.
```
def checkout(price, discount: Discount):
    return discount.apply(price)
```
Recompute to prove behaviour is preserved: premium $200 \times 0.80 = 160$ ; seasonal $200 \times 0.90 = 180$ .

Verify: Old checkout(200,"premium") gave $160$ ; new checkout(200, PremiumDiscount()) gives $160$ . Same for seasonal → $180$ . Zero ifs remain in checkout. This is the Refactoring — Replace Conditional with Polymorphism move, producing the Strategy Pattern. ✅

Ex 4 — Case D: the degenerate / "nothing happens" case

This example stays entirely inside the discount checkout world of Ex 3 for its first two steps, then — clearly flagged — pivots to a second degenerate input in the area-calculator world of Ex 1. Watch the "which world" tag on each step.

Forecast: Is if discount is None a harmless special case, or a fresh OCP violation?

(Discount world) Spot the sneaked-back conditional. Why this step? The whole point of Ex 3 was to delete the type-if. Special-casing None puts a branch back into checkout — the closed code re-opens.
(Discount world) Model "nothing" as a real class. Why? "No discount" is a valid discount rule — it just returns the price unchanged. This is the Null Object: the degenerate case becomes an ordinary implementation, so it flows through the same abstraction. (NoDiscount was already defined in Ex 3.)
```
checkout(150, NoDiscount())                # a real class, not None!
```
(Now switching to the AREA world of Ex 1) Empty cart / empty shape list. Why cover it, and why here? It is the same idea — a degenerate input — but on the other abstraction, so you see the pattern generalise. What is the total area of no shapes at all?
```
AreaCalculator().total([])   # sum of nothing = 0, no crash, no special-case if
```

Verify: Discount world: checkout(150, NoDiscount()) $= 150$ (identity preserved, no if). Area world: total([]) $= 0$ — Python's sum of an empty sequence is $0$ , so the degenerate case is safe without any special if. ✅ In both worlds the zero case is handled by a class or a natural identity, never a branch.

Ex 5 — Case E: over-engineering (delete the abstraction)

Worked example A codebase has this, and only ever this:

from abc import ABC, abstractmethod

class TaxCalculator(ABC):
    @abstractmethod
    def tax(self, amount): ...

class GstTax(TaxCalculator):
    def tax(self, amount): return amount * 0.18   # the ONLY implementation, for 3 years

Task: Is this good OCP? Fix it. Verify tax on $1000$ .

Forecast: Keep the interface (it's "extensible!") or collapse it?

Count implementations across the axis. Why this step? OCP earns its keep only on an axis that has actually varied. Here the axis "which tax?" has stayed at exactly one for years — the abstraction predicts a variation that never came.
Collapse to a plain function. Why? Indirection with one implementation is cost without benefit — the parent's over-engineering [!mistake]. If GST ever splits into multiple regimes, then re-introduce Discount-style classes (Rule of Three).
```
def gst_tax(amount): return amount * 0.18
```

Verify: Behaviour identical: $1000 \times 0.18 = 180$ before and after. We removed a class and an ABC with no loss of behaviour → the abstraction was dead weight. ✅ OCP-correct here means less structure.

Ex 6 — Case F: it's a BUG, not a feature (edit the code!)

Worked example

PremiumDiscount was supposed to give 20% off but someone typed * 0.08.

class PremiumDiscount(Discount):
    def apply(self, price): return price * 0.08   # BUG: 92% off, not 20%!

Task: Fix it. Does OCP forbid you from editing this file? Verify on $500$ .

Forecast: Must you add a new CorrectPremiumDiscount class to obey "closed for modification"?

Classify the change. Why this step? OCP's "closed for modification" targets adding new behaviour, not banning bug fixes (parent's third [!mistake]). The intended behaviour was always 20% off — the code is simply wrong, so fixing it is not "new behaviour."
Edit in place. Why? Creating a parallel "correct" class would leave the broken one live and double the confusion.
```
def apply(self, price): return price * 0.80   # fixed
```

Verify: Buggy: $500 \times 0.08 = 40$ (customer pays almost nothing — clearly wrong). Fixed: $500 \times 0.80 = 400$ (a true 20% off $500$ is $500 - 100 = 400$ ). ✅ Editing here is correct and OCP-compliant — OCP never said "never touch code."

Ex 7 — Case G: a hidden SECOND axis

Forecast: With 3 channels and 4 formats, how many classes in the naive design vs the split design?

Notice there are TWO variation axes. Why this step? "Channel" and "format" vary independently. Cramming both into one class hierarchy multiplies them.
Count the naive explosion. Why? To feel the pain: one class per combination = $3 \times 4 = 12$ classes. Add a 4th channel → jump to $4 \times 4 = 16$ .

Split into two abstractions AND compose them. Why? Each axis gets its own interface; notify combines one Formatter with one Channel at call time, so the two axes never multiply. Here is the complete, runnable design — note the closing of every block:

from abc import ABC, abstractmethod

# --- axis 1: how do we deliver? ---
class Channel(ABC):
    @abstractmethod
    def send(self, text): ...

class EmailChannel(Channel):
    def send(self, text): return f"EMAIL >> {text}"
class SmsChannel(Channel):
    def send(self, text): return f"SMS >> {text}"

# --- axis 2: how do we format? ---
class Formatter(ABC):
    @abstractmethod
    def format(self, msg): ...

class PlainFormatter(Formatter):
    def format(self, msg): return msg
class HtmlFormatter(Formatter):
    def format(self, msg): return f"<p>{msg}</p>"

# --- composition: pick ONE of each, no combined classes ---
def notify(msg, channel: Channel, formatter: Formatter):
    return channel.send(formatter.format(msg))

# e.g. HTML message over SMS:
notify("Hi", SmsChannel(), HtmlFormatter())   # -> "SMS >> <p>Hi</p>"

Now:

3

channels

+ 4

formats

= 7

classes cover all

12

combinations, and notify mixes them freely.

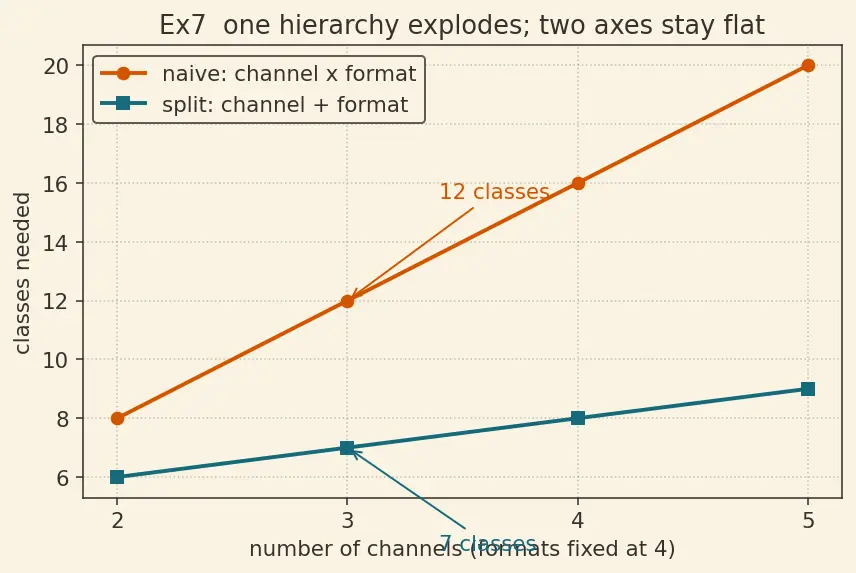

The figure contrasts the multiplying hierarchy with the flat "two axes" design:

Verify: Naive $= 3 \times 4 = 12$ classes; split $= 3 + 4 = 7$ classes, yet both cover all $12$ pairings ( $7 < 12$ , and adding one channel costs +1 class, not +4). The composition notify("Hi", SmsChannel(), HtmlFormatter()) chains format then send, yielding "SMS >> <p>Hi</p>" — proof the two axes combine at call time. ✅ Two axes → two abstractions. (This is why SRP pairs with OCP: one reason to change per class.)

Ex 8 — Case H: real-world word problem

Forecast: What is the variation axis hiding in that sentence?

Extract the axis from the words. Why this step? "also accept UPI… maybe PayPal" = the phrase "also / another" is the tell — the axis is "which payment method?", and it has already grown past two → refactor.

Define the contract. Why? So process_payment depends on PaymentMethod, never on names.

from abc import ABC, abstractmethod

class PaymentMethod(ABC):
    @abstractmethod
    def charge(self, amount): ...

class Upi(PaymentMethod):
    def charge(self, amount): return amount * 1.02   # 2% gateway fee lives HERE

def process_payment(amount, method: PaymentMethod):
    return method.charge(amount)

Compute the UPI charge. Why? To answer the word problem: $1200 \times (1 + 0.02) = 1200 \times 1.02 = 1224$ .

Verify: Fee portion $= 1200 \times 0.02 = 24$ ; total $= 1200 + 24 = 1224$ . ₹1224 charged. PayPal next quarter = one new class, process_payment untouched. ✅

Ex 9 — Case I: the exam twist ("is this OCP?")

Worked example Trick question. Two candidate designs; which obeys OCP?

Design X:

def price_with_tax(amount, region):
    rates = {"IN": 0.18, "US": 0.07, "EU": 0.20}
    return amount * (1 + rates[region])   # add a region → EDIT this dict

Design Y:

from abc import ABC, abstractmethod

class TaxRule(ABC):
    @abstractmethod
    def total(self, amount): ...

class IndiaTax(TaxRule):
    def total(self, amount): return amount * 1.18

Task: Judge each. Then compute a $₹1000$ India total under both — do they agree numerically?

Forecast: Same output number — does that mean both satisfy OCP?

State the test. Why this step? OCP is judged by one question only: to add a new variation (a new region), must I edit existing code? Not "does it give the right number."
Apply to X. Why? Adding region "AU" means editing the rates dict inside price_with_tax — a working, tested function reopens. X violates OCP (the dict is a disguised if/elif).
Apply to Y. Why? Adding "AU" means writing a new class AustraliaTax(TaxRule) — no existing file opens. Y satisfies OCP.
Compute both for India, $1000$ : X: $1000 \times (1 + 0.18) = 1180$ . Y: $1000 \times 1.18 = 1180$ .

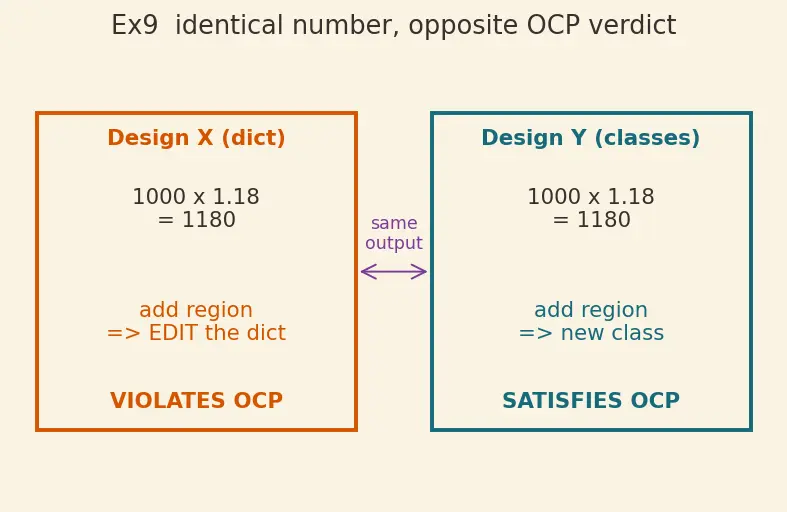

The figure drives home that identical output and OCP verdict are unrelated:

Verify: Both give $1180$ — proving that identical output does not imply OCP compliance. The distinguisher is how you'd add the next region: X edits, Y extends. ✅ Exam trap dodged.

Recall Quick self-test across the matrix

Which case: only one behaviour today, no if? ::: Case B — do nothing, no abstraction yet. Which case: a third elif on a type field appears? ::: Case C — Rule of Three, refactor to polymorphism. Which case: fixing a wrong number in an existing rule? ::: Case F — a bug fix; edit the code, OCP allows it. An interface with one implementation for 3 years is which case? ::: Case E — over-engineering; collapse it. Which case: a plain-English request where you must spot the axis yourself? ::: Case H — word problem; the "also/another" phrase names the axis. Which case: two things vary independently — how many abstractions? ::: Case G — two, not one giant combined hierarchy. Which case: "is this OCP-compliant?" trick where output looks fine? ::: Case I — judge by extensibility, not by output. "No discount / empty cart" is handled by what, not by an if? ::: Case D — a class (Null Object) / sum([]) = 0. The single question that decides OCP compliance ::: To add a new variation, must you EDIT existing code? If yes, it violates OCP.

Connections

SOLID — Open - Closed Principle — the parent idea these drills exercise.
Strategy Pattern — the shape of Ex 3, Ex 8, Ex 9-Y.
Template Method Pattern — sibling realization when steps (not whole algorithms) vary.
Polymorphism — the dispatch that lets total/checkout/process_payment stay closed.
Refactoring — Replace Conditional with Polymorphism — the exact Ex 3 → Ex 3′ move.
SOLID — Single Responsibility Principle — why Ex 7 splits into two axes.
SOLID — Liskov Substitution Principle — every new class must substitute safely behind the contract.
SOLID — Dependency Inversion Principle — checkout(price, discount: Discount) depends on the abstraction, the backbone of every example above.
