SOLID — Dependency Inversion Principle — Coding notes

WHAT is the Dependency Inversion Principle?

WHY does it matter?

HOW: deriving it from first principles

Let's derive the principle by reasoning about change.

Step 1 — Observe the natural coupling. A normal call graph:

OrderService → calls → MySqlOrderDb (concrete)

Why this step? We want to see where the dependency arrow points by default: high-level depends on a concrete detail.

Step 2 — Ask: which part is more valuable / more stable? OrderService (policy) is the business asset; MySqlOrderDb is a swappable mechanism.

Why this step? DIP is fundamentally about protecting the stable thing from the volatile thing.

Step 3 — Insert an abstraction the high-level module owns. Define OrderRepository (interface). Now:

OrderService → OrderRepository (interface) ← MySqlOrderDb (implements)

Why this step? Both modules now depend on the abstraction; the concrete detail's arrow has been inverted to point up.

Step 4 — Supply the concrete via injection. Hand the concrete object in through the constructor (Dependency Injection is the common delivery mechanism).

Why this step? The high-level module must never new the concrete — otherwise the source-code dependency sneaks back.

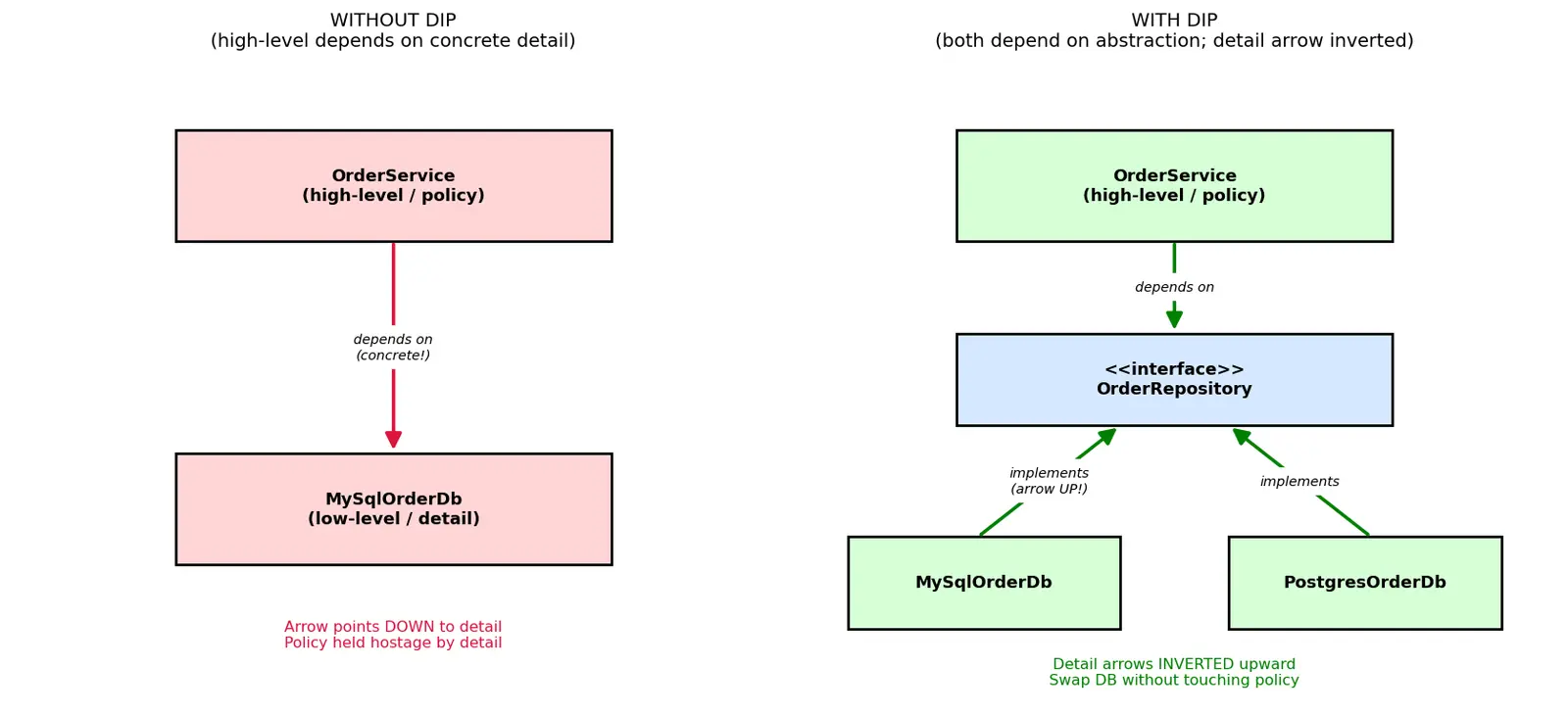

Figure — SOLID — Dependency Inversion Principle

Worked example Bad → Good (Java-ish pseudocode)

Violates DIP — high-level depends on concrete:

class NotificationService {
    EmailSender sender = new EmailSender(); // concrete!
    void notify(String m){ sender.sendEmail(m); }
}

Why bad? NotificationService (policy) is welded to EmailSender (detail). Can't add SMS or unit-test without sending real email.

Obeys DIP:

interface MessageSender { void send(String m); }       // abstraction (owned by policy)
class EmailSender implements MessageSender { ... }      // detail points UP
class SmsSender   implements MessageSender { ... }

class NotificationService {
    private final MessageSender sender;
    NotificationService(MessageSender s){ this.sender = s; } // injected
    void notify(String m){ sender.send(m); }
}

Why good? Now notify works with any sender; swapping channels never touches business logic; tests pass a FakeSender.

Common mistake Steel-manning the common confusions

Mistake 1: "DIP just means use Dependency Injection." Why it feels right: DI is how we usually deliver the abstraction, so they look identical. The fix: DI is a technique (passing an object in). DIP is a goal (depend on abstractions). You can inject a concrete class and still violate DIP; you can satisfy DIP via a service locator or factory without classic DI.

Mistake 2: "Abstract everything — wrap every class in an interface." Why it feels right: More interfaces looks more flexible. The fix: Abstractions cost indirection. Apply DIP at volatile boundaries (DB, network, UI, 3rd-party libs) — places likely to change. Stable, simple value classes don't need it (80/20: most benefit comes from inverting a few key seams).

Mistake 3: "The interface belongs in the low-level package." Why it feels right: The implementer is the DB code, so put the contract next to it. The fix: The abstraction should be owned by / live near the high-level policy. That's what makes the dependency truly inverted — the detail package depends on the policy package, not vice versa.

Recall Feynman: explain to a 12-year-old

You have a toy robot. Instead of gluing one specific battery inside, you give it a battery slot of a standard size. Now you can put in any battery — rechargeable, regular, even a solar pack — as long as it fits the slot. The robot only knows "a thing that fits the slot," not the exact battery. So you can change batteries forever without ever opening up and rebuilding the robot. The "slot shape" is the abstraction; the robot is your important code; the batteries are the swappable details.

Active Recall

What are the two clauses of the Dependency Inversion Principle?

(1) High-level and low-level modules should both depend on abstractions, not each other. (2) Abstractions should not depend on details; details should depend on abstractions.

What does "inversion" refer to in DIP?

Flipping the dependency arrow: instead of high-level code depending on a concrete low-level class, both depend on an abstraction the high-level module owns — so the detail's arrow points UP.

Difference between DIP and Dependency Injection?

DIP is a design goal (depend on abstractions); DI is a technique for delivering the dependency. You can use DI yet still inject a concrete and violate DIP.

Which letter of SOLID is DIP?

The "D" (last one).

Where should the abstraction (interface) ideally live?

With/near the high-level policy module that owns it, so the low-level detail package depends on the policy package — making the dependency truly inverted.

Define instability I in terms of couplings.

I = Ce / (Ca + Ce); I=0 is maximally stable (nothing it depends on), I=1 is maximally unstable.

Why shouldn't you wrap every class in an interface?

Abstractions add indirection cost; apply DIP at volatile boundaries (DB, network, UI, 3rd-party) — 80/20, not everywhere.

What practical benefit does DIP give for testing?

You can inject a fake/mock implementation of the abstraction, testing business logic without real DB/email/network.

Connections

SOLID — Single Responsibility Principle
SOLID — Open-Closed Principle (DIP is how you achieve OCP at boundaries)
SOLID — Liskov Substitution Principle (substitutability makes inversion safe)
SOLID — Interface Segregation Principle
Dependency Injection
Strategy Pattern / Factory Pattern
Inversion of Control Containers
Coupling and Cohesion
Hexagonal Architecture / Ports and Adapters

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Dependency Inversion Principle ka core idea simple hai: tumhara important business logic (high-level code) kabhi bhi seedha kisi concrete chhoti cheez (jaise MySQL database ya EmailSender) par depend nahi karna chahiye. Dono ko ek beech ke abstraction (interface) par depend karna chahiye. Socho ek electric socket — tumhara charger sirf socket ki shape par bharosa karta hai, power plant kaun sa hai isse matlab nahi. Wahi socket ki shape yahan "interface" hai.

"Inversion" ka matlab hai dependency ka arrow ulta karna. Normally OrderService apne andar new MySqlDb() likh deta hai — yaani policy detail par depend karti hai (arrow neeche). DIP bolta hai: ek OrderRepository interface banao, OrderService usi interface ko jaane, aur MySqlDb us interface ko implement kare. Ab detail ka arrow upar point karta hai. Bas yahi inversion hai.

Iska faayda? Agar kal database badalna ho ya Email ki jagah SMS bhejna ho, toh tumhe apne core logic ko chhuna hi nahi padega — bas ek nayi class bana ke inject kar do. Aur testing mein ek nakli (fake/mock) implementation pass kar ke bina real DB ke test ho jata hai. Ek important baat: DIP aur Dependency Injection same nahi hai — DIP ek goal hai (abstraction par depend karo), DI ek tarika hai (object ko bahar se pass karna). Aur har class ko interface mein mat lapeto — sirf un jagah jahan change hone ke chance zyada hain (DB, network, UI). Yahi 80/20 wisdom hai.
