Step 1 — What a water molecule is, and why it won't split by itself

WHAT. A water molecule is one oxygen atom holding two hydrogen atoms. Those bonds are like tight springs: to pull the atoms apart you must pay energy.

WHY start here. Before we talk voltage, we must see that water is sitting at the bottom of a valley. Things at the bottom of a valley don't roll uphill on their own — you have to push them. That push, measured properly, will become our $1.23$ volts.

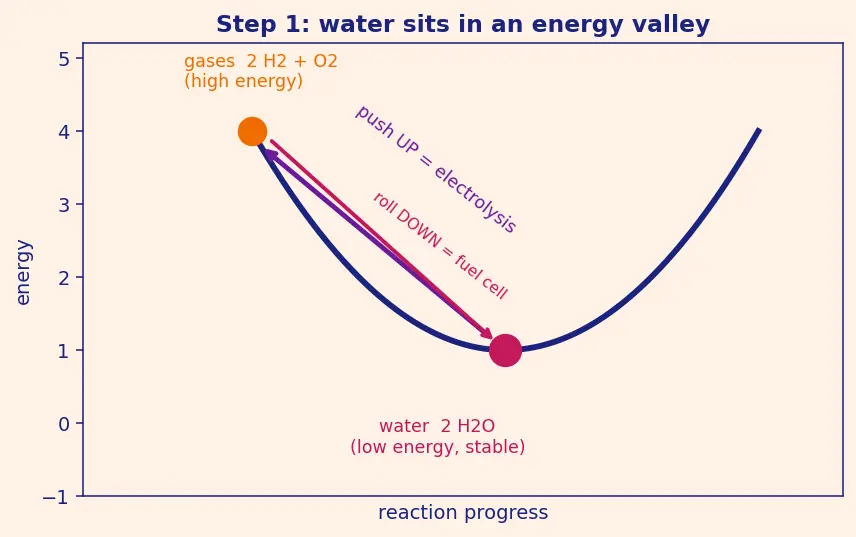

PICTURE. Look at the energy landscape. The valley floor is $2{\text{H}}_2\text{O}$ (water, stable, low energy). The hill on the left is $2{\text{H}}_2+{\text{O}}_2$ (the split-apart gases, high energy). The height of that climb is the energy we must supply.

Step 2 — Measuring the hill's height: Gibbs free energy $\Delta G^{\circ }$

WHAT. Chemists measure "how much usable energy the reaction costs or gives" with a single number called the Gibbs free energy change, written $\Delta G^{\circ }$.

WHY this tool and not just "energy". Not all energy in a reaction is usable to do work — some leaks out as disorder/heat. Gibbs Free Energy and Spontaneity is exactly the usable part, the part we could convert into electricity. That is what we care about, so that is the ruler we pick.

Reading the sign — this is the whole trick:

$\Delta G^{\circ }\underset{\text{water}\to \text{gases}}{\underbrace{>}}0\Delta G^{\circ }\underset{\text{gases}\to \text{water}}{\underbrace{<}}0$

• $\Delta G^{\circ }$ is the symbol for the usable-energy change.
• The little ${}^{\circ }$ means "measured under standard textbook conditions" (room-ish conditions, tidy amounts) so everyone quotes the same number.
• $>0$ means the reaction absorbs usable energy (uphill — electrolysis).
• $<0$ means it releases usable energy (downhill — fuel cell, spontaneous).

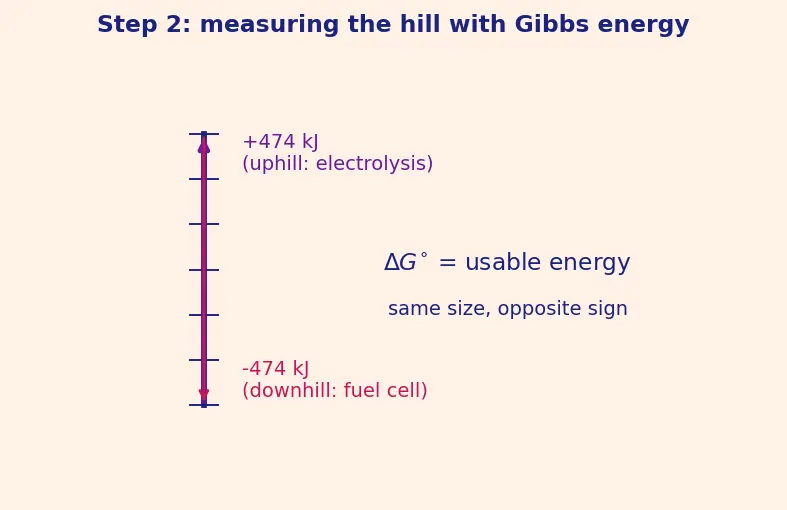

PICTURE. Same hill, now with a vertical ruler pinned to it. The ruler reads $+474\text{kJ}$ for going up (per two water molecules), and $-474\text{kJ}$ for coming down. Same size, opposite sign.

Step 3 — Counting the electrons that do the work

WHAT. Splitting water is done by moving electrons. Electrons are the tiny negative charges that make electricity. To split $2{\text{H}}_2\text{O}$ we must shuffle exactly 4 electrons.

WHY count them. Voltage is "energy per unit of charge." To turn our energy (kJ) into a voltage, we need to know how much charge carried that energy. That charge is the electrons — so we count them.

Where the 4 comes from (build it, don't assume it):

$\underset{\text{makes one }{\text{H}}_2}{\underbrace{2{\text{H}}^{+}+2e^{-}}}\to {\text{H}}_2\Rightarrow \text{two }{\text{H}}_2\text{ need }4e^{-}$

• ${\text{H}}^{+}$ is a hydrogen atom that lost its electron (a bare proton).
• $e^{-}$ is one electron. Two of them plus two ${\text{H}}^{+}$ rebuild one hydrogen molecule ${\text{H}}_2$.
• We want two ${\text{H}}_2$ (to match $2{\text{H}}_2\text{O}$), so double it: $n=4$ electrons.

PICTURE. Four electrons streaming across from the anode side to the cathode side, each drawn as a small marble, feeding into the two ${\text{H}}_2$ molecules being built.

Step 4 — The charge carried by those electrons: Faraday's constant $F$

WHAT. One electron carries a fantastically tiny charge. But a whole mole of electrons (an Avogadro-sized crowd of them) carries a big, tidy amount: $F=96485$ coulombs. This is Faraday's constant.

WHY this constant. Our energy is quoted "per mole." To match it, we need the charge "per mole" too. Faraday's Laws of Electrolysis hands us exactly that bridge: $F$ converts moles of electrons into coulombs of charge.

$\text{total charge}=n\times F=4\times 96485\text{C}=385940\text{C}$

• $n=4$: the electrons we counted in Step 3.
• $F=96485\text{C/mol}$: charge of one mole of electrons.
• Their product is the total charge that must flow to split $2{\text{H}}_2\text{O}$.

PICTURE. A bucket labelled "1 mole of electrons" tipping out $96485$ coulombs; four such buckets stacked to give the total charge for our reaction.

Step 5 — Energy ÷ charge = voltage: the birth of $1.23\text{V}$

WHAT. Now we do the one division that defines voltage: voltage is energy per unit charge.

WHY divide. A "volt" literally means one joule of energy per one coulomb of charge. We have the energy (Step 2) and the charge (Step 4). Dividing them must give volts. This is not a coincidence — it's the definition.

$E^{\circ }=\frac{-\Delta G^{\circ }}{nF}$

• $E^{\circ }$ is the standard cell voltage — the number we're hunting.
• $\Delta G^{\circ }$ is the usable energy (Step 2).
• The minus sign flips the bookkeeping: a downhill release ($\Delta G^{\circ }<0$) gives a positive delivered voltage.
• $nF$ is the total charge (Steps 3–4).

Plug in the split direction ($\Delta G^{\circ }=+474000\text{J}$, i.e. energy must go in):

$E^{\circ }=\frac{474000\text{J}}{4\times 96485\text{C}}=\frac{474000}{385940}\text{V}\approx 1.23\text{V}$

PICTURE. The energy bar (kJ) on the left and the charge bar (C) on the right, with a big division bar between them producing a single tall marker at $1.23$ on a voltage scale.

Step 6 — The two directions share the number but flip the sign

WHAT. For electrolysis you must apply at least $1.23\text{V}$ (you push). For the fuel cell the same reaction run backwards delivers $+1.23\text{V}$ (it pushes for you).

WHY same magnitude. It's the same hill (Step 1). Going up costs $474$ kJ; coming down releases $474$ kJ. Same $\Delta G^{\circ }$ magnitude, opposite sign → same $E^{\circ }$ magnitude, opposite sign. The Electrochemistry — Standard Electrode Potentials just bookkeep which electrode is which.

$\text{Electrolysis: }\Delta G^{\circ }=+474\text{ kJ}\Rightarrow \text{apply }+1.23\text{ V}$ $\text{Fuel cell: }\Delta G^{\circ }=-474\text{ kJ}\Rightarrow \text{delivers }+1.23\text{ V}$

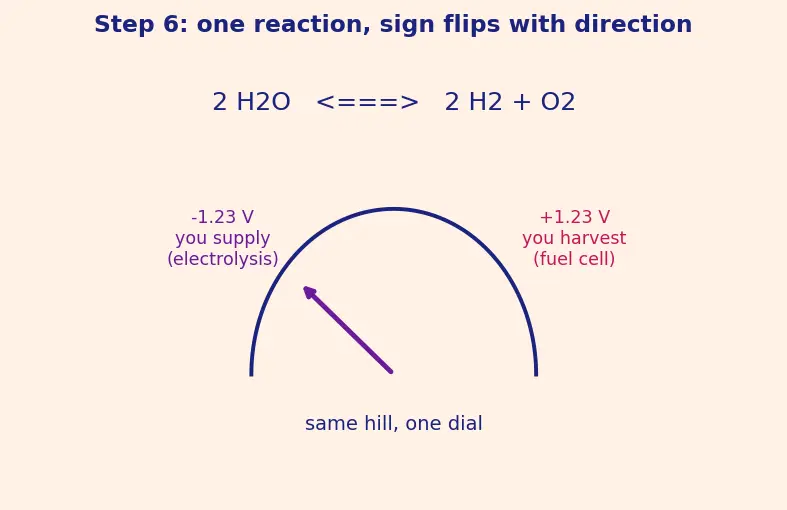

PICTURE. A single reversible arrow $2{\text{H}}_2\text{O}\rightleftharpoons 2{\text{H}}_2+{\text{O}}_2$ with a voltage dial: needle at $-1.23$ (you supply) when going right, at $+1.23$ (you harvest) when going left.

Step 7 — The degenerate/edge cases (never leave a gap)

WHAT & WHY. A derivation is only trustworthy if it survives the corner cases. Here are the ones that trip people up.

Case A — What if $\Delta G^{\circ }=0$? Then $E^{\circ }=0$: the reaction is perfectly balanced, no push needed either way (equilibrium). Water is not this case — its hill is real ($474$ kJ) — but the formula handles it cleanly.

Case B — Real electrolysis: you always need more than $1.23$ V. The $1.23$ V is the frictionless floor. In reality electrons drag at the electrode surface — this extra cost is called overpotential. So practice needs $\sim 1.8$–$2.0\text{V}$. The floor is real; the room has friction.

$V_{\text{applied}}=\underset{\text{thermodynamic floor}}{\underbrace{1.23}}+\underset{\text{overpotential}}{\underbrace{\eta }}+\underset{\text{wire/solution resistance}}{\underbrace{IR}}$

Case C — Why not just use a heat engine instead? A heat engine is capped by the Carnot limit — it can never turn all heat into work. The fuel cell skips heat entirely (chemical → electrical directly), so it is not capped by Carnot. This is why fuel cells reach $50$–$60\%$ where engines sit near $35\%$.

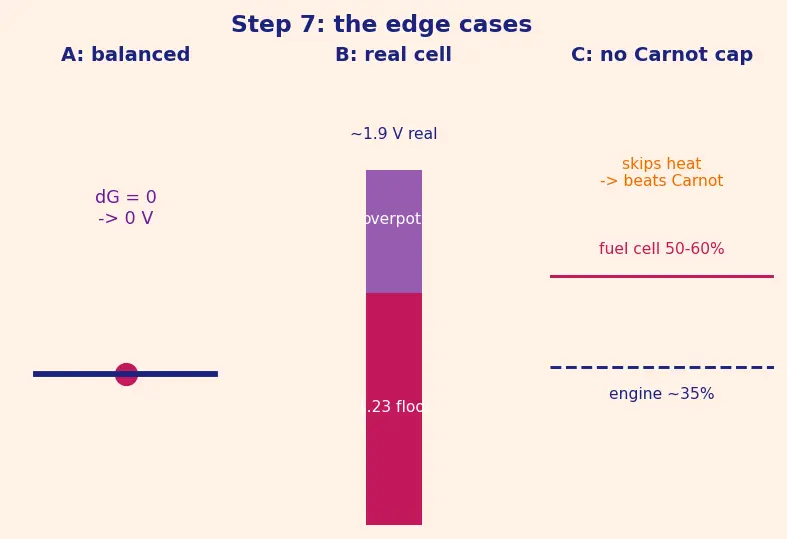

PICTURE. Three little panels: (A) a flat hill with dial at $0$; (B) the $1.23$ floor with an "overpotential" wall stacked on top reaching $\sim 1.9$; (C) a fuel-cell path leaping over the Carnot ceiling.

Step 8 — Turning voltage back into grams (closing the Faraday loop)

WHAT. Once current flows, how much ${\text{H}}_2$ do we actually get? Same $n$ and $F$ do the counting.

WHY. This is the practical payoff: charge in, gas out. Faraday's Laws of Electrolysis says moles of product $\propto$ charge passed.

PICTURE. A ledger: charge (mol $e^{-}$) on the left, divided by $2$, giving mol ${\text{H}}_2$, then $\times$ molar mass giving grams.

The one-picture summary

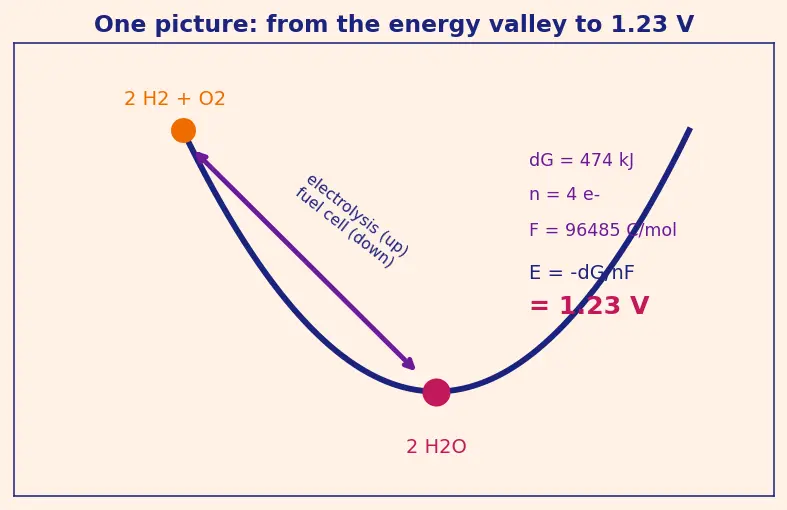

Everything above, on one canvas: the energy valley, the electron count, Faraday's charge, the division into volts, and the reversible arrow that makes electrolysis and fuel cells two readings of one dial.
