Intuition The big pictureThe Carnot cycle is the most efficient possible heat engine running between two temperatures. It is an idealized, fully reversible cycle. Its efficiency depends only on the two reservoir temperatures — not the working substance, not the pressures, nothing else. This single fact is the seed of the 2nd law and absolute temperature itself.

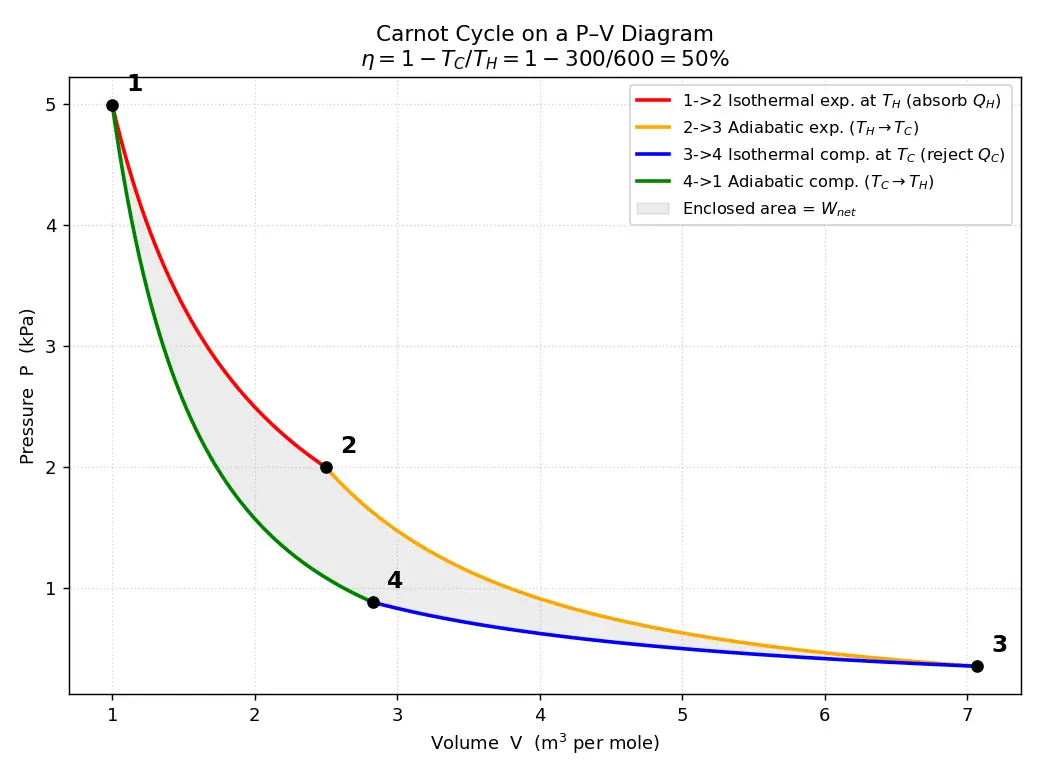

A reversible cycle made of four strokes using an ideal gas between a hot reservoir at T H T_H T H T C T_C T C
Isothermal expansion at T H T_H T H Q H Q_H Q H Adiabatic expansion (T H → T C T_H \to T_C T H → T C Isothermal compression at T C T_C T C Q C Q_C Q C Adiabatic compression (T C → T H T_C \to T_H T C → T H
Intuition Why exactly these four steps?
Why isothermal during heat transfer? To transfer heat reversibly , the gas must be at (essentially) the same temperature as the reservoir — otherwise heat crosses a finite temperature gap, which is irreversible and wastes potential work.Why adiabatic between the two temperatures? To move the gas from T H T_H T H T C T_C T C without contacting any reservoir at an intermediate temperature (that would again be irreversible). Insulate it and let it do/absorb work to change its own temperature.So: heat exchange = isothermal; temperature change = adiabatic. That combination is the only way to keep every step reversible.
We use 1 mole of ideal gas: P V = R T PV = RT P V = R T U = U ( T ) U = U(T) U = U ( T )
General efficiency definition. Over one cycle Δ U = 0 \Delta U = 0 Δ U = 0 η = W net Q H = Q H − Q C Q H = 1 − Q C Q H \eta = \frac{W_{\text{net}}}{Q_H} = \frac{Q_H - Q_C}{Q_H} = 1 - \frac{Q_C}{Q_H} η = Q H W net = Q H Q H − Q C = 1 − Q H Q C
Now we compute Q H Q_H Q H Q C Q_C Q C
Since T T T Δ U = 0 \Delta U = 0 Δ U = 0 Q H = W 1 → 2 Q_H = W_{1\to2} Q H = W 1 → 2 W 1 → 2 = ∫ V 1 V 2 P d V = ∫ V 1 V 2 R T H V d V = R T H ln V 2 V 1 W_{1\to2} = \int_{V_1}^{V_2} P\,dV = \int_{V_1}^{V_2}\frac{RT_H}{V}\,dV = RT_H \ln\frac{V_2}{V_1} W 1 → 2 = ∫ V 1 V 2 P d V = ∫ V 1 V 2 V R T H d V = R T H ln V 1 V 2
Why this step? Used P = R T H / V P = RT_H/V P = R T H / V ∫ d V / V = ln V \int dV/V = \ln V ∫ d V / V = ln V Q H = R T H ln V 2 V 1 \boxed{Q_H = RT_H \ln\frac{V_2}{V_1}} Q H = R T H ln V 1 V 2
Same logic, heat rejected (gas compressed, V 4 < V 3 V_4 < V_3 V 4 < V 3 Q C = − W 3 → 4 = R T C ln V 3 V 4 Q_C = -W_{3\to4} = RT_C \ln\frac{V_3}{V_4} Q C = − W 3 → 4 = R T C ln V 4 V 3
Why the sign? We define Q C Q_C Q C released (positive number), so we take the magnitude. Since V 3 > V 4 V_3 > V_4 V 3 > V 4 ln ( V 3 / V 4 ) > 0 \ln(V_3/V_4) > 0 ln ( V 3 / V 4 ) > 0
For a reversible adiabatic of an ideal gas, T V γ − 1 = const TV^{\gamma-1} = \text{const} T V γ − 1 = const
Apply to step 2 (T H , V 2 → T C , V 3 T_H,V_2 \to T_C,V_3 T H , V 2 → T C , V 3 T C , V 4 → T H , V 1 T_C,V_4 \to T_H,V_1 T C , V 4 → T H , V 1 T H V 2 γ − 1 = T C V 3 γ − 1 , T H V 1 γ − 1 = T C V 4 γ − 1 T_H V_2^{\gamma-1} = T_C V_3^{\gamma-1}, \qquad T_H V_1^{\gamma-1} = T_C V_4^{\gamma-1} T H V 2 γ − 1 = T C V 3 γ − 1 , T H V 1 γ − 1 = T C V 4 γ − 1 V 2 γ − 1 V 1 γ − 1 = V 3 γ − 1 V 4 γ − 1 ⇒ V 2 V 1 = V 3 V 4 \frac{V_2^{\gamma-1}}{V_1^{\gamma-1}} = \frac{V_3^{\gamma-1}}{V_4^{\gamma-1}} \;\Rightarrow\; \frac{V_2}{V_1} = \frac{V_3}{V_4} V 1 γ − 1 V 2 γ − 1 = V 4 γ − 1 V 3 γ − 1 ⇒ V 1 V 2 = V 4 V 3
Why this is the key trick? The two volume ratios that appear in Q H Q_H Q H Q C Q_C Q C equal ! This is what makes the log terms cancel.
Q C Q H = R T C ln ( V 3 / V 4 ) R T H ln ( V 2 / V 1 ) = T C T H ⋅ ln ( V 3 / V 4 ) ln ( V 2 / V 1 ) ⏟ = 1 = T C T H \frac{Q_C}{Q_H} = \frac{RT_C \ln(V_3/V_4)}{RT_H \ln(V_2/V_1)} = \frac{T_C}{T_H}\cdot\underbrace{\frac{\ln(V_3/V_4)}{\ln(V_2/V_1)}}_{=\,1} = \frac{T_C}{T_H} Q H Q C = R T H l n ( V 2 / V 1 ) R T C l n ( V 3 / V 4 ) = T H T C ⋅ = 1 ln ( V 2 / V 1 ) ln ( V 3 / V 4 ) = T H T C
Worked example Example 1 — Steam-to-river engineT H = 600 K T_H = 600\,\text{K} T H = 600 K T C = 300 K T_C = 300\,\text{K} T C = 300 K η \eta η η = 1 − 300 600 = 0.5 = 50 % \eta = 1 - \frac{300}{600} = 0.5 = 50\% η = 1 − 600 300 = 0.5 = 50% Why this step? Direct plug-in; temperatures already in kelvin. Half the absorbed heat becomes work — the rest must be dumped to the cold reservoir.
Worked example Example 2 — Heat rejectedSame engine absorbs Q H = 2000 J Q_H = 2000\,\text{J} Q H = 2000 J W W W Q C Q_C Q C W = η Q H = 0.5 × 2000 = 1000 J W = \eta Q_H = 0.5 \times 2000 = 1000\,\text{J} W = η Q H = 0.5 × 2000 = 1000 J Q C = Q H − W = 1000 J (check: Q C = Q H T C / T H = 2000 ⋅ 1 2 = 1000 ✓ ) Q_C = Q_H - W = 1000\,\text{J} \quad\text{(check: } Q_C = Q_H\,T_C/T_H = 2000\cdot\tfrac12 = 1000 ✓) Q C = Q H − W = 1000 J (check: Q C = Q H T C / T H = 2000 ⋅ 2 1 = 1000 ✓ ) Why both checks? Confirms first law and the reversible relation agree.
Worked example Example 3 — Forecast-then-verifyForecast: If you raise T H T_H T H T C = 300 T_C=300 T C = 300 η \eta η T C T_C T C Verify: Raising T H T_H T H η = 1 − 300 / 900 = 0.667 \eta = 1-300/900 = 0.667 η = 1 − 300/900 = 0.667 T C → 0 T_C\to0 T C → 0 η = 1 − 0 = 1 \eta = 1-0 = 1 η = 1 − 0 = 1 T C T_C T C T C = 0 T_C=0 T C = 0 T H T_H T H
Common mistake Using Celsius instead of KelvinWhy it feels right: You usually compute temperature differences , where °C and K give the same number. The trap: efficiency uses a ratio T C / T H T_C/T_H T C / T H Fix: always convert to kelvin before forming T C / T H T_C/T_H T C / T H
Common mistake Thinking a hotter source alone makesη → 1 \eta\to1 η → 1 Why it feels right: bigger T H T_H T H η \eta η The trap: η = 1 − T C / T H < 1 \eta = 1 - T_C/T_H < 1 η = 1 − T C / T H < 1 T C > 0 T_C>0 T C > 0 Fix: remember the 2nd law — some heat must be rejected.
Common mistake Forgetting the volume ratios cancelWhy it feels right: the four volumes look independent. The trap: the adiabatic relations force V 2 / V 1 = V 3 / V 4 V_2/V_1 = V_3/V_4 V 2 / V 1 = V 3 / V 4 Q C / Q H Q_C/Q_H Q C / Q H T C / T H T_C/T_H T C / T H Fix: always pair the two adiabatic conditions and divide.
Common mistake Claiming any engine betweenT H , T C T_H,T_C T H , T C Why it feels right: clever engineering seems unbounded. The trap: Carnot's theorem — no engine between two reservoirs beats a reversible one. Beating it would let you build a perpetual motion machine of the second kind. Fix: η any ≤ 1 − T C / T H \eta_{\text{any}} \le 1 - T_C/T_H η any ≤ 1 − T C / T H
Recall Feynman: explain to a 12-year-oldImagine a bouncy gas in a cylinder. You let it touch a hot stove , and it gently pushes the piston while staying hot (it grabs heat and does work). Then you wrap it in a blanket so no heat sneaks in, and it keeps pushing but cools down. Now you press it against a cold ice block , squeezing it slowly so it dumps the leftover heat. Finally you blanket it again and squeeze it back to the start, warming it up. Round and round it goes, turning heat into useful pushing. The catch: the colder your ice and the hotter your stove, the more useful work you get — but you can never get 100%, because some warmth always has to go into the ice.
Mnemonic Remember the cycle order"I Adam Is Adam" — I sothermal hot, A diabatic down, I sothermal cold, A diabatic up.
For efficiency: "One minus Cold-over-Hot" → 1 − T C / T H 1 - T_C/T_H 1 − T C / T H lose ).
What are the four steps of the Carnot cycle in order? Isothermal expansion (at
T H T_H T H ), adiabatic expansion, isothermal compression (at
T C T_C T C ), adiabatic compression.
Why must heat transfer steps be isothermal? To keep them reversible — the gas stays at the reservoir temperature so heat crosses no finite temperature gap.
What is the Carnot efficiency formula? η = 1 − T C / T H \eta = 1 - T_C/T_H η = 1 − T C / T H , with temperatures in kelvin.
During step 1 (isothermal at T H T_H T H Q H = R T H ln ( V 2 / V 1 ) Q_H = RT_H\ln(V_2/V_1) Q H = R T H ln ( V 2 / V 1 ) , since
Δ U = 0 \Delta U=0 Δ U = 0 so
Q = W Q=W Q = W .
What relation between volumes do the adiabats force? V 2 / V 1 = V 3 / V 4 V_2/V_1 = V_3/V_4 V 2 / V 1 = V 3 / V 4 , from
T V γ − 1 = const TV^{\gamma-1}=\text{const} T V γ − 1 = const on both adiabatics.
Why does the efficiency NOT depend on the working substance? The volume-ratio logs cancel, leaving only the temperature ratio
T C / T H T_C/T_H T C / T H .
What reversible identity links the heats? Q H / T H = Q C / T C Q_H/T_H = Q_C/T_C Q H / T H = Q C / T C , i.e.
∮ d Q r e v / T = 0 \oint dQ_{rev}/T = 0 ∮ d Q r e v / T = 0 — the basis of entropy.
State Carnot's theorem. No engine operating between two reservoirs can be more efficient than a reversible (Carnot) engine between the same reservoirs.
Why can't η = 1 \eta=1 η = 1 It would need
T C = 0 T_C=0 T C = 0 K (unreachable, 3rd law); some heat must always be rejected (2nd law).
Common kelvin mistake? Using Celsius in
T C / T H T_C/T_H T C / T H — ratios depend on the zero point, so you must use kelvin.
Second law of thermodynamics — Carnot's theorem sets the efficiency ceiling.Entropy — ∮ d Q r e v / T = 0 \oint dQ_{rev}/T = 0 ∮ d Q r e v / T = 0 S S S Adiabatic process — supplies T V γ − 1 = const TV^{\gamma-1}=\text{const} T V γ − 1 = const Isothermal process — supplies the R T ln ( V f / V i ) RT\ln(V_f/V_i) R T ln ( V f / V i ) Absolute temperature scale — defined via Q H / Q C = T H / T C Q_H/Q_C = T_H/T_C Q H / Q C = T H / T C Heat engines and refrigerators — Carnot run backwards is the ideal fridge/heat pump.First law of thermodynamics — gives η = 1 − Q C / Q H \eta = 1 - Q_C/Q_H η = 1 − Q C / Q H
Isothermal at reservoir T
Intuition Hinglish mein samjhoCarnot cycle ek "ideal" heat engine hai — matlab isse zyada efficient koi engine do fixed temperature (T H T_H T H T C T_C T C Q H Q_H Q H Q C Q_C Q C
Kamaal ki baat: jab hum maths karte hain, to dono adiabatic steps se ek relation milta hai — V 2 / V 1 = V 3 / V 4 V_2/V_1 = V_3/V_4 V 2 / V 1 = V 3 / V 4 Q H Q_H Q H Q C Q_C Q C ln \ln ln η = 1 − T C / T H \eta = 1 - T_C/T_H η = 1 − T C / T H
Practical baat: temperature hamesha kelvin me daalo, kyunki yahan ratio le rahe hain, difference nahi. Aur yaad rakho — efficiency kabhi 100% nahi ho sakti, kyunki T C T_C T C T H T_H T H
