Adiabatic flame temperature — calculation with enthalpies of formation: Visual walkthrough

Step 1 — What is enthalpy, and why do we track it?

WHAT: we picture a sealed box (the combustion chamber). On the left, cold fuel + oxidizer. On the right, hot burnt gases.

WHY enthalpy and not just "energy"? Because the chamber is at constant pressure (gases can push out freely). At constant pressure the quantity that is conserved when no heat leaks and no shaft-work is done is enthalpy $H$ , not internal energy — this is the First Law of Thermodynamics. We track $H$ because it is the thing that stays fixed.

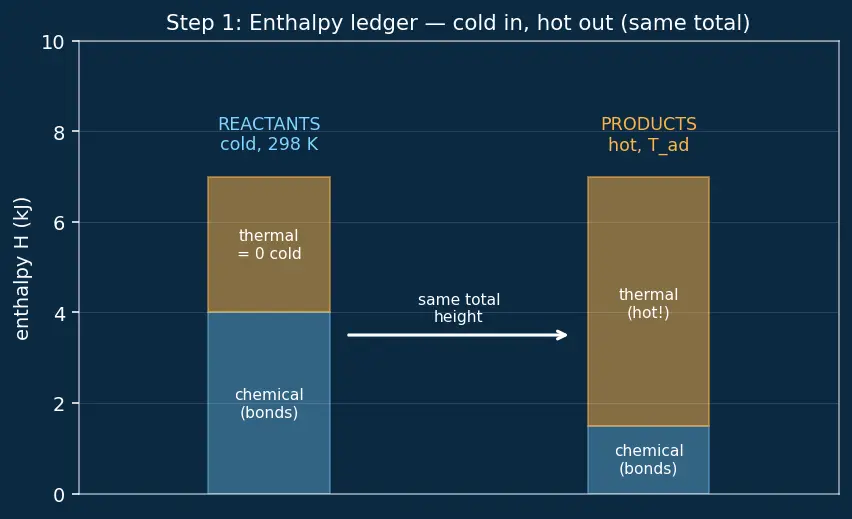

PICTURE: the ledger has two columns. Nothing is created or destroyed — the total height of the two columns is equal on both sides.

Figure — Adiabatic flame temperature — calculation with enthalpies of formation

Step 2 — "Adiabatic" means the total height cannot change

WHAT: we apply the First Law for a constant-pressure, no-work process:

$Q = Δ H = H_{products} - H_{reactants}$

$Δ H$ (read "delta H") = change in enthalpy = (ledger after) minus (ledger before).
$H_{products}$ = the ledger of the hot burnt gases.
$H_{reactants}$ = the ledger of the cold starting mixture.

WHY: set $Q = 0$ (adiabatic). Then $Δ H = 0$ , which forces:

$H_{products} (T_{ad}) = H_{reactants} (T_{in})$

$T_{ad}$ = the adiabatic flame temperature — the unknown we hunt for (kelvin, K).
$T_{in}$ = temperature the reactants walked in at (we will use $298$ K, room temperature).

PICTURE: the two ledger columns must be exactly the same height. The energy did not vanish — it just slid from the chemical row into the thermal row. That slide is what makes the products hot.

Step 3 — Split every molecule's ledger into two honest pieces

Here is the key trick. We cannot look up $H$ for a molecule at 3000 K directly. But we can split it:

$H_{i} (T) = chemical piece Δ H_{f, i}^{\circ} + thermal piece \int_{298}^{T} C_{p, i} d T$

Term by term:

$H_{i} (T)$ = ledger of species $i$ at temperature $T$ .
$Δ H_{f, i}^{\circ}$ = enthalpy of formation — the chemical piece, measured at the reference 298 K. It is the energy to build one mole of $i$ from its raw elements. (See Enthalpy of formation.) This is the only number in tables.
$\int_{298}^{T} C_{p, i} d T$ = the sensible-heat piece — "how much thermal energy did I add to warm this molecule from 298 K up to $T$ ."

WHY this split? Because tables only ever give $Δ H_{f}^{\circ}$ at 298 K. Everything hotter than that is bookkept as sensible heat. We split so that every term is something we can actually look up or compute.

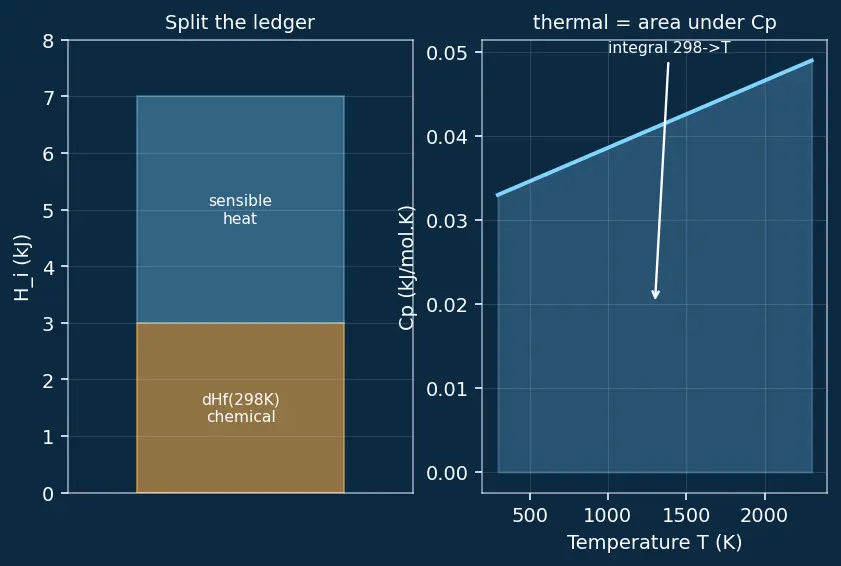

PICTURE: each molecule's tall bar is cut by a dotted line — the lower chunk is "chemical (from 298 K formation)", the upper chunk is "thermal (area under the $C_{p}$ curve)".

Step 4 — Add up all molecules on each side

Real reactions have several molecules, each with a count $n$ . So we sum:

$\sum_{prod} n_{j} [Δ H_{f, j}^{\circ} + \int_{298}^{T_{ad}} C_{p, j} d T] = \sum_{react} n_{i} [Δ H_{f, i}^{\circ} + \int_{298}^{T_{in}} C_{p, i} d T]$

$\sum_{prod}$ = "add over every product molecule."
$n_{j}$ = how many moles of product $j$ (the stoichiometric number from the balanced equation).
$n_{i}$ = moles of reactant $i$ .

WHY: the ledger of a mixture is just the sum of the ledgers of its parts. This is Hess's Law in action — enthalpy is additive and path-independent.

Simplification: send the reactants in at exactly $T_{in} = 298$ K. Then their sensible integral runs from 298 to 298 — an area of zero width, so it vanishes:

$\int_{298}^{298} C_{p, i} d T = 0$

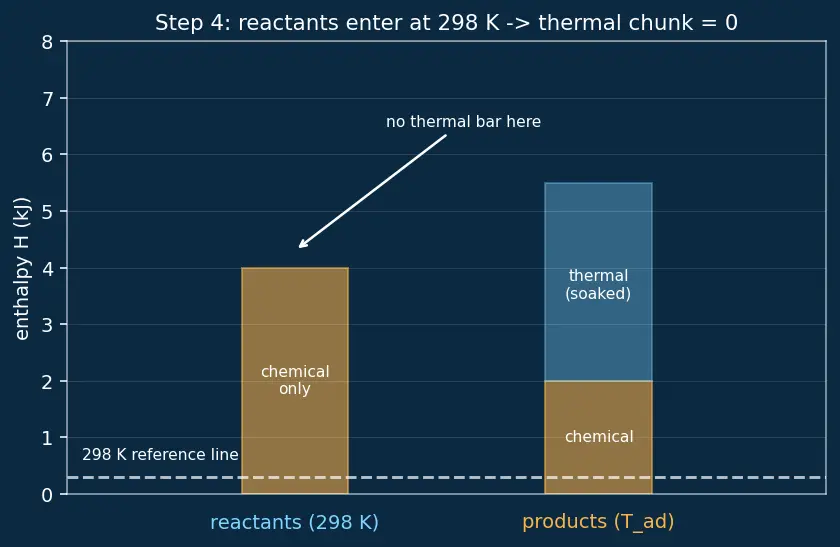

PICTURE: on the reactant side the thermal (upper) chunks disappear — the reactants are already at the reference line, so they carry only their chemical piece.

Step 5 — Rearrange into the master equation

Now group the chemical (formation) pieces on one side and the thermal piece on the other.

Start from Step 4 with reactant sensible term gone:

$\sum_{prod} n_{j} Δ H_{f, j}^{\circ} + \sum_{prod} n_{j} \int_{298}^{T_{ad}} C_{p, j} d T = \sum_{react} n_{i} Δ H_{f, i}^{\circ}$

Move the product formation sum to the right:

$\sum_{prod} n_{j} \int_{298}^{T_{ad}} C_{p, j} d T = = - Δ H_{rxn}^{\circ} react \sum n_{i} Δ H_{f, i}^{\circ} - prod \sum n_{j} Δ H_{f, j}^{\circ}$

PICTURE: the released chemical energy (right, amber) is exactly the amount of thermal energy the products drink (left, cyan). The two amber bars swap into thermal.

Step 6 — Turn the integral into a solvable line (constant- $C_{p}$ )

The integral is hard. Simplest honest move: use an average $\overset{ˉ}{C}_{p, j}$ that doesn't change with $T$ . Then the area under the curve is just a rectangle:

$\int_{298}^{T_{ad}} C_{p, j} d T \approx \overset{ˉ}{C}_{p, j} (T_{ad} - 298)$

Height of rectangle = $\overset{ˉ}{C}_{p, j}$ , width = $(T_{ad} - 298)$ , area = height × width.

Substitute:

$(\sum_{j} n_{j} \overset{ˉ}{C}_{p, j}) (T_{ad} - 298) = - Δ H_{rxn}^{\circ}$

Solve for the unknown:

$T_{ad} = 298 + \frac{- Δ H _{rxn}^{\circ}}{\sum _{j} n _{j} C ˉ _{p, j}}$

Numerator = total heat available.
Denominator = total "thermal sponge" — every product mole times its heat capacity. A bigger sponge means a smaller temperature rise.

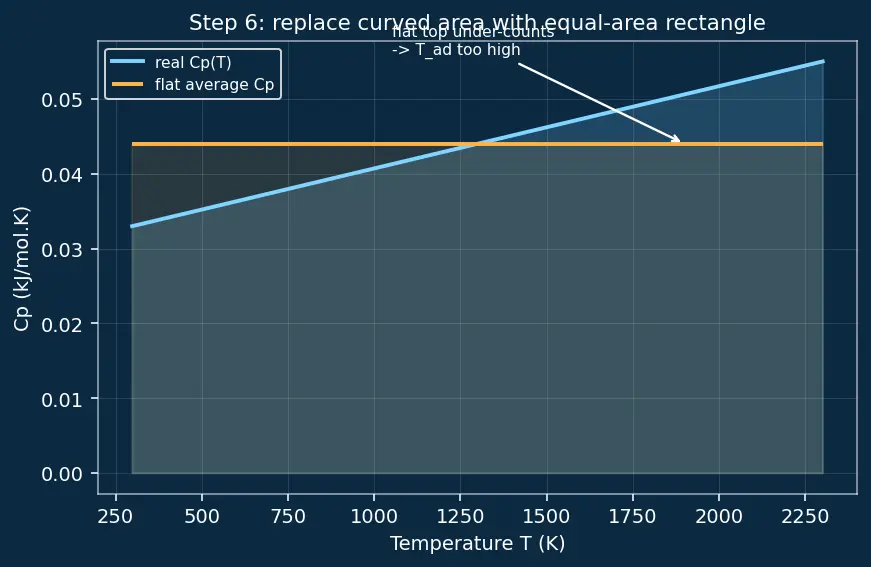

PICTURE: the curved integral area is replaced by a flat-topped rectangle of equal area. This is why constant- $C_{p}$ overestimates — the real curve bows upward, so a flat average under-counts the heat needed and hands you too high a $T_{ad}$ .

Step 7 — Worked numbers: methane in air

$C H_{4} + 2 O_{2} + 7.52 N_{2} \to C O_{2} + 2 H_{2} O (g) + 7.52 N_{2}$

Reaction enthalpy (from Step 5 definition):

$Δ H_{rxn}^{\circ} = [- 393.5 + 2 (- 241.8)] - [- 74.8] = - 802.3 kJ$

Sponge (denominator), in kJ/K:

$\sum_{j} n_{j} \overset{ˉ}{C}_{p, j} = 1 (0.055) + 2 (0.045) + 7.52 (0.033) = 0.393$

Plug into the boxed formula:

$T_{ad} = 298 + \frac{802.3}{0.393} \approx 2340 K$

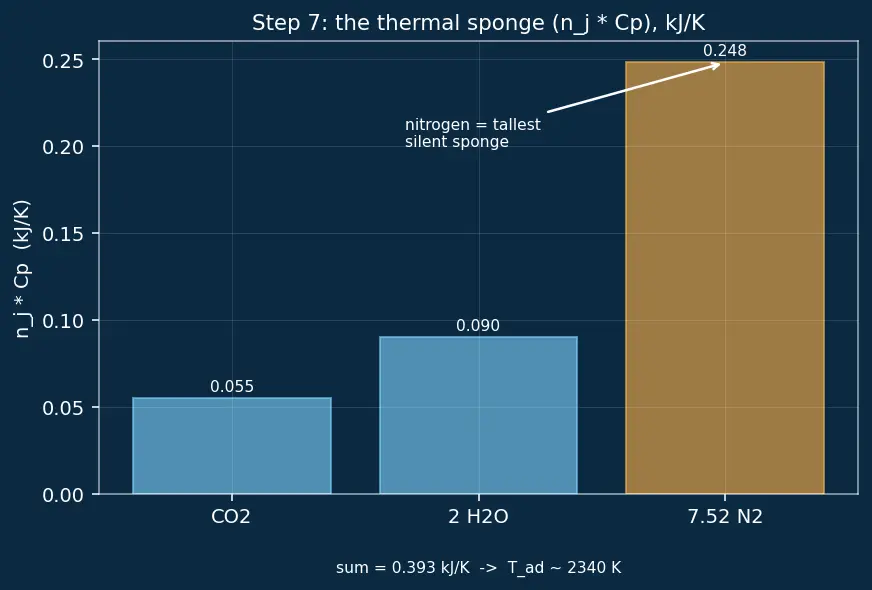

PICTURE — the punchline of the whole page: three product bars sit in the sponge. The $N_{2}$ bar ( $7.52 \times 0.033 = 0.248$ kJ/K) is taller than the other two combined. Nitrogen doesn't burn — it just eats heat. Remove it and the sponge shrinks to $0.145$ , sending $T_{ad}$ up past 5800 K.

Recall Why is nitrogen the tallest bar?

Because there is so much of it — $7.52$ moles ride along per mole of methane. Even with a modest $C_{p}$ , seven-plus moles multiply into the largest slice of the denominator. See Stoichiometric vs lean vs rich mixtures and Chemical equilibrium and dissociation at high temperature for how excess air and dissociation push the real number lower still.

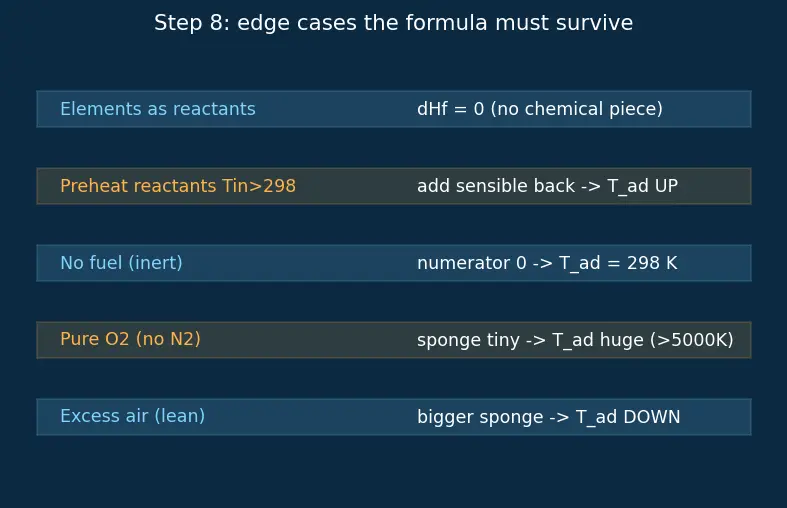

Step 8 — Degenerate & edge cases (never get surprised)

Worked example Edge cases the formula must survive

Elements as reactants ( $H_{2}, O_{2}, N_{2}$ ): $Δ H_{f}^{\circ} = 0$ by definition. Their formation pieces contribute nothing to $Δ H_{rxn}^{\circ}$ — they only matter as products that soak heat.
Reactants preheated ( $T_{in} > 298$ K): their sensible integral is no longer zero. Add $\sum_{i} n_{i} \overset{ˉ}{C}_{p, i} (T_{in} - 298)$ back onto the right side — this raises $T_{ad}$ (preheating helps).
Zero fuel / inert mixture: $Δ H_{rxn}^{\circ} = 0$ , numerator vanishes, so $T_{ad} = 298$ K. Nothing burns, nothing heats — the formula correctly returns the input temperature.
Pure- $O_{2}$ limit (no $N_{2}$ ): sponge collapses, $T_{ad}$ shoots past 5000 K. The constant- $C_{p}$ model breaks here — dissociation caps reality near 3000 K.
Excess air (lean): extra cold $N_{2}$ enlarges the denominator, same numerator → lower $T_{ad}$ .

Reveal drills:

The reactants enter at 298 K — what happens to their sensible-heat integral?

It runs from 298 to 298, an area of zero width, so it vanishes.

Why does constant-

C_{p}

overestimate

T_{ad}

The real

C_{p}

curve rises with

T

; a flat average under-counts the heat needed, so it hands you too high a temperature.

If you preheat the reactants, does

T_{ad}

rise or fall?

Rise — their non-zero sensible term adds to the right side, giving the products more starting enthalpy.

What is

T_{ad}

if there is no fuel at all?

298 K — the numerator

- Δ H_{rxn}^{\circ}

is zero, so no temperature rise.

The one-picture summary

The whole derivation in one flow: enthalpy conserved ( $Δ H = 0$ ) → split each ledger into chemical + thermal → cancel reactant thermal (they enter at 298 K) → released chemical energy = thermal energy products drink → divide by the sponge to get $T_{ad}$ .

Recall Feynman retelling — the walkthrough in plain words

Picture a shut box. On the left, cold fuel and air; on the right, the hot gases they turn into. Because the box is sealed (adiabatic), no energy sneaks out — so the two sides must carry the same total energy. That's rule one.

Now, every molecule's energy comes in two flavours: energy locked in its bonds (chemical), and energy of it jiggling (thermal, = how hot it is). We measure the bond energy at one fixed cool temperature, 298 K. The heat that makes something hotter than 298 K is the "extra" we add on top.

We send the cold stuff in at exactly 298 K, so it carries zero extra thermal energy — only bond energy. When it burns, the bonds rearrange into lower-energy ones, freeing a chunk of energy. Since nothing escaped the box, that freed energy has only one place to go: into jiggling the product molecules harder — making them hot.

So: (energy freed by the reaction) = (energy needed to heat all the products). The products include boring nitrogen that never burned but still has to be warmed. Divide the freed energy by the total "heat appetite" of all the products, and the answer is how many degrees hotter they get. Add that to 298 and you have the flame temperature. Nitrogen is a silent sponge — the more of it, the cooler the flame.
