Foundations — Adiabatic flame temperature — calculation with enthalpies of formation

Before you can read the parent note, you must be able to read every squiggle in it on sight. This page introduces each symbol from absolute zero, in the order they build on each other. Nothing here assumes you have seen the notation before.

1. Temperature $T$ and the Kelvin scale

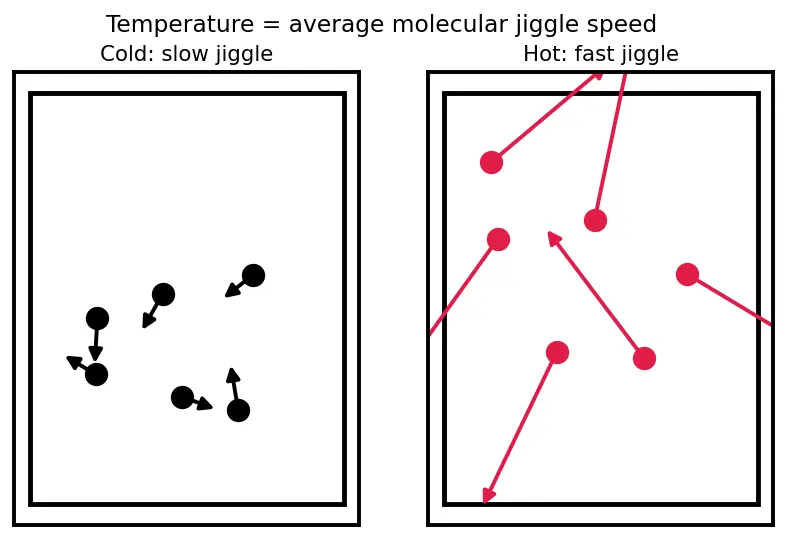

The picture: imagine a box of gas balls bouncing around. Cold = slow, lazy bounces; hot = frantic, fast bounces.

Why the topic needs it: the whole point of an adiabatic flame temperature is to find one specific $T$ — the temperature $T_{\text{ad}}$ the products settle at. Two special temperatures appear in the parent note:

• $T_{\text{in}}=298$ K — the temperature the cold fuel and air enter at (room temperature, $25{}^{\circ }$C).
• $T_{\text{ad}}$ — the "ad" stands for adiabatic; the temperature we solve for.

2. Energy, and the special energy called enthalpy $H$

The picture: a labelled tank. Inside are two compartments — energy stored in chemical bonds, and energy stored in jiggling (heat). $H$ is the total in both compartments.

Why the topic needs it: because a flame at constant pressure conserves $H$, the entire calculation reduces to one sentence — enthalpy of products = enthalpy of reactants. We never need to track heat and work separately.

3. The little symbols on enthalpy: $\Delta$, ${}^{\circ }$, and subscript $f$

Each mark is a separate question. Learn them one at a time.

Put them together and read left to right:

$\Delta H_{f,i}^{\circ }=\text{"standard enthalpy of formation of species }i\text{"}$

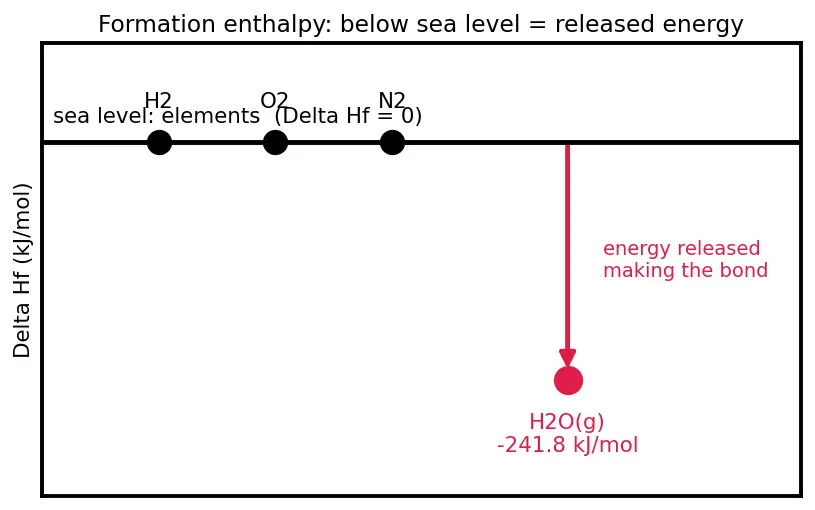

The picture: a "sea level" line at $0$. Elements sit exactly on it. Compounds sit below it if energy was released making them (negative $\Delta H_f^{\circ }$, like ${\mathrm{H}}_2\mathrm{O}$ at $-241.8$).

Why the topic needs it: these tabulated $\Delta H_f^{\circ }$ numbers are the only chemical-energy data we ever look up. Everything else is derived from them via Hess's Law.

4. Moles $n$ and stoichiometric coefficients

Why the topic needs it: energy released and heat absorbed both scale with how many moles are involved. Every term in the master equation is $n_i\times (\text{per-mole quantity})$. Get a coefficient wrong and every number downstream is wrong.

5. Heat capacity $C_p$ — the "thermal sponge" number

The picture: two identical buckets. Pour the same energy in; the one with a bigger $C_p$ (wider bucket) rises to a lower water level (lower $T$).

Why the topic needs it: once the reaction has released its chemical energy, that energy heats the products. How much it heats them depends on $C_p$. This is why nitrogen — present in huge amounts and with a solid $C_p$ — pulls the flame temperature way down. See Heat capacity Cp and its temperature dependence for why $C_p$ itself grows as $T$ rises.

6. The integral sign $\int$ — adding up sensible heat

This quantity has a name: sensible heat — the energy that shows up as a sensible (feel-able) temperature rise, as opposed to being locked in chemical bonds.

Why the topic needs it: the left-hand side of the master equation is nothing but a sum of these integrals, one per product. It measures the total temperature-raising energy the products absorbed.

7. The summation sign $\sum$ — adding over all species

So a line like ${\sum }_{\text{prod}}{n}_j{\int }_{298}^{T_{\text{ad}}}{C}_{p,j}dT$ reads, in plain words: "for each product $j$, multiply its mole count $n_j$ by its personal sensible-heat integral, then add every product's contribution together."

Why the topic needs it: a flame makes several products at once (CO₂, H₂O, N₂...). $\sum$ is just the instruction to not forget any of them.

8. Putting the symbols together — reading the master equation

Now every piece of the parent's boxed equation is defined. Read it slowly:

$\underset{\text{sensible heat the products swallow}}{\underbrace{\sum _{\text{prod}}{n}_j{\int }_{298}^{T_{\text{ad}}}{C}_{p,j}dT}}=\underset{\text{energy the reaction let go of}}{\underbrace{-\Delta H_{\text{rxn}}^{\circ }}}$

• Left: for every product, (moles) × (heat needed to warm it from 298 K to $T_{\text{ad}}$), summed. A thermal sponge total.
• Right: minus the reaction enthalpy — the chemical energy freed when reactants become products. The minus flips "released" (negative $\Delta H$) into a positive amount of heat available.
• Where $\Delta H_{\text{rxn}}^{\circ }={\sum }_{\text{prod}}{n}_j\Delta H_{f,j}^{\circ }-{\sum }_{\text{react}}{n}_i\Delta H_{f,i}^{\circ }$ — products' formation enthalpies minus reactants', a direct use of Hess's Law.

Balance the two sides and the only unknown left is $T_{\text{ad}}$. That's the whole game.
