Quantum chemistry — particle in a box revisited; H-atom solutions

1. The master equation

WHY this form? Total energy = kinetic + potential. In QM, momentum becomes the operator $\hat p = -i\hbar\,\nabla$ , so kinetic energy $\frac{p^2}{2m}\to -\frac{\hbar^2}{2m}\nabla^2$ . Demanding that $\psi$ be the same shape after $\hat H$ acts (only rescaled by $E$ ) is what "stationary state" means.

2. Particle in a 1D box — derived from scratch

Setup (WHAT): A particle trapped between $x=0$ and $x=L$ with $V=0$ inside and $V=\infty$ outside. Infinite walls ⇒ $\psi=0$ outside, so by continuity $\psi(0)=\psi(L)=0$ — these are the boundary conditions.

HOW we solve it. Inside the box $V=0$ : $-\frac{\hbar^2}{2m}\frac{d^2\psi}{dx^2}=E\psi \;\Rightarrow\; \frac{d^2\psi}{dx^2}=-k^2\psi,\quad k^2=\frac{2mE}{\hbar^2}$

Why this step? It's the classic "second derivative = negative constant × itself" ⇒ sine/cosine solutions.

General solution: $\psi(x)=A\sin kx + B\cos kx$ .

Apply $\psi(0)=0$ : $B=0$ . (cosine isn't zero at 0, so it must die.)
Apply $\psi(L)=0$ : $A\sin kL=0$ . Since $A\neq0$ (else $\psi\equiv0$ ), we need $kL=n\pi$ .

$\boxed{k=\frac{n\pi}{L},\quad n=1,2,3,\dots}$

Why quantization appears: the box length must fit a whole number of half-wavelengths. This is the entire reason energy is discrete.

Substitute back $k^2=2mE/\hbar^2$ :

Normalization fixes $A$ . Require $\int_0^L|\psi|^2dx=1$ : $A^2\int_0^L\sin^2\!\frac{n\pi x}{L}dx=A^2\cdot\frac{L}{2}=1\Rightarrow A=\sqrt{\tfrac{2}{L}}$

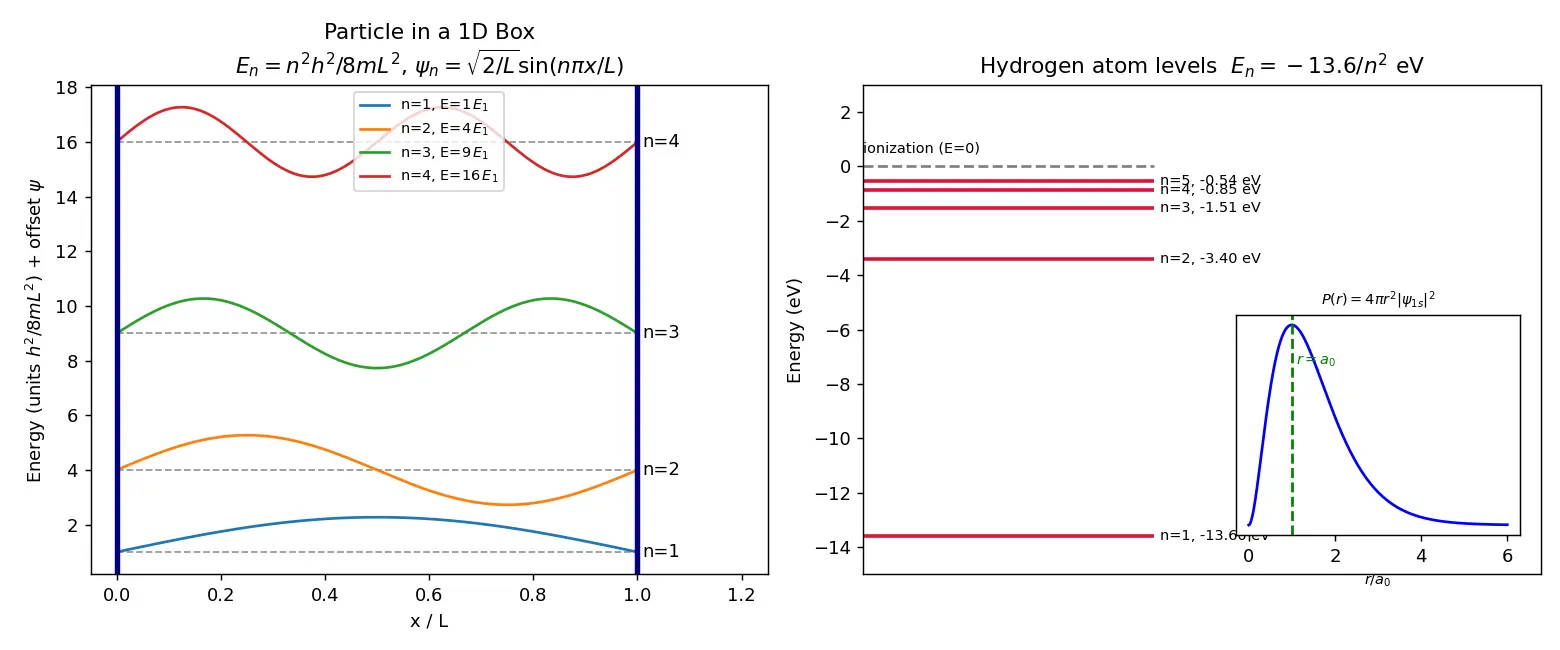

Figure — Quantum chemistry — particle in a box revisited; H-atom solutions

3. From 1D box to the hydrogen atom

WHY the H-atom is harder: it's 3D, and the potential is the central Coulomb attraction $V(r)=-\frac{e^2}{4\pi\varepsilon_0 r}$ which depends only on $r$ . Central potentials let us separate variables in spherical coordinates.

HOW quantum numbers arise (same boundary-condition logic):

Quantum number	From which condition	Allowed values
$n$ (principal)	radial BC: $R\to0$ as $r\to\infty$	$1,2,3,\dots$
$\ell$ (azimuthal)	$\theta$ -equation finite at poles	$0,1,\dots,n-1$
$m_\ell$ (magnetic)	$\phi$ -equation single-valued: $\Phi(\phi)=\Phi(\phi+2\pi)$	$-\ell,\dots,+\ell$

Why $\Phi$ single-valued ⇒ integer $m$ : $\Phi(\phi)=e^{im\phi}$ must repeat after $2\pi$ ⇒ $e^{im\cdot2\pi}=1$ ⇒ $m\in\mathbb Z$ . Exactly the same "fit a whole number" idea as the box.

4. Common mistakes (Steel-manned)

5. Active recall

Recall Quick self-test (cover the answers)

What boundary conditions quantize the 1D box? → $\psi(0)=\psi(L)=0$ .
Why does $m_\ell$ come out integer? → single-valued $\phi$ requirement.
Number of radial nodes in an orbital? → $n-\ell-1$ .

What replaces

p^2/2m

as the kinetic operator in the TISE?

-\dfrac{\hbar^2}{2m}\nabla^2

Why is energy quantized in a box?

Boundary conditions force a whole number of half-wavelengths to fit, giving

k=n\pi/L

Energy levels of the 1D box?

E_n=\dfrac{n^2h^2}{8mL^2}

n=1,2,3,\dots

Why can't

n=0

in the box?

It gives

\psi\equiv0

, i.e. no particle — not a valid state.

How many interior nodes does

\psi_n

have?

n-1

Normalization constant for the 1D box wavefunction?

\sqrt{2/L}

What does separating variables give for the H-atom wavefunction?

\psi=R_{n\ell}(r)Y_\ell^m(\theta,\phi)

Allowed values of

\ell

and

m_\ell

\ell=0,\dots,n-1

;

m_\ell=-\ell,\dots,+\ell

Hydrogen energy levels?

E_n=-13.6/n^2

eV (depends only on

n

Why are H-atom energies negative?

The electron is bound; energy lies below the free (

r\to\infty

) zero reference.

Radial distribution function for finding the electron?

P(r)=4\pi r^2|\psi(r)|^2

Most probable radius of the

1s

electron?

r=a_0\approx52.9

pm (Bohr radius).

Radial nodes vs angular nodes?

radial

=n-\ell-1

; angular

=\ell

; total

=n-1

Recall Feynman: explain it to a 12-year-old

Imagine a guitar string fixed at both ends. It can only vibrate in special patterns — one bump, two bumps, three bumps — never half a bump, because the ends are pinned. A trapped electron is like that string: only certain "vibration patterns" (energies) are allowed. For the hydrogen atom, the electron is trapped around a positive nucleus instead of between two walls; the rule "the wave must fit perfectly and not blow up far away" again allows only special patterns — and those patterns are the orbitals (1s, 2p, etc.). Same idea, fancier cage.

Connections

Schrödinger Equation — the master equation both problems solve.
Quantum Numbers — how $n,\ell,m_\ell$ label H-atom states.
Atomic Orbitals and Shapes — spherical harmonics give s, p, d shapes.
Zero-point Energy — why the lowest box state isn't $E=0$ .
Quantum Dots — PIB applied to nanocrystals.
Bohr Model vs Quantum Mechanics — $a_0$ reinterpreted as most probable radius.
Operators and Eigenvalues — the math machinery behind $\hat H\psi=E\psi$ .

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, quantum chemistry ka pura khel ek hi equation pe tika hai — Schrödinger equation, $\hat H\psi=E\psi$ . Yeh keh raha hai ki kisi particle ka allowed energy sirf kuch special values pe hoti hai, har value pe nahi. Particle-in-a-box sabse simple example hai: electron ko do deewaron ke beech band kar do. Jaise guitar ki taar dono taraf se bandhi ho aur sirf 1 bump, 2 bump, 3 bump waale pattern bana sakti hai, waise hi electron ki wave ko box me poora fit hona padta hai. Isi "poora fit hona" condition se $k=n\pi/L$ aata hai, aur energy quantize ho jaati hai: $E_n=n^2h^2/8mL^2$ . Yaad rakho $n=0$ allowed nahi — uska matlab hoga electron hai hi nahi.

Hydrogen atom bilkul wahi idea hai, bas 3D me aur Coulomb attraction ke saath. Yahan deewar ki jagah nucleus ka attraction electron ko trap karta hai. Spherical coordinates me hum wavefunction ko todte hain: $\psi=R(r)\,Y(\theta,\phi)$ . Har boundary condition se ek quantum number nikalta hai — $n$ (size/energy), $\ell$ (shape), $m_\ell$ (orientation). $m_\ell$ integer isliye aata hai kyunki $\phi$ pe ghoom ke wapas aane pe wave same honi chahiye — phir wahi "poora fit" logic!

Energy nikalti hai $E_n=-13.6/n^2$ eV. Negative isliye kyunki electron bound hai (free electron ki energy 0 maani jaati hai, bound usse neeche). Ek important trick: "sabse zyada probable radius" wahan nahi hota jahan $|\psi|^2$ max hai, balki radial distribution $P(r)=4\pi r^2|\psi|^2$ jahan max ho. $1s$ ke liye yeh exactly Bohr radius $a_0\approx52.9$ pm pe aata hai. Yeh sab isliye important hai kyunki yahi se saare orbitals (s, p, d) aur periodic table ki samajh banti hai.
