Foundations — Polymerization mechanisms — free-radical, cationic, anionic, coordination (Ziegler-Natta), step-growth

This page assumes you know nothing. Every arrow, dot, plus-sign, and Greek letter the parent uses is defined below, in an order where each idea leans on the one before it. Parent note: (mechanisms topic).

---

0. Atoms, bonds, and the pair-of-dots picture

Before any polymer, we need the most basic object: a chemical bond.

Look at the figure. On the left a single line = one shared pair. In the middle, two lines ($\text{C=C}$, a double bond) = two shared pairs. The red second line is the important one: it is looser and stickier than the first, and it is the door through which chain-growth polymerization enters.

The symbol $\text{X}$ just means "some group attached here" (an $\text{H}$, a ${\text{CH}}_3$, a benzene ring, whatever) — a placeholder so we don't redraw the picture for every monomer.

---

1. The unpaired electron — the dot "•"

The parent writes ${\text{I}}^{\bullet }$ and $\stackrel{\bullet }{C}$. What is that dot?

In the figure, the left carbon has all electrons paired (calm, happy). The right carbon carries a single red dot — one unpaired electron. It is desperate to find a partner, so it will rip open the nearest double bond to grab that loose red π-pair. That desperation = high reactivity.

Why does the topic need the dot? Because free-radical polymerization is entirely the tale of one dot hopping from carbon to carbon, dragging monomers along.

---

2. Charges — the plus "⁺" and minus "⁻"

The parent also writes ${\text{C}}^{+}$ (cationic) and ${\text{C}}^{-}$ (anionic). These are not the same as the dot.

Why the topic needs them: the type of reactive end (dot, plus, or minus) decides which monomers it likes — the parent's rule "Cation likes Donor groups, Anion likes Withdrawing groups" only makes sense once you can see a plus wanting to be fed and a minus wanting to be steadied.

---

3. Electron-donating vs electron-withdrawing groups

The parent says cations need electron-donating groups and anions need electron-withdrawing groups. Picture-first:

---

4. The wiggly line "∼" and the monomer/polymer words

See Addition vs Condensation Polymers for the two ways bricks join, and Nylon, Polyester and Important Polymers for real examples.

---

5. Concentration brackets "[ ]" and rate "R"

The parent's kinetics ($R_p$, $[M]$, $[M^{\bullet }]$) look scary but each symbol is plain.

---

6. Greek letters and the chain-length symbols

Why the topic needs $p$: the whole punchline of step-growth is that ${\bar{X}}_n=\frac{1}{1-p}$ only becomes large when $p$ is extremely close to $1$. See Molecular Weight Distribution and Polydispersity for what "average" hides.

---

7. Functional groups — the "grabby ends" of step-growth

Chain-growth used double bonds. Step-growth uses functional groups: specific reactive clusters of atoms at the ends of a molecule.

Why the topic needs them: a monomer with two grabby ends can join on both sides, so any two pieces can link — that "any two can join" freedom is exactly what makes step-growth build molecular weight so differently from chain-growth.

---

8. Putting the symbols to work — a tiny sanity check

---

9. Prerequisite map

---

Equipment checklist

Test yourself — cover the right side and answer aloud.

• What does a single line between two atoms represent? ::: One shared pair of electrons (a bond).
• What is the red second line in C=C, and why does it matter? ::: The π-pair — loose and stealable; it's the door for chain-growth.
• What does the dot • on a carbon mean? ::: One unpaired electron → a radical, very reactive.
• Difference between • and ⁺ ? ::: • is one unpaired electron (neutral); ⁺ is a missing electron (positive charge).
• A carbocation (⁺) is stabilised by which kind of group? ::: An electron-donating group (pushes electrons in).
• A carbanion (⁻) is stabilised by which kind of group? ::: An electron-withdrawing group (pulls excess out).
• What does the squiggle ∼ stand for? ::: The already-built long chain we don't redraw.
• What does $[M]$ mean? ::: Concentration of monomer (how crowded).
• What does $R_i$ mean? ::: Rate of initiation (active centres born per second per litre).
• What is $\nu$? ::: Kinetic chain length — average monomers added per active centre.
• What is $p$? ::: Extent of reaction — fraction of functional groups that have reacted (0 to 1).

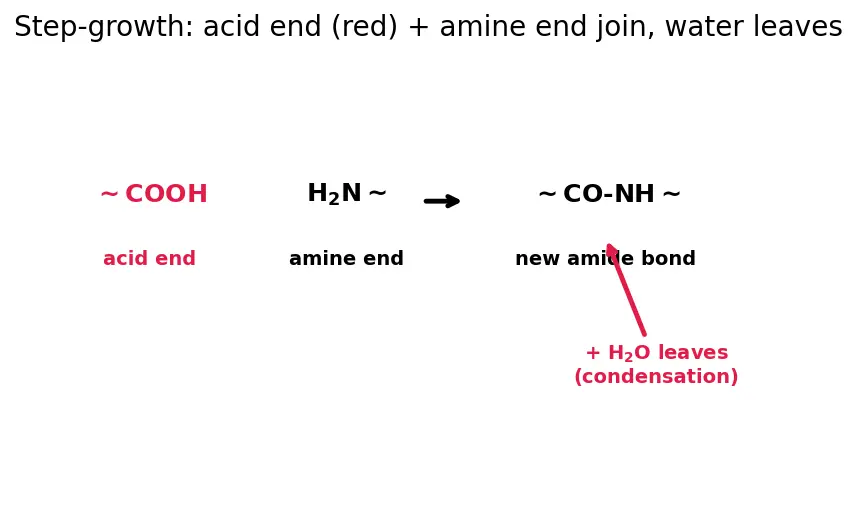

• Which functional-group pair forms nylon and what small molecule leaves? ::: –COOH + –NH₂ → amide bond, releasing H₂O.

Recall Ready?

If you answered all twelve without peeking, every symbol in the parent note is now yours — go read the mechanisms. ::: Onward to the mechanisms.
