Polymerization mechanisms — free-radical, cationic, anionic, coordination (Ziegler-Natta), step-growth

1. The Big Picture (Forecast first!)

Feature	Chain-growth	Step-growth
Reactive species	radical / ion / metal-C bond	functional groups (–OH, –COOH, –NH₂)
Monomer	usually has C=C	usually has two functional groups
Growth	adds one monomer to active chain	any two oligomers combine
High MW reached	early	only at very high conversion
Byproduct	none (addition)	often small molecule (H₂O, HCl) — condensation

2. Chain-Growth: the three stages

WHY three stages? Because an active center must be born (initiation), fed (propagation), and killed (termination). Each is a separate chemical step with its own rate.

2a. Free-radical polymerization

HOW it goes (e.g. ethene/styrene with benzoyl peroxide or AIBN):

Initiation: initiator splits homolytically. $\text{I–I} \xrightarrow{\Delta/h\nu} 2\,\text{I}^{\bullet} \qquad \text{I}^{\bullet} + \text{CH}_2{=}\text{CHX} \rightarrow \text{I–CH}_2{-}\overset{\bullet}{\text{C}}\text{HX}$ Why this step? The unpaired electron grabs one electron of the π-bond, leaving the new radical on the next carbon.

Propagation: chain radical adds monomer over and over. $\sim\text{CH}_2{-}\overset{\bullet}{\text{C}}\text{HX} + \text{CH}_2{=}\text{CHX} \rightarrow \sim\text{CH}_2{-}\text{CHX}{-}\text{CH}_2{-}\overset{\bullet}{\text{C}}\text{HX}$

Termination: two radicals meet → combination (join) or disproportionation (one grabs an H, making one saturated + one C=C end).

Worked example Worked: kinetic chain length

The kinetic chain length $\nu$ = (rate of propagation)/(rate of initiation) = average monomers added per active center. $\nu = \frac{R_p}{R_i} = \frac{k_p[M][M^\bullet]}{2k_t[M^\bullet]^2} = \frac{k_p[M]}{2k_t[M^\bullet]}$ Why this step? At steady state, rate of radicals created = rate destroyed, so $R_i = 2k_t[M^\bullet]^2$ . Substitute and the radical concentration partly cancels. Using steady state $[M^\bullet]=\sqrt{R_i/2k_t}$ : $\nu = \frac{k_p[M]}{2k_t}\sqrt{\frac{2k_t}{R_i}} = \frac{k_p[M]}{\sqrt{2k_t R_i}}$ Reading it: more monomer → longer chains; more initiator (bigger $R_i$ ) → shorter chains (more chains share the same monomer).

2b. Cationic polymerization

Initiator: Lewis/Brønsted acid (e.g. $\text{BF}_3 + \text{H}_2\text{O}$ ). $\text{BF}_3 + \text{H}_2\text{O} \rightarrow \text{H}^+[\text{BF}_3\text{OH}]^- \xrightarrow{+M} \text{H–CH}_2{-}\text{C}^+(\text{CH}_3)_2$ WHY electron-donating groups? They push electron density toward the cation, stabilising it (Markovnikov-like). With electron-withdrawing groups the cation would be too unstable.

2c. Anionic polymerization — "living" polymers

Initiator: strong base / nucleophile (e.g. $n$ -BuLi, $\text{Na/naphthalene}$ ). $\text{Bu}^- + \text{CH}_2{=}\text{CHX} \rightarrow \text{Bu–CH}_2{-}\text{C}^-\text{HX}$

2d. Coordination — Ziegler-Natta

HOW (insertion mechanism):

Monomer's C=C coordinates to the vacant Ti site.
The chain on Ti migrates onto the monomer (1,2-insertion).
A vacant site re-opens → next monomer inserts.

WHY it's special: the metal's geometry forces each monomer to add the same way → stereoregular (isotactic) polymer → HDPE (linear, high-density, strong) instead of branched LDPE. It works at low pressure/temperature.

3. Step-Growth Polymerization

Example: nylon-6,6 from hexamethylenediamine + adipic acid: $\text{H}_2\text{N(CH}_2)_6\text{NH}_2 + \text{HOOC(CH}_2)_4\text{COOH} \rightarrow [-\text{NH(CH}_2)_6\text{NHCO(CH}_2)_4\text{CO}-]_n + \text{H}_2\text{O}$

Formula Carothers equation (derive it!)

Let $N_0$ = initial number of monomer molecules, $N$ = number remaining after some bonds form. Each bond formed reduces molecule count by 1, and consumes 2 functional groups. Define extent of reaction $p$ = fraction of functional groups reacted. Reacted groups $= p\,N_0$ ; each bond uses 2 groups, so bonds formed $= pN_0/2$ . So $N = N_0 - pN_0/2$ . Number-average degree of polymerization: $\bar{X}_n = \frac{N_0}{N} = \frac{N_0}{N_0 - pN_0/2} = \frac{1}{1 - p/2}$ For the standard stoichiometric, two-different-monomer counting (per repeat-relevant convention) this is written: $\boxed{\bar{X}_n = \frac{1}{1-p}}$ Why two forms? The $1/(1-p)$ form counts structural units when both functional groups belong to the network of bonds equally; it's the standard textbook result. The key insight is identical: you need $p$ extremely close to 1 to get large $\bar X_n$ .

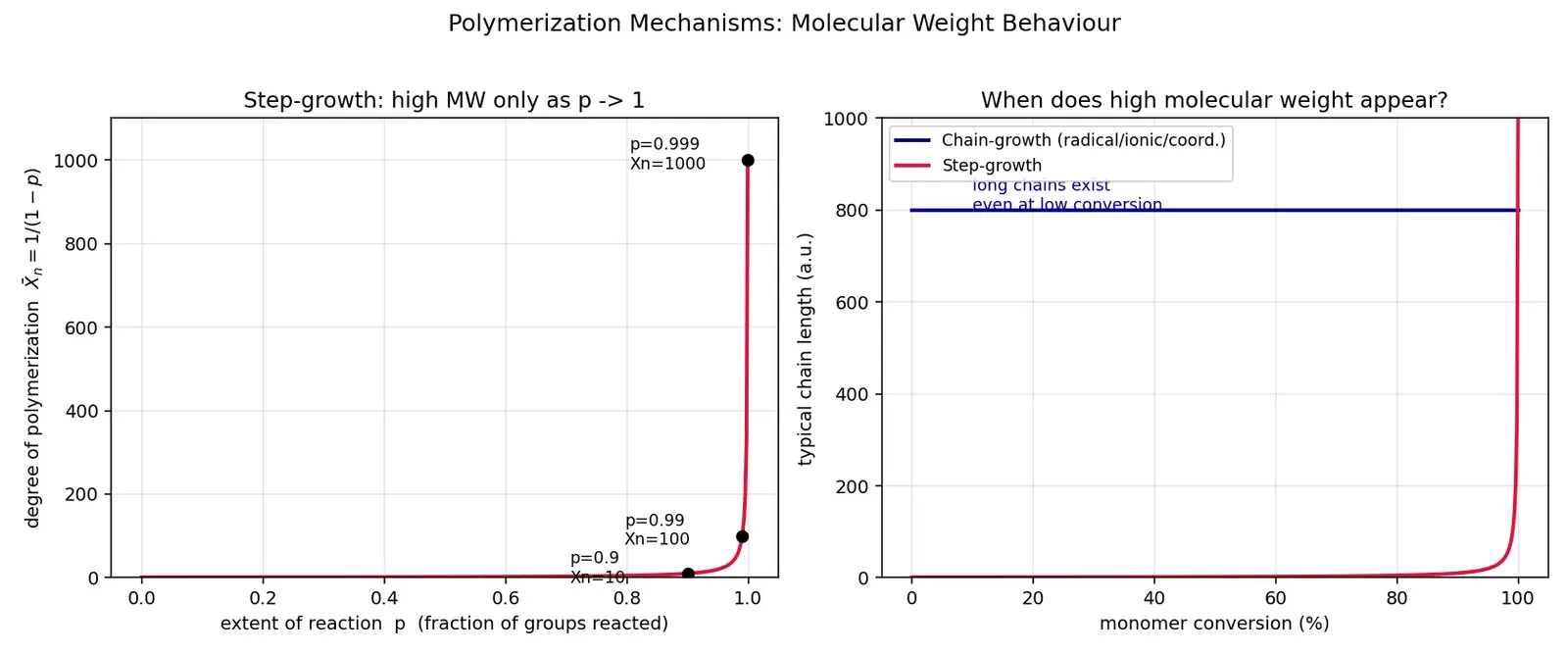

Figure — Polymerization mechanisms — free-radical, cationic, anionic, coordination (Ziegler-Natta), step-growth

4. How to tell which mechanism — quick logic

5. Flashcards

The three stages of chain-growth polymerization

Initiation, Propagation, Termination

Free-radical termination modes

Combination and disproportionation

Cationic polymerization prefers monomers with which substituents

Electron-donating groups (stabilise the carbocation)

Anionic polymerization prefers monomers with which substituents

Electron-withdrawing groups (stabilise the carbanion)

Why is anionic polymerization called "living"?

Two carbanion ends repel, so no natural termination; chain stays active and gives narrow MW distribution

Ziegler-Natta catalyst composition

Transition-metal halide (TiCl₄) + organoaluminium (Al(C₂H₅)₃)

What does Ziegler-Natta give that free-radical PE cannot?

Linear, stereoregular (isotactic) HDPE

Carothers equation

X̄ₙ = 1/(1−p), p = extent of reaction

At p = 0.99, degree of polymerization for step-growth

100

Why does step-growth need very high conversion for high MW?

Because X̄ₙ = 1/(1−p) only diverges as p → 1

Kinetic chain length ν in free-radical

ν = k_p[M]/√(2k_t R_i)

Effect of more initiator on free-radical chain length

Shorter chains (more chains share the monomer)

Mechanism with no small-molecule byproduct

Chain-growth (addition)

Nylon-6,6 byproduct

Water (condensation)

Recall Feynman: explain to a 12-year-old

Imagine building a long paper chain. Chain-growth is one kid who is super fast: he grabs loop after loop and makes one huge chain quickly, then stops. Even early on, a few chains are already gigantic. Step-growth is a room of kids each holding a short 2-loop piece: they join their pieces randomly into bigger pieces. The room only gets one giant chain when almost everybody has joined up — right at the end. The "kid's hand" can be a radical (greedy, grabs anything), a plus-charge or minus-charge (picky about which loops), or a metal robot-hand (Ziegler-Natta) that always places loops the same neat way so the chain is straight and strong.

Connections

Addition vs Condensation Polymers
HDPE vs LDPE
Stereochemistry — Tacticity (isotactic, syndiotactic, atactic)
Copolymers and Block Copolymers
Reaction Kinetics — Steady State Approximation
Nylon, Polyester and Important Polymers
Molecular Weight Distribution and Polydispersity

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, polymer banane ke do bade tareeke hain. Pehla hai chain-growth — yahan ek hi reactive end (radical, cation, anion, ya Ziegler-Natta ka metal centre) hota hai jo ek-ek karke monomer ko khaata jaata hai. Yeh end bahut tezi se grow karta hai, isliye thodi si reaction hone par bhi kuch chains already bohot lambi (high molecular weight) ho jaati hain. Radical "lalchi" hota hai, kisi bhi C=C ko pakad leta hai. Cation ko electron-DONATING group wale monomer chahiye (taaki plus charge stable rahe), aur anion ko electron-WITHDRAWING group wale (taaki minus charge stable rahe). Yaad rakho: Cation–Donor, Anion–Withdraw.

Ziegler-Natta (TiCl₄ + Al(C₂H₅)₃) ka kamaal yeh hai ki chain metal par baithti hai aur har monomer ek hi neat tareeke se insert hota hai. Isse straight, stereoregular HDPE banta hai jo branched LDPE se kaafi strong hota hai. Important point: HDPE ki strength pressure se nahi, balki stereochemical control se aati hai.

Step-growth bilkul alag hai. Yahan har monomer ke do functional groups hote hain (jaise diamine + diacid → nylon), aur koi bhi do tukde aapas me jud sakte hain, paani jaisa chhota molecule nikalte hue (condensation). Iska sabse important rule Carothers equation hai: $\bar X_n = 1/(1-p)$ . Iska matlab — jab tak $p$ (kitne groups react hue) 99%+ nahi pahunchta, lambi chain banti hi nahi. p=0.9 par sirf Xn=10 (bekaar), lekin p=0.99 par Xn=100. Isliye step-growth me poori conversion zaroori hai, jabki chain-growth me shuru me hi lambi chains mil jaati hain. Yahi dono ka core difference hai — exam me yeh comparison bahut poochha jaata hai.
