4.6.2Polymers

Addition polymers — polyethene, PVC, PTFE (Teflon), polypropylene, polystyrene, PMMA, polyacrylonitrile

1,862 words8 min readdifficulty · medium2 backlinks

WHAT is an addition polymer?

WHY "addition"? Because the monomer is added on — nothing is split off. Contrast with condensation polymers (nylon, polyester) which expel a small molecule like H2OH_2O. That is the single most useful distinction.


HOW does the chain actually grow? (Free-radical mechanism, derived from scratch)

We will build the rule, not memorise it. Take ethene CH2=CH2CH_2=CH_2.

Step 1 — Initiation. A peroxide initiator breaks into two radicals (species with an unpaired electron, written as a dot): ROOR2ROR{-}O{-}O{-}R \longrightarrow 2\,R\text{–}O\bullet

Why this step? A radical is electron-hungry. The π\pi electrons of the C=CC=C are loosely held and easy to grab — perfect prey.

Step 2 — Propagation. The radical attacks one carbon of the double bond. One π\pi electron pairs with the radical's electron to make a new bond; the other π\pi electron is left as a new radical on the far carbon: RO+CH2=CH2ROCH2CH2RO\bullet + CH_2{=}CH_2 \longrightarrow RO{-}CH_2{-}CH_2\bullet ROCH2CH2+CH2=CH2ROCH2CH2CH2CH2RO{-}CH_2{-}CH_2\bullet + CH_2{=}CH_2 \longrightarrow RO{-}CH_2{-}CH_2{-}CH_2{-}CH_2\bullet

Why this step? The radical just moves to the chain end and keeps eating monomers — a self-perpetuating "chain reaction". This is why it's called chain-growth.

Step 3 — Termination. Two radical chain-ends meet and pair up their electrons (combination), stopping growth.

The net result, ignoring chain ends: nCH2=CH2peroxide,high P,T ⁣[CH2CH2] ⁣nn\,CH_2{=}CH_2 \xrightarrow{\text{peroxide},\,\text{high }P,T} {-}\!\left[CH_2{-}CH_2\right]\!_n{-}

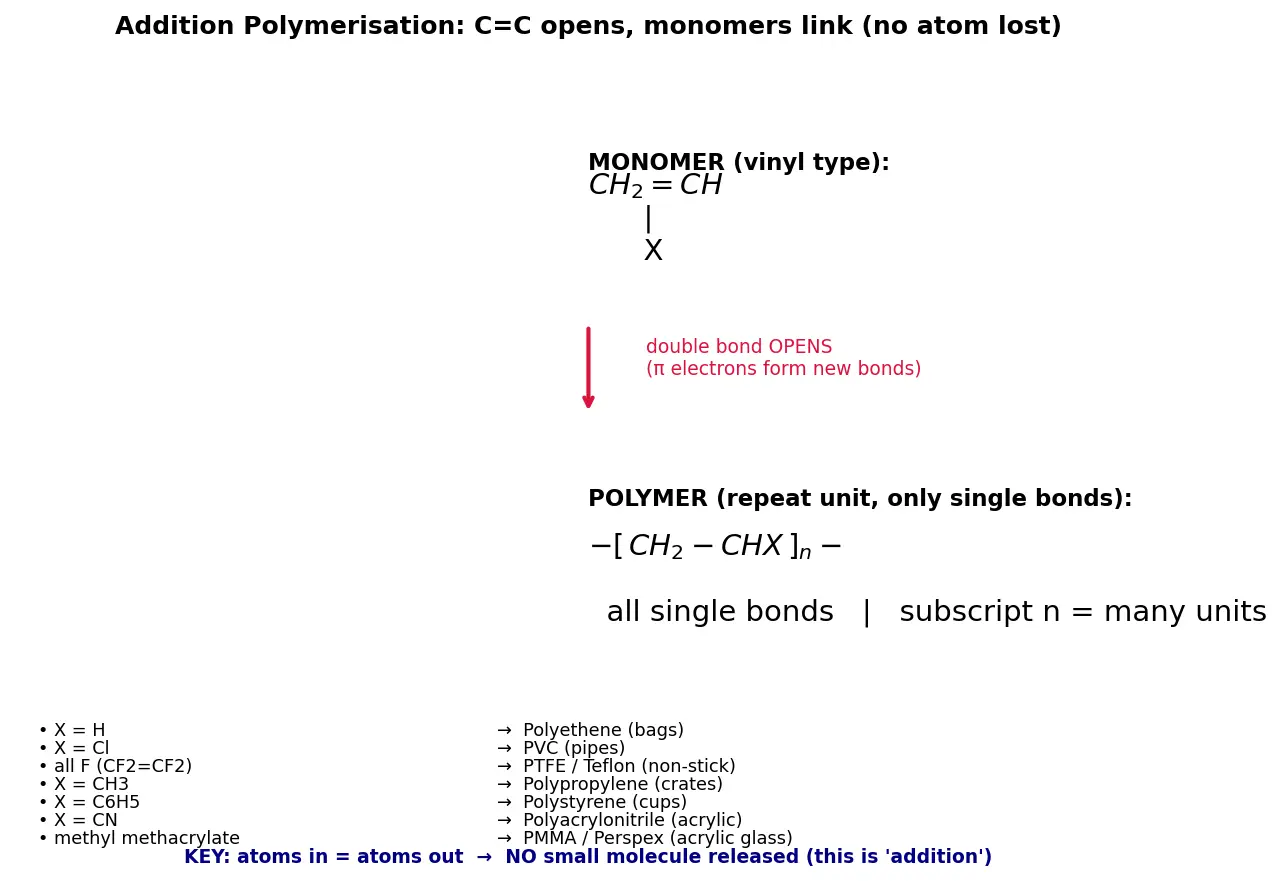

Figure — Addition polymers — polyethene, PVC, PTFE (Teflon), polypropylene, polystyrene, PMMA, polyacrylonitrile

The family: change XX, change the plastic

Polymer Monomer XX group Repeat unit Key use (WHY)
Polyethene (PE) ethene CH2=CH2CH_2{=}CH_2 H CH2CH2-CH_2-CH_2- bags, bottles; cheap, inert
PVC chloroethene (vinyl chloride) CH2=CHClCH_2{=}CHCl Cl CH2CHCl-CH_2-CHCl- pipes, insulation; rigid, flame-resistant
PTFE (Teflon) tetrafluoroethene CF2=CF2CF_2{=}CF_2 all F CF2CF2-CF_2-CF_2- non-stick pans; C–F bond super-strong, inert, low friction
Polypropylene (PP) propene CH2=CH(CH3)CH_2{=}CH(CH_3) CH₃ CH2CH(CH3)-CH_2-CH(CH_3)- crates, ropes; tough, high m.p.
Polystyrene (PS) styrene CH2=CH(C6H5)CH_2{=}CH(C_6H_5) C₆H₅ CH2CH(C6H5)-CH_2-CH(C_6H_5)- cups, packaging; rigid, easily foamed
PMMA (acrylic/Perspex) methyl methacrylate COOCH3-COOCH_3 + CH₃ CH2C(CH3)(COOCH3)-CH_2-C(CH_3)(COOCH_3)- "glass" substitute; transparent, shatter-resistant
PAN acrylonitrile CH2=CH(CN)CH_2{=}CH(CN) CN CH2CH(CN)-CH_2-CH(CN)- acrylic fibre (sweaters); wool-like, carbon-fibre precursor

Worked Examples


Common Mistakes (Steel-manned)


80/20 — the 20% that earns 80% of marks

  1. Addition = C=CC=C monomer, no small molecule lost.
  2. Open the double bond → single bonds to neighbours → repeat unit in [  ]n-[\;]_n-.
  3. Know the 7 monomers ↔ polymers ↔ uses table by heart.
  4. C–F bond strength explains PTFE's inertness; branching explains LDPE vs HDPE.

Recall Feynman: explain to a 12-year-old

Imagine each monomer is a kid holding both their own hands together (that "holding" is the double bond). When a teacher (the radical) taps a kid, the kid lets go of one of their own hands and instead grabs the hand of the next kid. That kid then frees a hand and grabs the next, and so on — a giant human chain forms, and nobody loses a single finger (no atoms thrown away). If the kids wear different gloves (Cl, F, a flower CH₃, a balloon C₆H₅), the chain behaves differently — that's why we get bags, pipes, non-stick pans, and foam cups all from the same trick.


Flashcards

What defines an addition polymer?
Repeated addition of unsaturated (C=CC=C) monomers with no small molecule lost; repeat unit = monomer.
Monomer of polyethene?
Ethene, CH2=CH2CH_2{=}CH_2.
Monomer of PVC?
Chloroethene (vinyl chloride), CH2=CHClCH_2{=}CHCl.
Monomer of PTFE/Teflon?
Tetrafluoroethene, CF2=CF2CF_2{=}CF_2.
Why is PTFE so inert and non-stick?
Very strong, short C–F bonds + low surface friction, chemically unreactive.
Monomer of polypropylene?
Propene, CH2=CH(CH3)CH_2{=}CH(CH_3).
Monomer of polystyrene?
Styrene (phenylethene), CH2=CH(C6H5)CH_2{=}CH(C_6H_5).
Monomer of PMMA (Perspex)?
Methyl methacrylate.
Monomer and use of PAN?
Acrylonitrile CH2=CH(CN)CH_2{=}CH(CN); acrylic fibres / carbon-fibre precursor.
Difference between LDPE and HDPE?
LDPE branched → low density, flexible; HDPE linear → dense, rigid, stronger.
What happens to the C=C during addition polymerisation?
It opens into single bonds linking neighbouring monomers.
Three steps of free-radical addition polymerisation?
Initiation, propagation, termination.
How to find monomer from a repeat unit?
Put a C=CC=C back between the two backbone carbons of the repeat unit.
n for PE of M = 42000 (ethene M=28)?
1500 units.
Addition vs condensation key difference?
Addition loses no atoms (C=C monomers); condensation expels a small molecule (e.g. H2OH_2O).

Connections

Concept Map

contains

opens up

no atoms lost

contrast

expels

forms radicals

chain grows

radicals meet

stops growth

change X group

X=H

X=Cl

X=CH3

X=C6H5

Vinyl monomer CH2=CHX

C=C double bond

Addition polymerisation

Addition polymer

Condensation polymer

Small molecule e.g. water

Peroxide initiator

Propagation

Termination

Polymer family

Polyethene

PVC

Polypropylene

Polystyrene

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, addition polymer ka funda bilkul simple hai: aapke paas ek chhota monomer hota hai jisme ek double bond (C=CC=C) hota hai. Jab polymerisation hoti hai, to ye double bond "khul" jaata hai — ek π bond toot kar uske electrons next monomer ke saath naya single bond bana lete hain. Isliye saare monomers ek lambi chain mein jud jaate hain, aur khaas baat ye ki koi chhota molecule (jaise paani) bahar nahi nikalta. Atoms in = atoms out. Yahi cheez addition ko condensation (nylon, polyester) se alag karti hai, jisme H2OH_2O nikalta hai.

Ab maza ye hai ki double bond ke saath jo side group XX lagaa hota hai, wahi plastic ki personality decide karta hai. X=HX=H to polyethene (thaili-bottle), X=ClX=Cl to PVC (pipe), saari positions par F to PTFE/Teflon (non-stick tawa, kyunki C–F bond bohot strong aur inert hota hai), X=CH3X=CH_3 to polypropylene, X=C6H5X=C_6H_5 to polystyrene (cup, thermocol), X=CNX=CN to acrylic fibre (sweater), aur methyl methacrylate se PMMA (Perspex — kaanch jaisa transparent).

Exam tip: repeat unit likhte waqt double bond mat chhodo — woh khul chuka hai, ab sirf single bonds. Aur hamesha [  ]n-[\;]_n- ke saath open bonds aur subscript nn dikhana, taaki examiner ko pata chale ki ye ek bada macromolecule hai. Reverse mein, agar repeat unit diya ho aur monomer poochha jaaye, to bas do backbone carbons ke beech double bond wapas daal do — monomer mil gaya. Mechanism yaad rakho: Initiation → Propagation → Termination (free radical chain reaction).
