Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement: Visual walkthrough

We attack ONE central result from the parent note:

$phenol is a weak acid, p K_{a} \approx 10, far more acidic than ethanol (p K_{a} \approx 16)$

Everything below earns that number, one picture at a time.

Prerequisite ideas we will lean on (all built here anyway): Acid Strength and Conjugate Base Stability (pKa), Resonance and Mesomeric Effect, Inductive vs Mesomeric Effects of Substituents.

Step 1 — What "acidic" even means (the tug-of-war picture)

WHAT. An acid is a molecule that can let go of a hydrogen as a bare proton, written $H^{+}$ . A proton is just a hydrogen atom that left its electron behind — a tiny positive marble. When the acid $HA$ releases it, what stays behind is $A^{-}$ , called the conjugate base (it carries the leftover negative charge because it kept both electrons of the old bond).

$acid HA ⇌ conjugate base A^{-} + released proton H^{+}$

WHY this picture first. You cannot compare two acids until you know the single rule that decides everything: an acid is strong exactly when its conjugate base $A^{-}$ is happy (low energy, stable). A stable $A^{-}$ has no urge to grab the proton back, so the arrow sits to the right. This is the whole game — hold onto it.

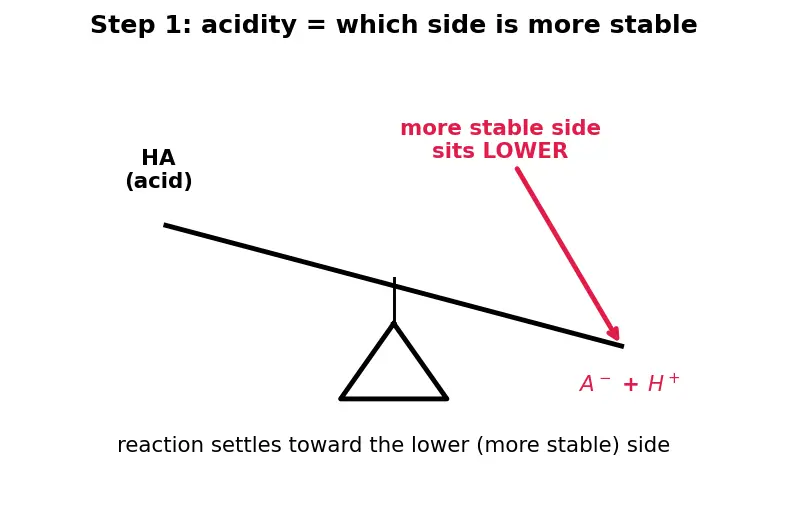

PICTURE. Look at the seesaw. On the left, $HA$ ; on the right, $A^{-} + H^{+}$ . The side that is lower (more stable) is where the reaction settles.

Figure — Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement

Step 2 — Meet the two contestants (draw the molecules)

WHAT. We compare two "R–O–H" molecules — both have an oxygen ( $O$ ) holding a hydrogen ( $H$ ). The only difference is what sits on the other side of the oxygen, called $R$ :

Ethanol, $CH_{3} CH_{2} -O-H$ : here $R$ is a plain chain of carbons.
Phenol, $C_{6} H_{5} -O-H$ : here $R$ is a benzene ring — a flat hexagon of six carbons sharing a cloud of electrons.

WHY. Both lose the same $O-H$ proton, so any difference in acidity must come from what happens to the leftover charge on oxygen — i.e. from $R$ . Same crime scene, different neighbourhood. That isolates the cause.

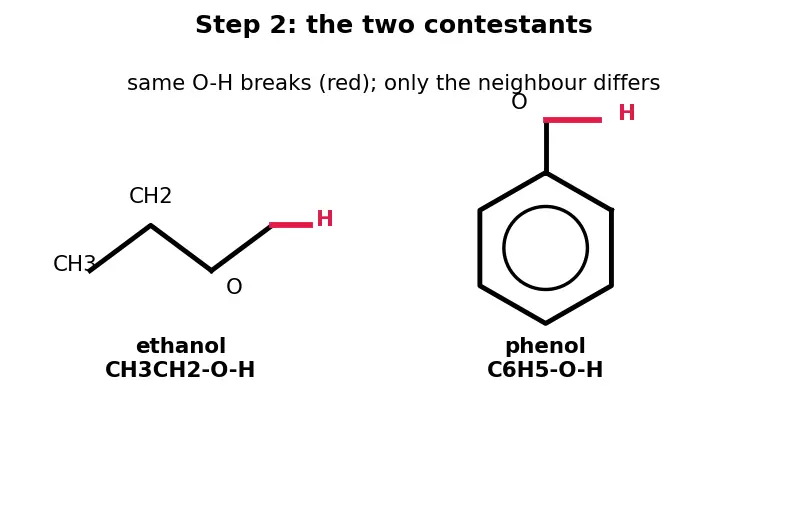

PICTURE. On the left, the short ethanol chain ending in $-OH$ . On the right, the hexagon with $-OH$ stuck on one corner. The red $O-H$ bond is the one that will break in both.

Step 3 — Ethoxide: the charge has nowhere to go (the trapped-dot picture)

WHAT. Break ethanol's $O-H$ bond. The oxygen keeps both electrons and becomes ethoxide, $CH_{3} CH_{2} -O^{-}$ . The minus sign means one lone pair of extra electrons sits on that single oxygen.

$CH_{3} CH_{2} -O-H ⇌ CH_{3} CH_{2} - O - + H^{+}$

$-O^{-}$ : the oxygen now holding the leftover negative charge.
The $CH_{3} CH_{2}$ chain: just carbons and hydrogens — no ring, no cloud to share into.

WHY this matters. The negative charge is a crowd squeezed into one small room (one oxygen atom). Crowded charge = high energy = unstable. An unstable $A^{-}$ desperately wants its proton back → the seesaw tips left → ethanol is a weak acid ( $p K_{a} \approx 16$ ).

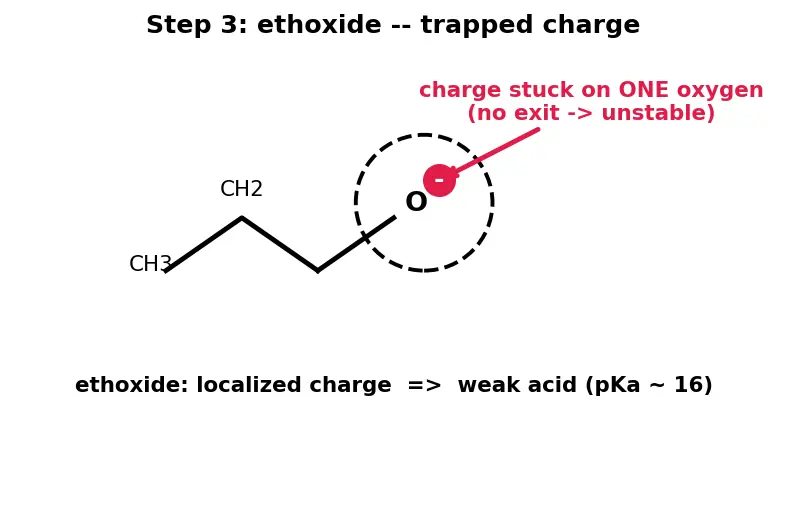

PICTURE. A single red dot of charge pinned to one oxygen, with a "no exit" wall around it — nothing to spread into.

Step 4 — Phenoxide: the charge escapes into the ring (resonance, arrow by arrow)

WHAT. Break phenol's $O-H$ bond → phenoxide, $C_{6} H_{5} -O^{-}$ . Now the negative charge on oxygen is right next to that electron cloud. A lone pair on oxygen can push into the ring, and the charge slides onto a carbon. We track this with curved arrows — a curved arrow means "this pair of electrons moves from tail to head."

WHY the arrows / why "resonance." No single drawing shows the truth. The real phenoxide is a blend of several drawings, called resonance structures. Each is a legal snapshot; the true molecule is their average. This tool — resonance — is exactly the one we need, because our whole rule (Step 1) is about spreading charge to gain stability, and resonance is the language of spread-out charge. (Full tool: Resonance and Mesomeric Effect.)

$O^{-} -ring \leftrightarrow O = ring, charge at o \leftrightarrow charge at o^{'} \leftrightarrow charge at p$

Read each symbol:

$\leftrightarrow$ : the resonance arrow (double-headed) — "same molecule, different snapshot," NOT a reaction.
$O = ring$ : the oxygen pair has become a new $O=C$ double bond into the ring.
$o, o^{'}, p$ : the two ortho carbons (next to the O-bearing carbon) and the one para carbon (directly across). These are the only places the charge can land.

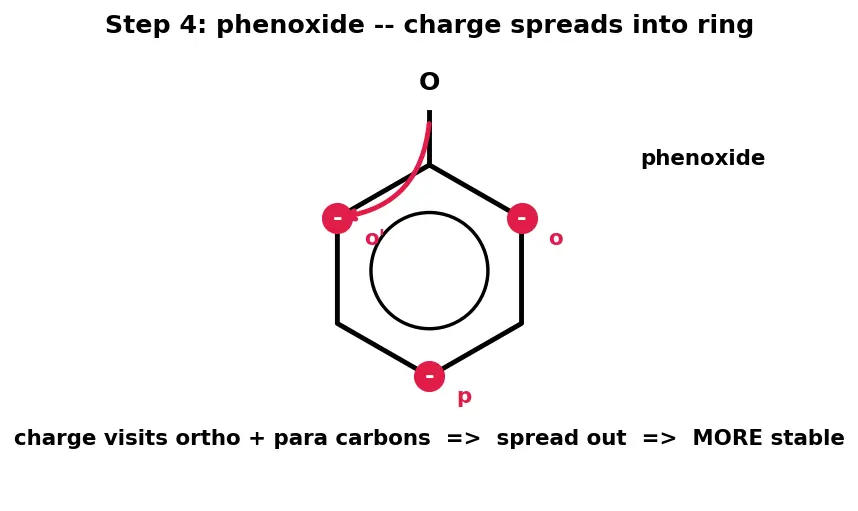

PICTURE. Follow the curved red arrow from an oxygen lone pair into the ring; watch the minus sign hop from O → ortho → para. The charge now visits four different atoms instead of being stuck on one.

Step 5 — The honest catch: carbon is a bad host (why phenol isn't as strong as acetic acid)

WHAT. In phenoxide the charge lands mostly on carbon atoms. Compare carboxylate, $R-COO^{-}$ (the conjugate base of a carboxylic acid), where the charge is shared between two oxygens.

$R-C (= O) -O^{-} \leftrightarrow R-C (-O^{-}) = O$

Two $O$ atoms, both electronegative (they love electrons).
The two snapshots are identical in energy — the charge is split evenly, the best possible spread.

WHY. Oxygen is greedy for negative charge; carbon is not. So carboxylate hosts its charge on happy oxygens, while phenoxide dumps charge onto reluctant carbons. Better host → more stable base → stronger acid. That is why acetic acid ( $p K_{a} \approx 5$ ) beats phenol ( $p K_{a} \approx 10$ ), even though both use resonance.

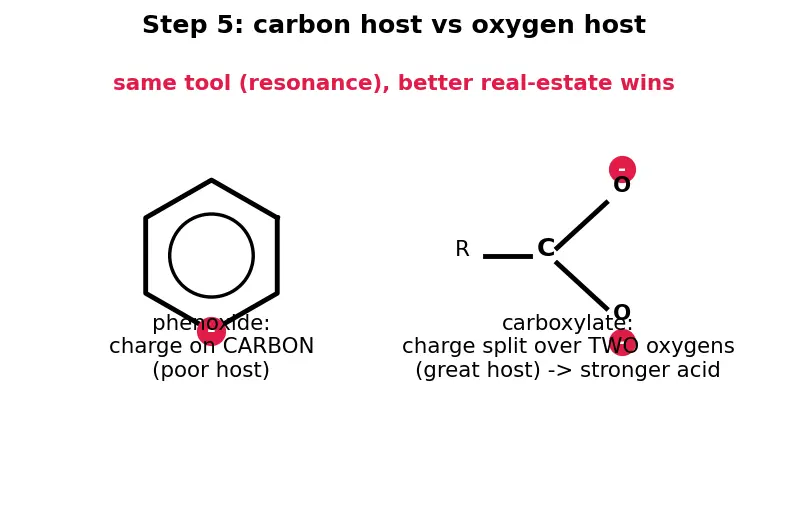

PICTURE. Left: phenoxide charge sitting on carbons (uneasy face). Right: carboxylate charge split evenly between two oxygens (happy). Same tool, better real-estate.

Step 6 — Turn the knob: a nitro group at para pulls the charge even further out

WHAT. Attach a nitro group $-NO_{2}$ at the para position. Nitro is an electron-withdrawing group (EWG): its own nitrogen–oxygen bonds are hungry for electrons. When the phenoxide charge reaches the para carbon (Step 4), the nitro group accepts it onto its own oxygens by resonance.

$(charge at p) \leftrightarrow charge now on -NO_{2} oxygens$

WHY ortho/para only. Recall from Step 4 that the phenoxide charge can only reach the ortho and para carbons. A nitro sitting there is "plugged into" that same pathway ("through-conjugation") and can drain the charge onto oxygen. A meta nitro is not on a charge-bearing carbon, so it can only help weakly through the bonds (inductive) — much less. (Both effects: Inductive vs Mesomeric Effects of Substituents.)

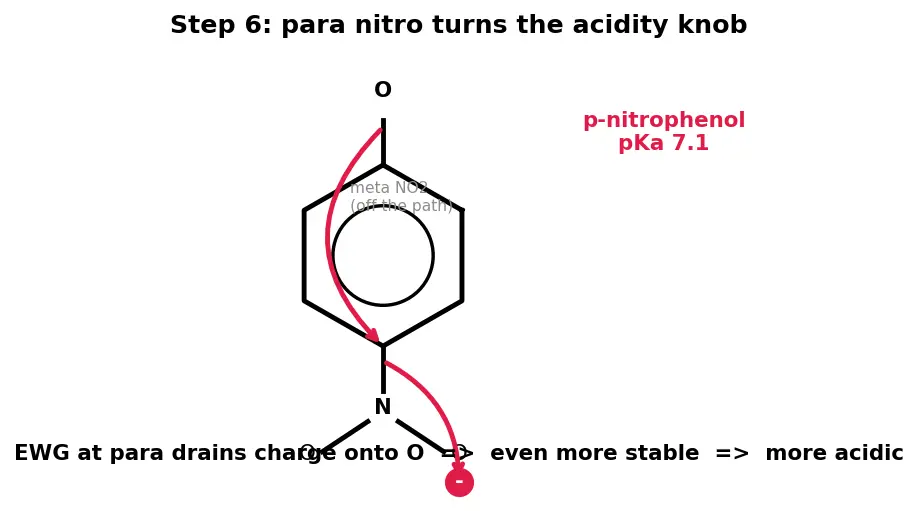

PICTURE. The red charge travels O → para carbon → and keeps going, out onto the two nitro oxygens. A meta nitro (greyed out) is left off the path.

Formula The acidity ladder, explained

Phenol	$p K_{a}$	Reason (in our pictures)
phenol	$10.0$	baseline: charge onto ring carbons
p-cresol ( $p$ -CH₃)	$10.3$	CH₃ donates → crowds the charge → less stable → less acidic
p-nitrophenol	$7.1$	one EWG drains charge onto O → more stable → more acidic
2,4,6-trinitrophenol (picric acid)	$0.4$	three EWG → charge spread onto six extra oxygens → acid as strong as a mineral acid

Step 7 — Edge & degenerate cases (so you never hit a surprise)

WHAT / WHY / PICTURE, three quick corners the reader must see:

No ring at all (ethanol): back to Step 3 — charge trapped, $p K_{a} 16$ . This is the "resonance switched off" limit.
EDG instead of EWG (methyl, methoxy): an electron-donating group pushes electrons toward the already-negative ring, crowding the charge → base less stable → phenol less acidic (cresol $10.3$ ). It's the knob turned the wrong way.
Meta EWG: off the resonance path, so only weak inductive help — acidifies far less than the same group at para. Position, not just identity, decides.
Extreme limit (three EWG, picric acid): so much charge is drained away that $p K_{a}$ crashes to $0.4$ — essentially a strong acid. The trend of Step 6, pushed to its end.

Recall Check yourself

Which is more acidic, m-nitrophenol or p-nitrophenol, and why? ::: p-nitrophenol — the para nitro sits on the charge-bearing carbon and drains the negative charge by resonance; the meta nitro only helps weakly by induction. Why is ethanol a weaker acid than phenol? ::: Ethoxide's charge is trapped on one oxygen (no ring to spread into); phenoxide spreads its charge over the ring, so it is more stable. Why is acetic acid stronger than phenol despite both using resonance? ::: Carboxylate spreads charge over two greedy oxygens; phenoxide dumps charge on poor-host carbons.

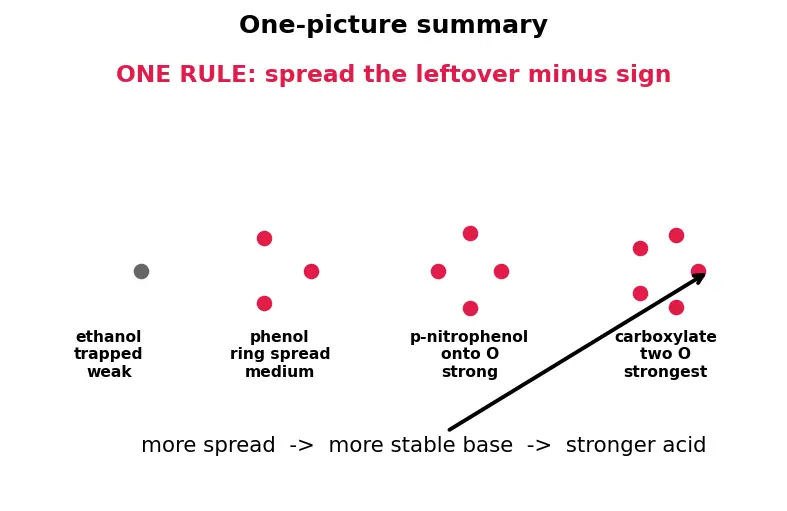

The one-picture summary

Everything on this page is one idea: spread the leftover minus sign to make the base stable, and phenol gives up its proton. Ethanol can't spread it (trapped) → weak. Phenol spreads it onto ring carbons → medium. Add an EWG and it drains onto oxygen too → strong. Carboxylate, spreading onto two oxygens, beats them all.

Recall Feynman: retell the whole walkthrough

Think of the acid as a kid holding a hot potato (the negative charge that's left after the proton pops off). If the kid stands alone in a tiny closet (ethanol's lone oxygen), the potato burns — the kid grabs the proton back fast, so ethanol barely lets go: weak acid. But phenol's kid stands at the edge of a big trampoline (the benzene ring): the potato bounces across the trampoline to a couple of far corners (ortho and para), sharing the heat — comfortable, so phenol lets the proton stay gone: stronger acid. Now bolt a super-cold sink (a nitro group) onto one of those corners: the potato slides right into it and vanishes — phenol lets go super easily (picric acid). Only catch: the trampoline corners are made of carbon, which doesn't love the potato as much as oxygen does — so a carboxylic acid, which hands its potato to two oxygens, beats phenol every time. One rule, drawn eight ways: stable leftover charge ⇒ stronger acid.

Parent: 4.3.05 Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement (Hinglish) · See also Aspirin and Salicylic Acid (applications).
