Before you can read the parent note comfortably, you must be able to see every symbol it throws at you. This page builds them one at a time, from nothing. Nothing below assumes you already know chemistry notation — each new mark is drawn as a picture first, then named.


0. Letters are elements; subscripts count atoms

Figure — Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement

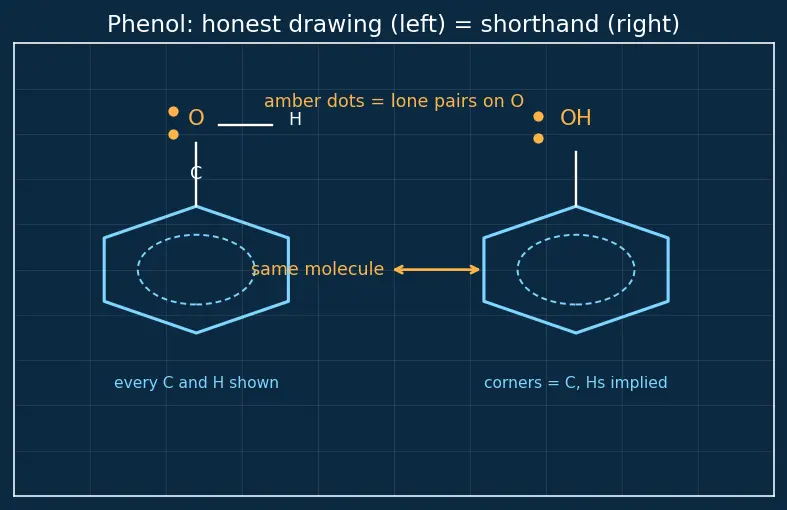

Look at the figure: on the left is the fully honest drawing (every C, every H, every dot). On the right is the shorthand the parent note uses. They are the same molecule. The two amber dots on the oxygen are the lone pairs — remember them, they are the hero of this whole topic.

Why does the topic need this? Because "the oxygen lone pair talks to the ring" is a sentence about those two amber dots moving. If you can't see them, the rest is invisible.


0b. The –OH group (hydroxyl)


1. The benzene ring and why it is drawn with a circle

  • Some books draw the ring with three double lines (double bonds, defined in §0) alternating around the hexagon; others draw a circle inside the hexagon. The circle is the honest picture: the electrons are spread out, not locked between specific pairs.
  • The word for this spreading is delocalization: electrons belonging to the whole system rather than one spot.

The parent note calls the ring a "trampoline." That is exactly this cloud — a springy sheet of shared electrons.


2. Charges: the plus and minus superscripts

The double arrow means the reaction runs both ways and settles at a balance — nothing goes 100% to completion. This matters: phenol is a weak acid, so most of it stays un-ionised.


3. Electrophiles and nucleophiles


4. The curved arrow — the verb of chemistry

Figure — Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement

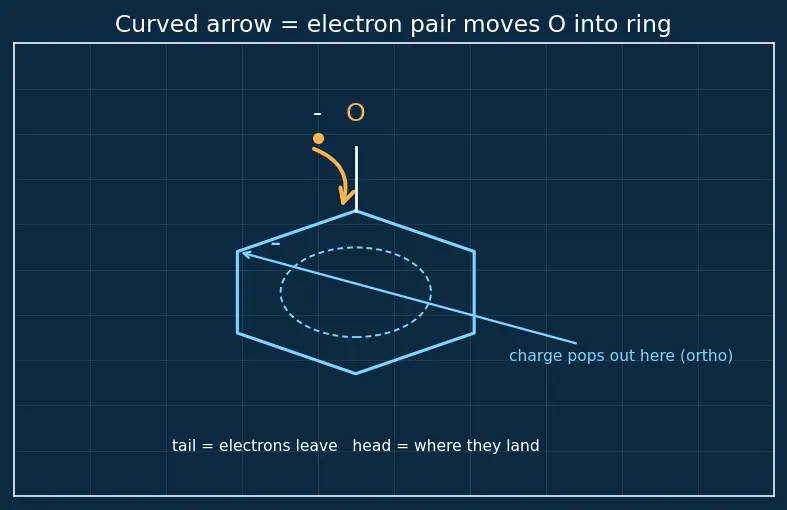

In the figure, the amber arrow starts at the oxygen's lone pair and curves into the ring. That is the entire secret of phenol drawn in one stroke: the lone-pair electrons push into the ring, and a negative charge pops out at a carbon further along.

Why the topic needs this: resonance, Kolbe–Schmidt, the carbene attack — every mechanism in the parent note is just a chain of these arrows.


5. Resonance and the double-headed arrow

Figure — Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement

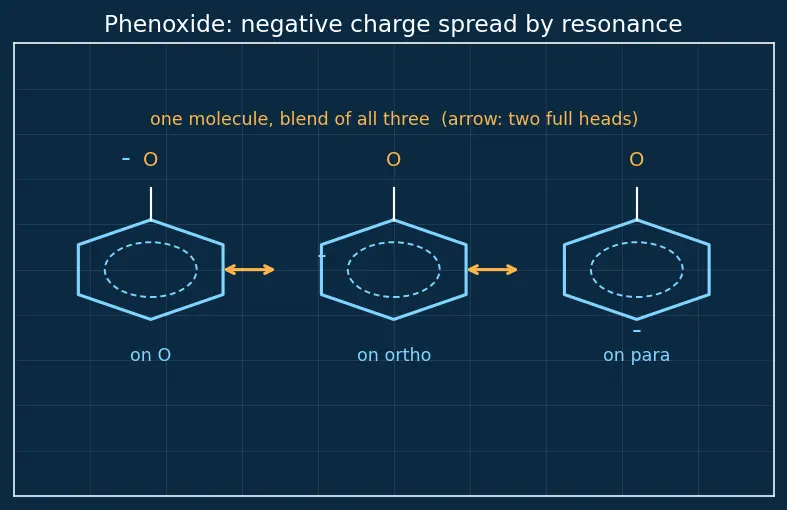

The figure shows phenoxide's negative charge appearing at the oxygen, then at each ortho carbon, then at the para carbon. Because the charge is drawn in several places, it is actually spread across all of them — this spreading lowers the energy, which is precisely why phenol is acidic. This is the parent's "5 resonance structures."


6. The position words: ortho, meta, para

Figure — Phenols — acidity (resonance stabilization), Kolbe-Schmidt, Reimer-Tiemann, Fries rearrangement

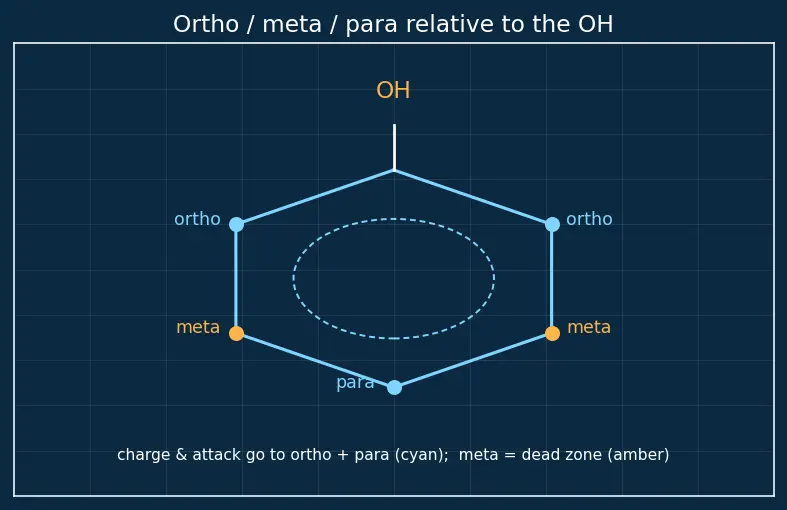

Why the topic obsesses over these: the resonance in §5 delivered negative charge to ortho and para only — never meta. So every incoming electrophile (CO₂, carbene, acyl) lands ortho or para, and every acid-strengthening EWG must sit ortho or para to help. Meta is the "dead zone" for through-conjugation.


7. Reading a number

Species Meaning
acetic acid 4.76 gives easily
phenol 10.0 gives reluctantly
water 15.7 very reluctant
ethanol 16 barely at all

So phenol () sitting below ethanol () means phenol is the stronger acid — by roughly . The whole "acidity" section of the parent is just comparing these numbers, and the reason behind them is the charge-spreading of §5. Full detail: Acid Strength and Conjugate Base Stability (pKa).


8. EWG vs EDG — groups that push or pull electrons

The two ways a group pushes/pulls — one through bonds (inductive), one through the electron cloud (resonance/mesomeric) — are unpacked in Inductive vs Mesomeric Effects of Substituents and Resonance and Mesomeric Effect.


9. The reaction-arrow with words above and below

Once you can read this, the three named reactions are just three arrows with different labels — see Electrophilic Aromatic Substitution for the shared attack step underneath them all.


Prerequisite map

The diagram below shows how each foundation feeds the next, ending in the parent topic. Read arrows as "is needed for." Legend: each box is one skill from this page; an arrow from box X to box Y means "you must understand X before Y makes sense."

letters = elements, subscripts count atoms

bonds, double bonds, lone pairs, valence

OH hydroxyl group

benzene electron cloud

curved arrow moves electrons

plus and minus charges, H plus proton

electrophile and nucleophile

resonance double-head arrow

charge lands at ortho and para

phenol acidity via stable phenoxide

pKa ruler

EWG and EDG

electron-rich ring attacks electrophiles

Kolbe-Schmidt Reimer-Tiemann Fries

4.3.05 parent topic

Everything funnels into the parent: the parent topic.


Equipment checklist

(Each line below is a Question ::: Answer flashcard — cover the part after :::, answer from memory, then reveal.)

What does a capital letter like C, H, or O stand for?
A chemical element — a basic kind of atom (carbon, hydrogen, oxygen).
What does the subscript in tell you?
How many of that atom there are — here, two hydrogen atoms (and one oxygen, since O has no subscript).
What is the difference between a single line and a double line between atoms?
A single line is one shared electron pair (single bond); a double line is two shared pairs (double bond).
What is valence, and how do you find a carbon's hidden hydrogens?
Valence = the fixed number of bonds an atom insists on (C=4, O=2, H=1); hidden Hs on a carbon = 4 minus its visible bonds.
What is the –OH group called and what is it?
The hydroxyl group — an oxygen bonded to one hydrogen, attached to the rest of the molecule.
What does a plain line between two letters represent?
A shared pair of electrons — a single chemical bond.
What are the two amber dots on phenol's oxygen?
A lone pair — electrons owned by O alone, the ones that leak into the ring.
What does a small superscript minus () mean on an atom?
One extra electron there; the spot is negatively charged.
What is ?
A bare proton — a hydrogen that has lost its electron; the particle an acid releases.
What is an electrophile?
An electron-poor, electron-hungry species that accepts electrons (e.g. CO₂ carbon, :CCl₂).
What is a nucleophile?
An electron-rich species that donates electrons — here, the phenol ring.
What does a curved arrow show?
The movement of an electron pair, from its tail to its head.
Difference between and ?
links resonance drawings of ONE molecule; is a real reversible reaction between different molecules.
Which ring carbons are ortho, meta, para to the –OH?
ortho = neighbours (2,6); meta = one further (3,5); para = directly across (4).
To which positions does phenoxide's negative charge delocalize?
Ortho and para only — never meta.
Lower means what?
Stronger acid (gives up more easily); each unit is a factor of 10.
What does an EWG at ortho/para do to phenol's acidity?
Increases it — it stabilises the negative phenoxide by soaking up charge.
What does above a reaction arrow mean?
Apply heat.
