Activating vs deactivating groups; ortho - para vs meta directors; reactivity order: Worked examples

We rely on three tools built in the parent topic: the inductive effect (push/pull through σ-bonds), the mesomeric effect (push/pull through π overlap), and the arenium-ion intermediate whose stability decides where attack happens.

Figure — Activating vs deactivating groups; ortho - para vs meta directors; reactivity order

The scenario matrix

Every substituted benzene you can be handed falls into ONE of these cells. Our job: hit each cell with at least one worked example.

Cell	Case class	Representative group	What could go wrong
A	Pure donor, both +I and +M	$- N H_{2}$ , $- O H$	over-activation, wrong strength ranking
B	Weak donor, +I only (no lone pair)	$- C H_{3}$ (alkyl)	forgetting it still directs o/p
C	The exception: −I dominant, weak +M	$- C l$	mixing up rate vs direction
D	Strong withdrawer, −I and −M	$- N O_{2}$ , $- C N$	wrong director (says o/p)
E	Charged / degenerate withdrawer	$- N^{+} R_{3}$	pure −I, no resonance at all
F	Two groups fighting (conflict)	$- O H$ + $- N O_{2}$	which one wins the vote?
G	Limiting case — bare ring	benzene ( $- H$ )	the reference speed "1×"
H	Real-world / exam twist	synthesis ordering	order of steps changes product

We'll walk A→H below.

Cell A — Pure donor (both +I and +M)

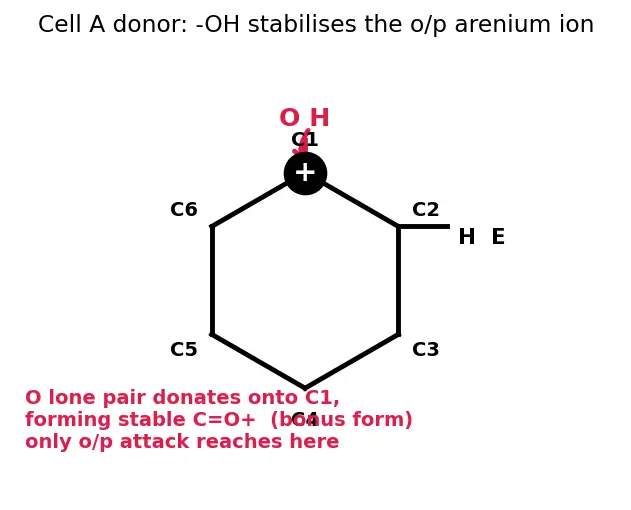

Before the example, look at the electron-flow picture for a donor: when $E^{+}$ attacks ortho or para to $- O H$ , one arenium resonance form puts the $+$ on the carbon holding $- O H$ , and oxygen's lone pair rushes in to form an extra, very stable $C = O^{+}$ structure. Meta attack can't reach that carbon, so it loses this bonus.

Worked example

A. Nitration of phenol ( $C_{6} H_{5} O H$ ): predict product AND relative rate. Forecast: Guess now — faster or slower than benzene? Which positions?

Identify the group's effects. $- O H$ has a lone pair on oxygen it can push into the ring → $+ M$ (strong). Oxygen is electronegative → $- I$ (weak pull). Why this step? Direction and rate are set by which effect dominates, so we must list both signs first.
Which effect wins? $+ M$ can dump a full negative charge onto ring carbons; the $- I$ only nudges. Resonance beats induction here → net strong activator. Why this step? The parent's rule "resonance beats induction unless the atom is a poor donor" — oxygen is a good donor.
Rate vs benzene. Ring is electron-richer → it grabs the electrophile $E^{+}$ (here $N O_{2}^{+}$ ) faster than benzene. Why this step? A richer π cloud is more nucleophilic toward $E^{+}$ , and "activating = faster" is the definition.
Direction. Donors stabilize the arenium $+$ that lands next to them ⇒ o/p director. Para is usually the major isolated product (less steric crowding than ortho). Why this step? As the figure above shows, o/p attack puts the arenium $+$ on the carbon bearing $- O H$ , letting oxygen's lone pair form the extra oxocarbenium ( $C = O^{+}$ ) resonance form — meta cannot.

Answer: o- and p-nitrophenol; rate > benzene.

Verify: On the strength chart above, $- O H$ sits left of $- H$ , so faster than benzene. ✓ (See Acidity of phenol vs alcohols — the same lone-pair donation that speeds EAS also explains phenol's acidity once the H leaves.)

Cell B — Weak donor, +I only

Worked example

B. Sulphonation of toluene ( $C_{6} H_{5} C H_{3}$ ): where does $- S O_{3} H$ go? Forecast: $- C H_{3}$ has NO lone pair — can it still direct o/p?

Effects of $- C H_{3}$ . No lone pair ⇒ no $+ M$ . But alkyl groups push electrons through σ-bonds → $+ I$ (donor). Why this step? We must not invent a resonance donation that isn't there; only the real effect (σ-push) may enter the argument.
Rate. $+ I$ enriches the ring slightly → faster than benzene (mild activator). Why this step? Even a gentle electron push makes the π cloud more nucleophilic toward $E^{+}$ , so the rate must rise above the benzene benchmark.
Direction — the subtle bit. Even with only $+ I$ , the arenium $+$ is most stabilized when it sits on the ring-carbon nearest the electron-donating methyl. That happens for ortho and para attack (a more-substituted, more stable carbocation — see Carbocation stability). Why this step? Direction is decided by intermediate stability, and $+ I$ preferentially props up exactly the o/p intermediates (charge next to the donor), just like $+ M$ did for $- O H$ .

Answer: o- and p-toluenesulphonic acid; rate > benzene.

Verify: On the strength chart, toluene ( $- C H_{3}$ ) sits left of $- H$ ⇒ activator ✓. Contrast Cell A: both activate o/p, but $- O H$ (has $+ M$ ) is far stronger than $- C H_{3}$ ( $+ I$ only). ✓

Cell C — The halogen exception

For a halogen, the same o/p electron-flow picture (Cell A figure) still runs — but only faintly, because the $+ M$ arrow is weak. Meanwhile a strong $- I$ pulls the whole ring's electrons away. Two effects, two different jobs.

Worked example

C. Bromination of chlorobenzene: rate AND position (the trap). Forecast: $- C l$ has lone pairs ( $+ M$ ), so surely it activates and directs o/p — right? Watch out.

List both effects. $- C l$ : strong $- I$ (Cl is very electronegative) and weak $+ M$ (3p lone pair overlaps poorly with the ring's 2p system, and the atom is far). Why this step? You cannot judge rate or direction until both signs are on the table — and here they point in opposite conclusions, which is the whole trap.
Who decides RATE? The $- I$ dominates for rate because the weak $+ M$ can't compensate. Ring is electron-poorer → deactivating (slower than benzene). Why this step? This is where students wrongly stop and say "o/p ⇒ activating". Rate and direction are decided by different effects.
Who decides DIRECTION? During the slow rate-determining step, that weak $+ M$ still kicks in to stabilize the o/p arenium ion (lone pair donates onto the carbon bearing Cl). Meta can't use it. ⇒ o/p director. Why this step? Even a small stabilization only available to the o/p intermediate is enough to select those positions, without ever making the overall reaction fast.

Answer: o- and p-bromochlorobenzene; rate < benzene.

Verify: On the strength chart $- X$ sits to the right of $- H$ ⇒ deactivator ✓, yet the class table lists halogens under "Deactivating, o/p" ✓. Both facts simultaneously true — that's the whole point of this cell.

Cell D — Strong withdrawer (−I and −M)

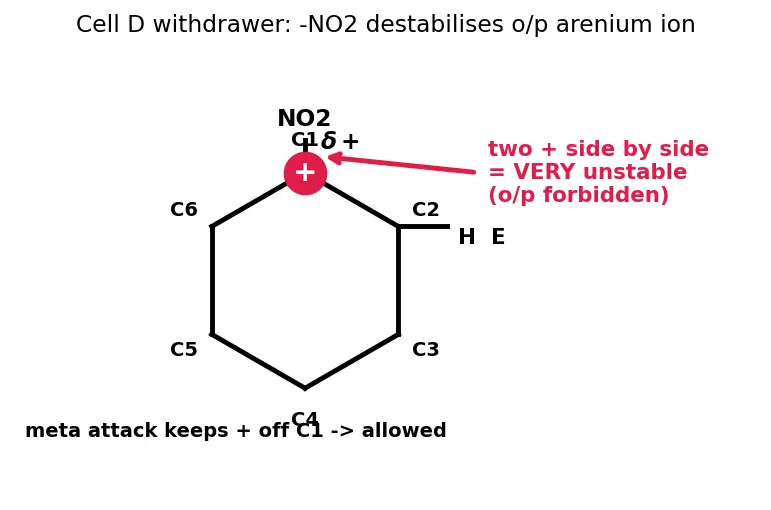

Now flip the electron-flow picture. For a withdrawer like $- N O_{2}$ , o/p attack forces the arenium $+$ onto the carbon whose substituent is already $δ^{+}$ — two positives side by side. Meta attack keeps the $+$ away.

Worked example

D. Nitration of benzonitrile ( $C_{6} H_{5} C N$ ): rate and position. Forecast: $- C N$ pulls hard. Fast or slow? o/p or meta?

Effects of $- C N$ . Triple-bonded, electronegative N drains π density → $- M$ (strong); the electronegative carbon also pulls σ-electrons → $- I$ . Why this step? Both effects have the same sign (withdrawing), so we can already predict a strong, consistent deactivation — no tug-of-war like Cell C.
Rate. Both effects withdraw ⇒ ring is electron-poor ⇒ strongly deactivating (much slower than benzene); needs harsh conditions. Why this step? A depleted π cloud is a poor nucleophile toward $E^{+}$ , so the rate must fall far below the benzene benchmark.
Direction. As the figure shows, o/p attack places the arenium $+$ on the carbon carrying the already $δ^{+}$ cyano group → two adjacent positives = very unstable. Meta attack avoids this → meta director. Why this step? Direction = "avoid stacking positives"; only meta keeps the ring's $+$ off the substituted carbon.

Answer: m-nitrobenzonitrile; rate ≪ benzene.

Verify: On the strength chart $- C N$ sits near the far right (slow) ✓, and it appears in the "Deactivating, meta" class ✓.

Cell E — Charged / degenerate withdrawer (no resonance)

Worked example

E. Nitration of anilinium ion $C_{6} H_{5} N^{+} H_{3}$ (aniline in strong acid). Forecast: Aniline ( $- N H_{2}$ ) is the strongest activator (Cell A family). But in acid the N is protonated. Does it still activate?

What changed. Protonation gives $- N^{+} H_{3}$ : nitrogen now has no lone pair to donate → $+ M$ is switched OFF (degenerate case — a group that lost its resonance). Why this step? Always re-check whether the lone pair still exists under the reaction conditions; the whole activating story of Cell A depended on that lone pair being free.
Remaining effect. A positively charged nitrogen pulls electrons hard through σ-bonds → pure, strong $- I$ . Why this step? With $+ M$ gone, only induction survives — and a formal $+$ on the attached atom makes that $- I$ unusually strong, so the group can only withdraw.
Rate & direction. Strong $- I$ , no $+ M$ ⇒ deactivating, meta director — the opposite of free aniline! Why this step? This is the classic exam twist: same atom, different charge, flipped behaviour (like $- N O_{2}$ , it puts $+$ far from itself → meta).

Answer (in strong acid): m-nitroaniline is favoured; deactivated. (In neutral/basic conditions free $- N H_{2}$ gives o/p and is fast.)

Verify: $- N^{+} R_{3}$ is listed under "Deactivating, meta" ✓, confirming that killing the lone pair converts the strongest activator into a meta-deactivator.

Cell F — Two groups fighting (conflict resolution)

Worked example

F. Nitration of p-nitrophenol: where does the NEW $N O_{2}$ go? Forecast: One group votes o/p, one votes meta — who wins?

Vote of each group. $- O H$ (strong activator) directs o/p to itself. $- N O_{2}$ (strong deactivator) directs meta to itself. Why this step? When two groups disagree, the stronger activator wins the directing vote (it controls the electron-rich hotspots).
Map the ring (look at the figure). Number the ring: $- O H$ at C1, $- N O_{2}$ at C4 (para). Positions o/p to $- O H$ are C2, C6 (ortho) and C4 (para, already occupied). Positions meta to $- N O_{2}$ are C2 and C6. Why this step? On a para-disubstituted ring the two groups' preferences often reinforce — both point to C2/C6.
Resolve. $- O H$ wins the strength contest, and its ortho positions (C2, C6) are also meta to $- N O_{2}$ . They agree → new $N O_{2}$ enters C2 (ortho to OH). Why this step? Because both directing effects point at the same carbon, there is no real conflict to break — the strong activator and the meta-avoidance of the withdrawer cooperate, so C2/C6 is unambiguous.

Answer: 2,4-dinitrophenol (new group ortho to $- O H$ ).

Verify: The strength chart places $- O H$ far left (dominant) and $- N O_{2}$ far right ✓; and C2 is simultaneously ortho-to-OH and meta-to-NO₂ (the red carbon in the figure), so no conflict remains. ✓

Cell G — Limiting case: the bare ring

Worked example

G. Benzene itself — the reference "1× speed". Forecast: With no group, is there any directing preference?

Effects. $- H$ has neither $+ M$ / $- M$ nor significant $+ I$ / $- I$ . It is the zero of the scale. Why this step? We need a fixed reference point; without one, "faster" and "slower" have no meaning — every other cell was measured against this.
Rate. Defined as the benchmark: every other substrate is "faster than" or "slower than" benzene. Why this step? Fixing benzene's rate as $1 \times$ is what turns the strength chart into a usable thermometer.
Direction. All six carbons are equivalent (see Benzene structure and aromaticity) ⇒ no directing — mono-substitution gives one product regardless of position. Why this step? With identical carbons, every arenium intermediate is equally stable, so there is no "preferred" seat — this is the degenerate limit the other cells break out of.

Answer: Rate = 1× (reference); product = single monosubstituted benzene (e.g. nitrobenzene).

Verify: On the strength chart, $- H$ sits in the middle ✓, the pivot separating activators (left) from deactivators (right).

Cell H — Real-world synthesis twist (order matters)

Worked example

H. Make m-bromonitrobenzene vs p-bromonitrobenzene from benzene — choose the order. Forecast: Both routes add one $B r$ and one $N O_{2}$ . Does the order change the product? Guess yes/no.

Route 1: nitrate first, then brominate. After nitration, ring bears $- N O_{2}$ (deactivator, meta director, Cell D). Bromine then enters meta → m-bromonitrobenzene. Why this step? The first-installed group dictates where the second goes.
Route 2: brominate first, then nitrate. After bromination, ring bears $- B r$ (Cell C: deactivating but o/p director). Nitration then enters ortho/para → mainly p-bromonitrobenzene. Why this step? Same two atoms, but $- B r$ and $- N O_{2}$ direct differently, so swapping order swaps the isomer.
Conclusion. Order does change the product: nitro-first ⇒ meta; bromo-first ⇒ para. Why this step? This proves directing is a property of whatever is already on the ring, not of the atoms in the final molecule — so the chemist controls the isomer purely by sequencing the reactions.

Answer: Want meta? Nitrate first. Want para? Brominate first.

Verify: $- N O_{2}$ is meta-directing and $- B r$ is o/p-directing per the class table ✓ — the two directing behaviours are genuinely different, so the routes must diverge.

Recall Which cell is which — quick self-test

Substrate is chlorobenzene: activating or deactivating? which director? ::: Deactivating (−I wins rate) but ortho/para directing (weak +M) — Cell C. $- N^{+} H_{3}$ vs $- N H_{2}$ : why opposite behaviour? ::: Protonation removes the lone pair, killing +M; only strong −I remains → deactivating meta (Cell E) instead of activating o/p (Cell A). On p-nitrophenol, which group controls direction? ::: The stronger activator −OH; its ortho positions also happen to be meta to −NO₂, so both agree (Cell F). Does step order change the m/p outcome in Cell H? ::: Yes — nitro-first gives meta, bromo-first gives para.
