Foundations — Activating vs deactivating groups; ortho - para vs meta directors; reactivity order

Everything in the parent note is built from a small pile of symbols and pictures. Below we earn each one from scratch, in an order where nothing is used before it is defined. (We will meet the symbol for that "electron-hungry particle" — $E^{+}$ — in §2, once we have learned to read charge signs.)

1. The benzene ring — what the hexagon actually means

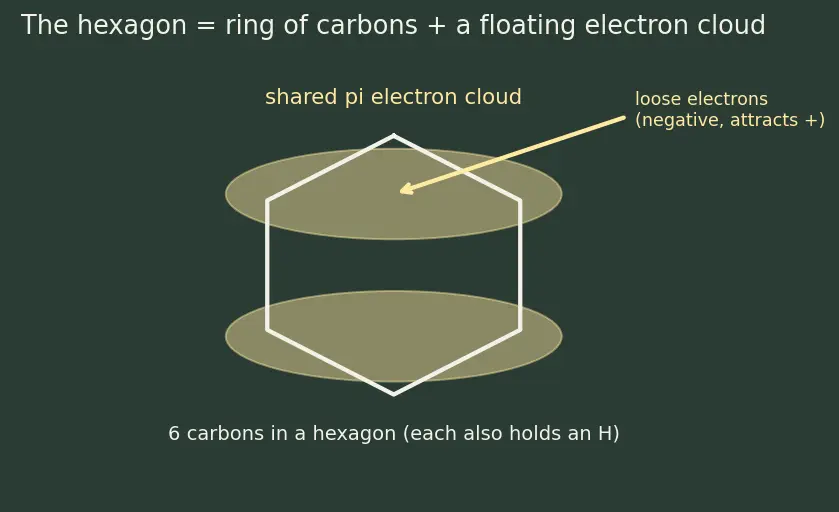

The plain hexagon you draw is shorthand. Look at the figure: the black hexagon is the six carbons; the pale-yellow doughnut floating above and below is the electron cloud.

• Picture: a hexagon with a glowing ring hovering over it.
• Why the topic needs it: the whole reaction starts because this cloud is negative and attracts anything positive. No cloud → no attack → no chapter. See Benzene structure and aromaticity.

The word aromatic just means this ring is unusually stable because those six electrons are shared all the way around. We use it as a label; the picture is the doughnut.

2. Symbols for charge: $E^{+}$, ${\delta }^{+}$, ${\delta }^{-}$, and formal charge

Before any arrows fly, we need to read the little superscript signs.

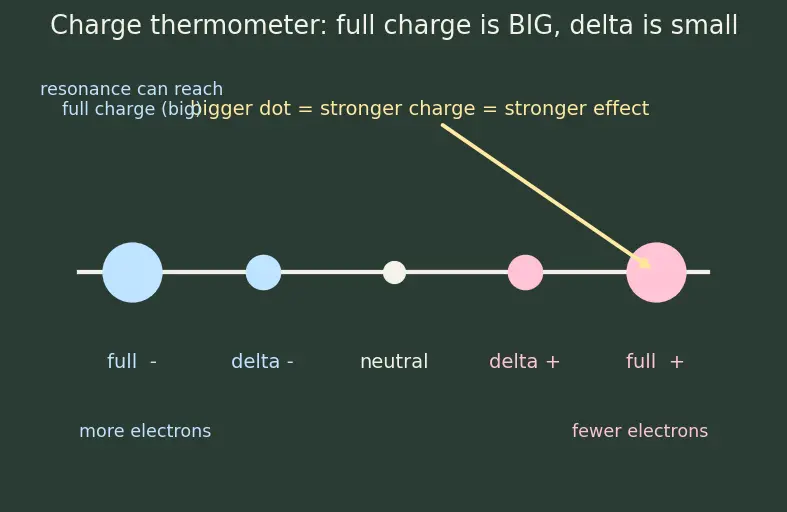

The picture below is a charge thermometer: a single horizontal scale running from a full $-$ on the far left, through the small ${\delta }^{-}$, to neutral in the middle, then the small ${\delta }^{+}$, out to a full $+$ on the far right. Read it left-to-right as "how many electrons does this atom have?" The size of each dot shows the strength: the two big dots at the ends are full (whole-unit) charges; the two small dots are the weak $\delta$ charges; the tiny middle dot is neutral.

• Why the topic needs it: "activating vs deactivating" is literally about who adds electrons (making things more ${\delta }^{-}$, leftward on the thermometer) and who removes them (more ${\delta }^{+}$, rightward).

3. Electronegativity — why atoms tug on electrons at all

• Picture: a tug-of-war rope between two atoms; the stronger puller drags the electron pair to its side, becoming ${\delta }^{-}$ while the loser becomes ${\delta }^{+}$ (the small dots on the §2 thermometer).
• Why the topic needs it: it is the engine behind the inductive effect (next section) and behind the whole halogen exception ("halogens are strongly electronegative → strongly $-I$").

4. The two ways to move electrons: bonds vs clouds

Groups affect the ring through two different channels. You must be able to tell them apart.

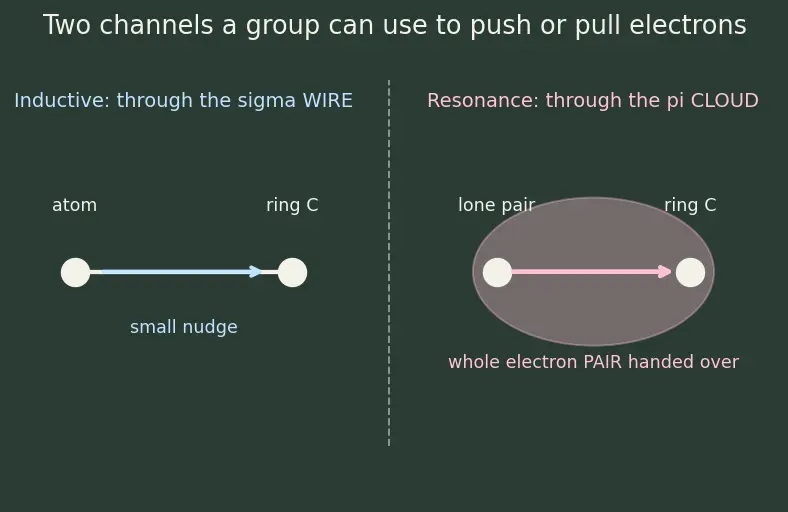

• Picture: left panel — a straight wire (σ) carrying a small nudge; right panel — a cloud handing over a whole electron pair (π).
• Why the topic needs it: the parent splits every group's behaviour into "through σ bonds" (Inductive effect (+I / −I)) and "through π overlap" (Resonance / Mesomeric effect (+M / −M)). Two channels → two effects → the whole toolkit.

4a. The four effect labels

Read the sign as push (+) or pull (−), and the letter as which channel (I = wire, M = cloud).

5. Naming the seats: ortho, meta, para

Now that a group sits on the ring, we need words for the other five seats relative to it.

• Picture: a hexagon with the group at the top, and the o / m / p seats coloured differently.
• Why the topic needs it: the entire second half of the parent ("o/p vs meta director") is just a rule for which of these coloured seats the new group prefers.

6. The arenium ion (sigma complex) — the crucial half-formed intermediate

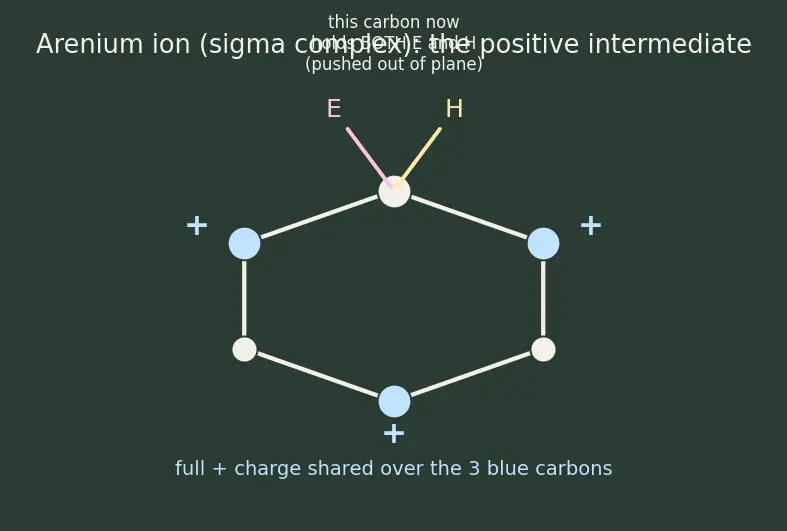

Look at the figure: the carbon where $E^{+}$ landed now sticks up out of the plane holding both $E$ and $H$ (it is no longer part of the flat cloud), and the remaining five carbons share a broken cloud carrying a full $+$ charge. The blue dots mark exactly the three carbons that hold that positive charge.

The three blue carbons that share the $+$ are exactly the ortho and para carbons relative to the point of attack — that geometric fact is why donors like o/p (they can sit next to the $+$ and soothe it) and withdrawers like meta (to stay away from it).

7. Resonance — how one $+$ charge "moves" around the ring

• Picture: the same arenium ion drawn 3 times, with the $+$ sitting on a different carbon each time (exactly the three blue carbons of §6) — the charge isn't stuck, it's smeared.
• Why the topic needs it: "an extra resonance structure" is the parent's reason $-OH$ prefers o/p (oxygen's lone pair adds a bonus, very stable drawing). More resonance drawings = more comfortable intermediate = preferred attack.

Prerequisite map

How to read this map: follow the arrows upward from the bottom. Boxes at the top with no arrows pointing into them are the raw starting ideas (electronegativity, σ bonds, the π cloud); each arrow means "this idea is needed to understand the next box"; every path eventually feeds the single bottom box, the topic itself. If any box near the top feels shaky, re-read its section above before moving on.

Equipment checklist

Test yourself — cover the right side.
