Activating vs deactivating groups; ortho - para vs meta directors; reactivity order: Visual walkthrough

This page rebuilds the whole directing rule from nothing. We will not memorise "donors go o/p, withdrawers go meta." We will watch the positive charge move inside the intermediate and let it tell us where the new group must go. Every step has one picture. Read them in order.

Everything here rests on the arenium ion (sigma complex) — so first we build that from scratch.

Step 1 — What benzene even is (the electron cushion)

WHAT. Benzene is a flat ring of 6 carbons. Above and below the flat ring sits a smeared-out cloud of 6 shared electrons — the $π$ (pi) electrons. " $π$ " is just the name chemists give to electrons that live above/below the ring plane rather than in the straight lines between atoms.

WHY it matters. Electrons are negative. A hungry, positively-charged particle — call it $E^{+}$ ("E" = electrophile, a species that loves electrons; " $+$ " = it carries a positive charge) — is attracted to that cloud. So benzene is essentially a soft electron cushion waiting to be poked.

PICTURE. The grey ring is the 6 carbons; the blue haze is the $π$ cushion; the red dot is $E^{+}$ drifting in.

Figure — Activating vs deactivating groups; ortho - para vs meta directors; reactivity order

Step 2 — The attack: making the arenium ion

WHAT. The $π$ cushion reaches out and grabs $E^{+}$ . Two of the ring's $π$ electrons form a new bond from one carbon to $E$ . That carbon is now saturated (it holds $H$ , $E$ , and two ring bonds — 4 bonds, so it went " $s p^{3}$ ", i.e. it puffed out of the flat ring).

WHY. Grabbing $E^{+}$ costs the ring its perfect 6-electron cushion — now only 4 $π$ electrons are left, spread over 5 carbons. Four electrons among five carbons means there is a shortage of one electron's worth of charge: the ring is now a carbocation (a carbon-bearing species with a net $+$ charge). This intermediate is the arenium ion (also called the sigma complex).

WHY this is the whole ballgame. This step is slow — it is the bottleneck (rate-determining) step of EAS. Whatever makes this cation more stable makes the reaction faster and decides where $E$ prefers to attach. So from here on we only study this cation's stability.

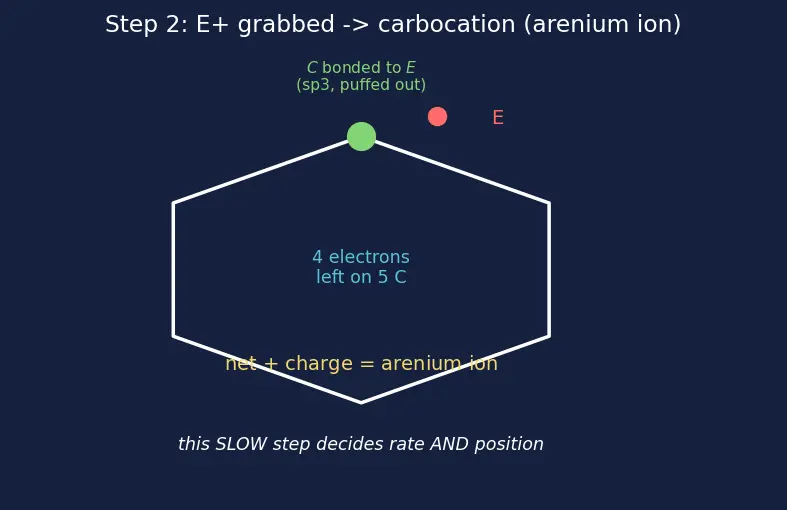

PICTURE. The carbon bonded to $E$ goes green (saturated, out of the ring). The remaining $+$ charge is not stuck — watch Step 3.

Step 3 — Where the $+$ charge actually lives (three homes)

WHAT. The $+$ charge is not glued to one carbon. Because the leftover 4 electrons can slide, the positive charge can sit on any of three carbons — and those three are exactly the ones ortho and para to the point of attack. We draw this with resonance structures: same molecule, three sketches, charge in a different home each time.

WHY these three and not others. Slide the electrons one bond at a time and the $+$ hops only to alternate carbons. Counting from the attacked carbon, those alternate carbons land on the two orthos and the one para. The meta carbons never hold the charge.

$one home + ⟷ second home + ⟷ third home +$

Each " $⟷$ " is the resonance arrow: it means "these are the same real ion, just drawn with the charge in different spots." The real charge is shared across all three.

KEY IDEA for everything below. A substituent $G$ can only influence the cation strongly if the $+$ charge lands on the carbon $G$ is attached to (or right beside it). So the game becomes: choose the attack position (o, m, or p) so that one of these three charged homes falls on $G$ 's carbon — and then ask whether $G$ is happy or miserable holding a $+$ next door.

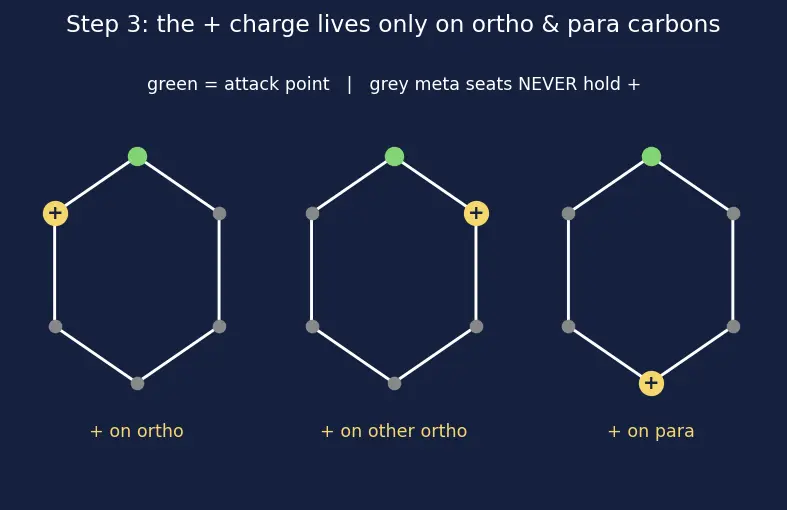

PICTURE. Three mini-rings show the $+$ (yellow) hopping to the two orthos and the para. The three meta-only carbons stay grey (never charged).

Step 4 — A donor group ( $- O H$ ): give it the charge and it rejoices

WHAT. Put a donor on the ring — say $- O H$ . "Donor" means it has a lone pair (a pair of electrons sitting on the oxygen doing nothing) that it can shove into the ring: this is the $+M$ effect (" $+ M$ " = donates electron density by resonance).

Now let $E^{+}$ attack ortho or para to $- O H$ . From Step 3, one of the three charged homes lands exactly on the carbon holding $- O H$ . Oxygen sees a $+$ next door, dumps its lone pair in, and forms a brand-new bond:

$C + - \ddot{O} H ⟶ C = O + H$

$C +$ — the ring carbon starving for electrons.
$\ddot{O} H$ — oxygen with its lone pair (the two dots).
$C = O + H$ — oxygen shared a pair to make a double bond; now every atom has a full octet. The $+$ moved onto oxygen, but oxygen doesn't mind (it still has 8 electrons around it). This is an oxocarbenium structure.

WHY it matters. This is a fourth, extra-stable resonance home for the charge — one where nobody is electron-starved. It exists only for ortho/para attack (only then does the $+$ reach $- O H$ 's carbon). Meta attack cannot make it (the $+$ never reaches the $- O H$ carbon).

Conclusion: o/p attack gives a more stable cation → lower energy barrier → favoured. So $- O H$ is an o/p director, and because it feeds electrons in, it also activates (speeds up) the whole ring.

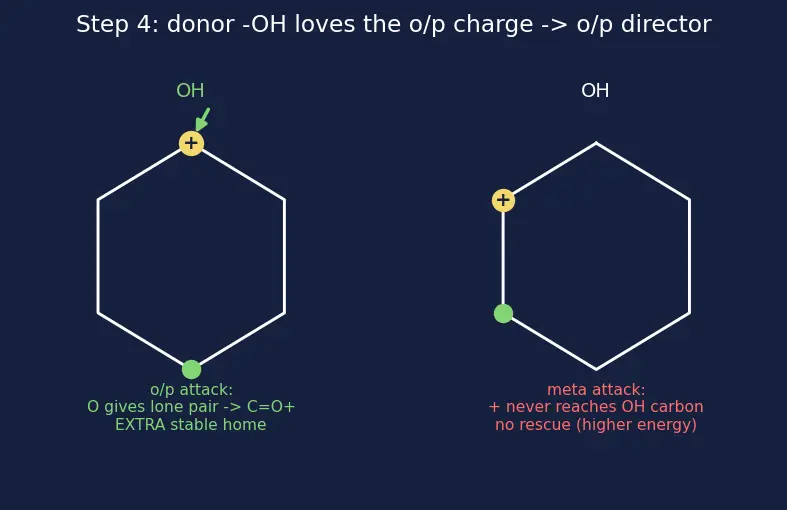

PICTURE. Left: para attack, charge reaches the $- O H$ carbon, oxygen's lone-pair arrow forms $C = O^{+}$ (green, extra structure). Right: meta attack — charge never touches the $- O H$ carbon, no rescue, higher energy (red).

Step 5 — A withdrawer group ( $- N O_{2}$ ): give it the charge and it screams

WHAT. Now put a withdrawing group: $- N O_{2}$ (nitro). Its nitrogen already carries a formal $+$ charge and it pulls electrons out of the ring (both $-I$ through the sigma bonds and $-M$ through pi). The carbon it sits on is therefore electron-poor ( $δ^{+}$ , "delta-plus" = slightly positive already).

Let $E^{+}$ attack ortho or para to $- N O_{2}$ . Again one charged home lands on the carbon holding $- N O_{2}$ . But now that carbon is already $δ^{+}$ :

$C + - N δ + O_{2} \Rightarrow two positives side by side = very high energy$

Two like charges crammed together repel violently — this resonance home is a disaster, so o/p attack is strongly destabilised.

WHY meta wins. For meta attack, none of the three charged homes ever falls on the $- N O_{2}$ carbon (recap Step 3: meta carbons never carry the charge). The two positives stay apart. Meta is the least bad option — so $- N O_{2}$ is a meta director. And because it drains the whole ring, every attack is slow: $- N O_{2}$ deactivates.

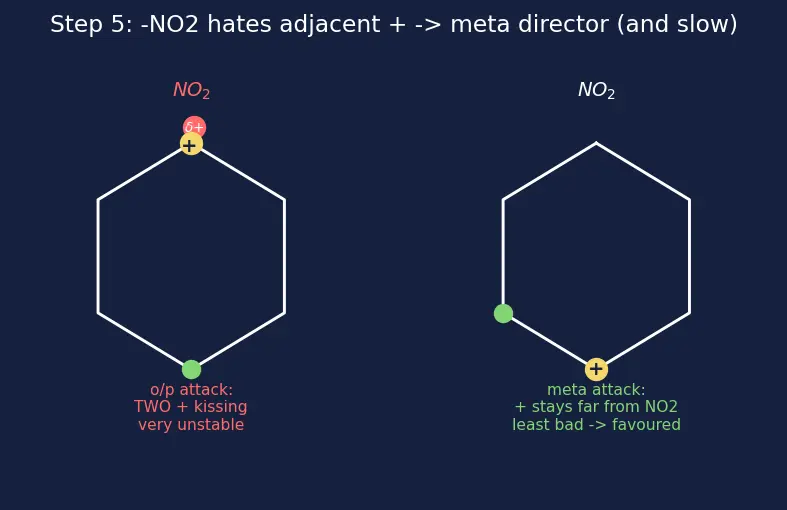

PICTURE. Left: ortho/para attack forces $+$ onto the $δ^{+}$ carbon — two red $+$ signs kissing, marked "unstable." Right: meta attack keeps them apart (safe distance shown).

Step 6 — The halogen twist: slow and o/p at the same time

WHAT. Chlorine ( $- C l$ ) has lone pairs, so it can donate ( $+ M$ ) like $- O H$ — but it is also very electronegative, so it pulls hard through sigma bonds ( $- I$ ). It does both, and the two effects point in opposite directions.

WHY the split verdict. These two effects are decided in different rounds:

Question	Which effect answers it	Verdict
How fast? (rate)	The always-on $- I$ drain wins	deactivated (slower than benzene)
Where? (direction)	The $+ M$ lone pair rescues the o/p cation, exactly like Step 4	ortho/para

The $- I$ is present all the time, gently starving the ring, so the reaction is slow. But the $+ M$ rescue only has to appear once, during that slow arenium-ion step — and it only helps o/p (not meta). So $- C l$ is deactivating BUT o/p directing — the famous exception. See the parent's steel-man and why the extra resonance home matters.

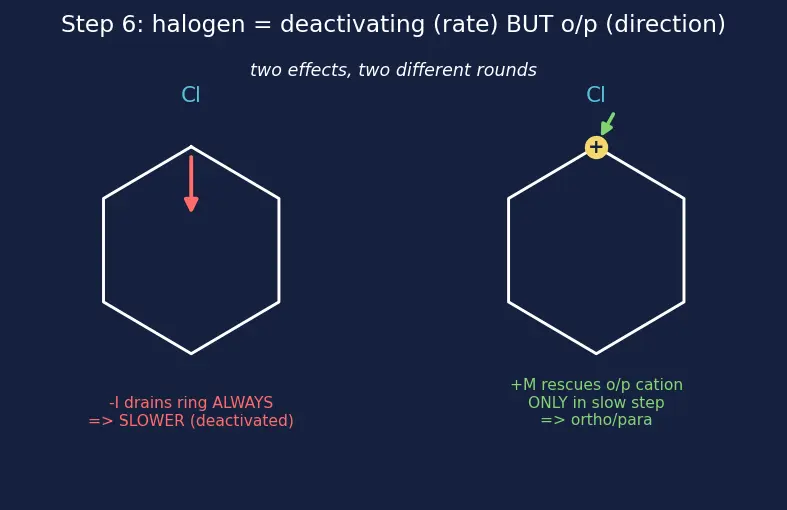

PICTURE. A split panel: a downward red arrow ( $- I$ , "slows rate") acting on the ground-state ring, and a separate green lone-pair arrow ( $+ M$ , "picks o/p") acting only on the cation.

Step 7 — Edge & degenerate cases (don't skip these)

WHAT / WHY, case by case:

Bare benzene (no group, $G = H$ ). All positions are identical. There is no "preferred" home; every attack is equivalent. This is our reference speed — everything is "faster than" or "slower than" benzene.
Alkyl group ( $- C H_{3}$ ). No lone pair, so no $+ M$ . It stabilises the adjacent $+$ purely by $+I$ (pushing electron density through the sigma bond) and hyperconjugation. Weaker than $- O H$ 's resonance rescue, but same direction: it still helps whichever cation has $+$ next to it → o/p, activating (mildly).
Fully charged withdrawer ( $- N + R_{3}$ ). No lone pair to donate, and a full $+$ charge draining the ring. Pure $- I$ , strongly meta-directing and strongly deactivating — the "worst" corner.
Steric tie-break (o vs p). When a group directs o/p, both are allowed, but a bulky group or bulky $E^{+}$ clashes at ortho, so para usually dominates by amount — this is sterics, not electronics.

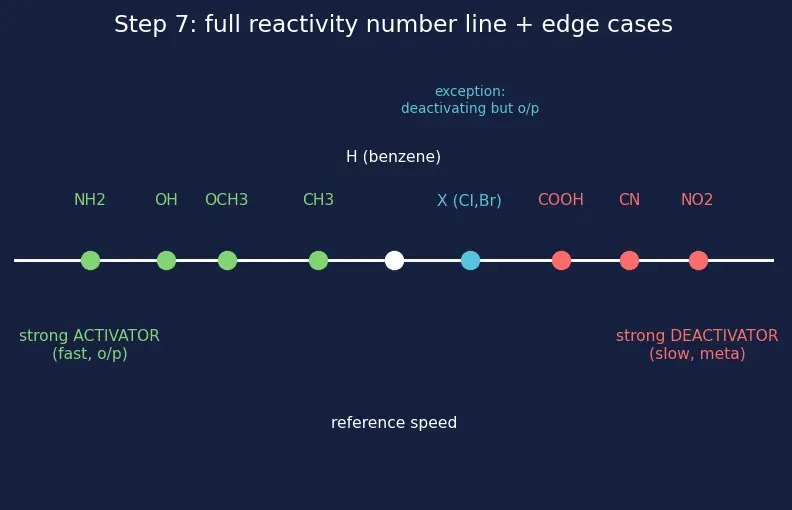

PICTURE. A number line of substituents from strong activator to strong deactivator, with benzene marked at the origin as "reference," and the halogen exception flagged.

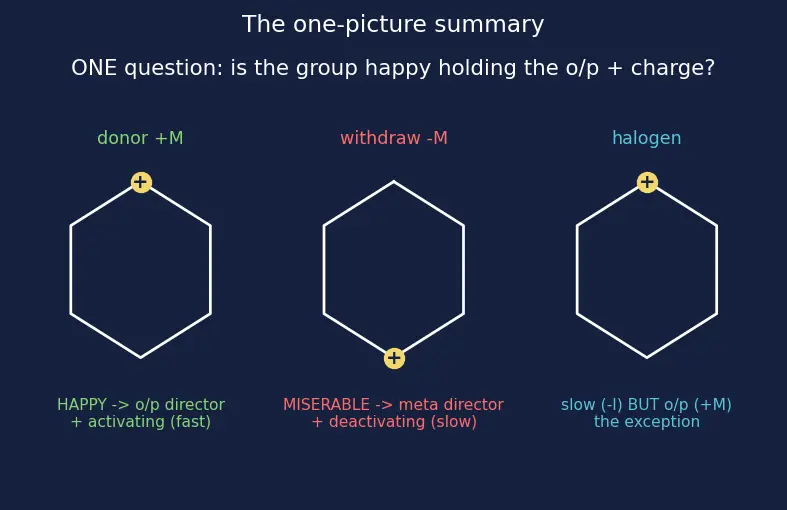

The one-picture summary

Everything above collapses to a single decision: can the group be happy holding the $+$ charge that o/p attack hands it?

Yes, happy (donor, $+ M$ / $+ I$ ): o/p attack builds an extra-stable cation ⇒ o/p director, ring enriched ⇒ activating.
No, miserable (withdrawer, $- M$ / $- I$ ): o/p attack stacks two positives ⇒ avoided ⇒ meta director, ring drained ⇒ deactivating.
Halogen: miserable about rate ( $- I$ , slow) but happy about seating ( $+ M$ , o/p).

Recall Feynman: the whole walkthrough in plain words

Benzene is a cushion of shared electrons. A greedy positive kid ( $E^{+}$ ) dives in and grabs the cushion at one spot — that spot puffs out and the leftover ring is now short one electron, so it carries a floating " $+$ " that can only rest on the two seats next to the entry point and the one straight across (ortho and para). It never rests on the "meta" seats. Now look at who already sits on the ring. If it's a generous neighbour with a spare pair of electrons ( $- O H$ , $- N H_{2}$ , and even alkyl in its own gentle way), you want the floating " $+$ " to land right beside it, because the neighbour hands over electrons and calms it down — that only happens if the new kid entered ortho or para, so those win, and the whole ring feels richer and reacts faster. If instead the neighbour is greedy and already sits on a positive charge ( $- N O_{2}$ ), a floating " $+$ " landing beside it means two positives shoving each other — a catastrophe — so the kid is forced meta, far away, and because the greedy neighbour drains the cushion, the reaction is slow. Halogens are the two-faced ones: they drain the cushion all day (slow) yet still have a spare pair to calm the o/p " $+$ " during the one crucial instant, so they seat the kid ortho/para anyway. One question rules them all: does the group enjoy or hate a positive charge next door?
