Worked examples — Electronic effects — inductive (+I - −I), mesomeric - resonance (+M - −M), hyperconjugation, electromeric

This page is a drill hall. The parent note told you the four effects. Here we hit every kind of case they can generate, so no exam question surprises you. First, we lay out a map of all the cases; then we work an example for each cell.

Before we compute anything, two words we will lean on the whole page:

---

The scenario matrix

Every question this topic throws is really one of these cells. We will cover all of them.

#	Case class	The twist to watch	Worked in
A	Pure −I, vary distance ($\alpha ,\beta ,\gamma$)	effect decays along the chain	Ex 1
B	Pure +I stacking	multiple pushers add up	Ex 2
C	−I vs +I tug-of-war	which side wins the acidity	Ex 3
D	Pure +M (lone-pair donation)	electron density raised on system	Ex 4
E	Pure −M (pi withdrawal) — para vs meta	−M cannot reach the meta position	Ex 5
F	−I and +M in the SAME group (halogens)	two opposite signs at once	Ex 6
G	Hyperconjugation, count α-H	degenerate case: ${\text{CH}}_3^{+}$ has 0 α-H	Ex 7
H	Electromeric (needs a reagent)	temporary, complete shift	Ex 8
I	Real-world / word problem	pick the better drug-acid	Ex 9
J	Exam twist — competing effects rank	order 4 species by one property	Ex 10

Prerequisites we will keep pointing to: Electronegativity, Acidity and Basicity of Organic Compounds, Resonance and Delocalisation, Carbocation Stability and Rearrangements, Markovnikov Addition, Directing Effects in Electrophilic Aromatic Substitution.

---

Cell A — Pure −I, decay with distance

First, one piece of notation we will use in step 3. When Cl pulls charge along the chain, each carbon picks up a small partial positive charge. Let us write:

The Greek letters $\alpha ,\beta ,\gamma$ in the question simply name the carbons by how many bonds they sit from the $\text{–COOH}$. The figure below is a ruler: each dot is a carbon, the row of amber arrows shows the $\text{–I}$ pull reaching back to $\text{–COOH}$, and the arrow gets thinner the further the Cl sits, exactly picturing ${\delta }_n$ shrinking by $k$ each step.

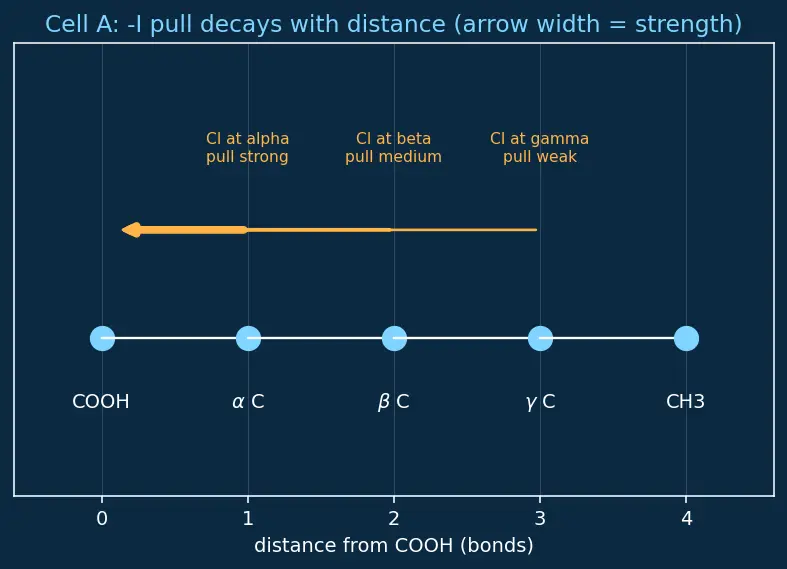

Figure s01 — the carbon chain drawn as a ruler. Cyan dots = carbons (labelled COOH, α, β, γ, CH₃). Amber arrows point from a Cl position back to COOH; a fatter arrow = a bigger partial charge delivered. From α to γ the arrow visibly thins, showing the pull decaying by the factor $k$.

1. Identify the effect. Cl is more electronegative than C, so it is a −I (electron-withdrawing) group. Why this step? Before ranking anything you must know if the group pushes or pulls. Cl pulls.
2. Ask what −I does to the conjugate base. After losing ${\text{H}}^{+}$ we get ${\text{–COO}}^{-}$. Cl pulls the negative charge toward itself, spreading it out. Why this step? A spread-out charge is a happier (more stable) ${\text{A}}^{-}$ ⇒ stronger acid.
3. Apply the decay law ${\delta }_n\approx {\delta }_1\cdot k^{n-1}$ with $k\approx \frac{1}{3}$ — just defined above. Plug in: at $\alpha$ (Cl one bond from $\text{–COOH}$) the pull is roughly ${\delta }_1$; at $\beta$ it is about $\frac{1}{3}{\delta }_1$; at $\gamma$ about $\frac{1}{9}{\delta }_1$. Why this step? The formula turns "distance" into an actual number: the nearer Cl is, the larger the partial charge it still delivers to ${\text{–COO}}^{-}$, and induction dies ~3× per bond.
4. Read off the order. Closest Cl helps most: $\alpha >\beta >\gamma$.

Verify: measured $p{K}_a$ values are $\alpha \approx 2.86$, $\beta \approx 4.06$, $\gamma \approx 4.52$. Lower $p{K}_a$ = stronger, and $2.86<4.06<4.52$, so the acidity order $\alpha >\beta >\gamma$ holds. ✓ (See Acidity and Basicity of Organic Compounds.)

---

Cell B — Pure +I stacking

1. Identify the effect. Alkyl (methyl) groups are +I — they push electrons into the chain. Pivalic acid has three methyls on the carbon next to $\text{–COOH}$, vs one ${\text{CH}}_3$ for acetic. Why this step? We must know direction; alkyls push.
2. Push electrons onto the conjugate base = bad. After deprotonation, ${\text{–COO}}^{-}$ already has negative charge. Pushing more electron density onto it makes it less comfortable. Why this step? +I destabilises the anion, the opposite of what −I did in Cell A.
3. More pushers, stronger effect. Three methyls each push a little; their pushes add up, so three donate more electron density than one. So pivalic acid's conjugate base is more destabilised ⇒ pivalic acid is the weaker acid (higher $p{K}_a$). Why this step? +I contributions stack roughly additively, so counting donors predicts which anion is more overloaded with charge.

Verify: $p{K}_a(\text{acetic})\approx 4.76$, $p{K}_a(\text{pivalic})\approx 5.03$. Since $5.03>4.76$, pivalic is weaker. ✓

---

Cell C — −I vs +I tug-of-war

1. Formic acid ($\text{HCOOH}$). The group on $\text{–COOH}$ is just $\text{H}$ — no push, no pull (neutral reference). Why this step? Sets the baseline to compare against.
2. Acetic (${\text{CH}}_3\text{COOH}$). ${\text{CH}}_3$ is +I → pushes electrons onto ${\text{COO}}^{-}$ → destabilises anion → weaker than formic.
3. Chloroacetic (${\text{ClCH}}_2\text{COOH}$). Cl is −I → pulls charge off ${\text{COO}}^{-}$ → stabilises anion → stronger than formic. Why this step? Now the two effects sit on opposite sides of the neutral formic, so the ranking snaps into place.
4. Assemble: ${\text{ClCH}}_2\text{COOH}>\text{HCOOH}>{\text{CH}}_3\text{COOH}$.

Verify: $p{K}_a$: chloroacetic $2.86$, formic $3.75$, acetic $4.76$. Since $2.86<3.75<4.76$, order confirmed. ✓

---

Cell D — Pure +M (lone-pair donation)

The figure shows why aniline's nitrogen is handicapped: its lone pair does not stay put on N; it leaks into the ring.

Figure s02 — aniline. The cyan dot above the ring is the nitrogen carrying its lone pair. The thick amber arrow shows that lone pair being donated (+M) into the benzene ring. The amber haloes on the ring carbons show the lone-pair density now spread around the ring — no longer sitting on N, so it cannot also grab a proton.

1. Basicity means offering the lone pair. A base grabs ${\text{H}}^{+}$ using nitrogen's lone pair. Why this step? Whichever molecule keeps that pair free is the stronger base.
2. Aniline: +M drains the lone pair into the ring. The ring is a conjugated pi system (see Resonance and Delocalisation); N donates its lone pair into it — this is +M of ${\text{–NH}}_2$ on the ring. The pair is now spread over the ring (amber haloes in the figure). Why this step? A lone pair busy in resonance cannot also grab a proton.
3. Cyclohexylamine: no pi system, lone pair stays home. Saturated ring = no conjugation = nothing to delocalise into. The pair is fully available.
4. Conclusion: aniline's tied-up pair ⇒ weaker base.

Verify: $p{K}_a$ of the conjugate acid: anilinium $\approx 4.6$, cyclohexylammonium $\approx 10.6$. A stronger base has a higher conjugate-acid $p{K}_a$. Since $10.6>4.6$, cyclohexylamine is the stronger base ⇒ aniline weaker. ✓

---

Cell E — Pure −M (pi withdrawal): para vs meta

1. Deprotonate to get phenoxide. Losing ${\text{H}}^{+}$ gives ${\text{–O}}^{-}$; its charge already delocalises into the ring (that is why phenol beats ethanol). Why this step? This is the baseline stabilisation every phenoxide gets.
2. ${\text{–NO}}_2$ is −M. It has $\text{N=O}$ pi bonds to greedy oxygens, so it pulls pi density out of the ring. Why this step? It offers an extra place to dump the negative charge — but only if it can reach it.
3. Para case — −M reaches directly. At the para position, resonance arrows can push the ${\text{–O}}^{-}$ charge all the way onto the ${\text{NO}}_2$ oxygens (para and ortho positions are the ones a lone pair/charge can reach by pushing double bonds around). So the charge sits partly on ${\text{NO}}_2$ ⇒ very stable anion ⇒ strong acid.
4. Meta case — −M CANNOT reach. At the meta position, if you draw the resonance arrows, the negative charge never lands on the carbon bearing ${\text{NO}}_2$. Why this step? Resonance only delivers charge to ortho/para carbons; meta is skipped. So ${\text{NO}}_2$ here cannot help by resonance — it can only pull weakly through the sigma bonds (−I). Meta-nitrophenol is therefore more acidic than plain phenol (the −I still helps a bit) but much less acidic than para.
5. Assemble: $\text{p-nitrophenol}>\text{m-nitrophenol}>\text{phenol}$.

Verify: $p{K}_a$: p-nitrophenol $\approx 7.15$, m-nitrophenol $\approx 8.40$, phenol $\approx 9.95$. Since $7.15<8.40<9.95$, acidity order p > m > phenol confirmed — and the big gap sits between p and m exactly because −M reaches para but not meta. ✓

---

Cell F — Two opposite signs in ONE group (the halogen paradox)

This is the classic trap flagged in the parent's mistake list: Cl is −I and +M at the same time.

1. −I part (through sigma bonds): Cl is electronegative, so it pulls electron density out of the ring overall. Why this step? Overall electron-poor ring ⇒ deactivated ⇒ reacts slower than benzene.
2. +M part (lone pair): Cl also has lone pairs it can push into the ring by resonance. Why this step? This adds electron density specifically to the ortho and para carbons.
3. Reconcile the two. −I wins for rate (ring is deactivated), but +M wins for position (extra density lands ortho/para). Both true simultaneously — that is the whole point of the paradox.
4. Answer: Cl is deactivating yet ortho/para directing. (See Directing Effects in Electrophilic Aromatic Substitution.)

Verify (conceptual): the two claims "deactivating" and "o/p-directing" are not contradictory because they answer different questions — how fast vs where. Consistent with the parent note's mistake #1. ✓

---

Cell G — Hyperconjugation, counting α-H (with the degenerate case)

The bar chart below is the whole answer at a glance: height = number of α-H, and it climbs left to right.

Figure s03 — bar chart of α-hydrogen count for the four cations. The amber bar on the far left is ${\text{CH}}_3^{+}$ at height 0 (the degenerate case with no neighbours, so no hyperconjugation). Cyan bars rise 3 → 6 → 9 for 1°, 2°, 3°. Taller bar = more spreading of the $+$ charge = more stable cation.

1. Define α-H. An α-hydrogen is an H sitting on a carbon directly next to the positive carbon. Why this step? Only those C–H bonds can overlap sideways into the empty p-orbital (hyperconjugation).
2. Count for each cation.
   • ${\text{CH}}_3^{+}$: the charged C has no neighbour carbons ⇒ 0 α-H. (This is the degenerate/zero case — no hyperconjugation at all.)
   • ${\text{CH}}_3{\text{CH}}_2^{+}$ (1°): one ${\text{CH}}_3$ neighbour ⇒ 3 α-H.
   • $({\text{CH}}_3{)}_2{\text{CH}}^{+}$ (2°): two ${\text{CH}}_3$ neighbours ⇒ 6 α-H.
   • $({\text{CH}}_3{)}_3{\text{C}}^{+}$ (3°): three ${\text{CH}}_3$ neighbours ⇒ 9 α-H.
3. Apply $\text{stability}\propto n(\alpha \text{-H})$. Why this step? Each α C–H bond that overlaps the empty p-orbital drains a slice of the positive charge into that bond; more such bonds means the $+$ charge is shared over more places, which lowers the cation's energy — so counting α-H directly ranks stability.
4. Order: $9>6>3>0$, i.e. $3^{\circ }>2^{\circ }>1^{\circ }>{\text{CH}}_3^{+}$. (See Carbocation Stability and Rearrangements.)

Verify: α-H counts $\{0,3,6,9\}$ are strictly increasing with substitution, matching the stability order. The zero case (${\text{CH}}_3^{+}$) correctly sits last. ✓

---

Cell H — Electromeric effect (needs a reagent, temporary)

1. Electromeric fires only with a reagent. Nothing happens to the pi bond until ${\text{H}}^{+}$ shows up. When it does, the pi pair completely shifts toward the incoming ${\text{H}}^{+}$ (a +E shift). Why this step? This is the defining feature — remove ${\text{H}}^{+}$ and the shift snaps back.
2. The pair grabs the proton, leaving $+$ on the other carbon. Now use the stability logic from Cell G to decide which carbon keeps $+$. Why this step? The more stable carbocation forms preferentially.
3. List the two possible cations and count α-H. If $+$ lands on the middle carbon we get a 2° cation (${\text{CH}}_3{\text{–CH}}^{+}{\text{–CH}}_3$, 6 α-H); if on the end carbon, a 1° cation (only 2 α-H). Why this step? By Cell G's rule, more α-H = more stable, so counting them tells us which route the molecule actually takes — the 2° cation is favoured.
4. State the result and name it. ${\text{H}}^{+}$ adds to the terminal ${\text{CH}}_2$, $+$ sits on the middle carbon. Why this step? We must translate the chosen cation back into a rule of thumb: adding H to the carbon that already has more H's is exactly Markovnikov Addition, so the electromeric shift plus stability is Markovnikov's rule under the hood.

Verify: α-H count for the 2° cation $=6$ vs 1° cation $=2$; $6>2$ ⇒ Markovnikov (2°) product favoured. Consistent with electromeric +E feeding the more stable cation. ✓

---

Cell I — Real-world word problem

1. Compare the two groups. ${\text{CF}}_3$ carries three fluorines, each strongly −I; ${\text{CH}}_3$ is +I. Why this step? Three −I fluorines vs an electron-pusher is a landslide.
2. Effect on the conjugate base. ${\text{CF}}_3$ yanks charge off ${\text{COO}}^{-}$ (stabilises), ${\text{CH}}_3$ dumps charge onto it (destabilises). So ${\text{CF}}_3\text{COOH}$ is far more acidic. Pick it.
3. Estimate the gap. $p{K}_a({\text{CF}}_3\text{COOH})\approx 0.23$, $p{K}_a({\text{CH}}_3\text{COOH})\approx 4.76$. The difference in $p{K}_a$ is $\Delta p{K}_a=4.76-0.23=4.53$. Why this step? Each unit of $p{K}_a$ is one power of ten in acid strength, so the gap in strength is $10^{4.53}$.

Verify: $\Delta p{K}_a=4.53$; strength ratio $=10^{4.53}\approx 3.39\times 10^4$, i.e. trifluoroacetic acid is about 34 000× stronger. ✓

---

Cell J — Exam twist: rank 4 species by competing effects

1. Baseline = aniline. Its N lone pair is partly tied up in +M with the ring (Cell D), which already makes it a weaker base than a plain alkyl amine. Why this step? We judge each substituent by how much extra electron density it pushes into, or pulls out of, the ring compared with this reference.
2. p-methoxy (${\text{–OCH}}_3$): +M donor. It pumps extra electron density into the ring. That extra density partly pushes back on nitrogen, leaving N's lone pair more available to grab ${\text{H}}^{+}$ → strongest base here. Why this step? A ring made more electron-rich makes its attached amine more basic.
3. p-methyl (${\text{–CH}}_3$): mild +I donor. It pushes only weakly (no lone pair to donate, just a small inductive shove) → slightly more basic than plain aniline, but well below methoxy. Why this step? +I is a gentler push than +M, so it lands between methoxy and the unsubstituted case.
4. p-nitro (${\text{–NO}}_2$): strong −M and −I. It drags density out of the ring, competing hard with nitrogen for its lone pair and tying it up even more → weakest base by far. Why this step? An electron-withdrawing group starves N of its lone pair, the opposite of basicity.
5. Assemble: ${\text{p-OCH}}_3>{\text{p-CH}}_3>\text{aniline}>{\text{p-NO}}_2$.

Verify: conjugate-acid $p{K}_a$ values (higher = stronger base): p-methoxyaniline $\approx 5.34$, p-methylaniline $\approx 5.08$, aniline $\approx 4.60$, p-nitroaniline $\approx 1.00$. Since $5.34>5.08>4.60>1.00$, the ordering holds. ✓

---

Recall Quick self-test

Which cell does "$\alpha$-Cl acid is stronger than $\gamma$-Cl acid" belong to? ::: Cell A — pure −I decaying with distance. In the decay law ${\delta }_n\approx {\delta }_1{k}^{n-1}$, what does $k\approx \frac{1}{3}$ mean in words? ::: the partial charge shrinks to about one-third with each extra bond you travel. How many α-H does the methyl cation ${\text{CH}}_3^{+}$ have? ::: Zero — the degenerate case, no hyperconjugation. Why is m-nitrophenol much less acidic than p-nitrophenol? ::: −M resonance can deliver the charge to ortho/para but never to the meta carbon, so at meta only weak −I helps. Is chlorobenzene activating or deactivating, and where does it direct? ::: Deactivating (−I wins the rate) but ortho/para directing (+M wins the position). Electromeric effect needs what to occur? ::: An attacking reagent; it is temporary and reverses when the reagent leaves.
