Foundations — Electronic effects — inductive (+I - −I), mesomeric - resonance (+M - −M), hyperconjugation, electromeric

Before you can read a single arrow in that chapter, you need to see what its symbols mean. This page builds every one from nothing — a smart 12-year-old should be able to start at line one. We go in the order that each idea needs the one before it.

0. What is a bond, really?

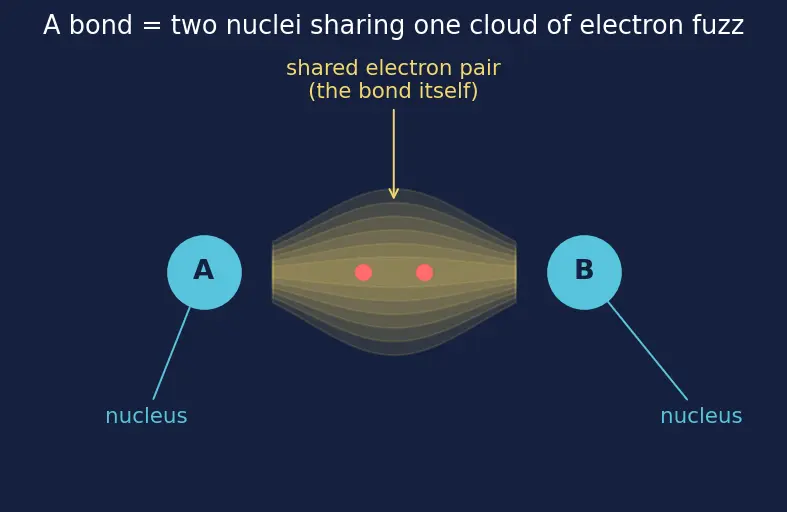

Two atoms stick together by sharing a pair of electrons — that shared pair is the chemical bond. Picture two balls (atomic nuclei) with a little cloud of negative fuzz sitting between them; the fuzz is the shared electron pair, and both nuclei tug on it.

Everything in this chapter is about which nucleus wins the tug and what happens to the fuzz when it slides. Keep that picture in your head; every symbol below is a caption on it.

1. Electron — the thing that moves

The picture: a small dot, or a pair of dots :, sitting near an atom. When we say "electron density piles up here", we mean more of these negative dots are hanging around that spot.

Why the topic needs it: every one of the four effects is a story about where the electron dots move. No electrons, no effects.

2. Charge and the symbols $+$, $-$, ${\delta }^{+}$, ${\delta }^{-}$

The Greek letter $\delta$ ("delta") is just shorthand for the word "a little bit of". So ${\delta }^{-}$ reads "a little bit negative" and ${\delta }^{+}$ reads "a little bit positive".

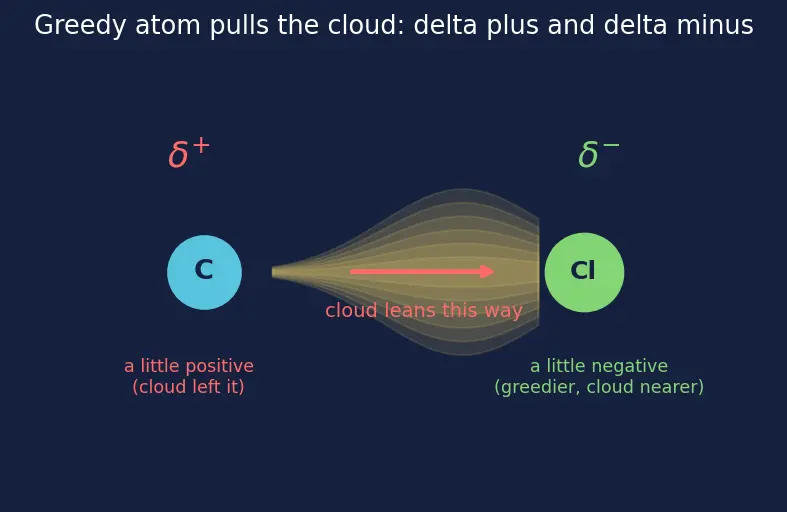

The picture: imagine the fuzz from §0 sliding a little toward the right nucleus. The right side is now slightly darker (more fuzz → ${\delta }^{-}$), the left side slightly lighter (${\delta }^{+}$). Nothing has fully left; it just leaned over.

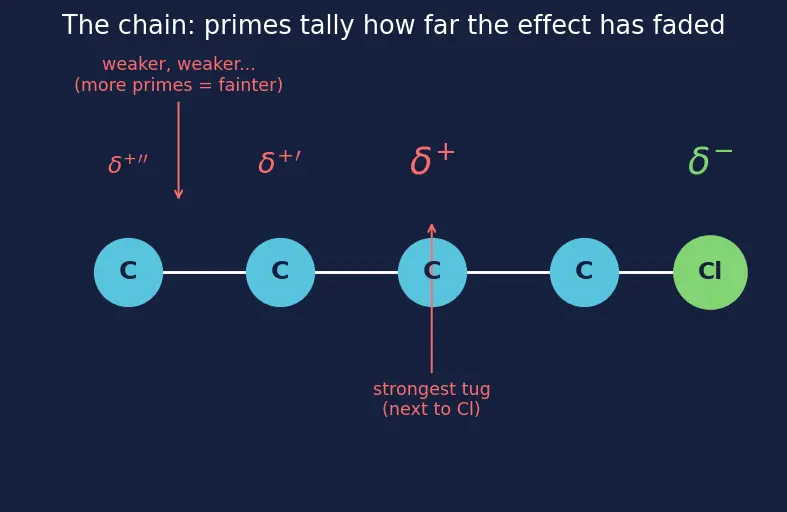

Now watch what happens down a chain of atoms. The first neighbour of the greedy atom is strongly ${\delta }^{+}$; the atom next to that one only feels a leftover tug, so it is even more weakly positive — we mark it ${\delta }^{+}{}^{\prime }$ (delta-plus-prime). One more step along and it is ${\delta }^{+}{}^{\prime \prime }$ (double-prime), weaker still. The primes are just tally marks for "how many steps away, and therefore how much weaker." The next figure shows a real chain so you can see the primes land on actual atoms.

Why the topic needs it: the inductive effect is literally a chain of these $\delta$ charges getting smaller step by step. You cannot read that chain until $\delta$ and its primes make sense.

3. Electronegativity — who wins the tug

The picture: go back to the two nuclei and the fuzz between them. If the right nucleus is "greedier" (higher electronegativity), the fuzz sits closer to it — that is exactly the ${\delta }^{-}$/${\delta }^{+}$ lean of §2.

Rough greediness order you will meet: $\text{F}>\text{O}>\text{N}>\text{Cl}>\text{C}>\text{H}$.

Why the topic needs it: the entire ranking "$-{\text{NO}}_2>-\text{CN}>-\text{F}>\dots$" in the parent note is an electronegativity/greediness ranking. Without this number the ordering is memorised nonsense.

4. Sigma ($\sigma$) bonds and pi ($\pi$) bonds — two kinds of fuzz

This is the single most important distinction in the chapter, because each effect travels through only one kind of bond.

• A single line – in a structure = one $\sigma$ bond.
• A double line = = one $\sigma$ bond plus one $\pi$ bond.

Why the topic needs it: the definitions in the parent note say "through sigma bonds" / "through pi systems" — those phrases are meaningless until you can picture the two fuzz shapes above.

5. Conjugation — hand-holding pi bonds

The picture: several $\pi$ clouds from §4 placed close enough that their above/below fuzz overlaps end-to-end, forming one long shared cloud instead of separate ones. In the Feynman rope image of the parent note, this is "everyone holding hands" — the bundle of rope can slide the length of the team without losing strength.

Why the topic needs it: the mesomeric effect only works inside a conjugated system. The parent note says resonance travels "the entire conjugated system without decaying" — that no-decay superpower comes entirely from these touching clouds. Deepen this in Resonance and Delocalisation.

6. Lone pair — the spare fuzz an atom can lend

The picture: two dots : parked on top of an atom (think of the two extra pairs on oxygen in water, or the one pair on nitrogen in ammonia).

Why the topic needs it: the $+$M donors ($-{\text{NH}}_2$, $-\text{OH}$, halogens) work by pushing a lone pair into a conjugated system. No lone pair, no $+$M. And in Acidity and Basicity of Organic Compounds, a base is basic because it has a lone pair free to grab a proton.

7. The curved arrow — the verb of chemistry

• A full-headed arrow moves a whole pair of electrons.
• The direction of the arrow is the story of the effect.

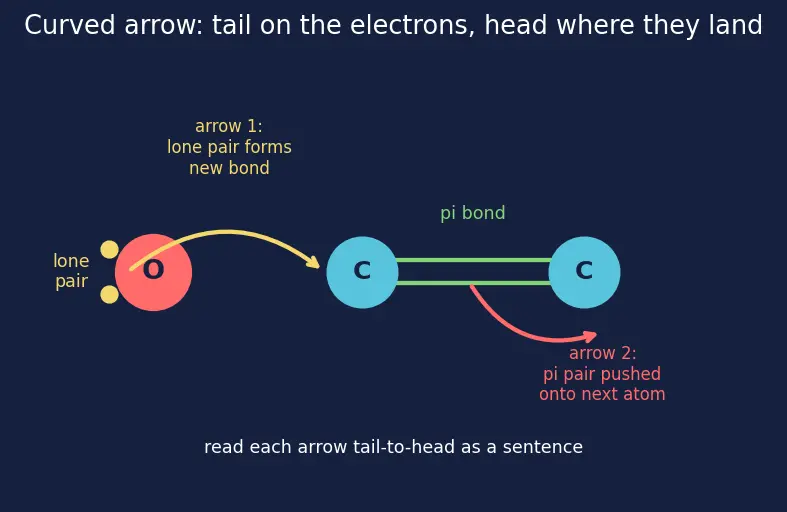

The figure below shows a concrete example: an oxygen lone pair swinging in to form a new bond while a $\pi$ pair pushes off onto the next atom. Trace each arrow tail-to-head and read it as a sentence.

Why the topic needs it: resonance structures, electromeric shifts, and reaction mechanisms are all drawn as curved arrows. When the parent note says a pi pair "shifts to one atom", that shift is one curved arrow.

8. The $\pm$ sign convention: $+$I, $-$I, $+$M, $-$M, $+$E

The letter says which mechanism: I = inductive (through $\sigma$), M = mesomeric (through $\pi$/lone pair), E = electromeric (temporary $\pi$ shift).

Why the topic needs it: literally every classification in the parent note is one of these five labels. This is the alphabet of the chapter.

9. $p{K}_a$ — the acidity number

The picture below is a thermometer where lower readings are stronger acids. Acetic acid sits at $4.76$; chloroacetic acid at $2.86$ — lower, so stronger, exactly as the parent's inductive example claims.

Why the topic needs it: the parent proves inductive and mesomeric effects using $p{K}_a$ comparisons. If you think bigger $p{K}_a$ = stronger, every example flips backwards. Details in Acidity and Basicity of Organic Compounds.

10. "$\propto$" — proportional to

Why the topic needs it: the hyperconjugation rule is written $\text{stability}\propto n(\alpha \text{-H})$, meaning the more $\alpha$-hydrogens, the more stable — you must read $\propto$ to use it. (The $\alpha$-H idea itself is built in the D2 stability pages; see Carbocation Stability and Rearrangements.)

The prerequisite map

The figure below shows how each foundation feeds the four named effects. Read it top-down: charge and electronegativity feed the inductive effect; the $\sigma$/$\pi$ split feeds conjugation, which feeds resonance; curved arrows narrate both. Everything converges on the four effects and their $p{K}_a$ evidence.

Equipment checklist

Cover the right side and test yourself — if any answer surprises you, reread that section.
