This page derives ONE central result of Electronic Effects in GOC entirely in pictures: $3^{\circ} > 2^{\circ} > 1^{\circ} > CH_{3}^{+}$ the stability order of carbocations. We build hyperconjugation from absolute zero — no orbital, no arrow, no symbol used before it is drawn.

Step 1 — What is a carbocation, and what is "unhappy" about it?

WHAT. A carbocation is a carbon atom that is missing one bond's worth of electrons. A normal carbon shares four electron pairs (four sticks going out). A carbocation only has three sticks. Where the fourth pair should be, there is an empty slot.

WHY it matters. Electrons are negative. Missing electrons means a spot of positive charge, written $+$ . Positive charge is high energy — nature wants to spread it out or feed it. Everything on this page is about feeding electrons into that empty slot.

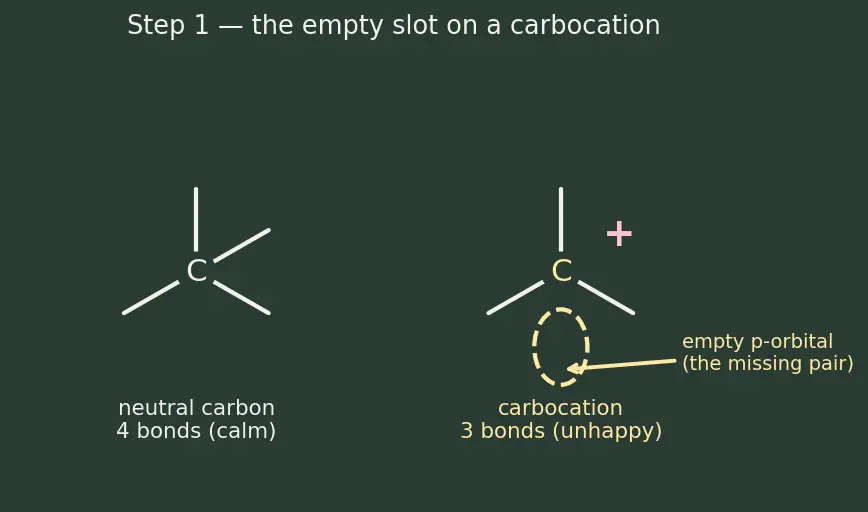

PICTURE. Below, the left carbon has four bonds (neutral, calm). The right carbon has only three bonds and a dashed empty lobe — that empty lobe is where the trouble lives.

Figure — Electronic effects — inductive (+I - −I), mesomeric - resonance (+M - −M), hyperconjugation, electromeric

Step 2 — What is a C–H bond, really? (a tiny reservoir of electrons)

WHAT. A C–H bond is two electrons glued between a carbon and a hydrogen. Draw it as a short stick, but underneath that stick sits a little cloud of electron density — think of it as a small full water-tank.

WHY we care. We just found an empty slot in Step 1. Here we find a full tank of electrons sitting nearby. A full tank next to an empty slot is a plumbing problem waiting to be solved: can the tank pour some electrons into the slot?

PICTURE. The C–H bond's electron cloud is shaded; notice it is a sideways balloon hugging the bond, and part of it can point toward a neighbour.

Step 3 — Line up the tank with the slot (the overlap)

WHAT. Put the empty p-orbital (Step 1, dashed) right beside a full α C–H bond (Step 2, shaded). Because the p-orbital axis is vertical, and the C–H cloud can lean the same way, the two clouds touch and merge — they overlap.

WHY this specific geometry. Electrons only flow between two orbitals if they occupy the same region of space. The empty p-lobe and the C–H cloud must physically overlap side-by-side — this sideways touch is called == $σ$ –p overlap== (sigma = the C–H bond; p = the empty orbital). No overlap ⇒ no sharing ⇒ no help. This is why only the neighbour matters and why alignment matters.

PICTURE. The blue C–H cloud stretches over and merges with the yellow empty lobe. Electron density is now shared across the gap.

WHAT. We represent the sharing with two structures the molecule flickers between: $structure I: normal bond, + on right H - C - C + ⟷ structure II: H loose, double bond forms H^{+} C = C$

Term by term:

$H - C$ = the intact α C–H bond (full tank).
$C +$ = the positive carbon (empty slot).
The double-headed arrow $⟷$ = "the real molecule is a blend of both", NOT flipping back and forth.
In structure II the tank emptied into the slot: a new C=C forms, and the $+$ charge moved onto the H.

WHY draw both. The $+$ charge is no longer stuck on one carbon — it is shared between the carbon and the hydrogen end. Spreading a charge over more places = lower energy = more stable. (This is the same "spread the charge" logic that makes conjugate bases stable in Resonance and Delocalisation.)

PICTURE. The charge symbol slides from the carbon to the far side; the C–C single bond becomes a C=C double bond in the second frame.

WHAT. Each α C–H bond gives one extra "no-bond" structure. So the amount of help = the number of α-hydrogens: $stability \propto n (α -H)$

$n (α -H)$ = how many hydrogens sit on carbons touching the positive carbon.
$\propto$ = "grows with" (more of that thing ⇒ more of this thing).

WHY it adds up. Every full tank that can reach the slot pours in a little. Ten small pours drain the positive charge more than two small pours. Each pour = one resonance structure = one more way to spread $+$ .

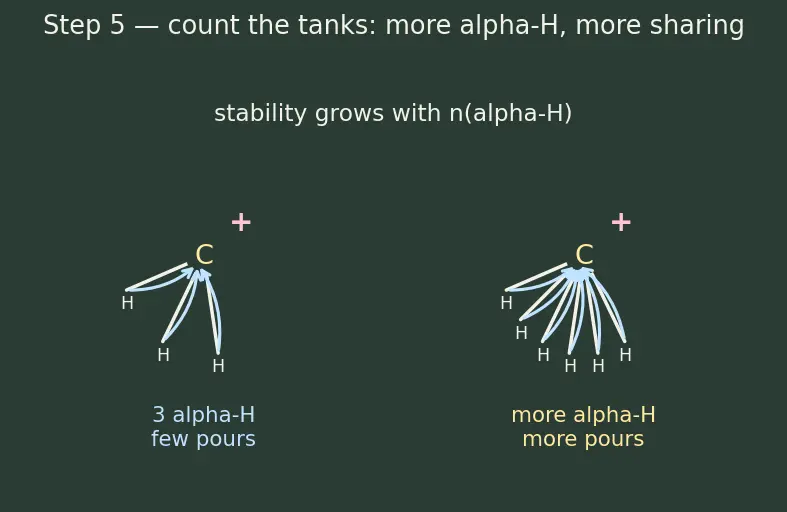

PICTURE. Same cation drawn with 3 α-H (few arrows) versus 9 α-H (many arrows) — visibly more electron traffic into the slot.

Step 6 — Walk EVERY case: CH₃⁺ → 1° → 2° → 3°

WHAT. Now count α-H for all four carbocation types and read off stability.

Cation	Structure	Carbons touching C⁺	α-H count	No-bond structures
Methyl $CH_{3}^{+}$	$C + H_{3}$	none	0	0
Primary $1^{\circ}$	$CH_{3} - C + H_{2}$	1	3	3
Secondary $2^{\circ}$	$(CH_{3})_{2} C + H$	2	6	6
Tertiary $3^{\circ}$	$(CH_{3})_{3} C +$	3	9	9

WHY the order comes out this way. More attached carbons ⇒ more α-H ⇒ more pours ⇒ more spreading ⇒ more stable. Reading the α-H column top-to-bottom (0, 3, 6, 9) directly gives: $3^{\circ} > 2^{\circ} > 1^{\circ} > CH_{3}^{+}$

PICTURE. Four cations in a row, each labelled with its α-H count, sitting on an energy ladder — more α-H sits lower (more stable).

The one-picture summary

Everything in one frame: a full C–H tank overlaps an empty p-slot, pours electrons in (spreading the $+$ charge), and the number of such tanks (α-H = 0, 3, 6, 9) sets the stability ladder $CH_{3}^{+} < 1^{\circ} < 2^{\circ} < 3^{\circ}$ .

Recall Feynman retelling — the whole walkthrough in plain words

A carbocation is a carbon with an empty pocket where electrons should be — that pocket is a positive, uncomfortable spot. Right next door, every C–H bond is a little full water-tank of electrons. If a tank sits side-by-side with the empty pocket, it can pour some electrons in — that's hyperconjugation, also called "no-bond resonance" because the H bond goes half-loose while it shares. Each tank that can reach = one more way to spread the positive charge, and spreading charge = calmer, more stable. So we just count the neighbouring hydrogens (α-H): methyl has 0 (its own H's can't reach its own pocket — the degenerate loser), primary has 3, secondary 6, tertiary 9. More tanks pouring in ⇒ more stable ⇒ $3^{\circ} > 2^{\circ} > 1^{\circ} > CH_{3}^{+}$ . Same reason Markovnikov puts the H where it makes the fattest, most-stable cation.

Recall Quick checks

How many α-H does the tert-butyl cation have? ::: 9 (three CH₃ groups × 3 H each). Why does CH₃⁺ have zero hyperconjugation? ::: its H's are on the positive carbon itself, not on a neighbouring carbon, so no C–H can overlap its own empty p-orbital. What does the double-headed resonance arrow mean? ::: the real molecule is a single blend of both structures, not a rapid flip between them. Stability order of carbocations from hyperconjugation? ::: 3° > 2° > 1° > CH₃⁺ (α-H = 9 > 6 > 3 > 0).

Flashcards

What single quantity predicts carbocation stability by hyperconjugation?

the number of α-hydrogens (H on carbons adjacent to the cation).

Which orbital does an α C–H bond pour its electrons into?

the empty p-orbital on the positive carbon (σ–p overlap).

Why is hyperconjugation called "no-bond resonance"?

in the alternate structure the α C–H bond is drawn broken (H loose) while the electrons form a new C=C, so a "no-bond" form contributes.

Carbocation stability order and their α-H counts?

3° (9) > 2° (6) > 1° (3) > CH₃⁺ (0).
