Flame tests — characteristic colours: Foundations

This page assumes nothing. Before you touch the parent note the main flame-test topic, we build every letter, arrow, and Greek symbol it quietly relies on. Read top to bottom; each idea is a step onto the next.

0. The one unit we'll measure everything in: the joule

Why start here? Every quantity on this page eventually gets weighed in joules. If "J" appears with no meaning, the numbers are just noise. Now it's a ruler you own.

1. Atom, electron, nucleus — the cast

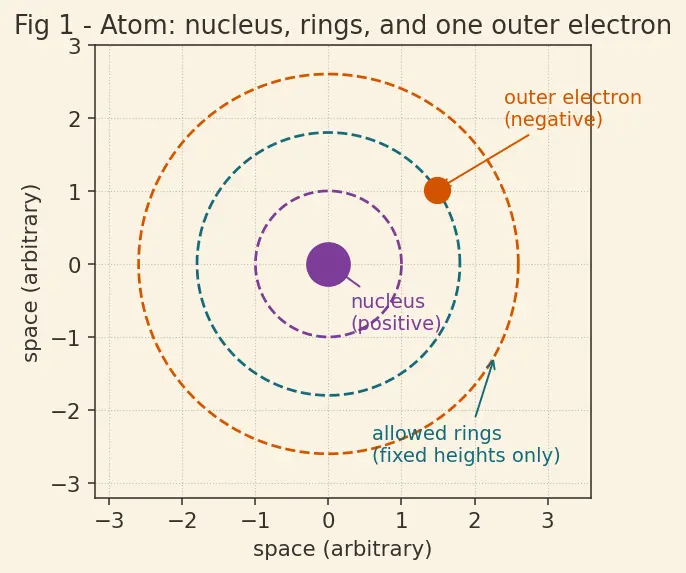

Picture it. Look at Figure 1: a dot in the middle (nucleus, drawn plum) and rings around it. An electron (burnt-orange dot) lives on one of those rings.

Why the topic needs it. Colour comes from one electron moving between rings. If you don't picture the electron and where it sits, the words "excited" and "ground state" are meaningless.

Figure — Flame tests — characteristic colours

2. Energy levels: $E_{low}$ and $E_{high}$

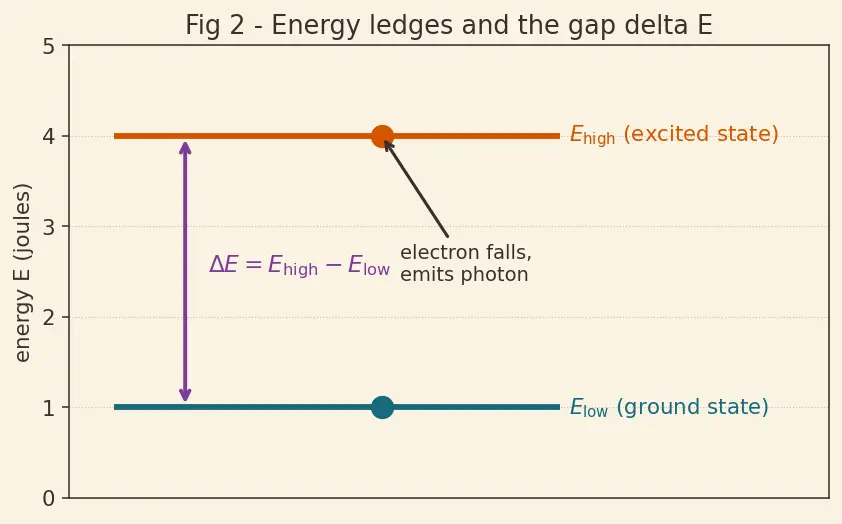

Picture it (Figure 2). Two horizontal lines like ledges on a wall. The bottom ledge is labelled $E_{low}$ ; a higher ledge is $E_{high}$ . The vertical distance between them is what we care about.

Why the subscripts? " $low$ " and " $high$ " are just nametags so we can talk about two specific ledges without confusing them. A subscript never means multiply — it's a label, like a house number.

3. The gap: what $Δ E$ means (and why the triangle)

Why subtraction? The gap between two ledges is the higher height minus the lower height — exactly how you'd measure the distance between two shelves. We choose subtraction because it answers the question "how far must the electron fall?"

Why this tool and not just "energy"? The colour is not set by how high the electron sits, but by how far it drops. Two different metals might have high ledges at different places, but what your eye sees is the difference, $Δ E$ . That's the quantity we must isolate.

4. Light as a wave: wavelength $λ$ and colour

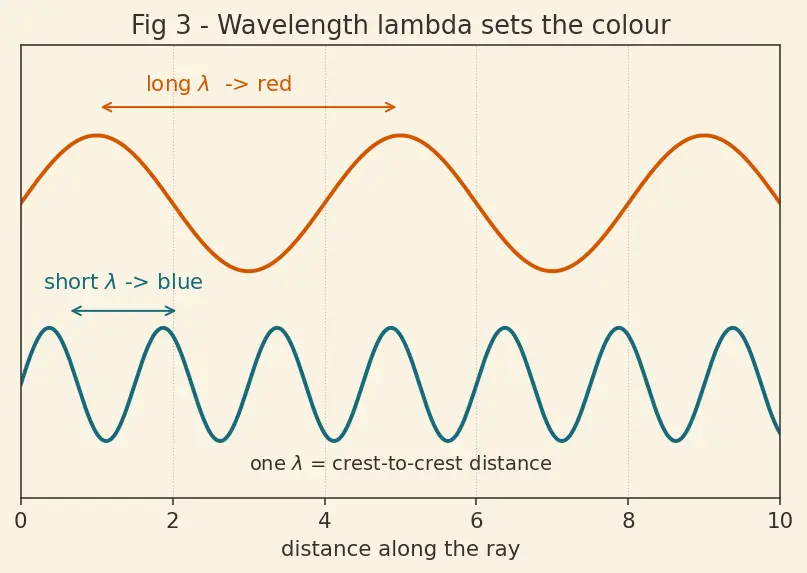

Picture it (Figure 3). A wavy line; the arrow spanning one full up-and-down cycle is $λ$ . Short waves are bunched tight; long waves are stretched out.

Why the topic needs $λ$ . The whole point of a flame test is the colour, and colour is wavelength. When the parent note says "Na → ~589 nm → yellow", it is reading a wavelength off the wave.

5. Frequency $ν$ and speed of light $c$

The link (why $c = λ ν$ ). In one second, $ν$ crests go by, and each crest is $λ$ metres long. So the distance the front of the wave covered in that second is $λ \times ν$ — and that distance is the speed $c$ . Hence: $c = λ ν \Rightarrow ν = \frac{c}{λ}$

Why we need this rearrangement. In the next step, energy will be given in terms of $ν$ , but we want it in terms of $λ$ (the colour). So we keep $ν = c / λ$ in our pocket to swap out $ν$ .

6. Planck's constant $h$ and $E = h ν$

Why not some other tool? We need a bridge from energy (what the electron drops) to colour (what we see). $E = h ν$ is that bridge — it's the one law connecting the electron's world to the light's world. The same law powers the Photoelectric Effect, run in reverse.

7. Assembling the master equation

Now we chain the pieces. This is the single most important line on the page.

WHAT we do: start from $E = h ν$ and replace $ν$ using $ν = c / λ$ .

WHY: we want energy expressed through the colour $λ$ , not through the invisible $ν$ .

$E = h ν = h \cdot \frac{c}{λ} = \frac{h c}{λ}$

The energy the photon carries equals the energy gap it came from, $E = Δ E$ . So:

WHAT IT LOOKS LIKE. $h$ and $c$ are frozen constants, so the only players are $Δ E$ and $λ$ , sitting on opposite sides of a fraction. When one grows, the other shrinks — they are inversely related:

Big gap $Δ E$ → small $λ$ → blue/violet end.
Small gap $Δ E$ → large $λ$ → red end.

That single seesaw is the entire logic behind every colour in the parent table. Different metal → different ledge spacing → different $Δ E$ → different $λ$ → different colour.

8. Ion vs atom, and "s-block"

Prerequisite map

Read it top-down: the joule gives the ruler; the atom idea builds energy levels, which build the gap $Δ E$ ; separately the wave idea builds $λ$ , $ν$ and Planck's law; the two streams meet at the master equation, which — together with the s-block fact — produces the colour.

Equipment checklist

Cover the right side and test yourself before entering the parent topic.

What unit do we measure energy in, and roughly how big is an atomic gap?

The joule (J); atomic gaps are around

1 0^{- 19} J

What does the symbol

Δ E

mean?

The energy gap between two electron levels,

E_{high} - E_{low}

, in joules.

What is

λ

and what does it decide?

Wavelength — the crest-to-crest distance of light; it decides the colour we see.

Why do we replace

ν

with

c / λ

To express energy in terms of the visible colour

λ

instead of the invisible frequency

ν

State the master equation.

λ = h c /Δ E

(equivalently

Δ E = h c / λ

Δ E

is large, is the colour red or blue?

Blue/violet — large gap means short wavelength.

What is

h

and roughly its value?

Planck's constant,

6.626 \times 1 0^{- 34} J\cdots

; the frequency-to-energy conversion factor.

What is an ion, e.g.

Ca^{2 +}

An atom that lost electrons and carries charge;

2 +

means it lost two electrons.

Why do s-block metals give vivid visible colours?

Loosely held outer electrons give small excitation gaps that match visible wavelengths.

Is light emitted going up or coming down the levels?

Coming down (falling from

E_{high}

E_{low}

Connections

Flame Tests — Characteristic Colours — the parent topic this page prepares you for
Bohr Model of the Atom — where the fixed "rungs" come from
Atomic Spectra and Emission Lines — sharp colours as a fingerprint
Planck's Quantum Theory — the origin of $E = h ν$
Photoelectric Effect — same $E = h ν$ , opposite direction
Group 1 and Group 2 Elements (s-block) — why these metals shine
Wet Tests for Cations — confirmatory follow-up
Inorganic Qualitative Analysis — the parent chapter
