Lanthanides — electronic configuration, lanthanide contraction, oxidation states (mostly +3): Visual walkthrough

Step 1 — What does "radius of an atom" mean?

WHAT. An atom has no hard edge. Its outermost electrons form a fuzzy cloud. The radius $r$ is roughly how far that outer cloud sits from the nucleus — the distance from the centre dot to where the cloud thins out.

WHY start here. The whole story is "radius goes down." If you don't know what $r$ is, "goes down" is meaningless. We anchor the number to a picture before we ever change it.

PICTURE. The nucleus is the small pale-yellow dot at the centre. The blue fuzz is the electron cloud. The pink arrow labelled $r$ is the radius — centre to the edge of the fuzz.

Figure — Lanthanides — electronic configuration, lanthanide contraction, oxidation states (mostly +3)

Definition Atomic / ionic radius (a model-dependent number)

$r$ = roughly the distance from the nucleus to the edge of the outermost electron cloud. But there is no hard edge — the cloud only thins out — so "radius" is not a single physical fact, it's a convention you must choose. Different jobs use different rulers: a covalent radius (half the distance between two bonded atoms), an ionic radius (fitted so cation + anion distances add up in a crystal), a van der Waals radius (how close non-bonded atoms drift), or a radial-probability cutoff (the distance enclosing, say, 90% of the electron density). Throughout this page we mean the ionic radius of $Ln^{3 +}$ — one fixed ruler — so that " $r$ shrinks" is a fair comparison. Bigger cloud → bigger $r$ ; pull the cloud inward → $r$ shrinks. That inward pull is the entire mystery, and the next steps explain what does the pulling.

Step 2 — Two knobs turn as we step right: +1 proton, +1 electron

WHAT. Move one element to the right along the lanthanide row — say from Ce ( $Z = 58$ ) to Pr ( $Z = 59$ ). Exactly two things change: the nucleus gains one proton (so nuclear charge $Z$ rises by 1) and the cloud gains one electron (which mostly goes into the buried 4f shell).

WHY. $Z$ = the number of protons = the total positive charge in the nucleus. Protons pull electrons inward. So if only the proton mattered, the atom would just shrink. But the new electron pushes outward and screens the others from the nucleus. The radius is the outcome of this tug-of-war. We must weigh both pulls.

PICTURE. Left: Ce. Right: Pr. The pale-yellow "+1" arrow into the nucleus (inward pull). The blue "+1" arrow adding an electron to the deep 4f region (outward push / screening). Which arrow wins decides the radius.

Step 3 — What "shielding" means (the referee of the tug-of-war)

WHAT. An outer electron doesn't feel the full nuclear charge $Z$ . The electrons between it and the nucleus block part of that positive pull — like people standing in front of a heater. This blocking is called shielding (or screening).

WHY this idea now. The whole result hinges on how well the new 4f electron shields. Before we can say "4f shields poorly", you need to know what good shielding looks like. So we picture it: an electron sitting right between the nucleus and an outer electron cancels a lot of pull; an electron parked off to the side cancels almost none.

PICTURE. Same nucleus, same outer electron on the right. Case A (blue, good screen): an inner electron sits directly on the line to the nucleus — big block. Case B (pink, poor screen): the electron is smeared far off the line — the outer electron still "sees" the nucleus. 4f will turn out to be Case B.

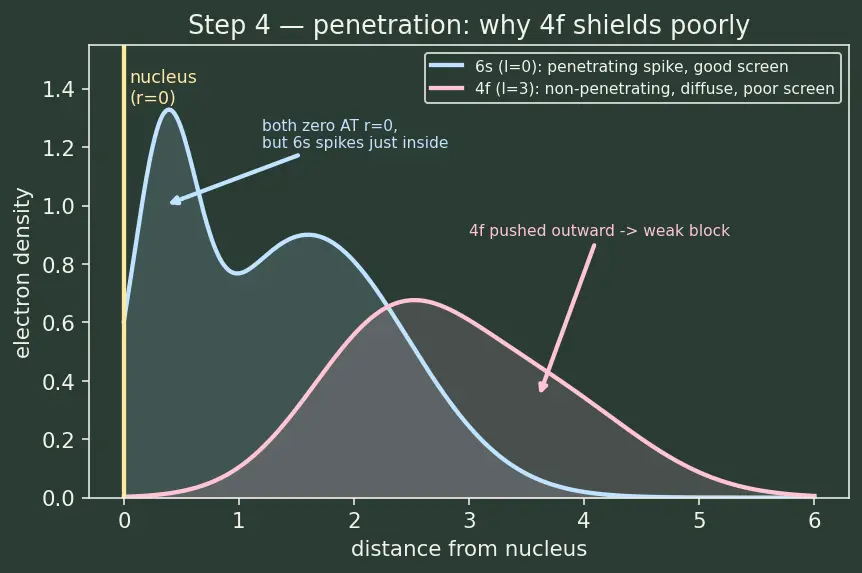

Step 4 — Why 4f is a terrible shield (the heart of it)

WHAT. Two facts make 4f a poor screen: it is angularly spread into many lobes, and it radially penetrates very little toward the nucleus. So when we add a 4f electron, its contribution to $S$ (the shielding felt by the outer electrons) is small.

WHY this matters. Compare it to what a good shielder does. An s-electron ( $ℓ = 0$ ) piles up penetrating density right near the nucleus, screening beautifully. A 4f electron's density is spread out, angularly complicated, and non-penetrating, so from the outer electron's point of view the 4f electron is often outside it or off to the side, doing little blocking.

PICTURE. Sketched radial clouds. Blue = a 6s electron (good screen, a penetrating spike hugging the nucleus). Pink = a 4f electron (poor screen, density smeared out and pushed away from $r = 0$ ). The outer electron (yellow) mostly still sees the nucleus through the pink 4f fuzz.

Because 4f screens poorly, this is a race the nucleus keeps winning — the Half-filled and Fully-filled Stability anomalies barely dent it.

Step 5 — Turn " $Z_{eff}$ rises" into " $r$ falls"

WHAT. A rough model links the outer-electron radius to the pull it feels: $r \propto \frac{n ^{2}}{Z _{eff}}$

WHY this formula, not another. This is the one-electron (hydrogenic) approximation: we pretend the outer electron orbits a single point charge of size $Z_{eff}$ , exactly as a lone electron orbits a proton in the Bohr model — but with $Z_{eff}$ standing in for the true nuclear charge. In that toy model the orbit radius grows with the square of the shell number $n$ and shrinks with the pull $Z_{eff}$ . It is only a feel-for-the-direction tool: a real many-electron atom has orbital energies that also depend on penetration and on electron–electron repulsion, so the true radius does not scale by $Z_{eff}$ alone — there are corrections beyond this simple ratio. What survives all those corrections, and all we actually need, is the sign: for our outer electrons $n$ stays fixed (still 6s/5p) across the row, so if $Z_{eff}$ climbs, $r$ falls.

term-by-term.

$r$ = radius of the outer cloud (what we're tracking).

$n$ = principal quantum number of the outer shell (here $\approx 6$ , and it does not change across the lanthanides — the outer electrons stay in the same shells).

$Z_{eff} = Z - S$ = net pull, and this is the only thing changing meaningfully.

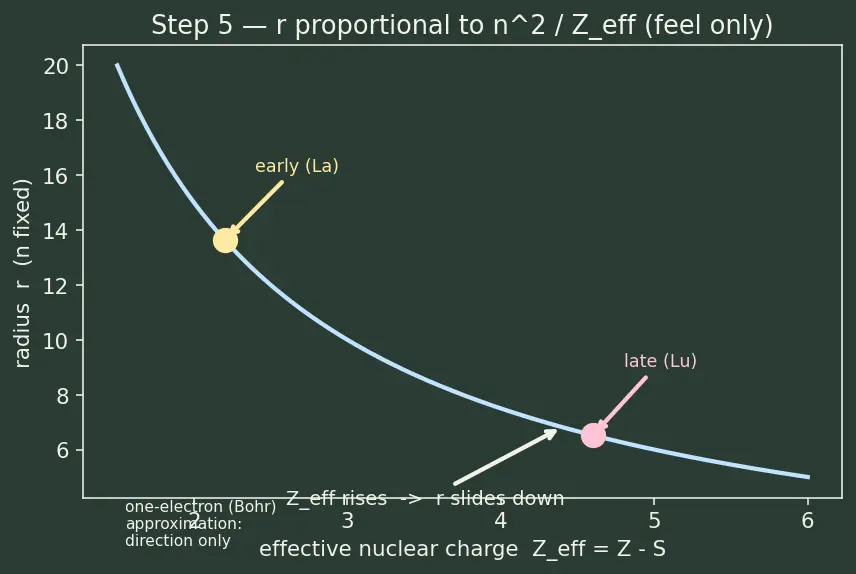

PICTURE. A simple curve of $r$ vs $Z_{eff}$ : as you slide right (bigger $Z_{eff}$ ), the dot on the curve slides down (smaller $r$ ). Fixed $n$ on top means only the bottom moves.

Step 6 — Why we now measure the +3 ion, and add it up

WHAT. So far $r$ meant "the neutral atom's cloud." From here we switch to the radius of the $Ln^{3 +}$ ion — the atom after it has lost 3 electrons (two 6s + one 5d/4f). Every lanthanide forms this same $+ 3$ ion, so $Ln^{3 +}$ radii are the fair, apples-to-apples ruler to compare all 14. Neutral-atom radii are messier because the few 5d anomalies (Step 2) change which outer electrons are present; strip everything down to $Ln^{3 +} : [Xe] 4 f^{n}$ and only the buried 4f count differs, so the pure contraction shows cleanly.

Intuition Does ionising break the mechanism? (No — and here's why)

Removing 3 electrons is not a gentle edit: the whole cloud relaxes (the remaining orbitals contract and re-settle), and the shielding constant $S$ changes because we deleted the outermost, best-screened electrons — including, for La/Ce/Gd/Lu, the very 5d electron that had screened slightly better. So $S$ is recomputed for the ion, not inherited. But the direction still holds: after relaxation, every $Ln^{3 +}$ has the identical outer skin $[Xe]$ (filled 5s5p) wrapped around a growing 4f core. Stepping right still means $Δ Z = + 1$ against a 4f electron that still penetrates poorly and still sits inside that 5s5p skin. So the same "nucleus wins the tug-of-war" logic — $Δ Z_{eff} > 0 \Rightarrow r$ falls — survives ionisation intact. Ionising to $+ 3$ actually makes the trend cleaner, because it erases the 5d wobble entirely.

The numbers. Each step drops the $Ln^{3 +}$ radius by only about 1 pm ( $1 pm = 1 0^{- 12}$ m, a trillionth of a metre). But you take that step 13 times from La to Lu, and the little drops accumulate into something chemistry cares about.

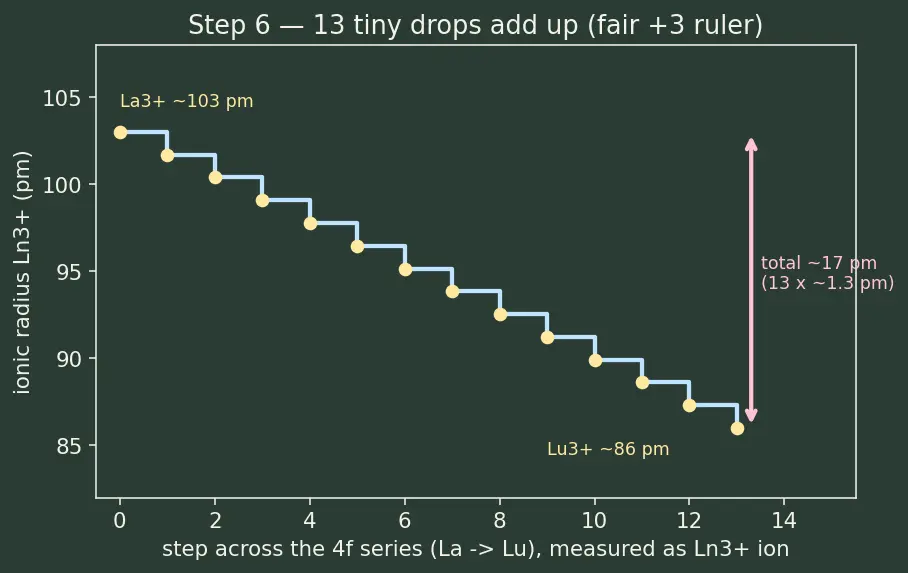

PICTURE. A staircase of $Ln^{3 +}$ radii, La at top-left (≈103 pm), stepping down one tread per element, Lu at bottom-right (≈86 pm). Each tread ≈ 1 pm; the total fall is the tall drop on the right.

Step 7 — The payoff: why Zr and Hf are twins (the size cancellation)

WHAT. Normally, dropping one full period down the table makes atoms bigger (new shell added). Zirconium (Zr, 4d row) should be much smaller than Hafnium (Hf, 5d row, one period below). But Hf sits right after all 14 lanthanides — so it inherited the entire 17 pm contraction, which almost exactly cancels the "go-down-a-row-get-bigger" gain.

WHY this is the famous consequence. The extra shell tries to grow the atom; the lanthanide contraction shrinks it back. The two nearly cancel: $4d r_{Zr} \approx 160 pm vs 5d, post-lanthanide r_{Hf} \approx 159 pm$

PICTURE. Left bar: normal expected growth Zr → (imaginary) Hf (blue arrow up). Right: the pink lanthanide-contraction arrow pushes back down by nearly the same amount. Net: Zr and Hf end at almost the same height — drawn as two nearly equal circles.

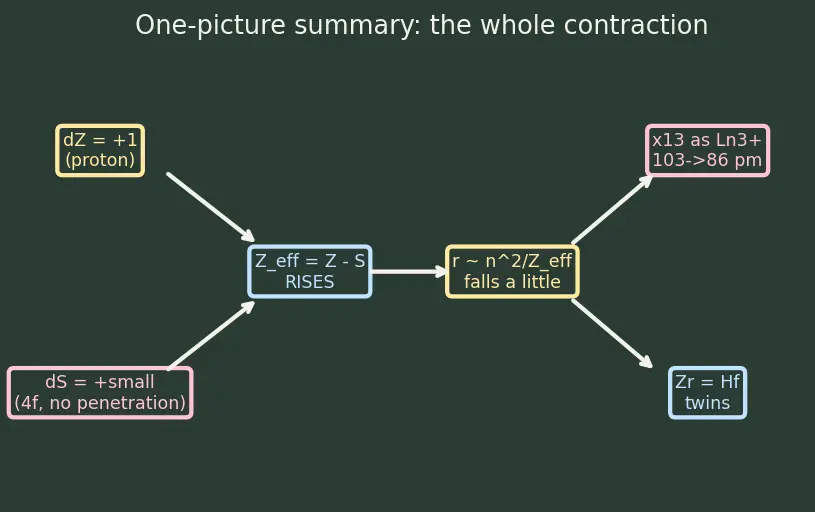

The one-picture summary

This single figure chains it all: +1 proton (pull up) and +1 poorly-penetrating 4f electron (weak screen) → $Z_{eff} = Z - S$ rises → $r \propto n^{2} / Z_{eff}$ falls a little → repeat 13× (measured on the clean $Ln^{3 +}$ ion) → radius drops ~17 pm → Hf's inherited shrink cancels its extra shell → 4d/5d twins.

Recall Feynman retelling — the whole walkthrough in plain words

Picture a row of 14 nearly-identical people. Each person, moving right, gets one more magnet in their belly (a proton — pulls their coat tighter) and one more coin hidden deep in a lumpy inside pocket (a 4f electron; a couple of people slip it into a slightly shallower 5d pocket instead, which barely changes things). A coin held right in front of the belly would block the magnet from the coat — but these coins sit sideways and deep, and can't even reach the belly (they don't penetrate), so they barely block anything. So the coat is pulled a tiny bit tighter each time. One tug is nothing (that's why they all look the same), but thirteen tugs in a row make the last person noticeably slimmer. To compare them fairly we photograph each one after they've handed over the same 3 items (the $+ 3$ ion) — and yes, handing those over reshuffles their remaining clothes a bit, but the belly-magnet still wins — so the shrink from 103 to 86 pm comes out perfectly smooth. Now the next person down the hall (Hafnium) should be roomier because they got a whole new layer of clothing — but they walked past all 14 tightened people first and got tightened the same total amount, so they end up the same slimness as their upstairs cousin Zirconium. That cancellation is why Zr and Hf are impossible-to-tell-apart twins.

Recall

Define atomic radius in one line ::: distance from nucleus to edge of the fuzzy outer cloud — no hard edge, so it is a chosen convention (covalent, ionic, van der Waals, or a probability cutoff) What two things change per step across the 4f row ::: +1 proton (ΔZ = +1) and +1 electron (usually into 4f, sometimes 5d), so ΔS = +small Which lanthanides put the added electron in 5d not 4f ::: La, Ce, Gd, Lu (empty/half/full-shell stability) What does the quantum number l tell you ::: the orbital's shape/angular momentum; l=0 s, 1 p, 2 d, 3 f Why does 4f shield poorly ::: l=3 gives many sideways lobes AND it barely penetrates (order s≫p>d≫f), so it rarely sits between nucleus and outer electrons, adding little to S Formula for effective nuclear charge ::: $Z_{eff} = Z - S$ Direction of $Z_{eff}$ across the series and why ::: rises, because ΔZ = +1 each step while ΔS is only small What is the r ∝ n²/Z_eff formula and its limit ::: a one-electron (hydrogenic) approximation using Z_eff; only reliable for the direction, since real atoms add penetration and electron-repulsion corrections Why compare Ln3+ radii rather than neutral atoms ::: every lanthanide forms the same +3 ion ([Xe]4f^n), a fair ruler free of the 5d anomalies Does ionising to +3 break the mechanism ::: no — the cloud relaxes and S is recomputed, but each Ln3+ still has a [Xe] skin over a poorly-penetrating 4f core, so ΔZ_eff > 0 and r still falls Total contraction La³⁺ → Lu³⁺ ::: about 103 pm → 86 pm, roughly 17 pm over 13 steps Why Zr and Hf are nearly identical in size ::: Hf inherited the full lanthanide contraction, cancelling its extra-shell size increase
