Visual walkthrough — Atomic - ionic size trends; lanthanide contraction

This page is the picture-derivation behind the parent topic. If a word here feels new, we define it before we use it.

---

Step 1 — The tug-of-war that sets an atom's size

WHAT. An atom is a tiny positive nucleus (a lump of protons, each carrying +1 charge) surrounded by electrons (each carrying −1 charge). The nucleus pulls electrons inward. That pull is what decides how big the electron cloud can spread — the size of the atom.

WHY a "pull" and not something else. Opposite charges attract (this is Coulomb's law: unlike charges pull together, like charges push apart). More protons ⇒ stronger inward pull ⇒ the cloud is dragged closer ⇒ smaller atom. That single sentence is the engine of the whole chapter.

PICTURE. Look at the figure: the red nucleus in the centre, an electron on the rim, and an orange arrow showing the inward pull. A stronger pull (thicker arrow) reels the electron closer.

---

Step 2 — Bodyguards: why the outer electron doesn't feel the full pull

WHAT. An outer electron does not feel all $Z$ protons. The electrons sitting between it and the nucleus stand in the way and cancel part of the pull. We call this blocking shielding (or screening), and we give it a number $S$.

WHY we need a new number. If every electron felt the full nuclear charge, size would depend only on proton count. But an inner electron's negative charge partly cancels a proton's positive charge as seen from outside. So the outer electron feels a reduced charge. We name that reduced charge:

$Z_{\text{eff}}=Z-S$

• $Z$ — total protons (the raw inward pull, a positive whole number).
• $S$ — the shielding constant: how much of that pull the inner electrons cancel.
• $Z_{\text{eff}}$ — the effective nuclear charge: what the outer electron actually feels.

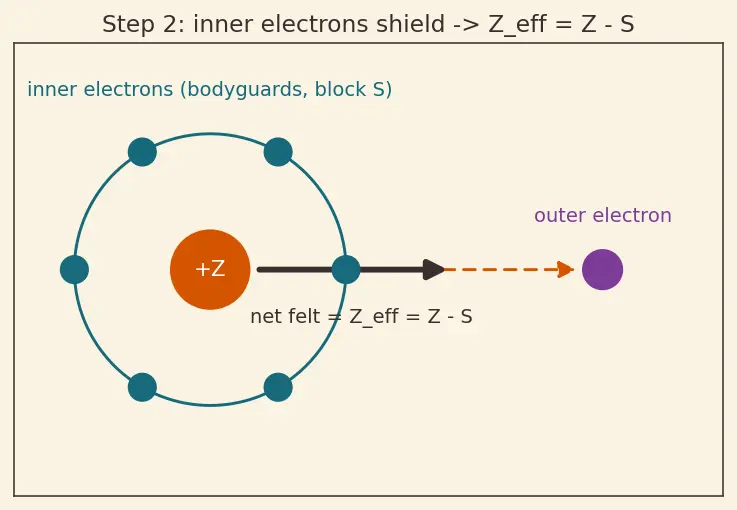

PICTURE. The inner electrons form a shell (the teal "bodyguards") between the nucleus and the outer electron. The net arrow reaching the outer electron is shorter than the raw one — that shortening is $S$.

---

Step 3 — The size formula: two knobs, one ratio

WHAT. For a hydrogen-like picture, the radius of an electron's orbit obeys

$r\propto \frac{n^2}{Z_{\text{eff}}}$

• $n$ — the shell number (1, 2, 3, …); a bigger $n$ means a shell that lives further out.
• $Z_{\text{eff}}$ — the effective pull from Step 2.
• $\propto$ — "is proportional to": $r$ grows with $n^2$ and shrinks with $Z_{\text{eff}}$.

WHY this exact shape. Two forces balance. The Coulomb pull $\frac{Z_{\text{eff}}{e}^2}{4\pi {\epsilon }_0{r}^2}$ yanks the electron in; the electron's quantized motion (angular momentum labelled by $n$) resists being squeezed. Setting pull = resistance and solving for $r$ gives the ratio above. You do not need the algebra — you need the two knobs:

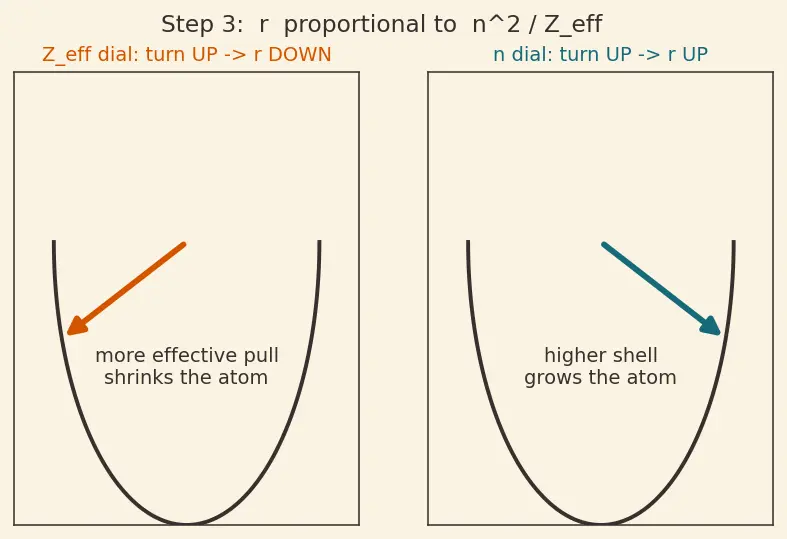

PICTURE. Two dials. The left dial ($Z_{\text{eff}}$) shrinks the atom as you turn it; the right dial ($n$) grows it. Every trend in this chapter is just which dial moves each step.

---

Step 4 — Which bodyguards are lazy? The $s>p>d>f$ ranking

WHAT. Not all electrons shield equally. An electron that spends time close to the nucleus blocks the pull well; one that stays far and spread out blocks poorly. The ranking of blocking power by subshell type is:

$s>p>d>f$

• $s,p,d,f$ — labels for the shape of an electron's home (its subshell). $s$ hugs the nucleus, $f$ is the most spread-out and outermost-reaching in shape.
• The inequality reads "s shields best … f shields worst."

WHY it matters for us. When we add an electron across a series, where it lands decides whether it makes a good bodyguard. Add it to $d$ or $f$ → a lazy bodyguard → $S$ barely rises → $Z_{\text{eff}}$ keeps climbing → atom keeps shrinking.

PICTURE. Four clouds around one nucleus. The $s$ cloud sits tight (blocks a lot); the $f$ cloud is a diffuse haze (blocks almost nothing). The arrow leaking past the $f$ cloud is nearly full-length.

---

Step 5 — Across a d-series: proton wins, but only just

WHAT. Going left→right in a 3d row (Sc→Zn), each step adds +1 proton and +1 electron into the inner $(n-1)d$ shell.

WHY the atom shrinks gently. The +1 proton raises $Z$ (pull up, dial 1). The +1 electron would raise $S$ (pull down) — but it is a lazy d-guard (Step 4), so $S$ rises only a little. Net: $Z_{\text{eff}}=Z-S$ rises slightly each step. By Step 3, slightly-bigger $Z_{\text{eff}}$ ⇒ slightly-smaller $r$. Hence a mild decrease, not the steep drop of a main-group period.

Edge of the row (Cu, Zn): the size ticks up slightly. Two reasons: (i) the filling d-shell is now crowded, so $d$–$d$ electron–electron repulsion pushes the cloud back out; (ii) a nearly full d-shell barely helps metallic bonding, so atoms sit a touch farther apart.

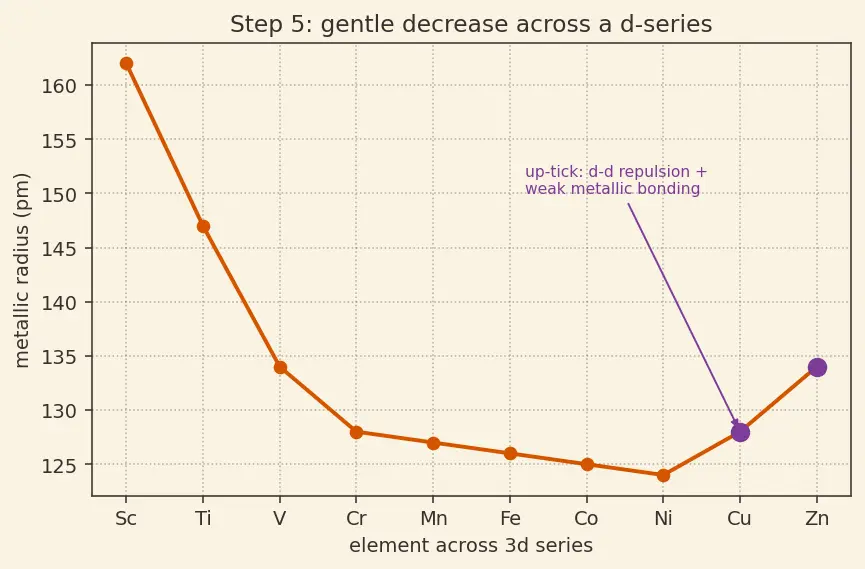

PICTURE. A near-flat descending curve of radius vs. element, with a small up-tick at the right end (Cu, Zn) marked in plum.

Recall Why "gentle" and not "steep"?

Steep decrease ::: needs the new electron to shield poorly AND land in the same valence shell (like a p-period). Here it lands in an inner d-shell, so it partly counteracts the proton — decrease is muted.

---

Step 6 — Down a group: 3d→4d grows, then 4d→5d refuses to grow

WHAT. Down a d-group, the outer shell number $n$ increases.

WHY 3d→4d grows. Bigger $n$ (dial 2 up), and $Z_{\text{eff}}$ doesn't rise enough to stop it, so $r$ increases: 4d > 3d. Expected.

WHY 4d→5d does not grow (the puzzle). You would expect 5d > 4d for the same reason. But between the 4d and 5d rows sits an entire extra block — the 14 lanthanides — that we cross next in Step 7. Those 14 add-ons pile on proton after proton with almost no shielding, cranking $Z_{\text{eff}}$ up hard. That extra pull cancels the $n$-increase, so 5d ≈ 4d.

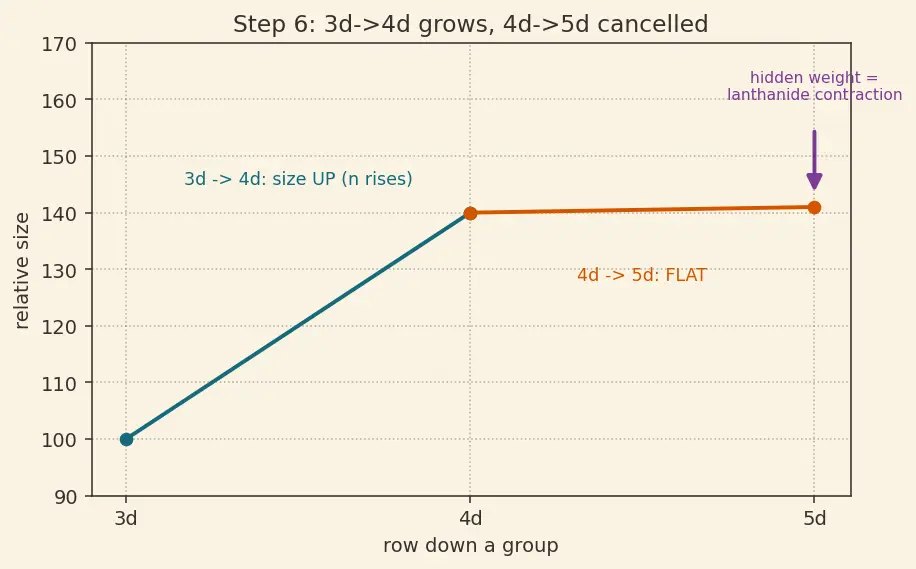

PICTURE. Two ladders side by side: 3d→4d climbs (size up), 4d→5d stays level because a hidden weight (the coming lanthanide contraction) drags it back down.

---

Step 7 — Across the lanthanides: the slow, relentless squeeze

WHAT. From La ($Z=57$) to Lu ($Z=71$), each step adds +1 proton and +1 electron into the deeply buried 4f shell.

WHY it shrinks steadily. The 4f electron is the laziest guard of all (Step 4, $f$ worst). So $S$ rises almost not-at-all while $Z$ marches up 14 times. Thus $Z_{\text{eff}}$ on the outer 5s5p6s electrons climbs every single step ⇒ $r$ shrinks every single step. This steady shrink is the lanthanide contraction.

How big? Per step it is tiny (~1 pm). But summed over 14 elements it is large. Using Shannon ionic radii at coordination number 6:

$r({\text{La}}^{3+})\approx 1.032\text{A˚}⟶r({\text{Lu}}^{3+})\approx 0.861\text{A˚}$

• Total shrink $=1.032-0.861=0.171\text{A˚}=17.1\text{pm}$ across 14 steps.
• Average per step $\approx 17.1/14\approx 1.2\text{pm}$ — small, yet it accumulates.

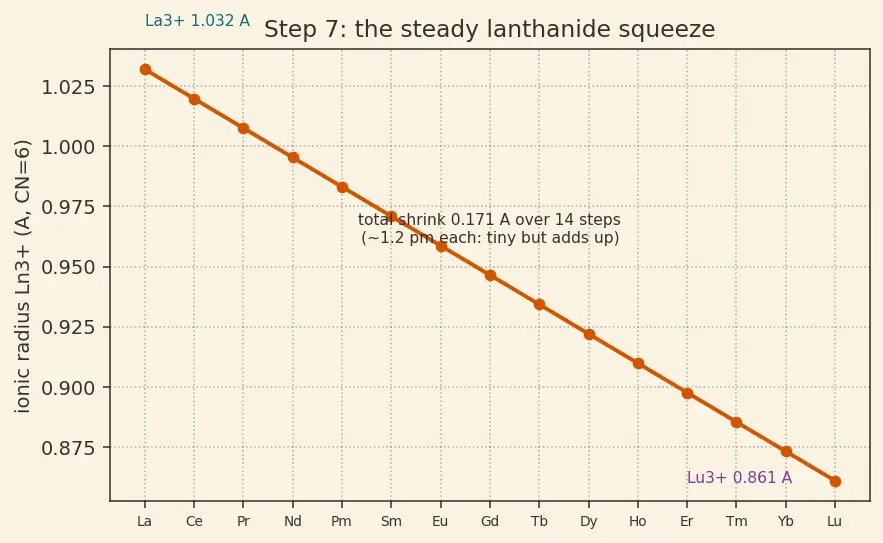

PICTURE. A long gentle downhill from La³⁺ to Lu³⁺; each stair is barely lower than the last, but the total drop is clearly visible.

---

Step 8 — The payoff: Zr ≈ Hf (chemical twins)

WHAT. Hf sits in the 5d row right after the 14 lanthanides; Zr sits above it in 4d. Because the lanthanide contraction ate up the expected 4d→5d growth:

$r(\text{Zr})\approx 160\text{pm}r(\text{Hf})\approx 159\text{pm}$

WHY they behave identically. Equal size and equal common charge ($+4$) ⇒ equal charge density (charge packed per volume). Equal charge density ⇒ equal lattice energies, solubilities, and complex stabilities ⇒ nearly identical chemistry ⇒ the hardest pair to separate.

Degenerate check — the ion, not just the atom. When an atom loses electrons to form a cation, it loses an entire outer shell and the survivors feel a higher $Z_{\text{eff}}$. So a cation is much smaller than its atom, and a higher charge shrinks it further:

$r({\text{Fe}}^{3+})<r({\text{Fe}}^{2+})<r(\text{Fe})$

Same protons, fewer electrons ⇒ higher $Z_{\text{eff}}$ per electron ⇒ tighter pull ⇒ smaller.

PICTURE. Two atoms Zr and Hf drawn on top of each other — nearly the same circle — with their radii labelled 160 and 159 pm.

---

The one-picture summary

Everything above is one flow: add proton (pull up) + add lazy inner electron (shield barely up) ⇒ $Z_{\text{eff}}$ up ⇒ radius down. The final figure stacks the three arenas — d-series (gentle down), lanthanides (steady down, accumulating), and the group cancellation (Zr ≈ Hf) — over the same two-knob logic.

Recall Feynman retelling of the whole walkthrough

Picture a magnet (the nucleus) pulling little balls (electrons). How far a ball floats out is a fight: more magnet-strength pulls it in, higher "shells" let it float out. In between stand bodyguards (inner electrons) who block some magnet — but some are lazy. Across a d-row we keep adding one magnet-unit and one dozy bodyguard (a d-electron), so the magnet slowly wins and the atom shrinks a little each step (with a tiny bounce-back at the crowded end, Cu-Zn). Across the lanthanides the bodyguards are the laziest of all (f-electrons), so 14 magnet-units pile on almost unblocked — each step shrinks the atom a hair, but 14 hairs add up to a real squeeze. That squeeze happens right before the 5d row, so 5d atoms get dragged back down to 4d size — which is why Zr and Hf are the same size and act like twins, and why Os and Ir are so heavy-for-their-size.

---
