Atomic - ionic size trends; lanthanide contraction
WHAT we are explaining
We want trends in atomic radius and ionic radius for:
- d-block: across a 3d/4d/5d series (left→right) and down a group.
- f-block (lanthanides): the steady shrink called the lanthanide contraction.
- Its big consequence: 4d and 5d elements of the same group end up almost equal in size.
WHY size depends on (first principles)
For a one-electron-like picture, the most-probable radius of an electron in shell scales as
So the whole subject reduces to two competing knobs:
- +1 proton each step → raises → shrinks size.
- +1 electron each step → raises (shielding) → grows size.
Who wins depends on which subshell the new electron enters.
HOW the trends come out
1. Across a d-series (e.g. Sc→Zn)
Each step adds 1 proton () and 1 electron into inner (n−1)d. Because d-electrons shield poorly, rises slightly → size decreases at first, then becomes nearly flat, and may tick up near the end (Cu, Zn). Two effects drive that late bump in metallic radii: (i) growing – electron–electron repulsion in the filling shell, and (ii) the now (nearly) filled d-shell contributes little to metallic bonding, so the metallic bonds weaken and atoms sit slightly farther apart.
Net: small decrease across the series, then levelling. Much gentler than in a main-group period.
2. Down a d-group
Going 3d → 4d, increases, so size increases (4d > 3d). But 5d ≈ 4d in size! Why? Read on — that's the lanthanide contraction's gift.

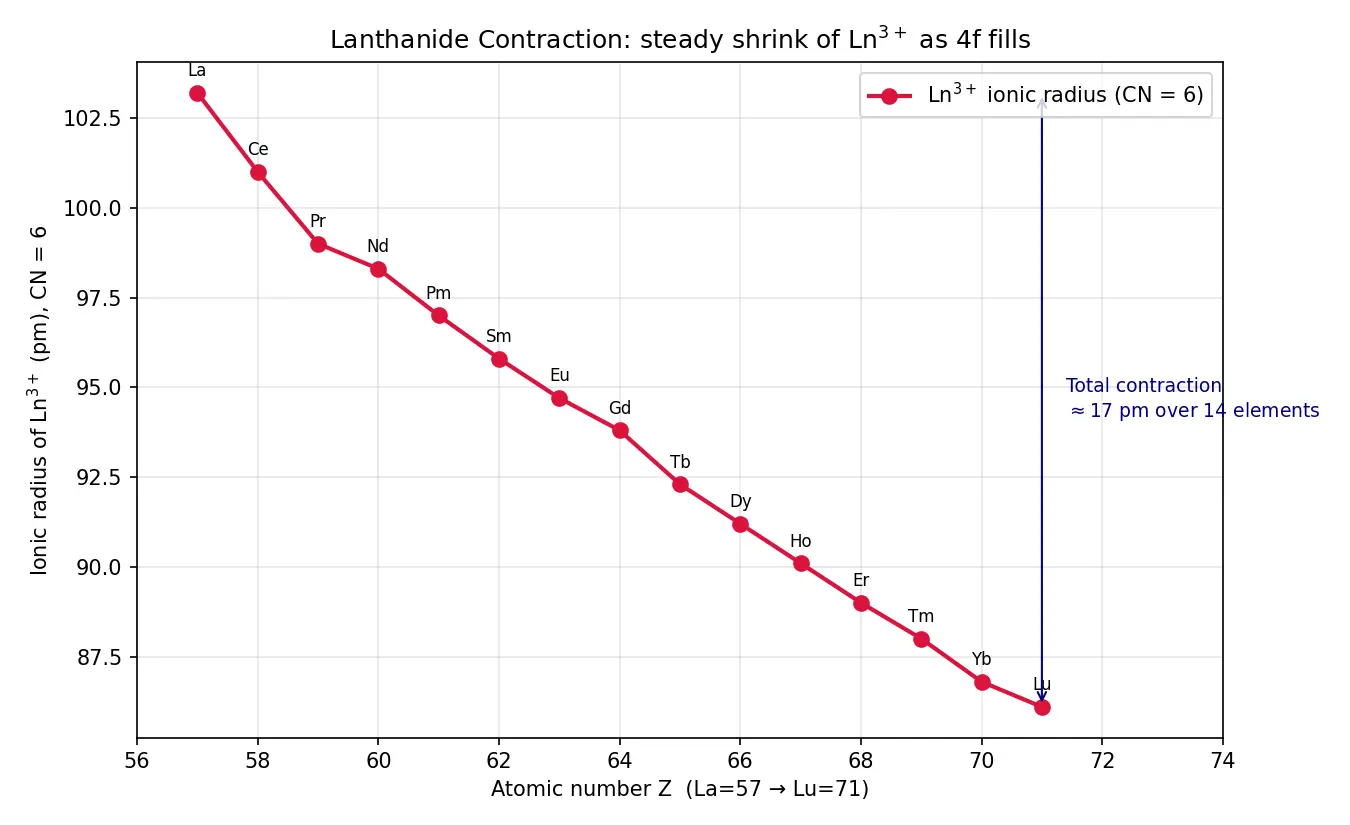

3. Across the lanthanides (La→Lu): lanthanide contraction
Each step adds a proton and an electron into the deeply buried 4f. 4f shields terribly, so on the outer (5s5p6s) electrons keeps rising → radius shrinks steadily across all 14 lanthanides.
Total shrink (Shannon ionic radii, coordination number 6) ≈ from Å (La³⁺) to Å (Lu³⁺): small per-step but accumulates over 14 elements. (Values shift if CN changes — always quote the coordination number.)
Consequences (the 80/20 you must know)
Common mistakes (Steel-manned)
Flashcards
What does atomic radius depend on, in one ratio?
Order of shielding power by subshell?
Why do sizes only slightly decrease across a 3d series?
Define lanthanide contraction.
Why is the per-step lanthanide shrink small but the effect large?
Main consequence of lanthanide contraction for 4d vs 5d?
Which pair is hardest to separate due to identical size?
Why are Os and Ir so dense?
Trend in basicity of Ln(OH)₃ La→Lu?
Why is Fe³⁺ smaller than Fe²⁺?
Define effective nuclear charge.
Why does metallic radius tick up at Cu, Zn?
Recall Feynman: explain to a 12-year-old
Imagine the nucleus is a magnet pulling tiny electron-balls, and the inner electrons are bodyguards standing between the magnet and the outer balls, blocking some pull. In transition metals we keep adding both a stronger magnet (proton) and a lazy bodyguard (a d-electron that doesn't block well). So the magnet wins and the atom keeps shrinking a little. In the lanthanides the bodyguards (f-electrons) are the laziest of all, so after 14 of them the atom has shrunk a lot — that's why two metals from different rows (like Zr and Hf) end up the same size and act like twins.
Connections
- d-Block Overview & Electronic Configuration
- f-Block (Lanthanides & Actinides)
- Effective Nuclear Charge & Slater's Rules
- Periodic Trends — Atomic & Ionic Radii
- Density, Melting Point Trends in Transition Metals
- Basic Character of Oxides & Hydroxides
- Separation of Lanthanides (Ion-exchange)
Concept Map
Hinglish (regional understanding)
Intuition Hinglish mein samjho
Dekho, atom ka size basically ek tug-of-war hai. Nucleus ke protons electrons ko andar kheechte hain, aur beech wale (inner) electrons "shielding" karke us pull ko kam karte hain. Effective nuclear charge jitna zyada, atom utna chhota, kyunki . Shielding power ka order penetration ke hisaab se: . Yaani s sabse achha shield karta hai (sabse zyada penetrate karta hai), aur f sabse kharaab.
Transition series (3d) mein har step pe ek proton aur ek d-electron add hota hai. d-electron poorly shield karta hai, isliye proton ka pull jeet jaata hai aur size thoda-thoda ghatta hai (phir flat ho jaata hai). Cu, Zn pe size thoda upar bhi jaata hai — iske do reasons: – repulsion badhta hai, aur filled d-shell metallic bonding mein kam contribute karta hai, isliye bond weak ho ke atoms door baith jaate hain. Group mein neeche 3d se 4d size badhta hai (n bada), par 4d se 5d? Yahan twist hai.
5d elements lanthanides ke turant baad aate hain. Lanthanides mein 14 protons add hote hain par electrons 4f mein jaate hain jo sabse ghatiya shield karte hain — isi ko lanthanide contraction kehte hain. Per element shrink chhota (~1 pm) hota hai, par 14 elements pe accumulate ho ke kaafi ban jaata hai. Yaad rakho ionic radii coordination number pe depend karte hain — humne CN=6 ke Shannon values liye (La³⁺ ≈ 1.032 Å se Lu³⁺ ≈ 0.861 Å). Iska natija: 4d se 5d ka expected size increase cancel ho jaata hai, isliye Zr ≈ Hf, Nb ≈ Ta, Mo ≈ W — chemistry almost same, separate karna mushkil!
Iske practical effects bhi important hain (exam ke liye 80/20): 5d metals (Os, Ir, Pt) bahut dense hote hain kyunki volume chhota par mass zyada; aur lanthanide hydroxides ka basic character La se Lu tak ghatta hai kyunki ion chhota hone se charge density badhti hai. Bas yeh logic pakad lo, ratta maarne ki zaroorat nahi.
