General electronic configuration (n−1)d¹⁻¹⁰ ns⁰⁻²: Visual walkthrough

We start from the most basic idea of all: electrons live in boxes called orbitals, and each box sits at some height on an energy ladder.

Step 1 — Orbitals are just labelled boxes at heights

WHAT. An electron in an atom is not floating randomly. It lives in a named compartment — an orbital. Each orbital carries two labels we need:

So " $3 d$ " is shorthand for " $n = 3$ , $ℓ = 2$ ". " $4 s$ " means " $n = 4$ , $ℓ = 0$ ". That is all those symbols mean.

WHY these two labels. Because — as we are about to see — the energy of a box (its height on the ladder) depends on both $n$ and $ℓ$ , not on $n$ alone. If height depended only on $n$ , chemistry would be boring and there would be no transition metals.

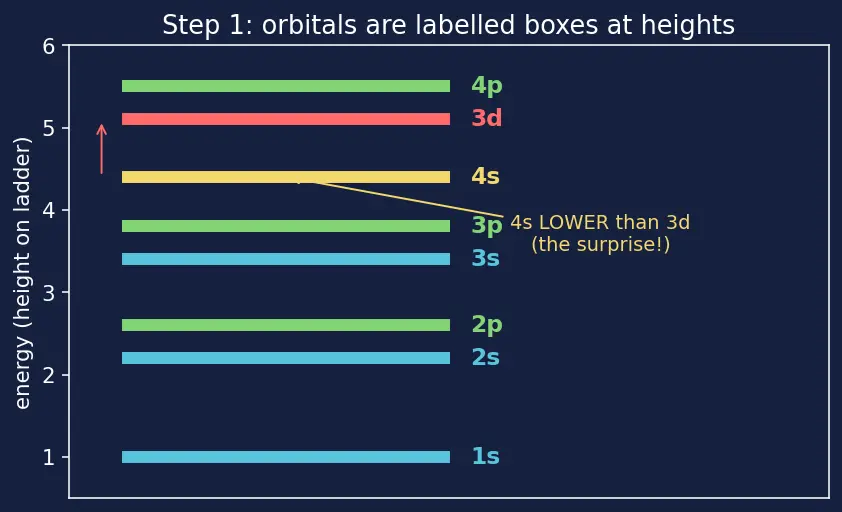

PICTURE. Boxes stacked by height, each tagged with its $(n, ℓ)$ name. Notice the box called $4 s$ sits lower than the box called $3 d$ — that surprise is the whole story.

Figure — General electronic configuration (n−1)d¹⁻¹⁰ ns⁰⁻²

Step 2 — How many electrons fit in each box-type

WHAT. Each type of subshell holds a fixed maximum number of electrons:

Plug in:

shape	$ℓ$	$2 ℓ + 1$ orbitals	capacity $2 (2 ℓ + 1)$
$s$	$0$	$1$	$2$
$p$	$1$	$3$	$6$
$d$	$2$	$5$	$10$
$f$	$3$	$7$	$14$

WHY this matters for the recipe. Look at the two bold numbers. The $s$ -box holds 2 — that is exactly the " $n s^{0 - 2}$ " in our formula. The $d$ -box holds 10 — that is exactly " $(n - 1) d^{1 - 10}$ ". The superscript ranges were never arbitrary; they are just $2 (2 ℓ + 1)$ for $s$ and $d$ .

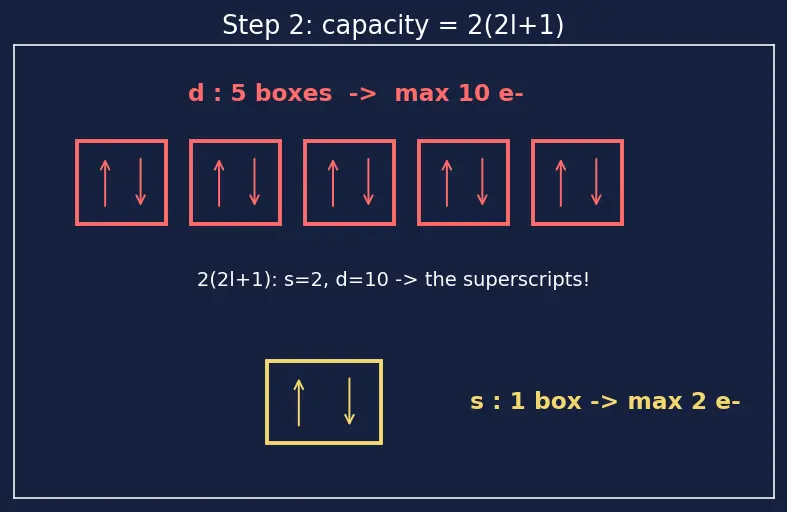

PICTURE. Five small $d$ compartments side by side (holding up to 10) next to one wide $s$ compartment (holding up to 2), with electrons drawn as arrows.

Step 3 — Why the height depends on $ℓ$ : penetration

WHAT. We claimed $4 s$ sits below $3 d$ even though $4$ is bigger than $3$ . The reason is penetration: how close to the nucleus an orbital's electron cloud reaches.

WHY this tool (penetration) and not just "bigger $n$ = higher"? Because the naive "bigger $n$ = higher" rule fails exactly at the d-block boundary — it would predict $3 d$ fills before $4 s$ , giving the wrong element configurations. We need a rule that accounts for shape, and penetration is the physical mechanism. (More on the shielding side in Effective Nuclear Charge and Shielding.)

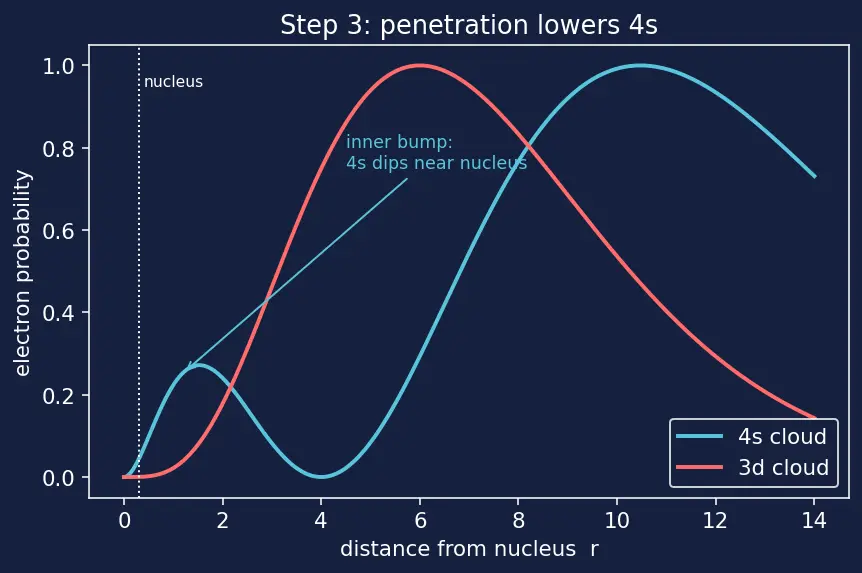

PICTURE. The $4 s$ radial cloud (blue) has an inner bump that dives near the nucleus; the $3 d$ cloud (red) stays out in one hump. The inner bump is why $4 s$ wins.

Step 4 — Turning penetration into a countable rule: $(n + ℓ)$

WHAT. Penetration is a picture. To use it we need a number. The Madelung / $(n + ℓ)$ rule converts "how penetrating / how low" into simple arithmetic:

WHY this exact combination. A large $ℓ$ (poor penetration) pushes energy up; a large $n$ (far out) pushes energy up too. Summing them captures both effects with one addition — that is why it works as a bookkeeping shortcut for the real energies of Step 3. (Full treatment: Aufbau Principle and Madelung Rule.)

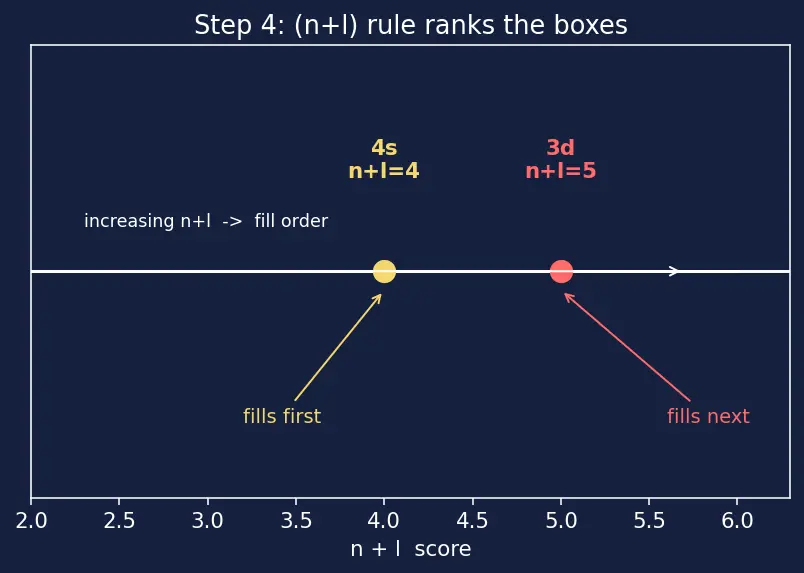

PICTURE. A number line of $(n + ℓ)$ scores. $4 s$ lands at $4$ ; $3 d$ lands at $5$ . Left-to-right on this line is the filling order.

Let us compute the decisive comparison:

orbital	$n$	$ℓ$	$n + ℓ$
$4 s$	$4$	$0$	$4$
$3 d$	$3$	$2$	$5$

Since $4 < 5$ , $4 s$ fills first. This is the single fact that creates the entire d-block.

Step 5 — Build Scandium: the recipe appears on its own

WHAT. We now pour electrons into the ladder in $(n + ℓ)$ order for Scandium ( $Z = 21$ , meaning 21 electrons).

WHY $(n - 1)$ falls out automatically. We are in period $n = 4$ , but the $d$ -box we just filled is the $3 d$ box — the shell one number below. It has to be $3 d$ , because $d$ shape needs $ℓ = 2$ , which first exists at $n = 3$ . So "the $d$ being filled" is always $(n - 1) d$ . The formula wasn't handed down — it emerged from the ladder.

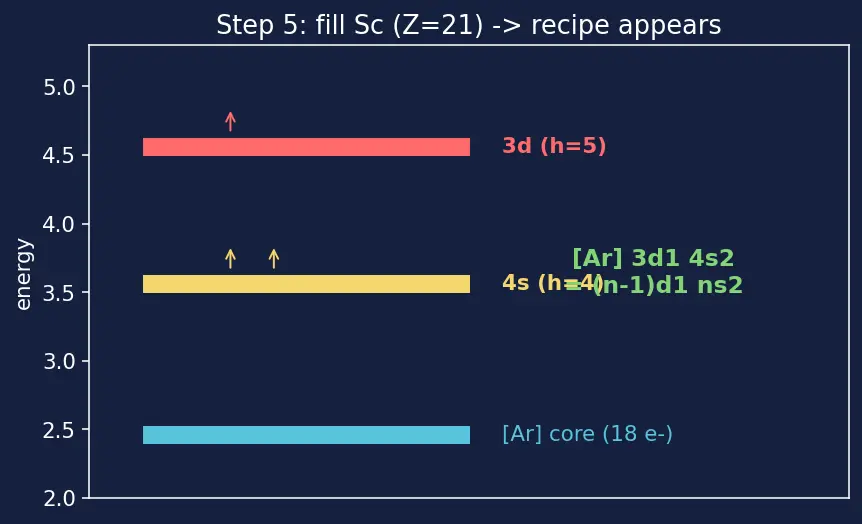

PICTURE. The ladder with electrons dropped in, arrows pointing to the $4 s$ (filled at height 4) then the lone $3 d^{1}$ (height 5), labelled " $(n - 1) d^{1} n s^{2}$ ".

Step 6 — The edge cases: Cr and Cu cheat the ladder

WHAT. Madelung is a guideline, not a law. Two period-4 metals ignore it because a half-filled ( $d^{5}$ ) or fully-filled ( $d^{10}$ ) $d$ -box is unusually stable.

WHY these get their own step. A reader who only saw Step 5 would confidently write $3 d^{4} 4 s^{2}$ for Cr and be wrong. The ladder gives the default; exchange energy overrides it at $d^{4} \to d^{5}$ and $d^{9} \to d^{10}$ . (Deeper: Exchange Energy and Hund's Rule.)

PICTURE. Left panel: the $d^{4} 4 s^{2}$ arrangement with a red "expected" tag. Right panel: one arrow hops $4 s \to 3 d$ to make $d^{5} 4 s^{1}$ , green "actual" tag, five parallel up-arrows shown.

Step 7 — The degenerate case: filling order ≠ removal order

WHAT. Here is the trap that catches almost everyone. We add electrons to $4 s$ first — but when the atom becomes an ion, we remove from $4 s$ first too. How can $4 s$ be both "the one we add first" and "the one we lose first"?

WHY this is a case, not a footnote. It is the source of variable oxidation states: because $n s$ and $(n - 1) d$ end up at similar heights, several electrons can leave one after another, giving Fe its $+ 2$ and $+ 3$ , Mn up to $+ 7$ , and so on.

PICTURE. Two ladders side by side. Left ("neutral atom"): $4 s$ below $3 d$ . Right ("after ionisation"): $3 d$ dropped below $4 s$ , red arrow showing $4 s$ electrons leaving first.

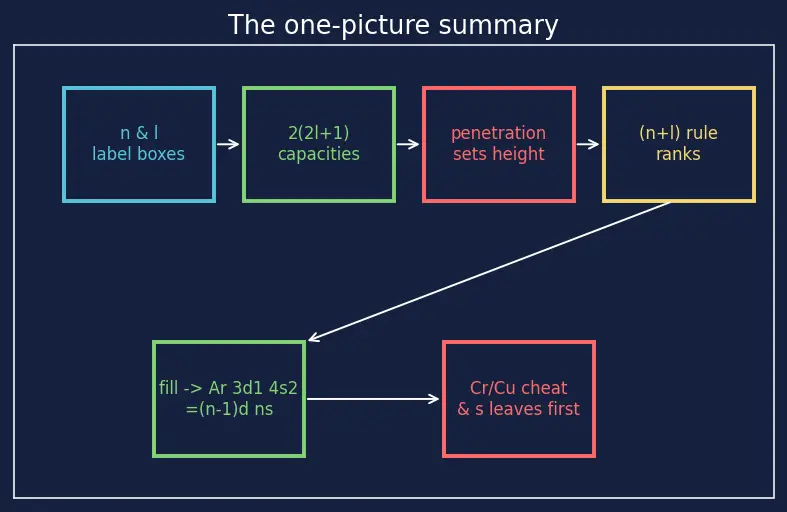

The one-picture summary

Everything above compressed into a single flow: label the boxes → count capacities → penetration sets heights → $(n + ℓ)$ ranks them → pour in electrons → the recipe $(n - 1) d^{1 - 10} n s^{0 - 2}$ appears → edge cases (Cr/Cu) and the fill≠remove flip.

Recall Feynman retelling — the whole walkthrough in plain words

Picture an apartment building where each flat has a name like " $4 s$ " or " $3 d$ ". You'd guess higher floor numbers are always higher up — but no: the $4 s$ flat has a secret staircase that dips right down past the nucleus (that's penetration), so it actually sits lower than the $3 d$ flat even though $3$ is a smaller number. To rank the flats fast we don't compute real energies — we just add the two labels, $n + ℓ$ , and fill the smallest sum first. Do that for Scandium and out pops $[Ar] 3 d^{1} 4 s^{2}$ — and because $d$ -shaped flats only start existing on floor $3$ , the $d$ we fill is always one floor below the period we're in: that's the " $(n - 1)$ ". Two tenants, Chromium and Copper, sneak one electron from $s$ into $d$ because a half-full or completely full $d$ -corridor is cosier. Finally, a twist: once the $d$ -corridor has tenants, the whole building resettles and $3 d$ sinks below $4 s$ — so when the atom loses electrons, the now-outermost $4 s$ tenants leave first, even though they moved in first. Add to $s$ first, take from $s$ first: both true, at different moments.

Active Recall

Two labels an orbital carries

n

(shell, height) and

ℓ

(shape:

s = 0, p = 1, d = 2, f = 3

Capacity formula of a subshell

2 (2 ℓ + 1)

→

s : 2, p : 6, d : 10, f : 14

Physical reason

4 s

sits below

3 d

Penetration — the

s

cloud dips near the nucleus, feels more charge, so it's lower despite larger

n

(n + ℓ)

for

4 s

3 d

, and who fills first

4 s = 4

3 d = 5

→

4 s

fills first.

Why the recipe is

(n - 1) d

d

needs

ℓ = 2

, first available at

n = 3

; in period

n

that

d

belongs to shell

n - 1

Cr ground-state config and reason

[Ar] 3 d^{5} 4 s^{1}

; half-filled

d^{5}

gains exchange stabilisation.

Cu ground-state config and reason

[Ar] 3 d^{10} 4 s^{1}

; fully-filled

d^{10}

is extra stable.

Fill vs remove paradox resolution

Add to

4 s

first (it's lower before

d

fills); once

d

is occupied

3 d

sinks below

4 s

, so

4 s

leaves first.

Fe, Fe²⁺, Fe³⁺ configs

[Ar] 3 d^{6} 4 s^{2}

;

[Ar] 3 d^{6}

;

[Ar] 3 d^{5}
