Step 0 — The characters and the arrows

The whole story is three events written on one line:

$E+S\underset{k_{-1}}{\stackrel{k_1}{\rightleftharpoons }}ES\stackrel{k_2}{\to }E+P$

Each little $k$ is a rate constant — a fixed number saying how eager that particular step is.

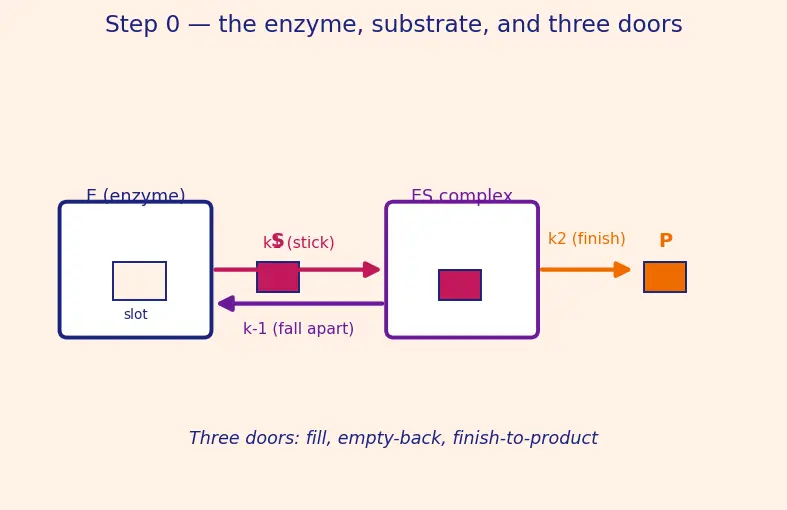

WHAT: we drew the enzyme as a slot, the substrate as a matching shape, and the three arrows as three doors. WHY: every later equation is just counting how fast molecules go through these doors — so we must see the doors first. PICTURE: the magenta forward door ($k_1$) fills the slot; the violet backward door ($k_{-1}$) empties it unchanged; the orange finish door ($k_2$) empties it as product.

---

Step 1 — How fast does $ES$ get made?

$\text{rate of making }ES=\underset{\text{stickiness}}{\underbrace{k_1}}\underset{\text{how much free enzyme}}{\underbrace{[E]}}\underset{\text{how much substrate}}{\underbrace{[S]}}$

WHAT: we wrote the formation rate as a product of three things. WHY multiply? Because a meeting needs both an $E$ and an $S$ present at the same spot. Double the enzyme → double the meetings; double the substrate → double again. When a rate depends on the product of two concentrations we call it second order — see Rate Law and Order of Reaction. Multiplication is exactly the tool that says "both must be there."

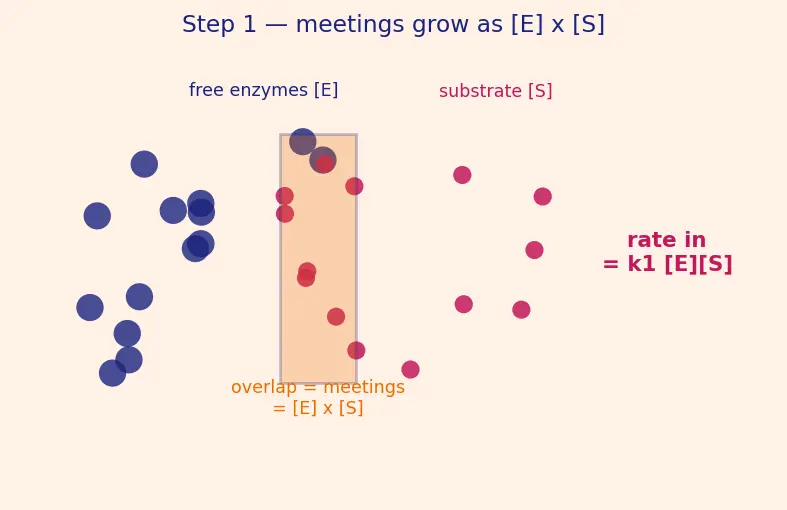

PICTURE: two clouds — free enzymes and substrates. The number of overlapping pairs (the meetings) grows when either cloud gets denser. That overlap is $[E]\times [S]$.

---

Step 2 — How fast does $ES$ get destroyed?

$ES$ can vanish through two exits, and we must count both:

$\text{rate of losing }ES=\underset{\text{falls back to }E+S}{\underbrace{k_{-1}[ES]}}+\underset{\text{finishes to }E+P}{\underbrace{k_2[ES]}}$

WHAT: we added the two escape routes for $ES$. WHY add? Because either route removes an $ES$; two independent ways out means the losses stack up (addition = "or"). Both terms carry $[ES]$ because you can only leave a room you are already in — the more $ES$ present, the more leaves per second.

We can factor the common $[ES]$:

$\text{rate of losing }ES=(k_{-1}+k_2)[ES]$

PICTURE: the $ES$ box with two drains — a violet drain ($k_{-1}$, back door) and an orange drain ($k_2$, product door). Total draining = both drains together.

---

Step 3 — The steady-state trick (the key move)

Steady state means: rate in = rate out.

$\underset{\text{Step 1: making }ES}{\underbrace{k_1[E][S]}}=\underset{\text{Step 2: losing }ES}{\underbrace{(k_{-1}+k_2)[ES]}}$

WHAT: we set formation equal to breakdown. WHY are we allowed? $ES$ is a fleeting go-between; after a tiny start-up, its amount barely drifts, so its net change per second $\approx 0$. Not-changing means in equals out. This single equation is what lets us solve for $[ES]$ instead of being stuck with an unknown intermediate.

PICTURE: tap pouring in at the top (magenta), two drains leaving the bottom (violet + orange). The water line is flat — a dashed navy "steady level." Flow is fast; the level is frozen.

---

Step 4 — Name the clutter: define $K_M$

Solve the Step 3 balance for $[ES]$ by dividing both sides by $(k_{-1}+k_2)$:

$[ES]=\frac{k_1[E][S]}{k_{-1}+k_2}$

That fraction $\frac{k_{-1}+k_2}{k_1}$ keeps reappearing, so we give it a short name — the Michaelis constant:

$K_M\equiv \frac{k_{-1}+k_2}{k_1}$

WHAT: we bundled three rate constants into one symbol. WHY invent $K_M$? Because a page cluttered with $k_{-1}$, $k_2$, $k_1$ hides the shape of the answer. One clean letter lets the behaviour show through. Read its recipe: the top ($k_{-1}+k_2$) is how eagerly $ES$ leaves; the bottom ($k_1$) is how eagerly it forms. So $K_M$ measures how reluctant the enzyme is to hold onto its substrate — big $K_M$ = weak grip.

Dividing top and bottom of $[ES]$ by $k_1$ rewrites it using $K_M$:

$[ES]=\frac{[E][S]}{K_M}$

but $[E]$ here is free enzyme, which we can't measure directly. Step 5 fixes that.

PICTURE: a balance scale — the pan going up (leaving, $k_{-1}+k_2$) versus the pan coming down (forming, $k_1$). $K_M$ is where the beam tips.

---

Step 5 — Conservation: total enzyme is fixed

Every enzyme molecule is at any instant either free ($E$) or busy in a complex ($ES$). Nothing else. So their total, written $[E{]}_0$, never changes:

$[E{]}_0=\underset{\text{free}}{\underbrace{[E]}}+\underset{\text{busy}}{\underbrace{[ES]}}$

WHAT: a bookkeeping equation for enzyme. WHY do we need it? Step 4 left us with $[E]$, the free enzyme, which no one pours into the flask — you pour in a total amount $[E{]}_0$. This line trades the unmeasurable $[E]$ for the measurable $[E{]}_0$.

Rearrange for free enzyme: $[E]=[E{]}_0-[ES]$, and substitute into $[ES]=\frac{[E][S]}{K_M}$:

$[ES]=\frac{([E{]}_0-[ES])[S]}{K_M}$

Now $[ES]$ appears on both sides — gather it. Multiply through by $K_M$, expand, and collect the $[ES]$ terms:

\;\;\Longrightarrow\;\; [ES]\big(K_M+[S]\big) = [E]_0[S]$$ Divide by $(K_M+[S])$: $$\boxed{\,[ES] = \dfrac{[E]_0[S]}{K_M+[S]}\,}$$ **PICTURE below (Step 6 figure) shows what this fraction does** — first, one last quantity to name. --- ## Step 6 — Turn $[ES]$ into a *rate* and meet $V_{max}$ The product $P$ only pours out through the orange finish door ($k_2$), so the **observed reaction speed** is: $$v \;=\; k_2[ES]$$ **WHY this and not $k_1$ or $k_{-1}$?** Because only the $k_2$ door makes product; the other doors just shuffle $E$ and $S$ around. Speed = product made per second = $k_2$ times how much $ES$ is sitting there. Substitute the boxed $[ES]$ from Step 5: $$v \;=\; k_2\cdot\frac{[E]_0[S]}{K_M+[S]}$$ The pair $k_2[E]_0$ is the **top speed** — it's what you'd get if *every* enzyme were busy at once ($[ES]=[E]_0$). Name it: $$V_{max} \;\equiv\; k_2[E]_0$$ giving the parent's boxed law: $$\boxed{\;v = \dfrac{V_{max}\,[S]}{K_M+[S]}\;}$$ - $V_{max}$ — the fastest the enzyme can ever go (all slots full). - $[S]$ — how much substrate you supply (you control this). - $K_M$ — the substrate level where the machine runs at half speed (proved in Step 7). ![[deepdives/dd-chemistry-2.8.12-d2-s06.png]] **PICTURE:** the famous rising-then-flattening curve. Speed $v$ climbs steeply at first, then levels off toward the orange ceiling $V_{max}$. --- ## Step 7 — Read every case off the curve (edge & limit cases) A formula you can't stress-test isn't yours yet. Push $[S]$ to its extremes. **Case A — $[S]=0$ (no substrate):** the top is $0$, so $v=0$. *Picture:* curve starts at the origin. Obvious, but it confirms the formula isn't broken at zero. **Case B — very small $[S]$ (starving):** then $[S]$ is tiny next to $K_M$, so $K_M+[S]\approx K_M$, and $$v \approx \frac{V_{max}}{K_M}\,[S]\quad\Rightarrow\quad v \propto [S].$$ Speed is **proportional** to substrate — this is **first order** in $S$. *Picture:* the left part of the curve is a straight rising line. **Case C — very large $[S]$ (flooded):** then $[S]$ dwarfs $K_M$, so $K_M+[S]\approx [S]$, and the $[S]$'s cancel: $$v \approx \frac{V_{max}[S]}{[S]} = V_{max}.$$ Speed **plateaus** — adding more substrate does nothing. This is **zero order** in $S$: every slot is already full. *Picture:* the flat orange ceiling. (This is exactly the parent's "saturation" mistake-buster: more substrate ≠ forever faster.) **Case D — the half-speed point, $[S]=K_M$:** plug in: $$v = \frac{V_{max}\,K_M}{K_M+K_M} = \frac{V_{max}}{2}.$$ So $K_M$ is *defined by the curve*: it's the substrate concentration that gives **half of top speed**. *Picture:* drop a line from the half-height mark to the axis — it lands at $K_M$. ![[deepdives/dd-chemistry-2.8.12-d2-s07.png]] **PICTURE:** one curve with all four cases flagged — origin (A), straight first-order stretch (B), flat saturation (C), and the dashed half-max crosshair meeting the axis at $K_M$ (D). > [!mistake] "Zero order means the reaction stopped." > **Why it feels right:** the curve went flat, so nothing seems to change. > **The fix:** flat means *the rate stopped increasing*, not that reaction stopped. It's cruising at full throttle $V_{max}$ — every enzyme working non-stop. Flat rate, not zero rate. --- ## The one-picture summary ![[deepdives/dd-chemistry-2.8.12-d2-s08.png]] **Left → right, the whole derivation in one frame:** collisions ($k_1[E][S]$) fill the middle $ES$ bucket; two drains ($k_{-1}+k_2$) empty it; steady state freezes the level and lets us solve for $[ES]$; conservation ($[E]=[E]_0-[ES]$) swaps free enzyme for total; multiply by $k_2$ to get the speed; the result is the saturating curve with its half-max landmark $K_M$ and ceiling $V_{max}$. > [!recall]- Feynman retelling in plain words > Picture a single ticket booth (the enzyme) at a concert. People (substrate) line up. **Step 1:** the more people milling around *and* the more open booths, the faster tickets start getting handed out. **Step 2:** a served customer can either wander off unserved (back door) or leave with a ticket (finish door). **Step 3:** soon a customer joins the front exactly as fast as one leaves — the *number at the booth* holds steady even though the line keeps moving. **Steps 4–5:** we count that "some free booths, some busy booths, total is fixed," which lets us figure out how many are busy at once. **Step 6:** ticket sales per minute = booths busy × how fast one booth prints — and if *every* booth is busy you hit top speed $V_{max}$. **Step 7:** when the crowd is thin, sales rise with the crowd; when it's a mob, every booth is slammed and sales flatten at $V_{max}$ no matter how many more show up. The crowd size that gets you to *half* top speed is your $K_M$. > [!recall] Quick self-test (cover the answers) > - Why do we multiply $[E]$ and $[S]$ in Step 1? ::: A meeting needs both present at once; multiplication encodes "both." > - What does the steady-state assumption set equal to what? ::: Rate of making $ES$ = rate of losing $ES$ (its level is frozen). > - What is $K_M$ in words? ::: The substrate concentration giving half of $V_{max}$; equals $(k_{-1}+k_2)/k_1$. > - At very high $[S]$, what order is the reaction in $S$? ::: Zero order — rate plateaus at $V_{max}$. > - Why is the observed rate $k_2[ES]$ and not $k_1[ES]$? ::: Only the $k_2$ door makes product $P$.
