Catalysis — homogeneous, heterogeneous, enzyme catalysis: Foundations

Before you can read the parent Catalysis note comfortably, you need to own every piece of notation it throws at you. We build each one from nothing: plain words → the picture → why the topic needs it. Nothing is used before it is earned.

1. The reaction arrow and the two sides

The picture: think of two buckets. The left bucket (reactants) slowly empties into the right bucket (products). A single arrow = water only flows right. A double arrow $⇌$ = water sloshes both directions, and eventually the levels stop changing.

Why the topic needs it: the parent's whole claim — "a catalyst changes how fast you get there but not where you end up" — is a statement about this arrow. "How fast" = flow speed; "where you end up" = the final bucket levels.

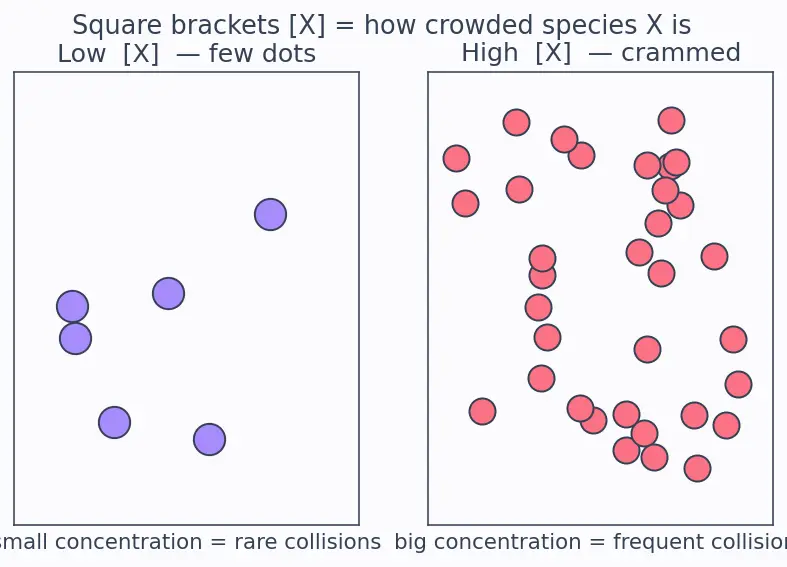

2. Concentration and the square brackets $[]$

The picture: imagine a fixed-size box full of dots. $[X]$ big = box crammed with $X$ dots; $[X]$ small = only a few dots rattling around.

Figure — Catalysis — homogeneous, heterogeneous, enzyme catalysis

Why the topic needs it: collisions cause reactions. The more crowded the reactants (higher $[X]$ ), the more often they bump — so rate depends on concentration. The parent writes $k_{1} [E] [S]$ , $[E S]$ , $[S]$ , $[E]_{0}$ — every one of these is just "how crowded is this species." Prerequisite: Rate Law and Order of Reaction.

3. Rate, the rate law, and the rate constant $k$

The picture: $[X]$ is how many dots are in the box; $k$ is how likely any given bump actually produces a reaction. A high $k$ means almost every collision "works."

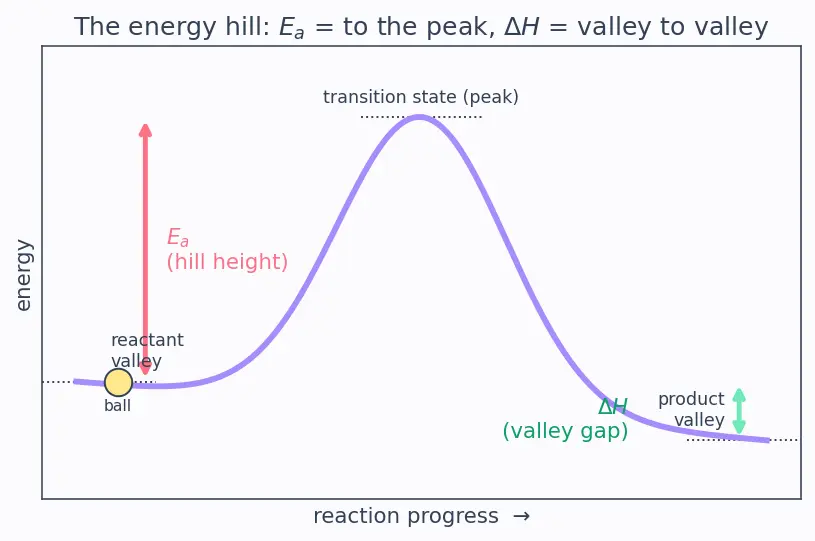

4. The energy hill: transition state and $Δ H$

The picture: a ball starting in the left valley must be pushed up and over the peak to roll down into the right valley. $Δ H$ negative → right valley lower → energy released (exothermic). $Δ H$ positive → right valley higher → energy absorbed (endothermic).

Why the topic needs it: the parent's biggest "mistake" callouts hinge on this shape. A catalyst lowers the peak, never the valleys — so it changes climbing effort but leaves $Δ H$ (the valley-to-valley gap) untouched. Prerequisite: Activation Energy.

5. Activation energy $E_{a}$ (and the change $Δ E_{a}$ )

The picture: on Figure s02, $E_{a}$ is the vertical rise from the left valley to the top of the hill — the "toll" every reacting molecule must pay.

Why the topic needs it: $E_{a}$ is the quantity a catalyst attacks, and $Δ E_{a}$ is exactly how much it wins. Everything the parent claims about speed-up flows from $E_{a}$ dropping.

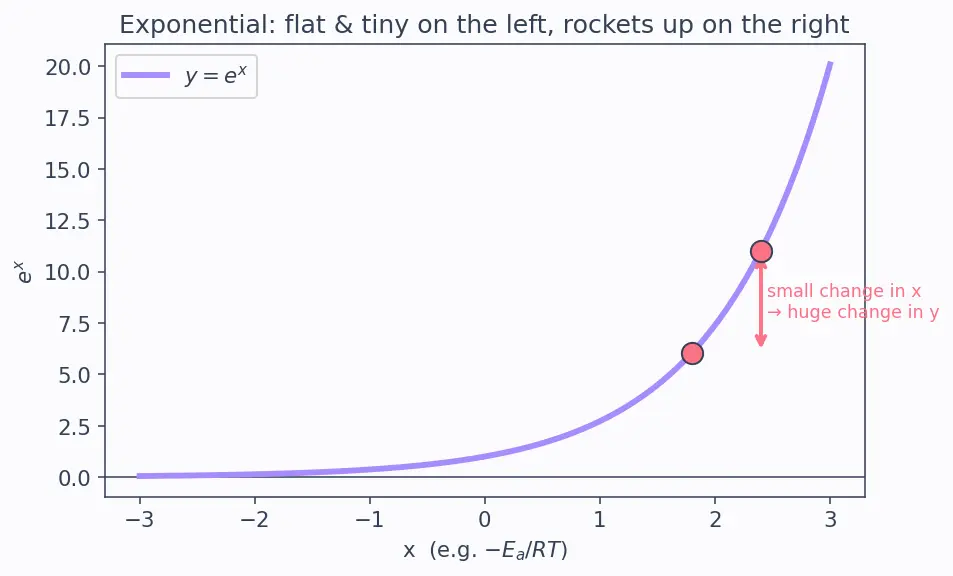

6. The exponential $e^{x}$ — the "sensitivity machine"

The picture (Figure s03): the curve is nearly flat and tiny on the left, then rockets upward on the right. A small nudge in $x$ near the steep part multiplies the output enormously.

7. $R$ , $T$ , and the group $E_{a} / R T$

The picture: if $E_{a}$ is the height of a wall and $R T$ is how high molecules can typically jump, then $E_{a} / R T$ is "how many jumps' worth of wall" — a dimensionless difficulty score.

Why the topic needs it: the parent puts $Δ E_{a}$ (the toll-drop defined in Section 5) over $R T$ precisely because only a pure number can sit inside $e^{(\dots)}$ . That is the "natural dimensionless cost" the example refers to.

8. The Arrhenius equation $k = A e^{- E_{a} / R T}$

Read it as a sentence: rate constant = (how often they try) × (what fraction succeed). Because $E_{a}$ sits in a negative exponent, a smaller $E_{a}$ makes the exponent less negative → the fraction bigger → $k$ bigger. Prerequisite: Arrhenius Equation.

Why the topic needs it: this single formula turns "catalyst lowers $E_{a}$ " into a number. Dividing two Arrhenius expressions (same $A$ , same $T$ ) cancels $A$ and leaves the clean speed-up ratio the parent derives.

9. Equilibrium constant $K_{e q} = k_{f} / k_{b}$

The picture: two taps filling opposite buckets. When the levels stop changing, the ratio of the levels is $K_{e q}$ .

10. Mechanism symbols: $E, S, E S, P$ and the constants $k_{1}, k_{- 1}, k_{2}$

The picture: a lock ( $E$ ) and a key ( $S$ ). They click together ( $E S$ ), the key turns and the lock spits out a changed key ( $P$ ), then the lock is free again. Prerequisites: Enzymes and Proteins (Biomolecules), Adsorption (the surface analogue for solid catalysts).

Why the topic needs it: these symbols are the ingredients of the Michaelis–Menten derivation. Once you know each letter, $[E S] = \frac{[ E ] _{0} [ S ]}{K _{M} + [ S ]}$ reads as plain arithmetic, not hieroglyphics.

[X]

mean?

The concentration of

X

— how crowded species

X

is (moles per litre).

What is a "first-order" rate law, and what are

k

's units then?

Rate

= k [X]

(one concentration factor);

k

is in

s^{- 1}

What does the symbol

Δ

mean?

"Change in" — final minus initial.

Where on the energy hill do you measure

E_{a}

From the reactant valley up to the peak (transition state).

What is

Δ E_{a}

The drop in activation energy,

E_{a, uncat} - E_{a, cat}

— how big the catalyst's shortcut is.

Where do you measure

Δ H

From the reactant valley to the product valley (valley to valley).

Which of

E_{a}

and

Δ H

does a catalyst change?

E_{a}

(lowers the peak);

Δ H

is unchanged.

Why is

e^{- E_{a} / R T}

an exponential, not a straight line?

It counts the fraction of molecules energetic enough to clear the hill, which shrinks exponentially as

E_{a}

rises.

What are the units of

R T

, and of

E_{a} / R T

R T

is energy per mole;

E_{a} / R T

is a pure dimensionless number.

What units does the frequency factor

A

carry?

The same units as

k

, so the pure-number exponential leaves the units untouched.

Read

k = A e^{- E_{a} / R T}

in words.

Rate constant = (how often molecules try) × (what fraction have enough energy to succeed).

What is the velocity

v

in enzyme kinetics?

The reaction rate for the enzyme reaction — how fast product appears,

v = k_{2} [E S]

Why can't a catalyst change

K_{e q} = k_{f} / k_{b}

It multiplies

k_{f}

and

k_{b}

by the same factor, which cancels in the ratio.

What is

E S

in the enzyme mechanism?

The enzyme–substrate complex — enzyme and substrate temporarily bound together.

What does

K_{M}

equal, and what does it mean?

K_{M} = (k_{- 1} + k_{2}) / k_{1}

; it is the substrate concentration giving half of

V_{ma x}

What is

V_{ma x}

k_{2} [E]_{0}

, the top velocity reached when every enzyme is occupied.
