Foundations — Activation energy from Arrhenius plot; effect of catalyst

This page is the toolbox. Before you meet the parent topic you must own every symbol it throws at you. We build each one from nothing: plain words → picture → why the topic needs it, in an order where each rung stands on the one below.

1. Speed of a reaction — the rate constant $k$

The picture. Imagine a bathtub filling. The rate constant is like the width of the tap opening — it sets how quickly stuff is converted, independent of how much water is currently there.

Why the topic needs it. Everything in this chapter is about what makes $k$ change. Temperature changes it; catalysts change it. So $k$ is the quantity we watch. Its units depend on the reaction order — you never memorise them; you read them off later — see Rate Constant Temperature Dependence.

2. Temperature $T$ — and why it must be in kelvin

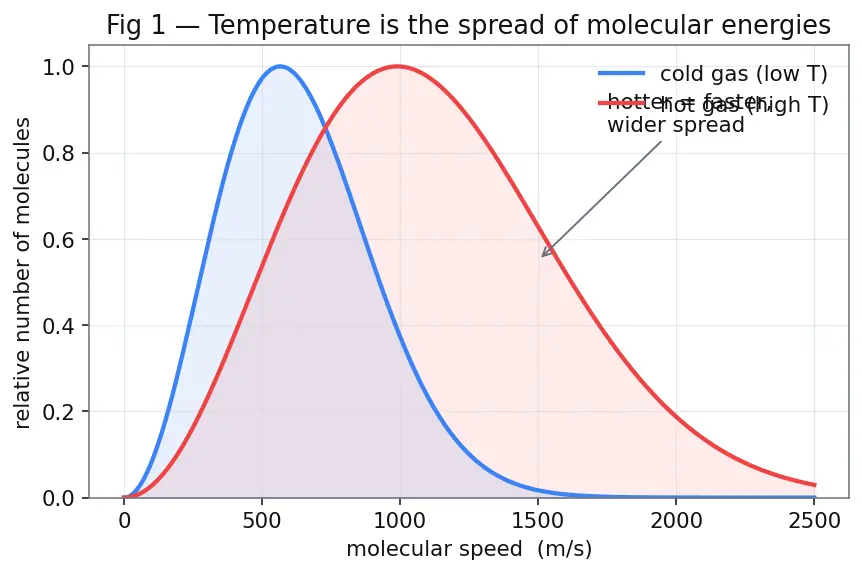

The picture. Temperature is the average jiggle energy of the molecules. Look at Figure 1: warmer gas = faster, wider spread of molecular speeds.

Why kelvin and not Celsius? Because the Arrhenius equation divides by $T$. If we allowed $0{}^{\circ }\text{C}$ or negative Celsius values, we'd divide by zero or by a negative number — physical nonsense. Kelvin guarantees $T>0$ always. This is the Maxwell-Boltzmann Distribution made visible.

3. The energy hill — activation energy $E_a$

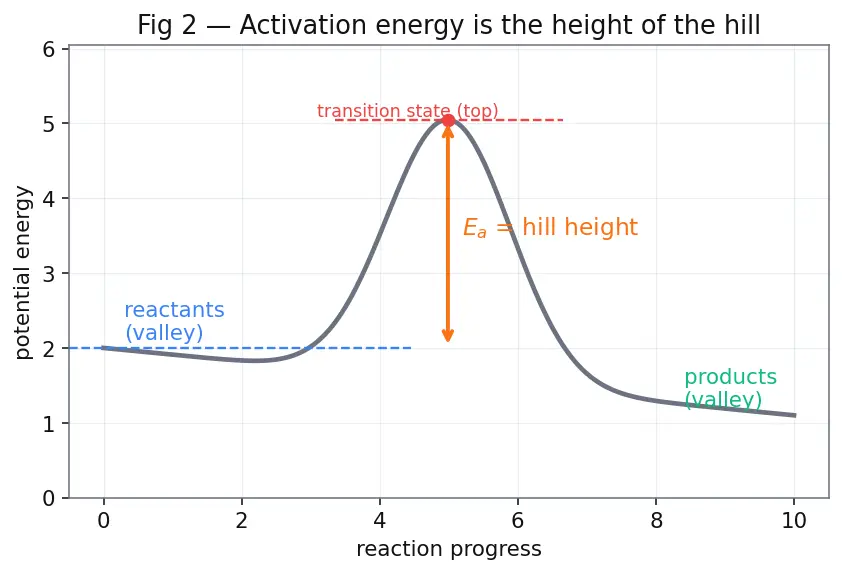

The picture. Figure 2 is the energy landscape. Reactants sit in a valley on the left, products in a valley on the right, and between them is a hump. The height of that hump measured from the reactant valley is $E_a$.

Why the topic needs it. $E_a$ is the one thing a catalyst changes. Lower the hill, more molecules clear it, reaction speeds up.

Units. $E_a$ is an energy per mole of reacting molecules: $\text{J/mol}$ or $\text{kJ/mol}$ ($1\text{kJ}=1000\text{J}$). Watch this — mixing kJ and J is the #1 arithmetic error in this whole chapter.

4. The gas constant $R$ — the unit translator

The picture. Think of $R$ as an exchange rate. Multiply a temperature $T$ (in K) by $R$ and you get $RT$, an energy-per-mole (in J/mol) that represents the typical thermal energy available to a mole of molecules at that temperature.

Why the topic needs it. In the Arrhenius exponent we always see the pair $\frac{E_a}{RT}$. That is:

$\frac{E_a}{RT}=\frac{\text{energy needed to react}}{\text{energy typically available}}$

Both top and bottom are now energies per mole, so they cancel to a pure number. You can only exponentiate a pure number — $R$ is what makes the exponent unitless. (Because both are energies, this is also why $E_a$ and $RT$ must use the same energy unit — convert kJ to J first.)

5. The pre-exponential factor $A$

The picture. Imagine molecules as dancers bumping into each other. $A$ counts the bumps per second aimed correctly; the exponential (next section) then asks what fraction of those bumps were hard enough. See Collision Theory.

Why the topic needs it. $A$ sets the ceiling of the rate — the fastest $k$ could ever be if the hill vanished. On the plot it becomes the intercept (Section 8). It shares the same units as $k$.

6. The exponential $e^{-E_a/RT}$ — the "lucky fraction"

This is the heart of the equation, so we build $e$ and the minus sign carefully.

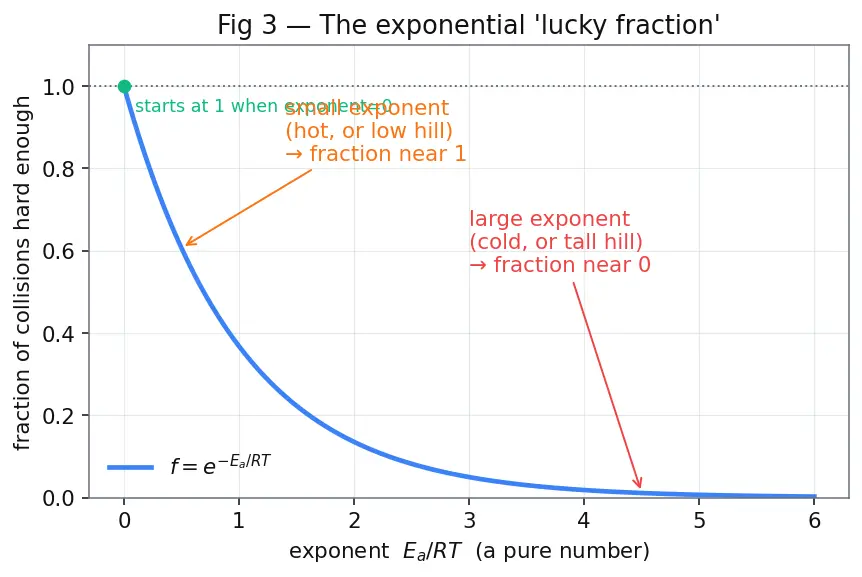

The picture. Figure 3 draws $y=e^{-x}$: it starts at $1$ when $x=0$ and slides down toward (but never reaches) $0$. Small $x$ → value near 1; large $x$ → value near 0.

Now plug in $x=\frac{E_a}{RT}$:

Why this tool and not, say, a straight line? Because the Maxwell-Boltzmann Distribution — the actual spread of molecular energies — has an exponential tail. The count of molecules above a threshold energy falls off exponentially as the threshold rises. Nature handed us an exponential; the equation just copies it.

Read the behaviour off Figure 3 (this covers every case):

The whole Arrhenius equation is now readable in plain words: $k=\underset{\text{collisions aimed right}}{\underbrace{A}}\times \underset{\text{fraction hard enough}}{\underbrace{e^{-E_a/RT}}}$

7. The natural log $\ln$ — the tool that unbends the curve

The picture. $e^x$ curves upward wildly. $\ln$ takes that curve and stretches the axis so it becomes a straight line. Curved thing in → straight thing out.

Why the topic needs it — and why $\ln$ not ${\log }_{10}$? The Arrhenius equation contains $e$ to a power. To undo that specific base cleanly, we need the log with the same base $e$, which is $\ln$. Using ${\log }_{10}$ would leave an extra clumsy factor. Two log rules do all the work:

• $\ln (x\cdot y)=\ln x+\ln y$ (a product becomes a sum)
• $\ln (e^x)=x$ (log kills its own exponential)

Applying these to $k=A{e}^{-E_a/RT}$:

$\ln k=\ln A+\ln \left(e^{-E_a/RT}\right)=\ln A-\frac{E_a}{RT}$

That's the doorway to the straight-line plot.

8. Straight-line bookkeeping — $y=mx+c$

The picture. Rise over run. Go one step right ($+1$ in $x$); the line moves up by $m$. If $m$ is negative the line goes down as you move right.

Match it to Arrhenius. Rewrite the last result grouping the pieces:

$\underset{y}{\underbrace{\ln k}}=\underset{m}{\underbrace{\left(-\frac{E_a}{R}\right)}}\underset{x}{\underbrace{\frac{1}{T}}}+\underset{c}{\underbrace{\ln A}}$

So if we plot $y=\ln k$ against $x=\frac{1}{T}$, we get a straight line whose:

• slope $m=-\frac{E_a}{R}$ → gives us $E_a=-mR$,
• intercept $c=\ln A$ → gives us $A$.

Why $\frac{1}{T}$ on the x-axis, not $T$? Because $T$ sits inside a fraction in the exponent. Only by plotting against $\frac{1}{T}$ does the relationship become perfectly straight. Plotting against $T$ gives a curve — useless for reading off a slope. See Arrhenius Equation.

Why is the slope negative? $E_a$ and $R$ are both positive, so $-\frac{E_a}{R}$ is negative → the line falls as $\frac{1}{T}$ grows (i.e. as it gets colder). A taller hill makes the fall steeper, not shallower — a frequent trap.

Prerequisite map

Equipment checklist

Cover the right side and answer out loud. If any line stumps you, re-read its section above.

Ready? Head to the parent topic and see these tools assembled.
