Visual walkthrough — Activation energy from Arrhenius plot; effect of catalyst

This page rebuilds the parent topic's central result from nothing. We start with a curved, scary-looking equation and, step by step, bend it into a straight line whose slope hands us the activation energy. Every symbol is earned before it's used, and every step has a picture doing the heavy lifting.

Prerequisites worth having open: Arrhenius Equation, Rate Constant Temperature Dependence, and Maxwell-Boltzmann Distribution (that's where the $e^{-E_a/RT}$ comes from).

Step 1 — Meet the raw equation and every letter in it

WHAT. We begin with the Arrhenius Equation exactly as the parent gives it:

$k=\underset{\text{how often molecules collide with right geometry}}{\underbrace{A}}\cdot \underset{\text{fraction of collisions with enough energy}}{\underbrace{e^{-E_a/RT}}}$

Let's name each character so nothing is a mystery later:

• $k$ — the rate constant. Bigger $k$ = faster reaction.
• $A$ — the pre-exponential factor. Think "collisions per second that are aimed correctly." A fixed number for a given reaction.
• $e$ — Euler's number, $\approx 2.718$. It shows up whenever something grows or shrinks in proportion to itself.
• $E_a$ — the activation energy: the minimum energy hill molecules must climb to react (J/mol).
• $R$ — the gas constant, $8.314\text{J/(mol⋅K)}$. A conversion factor between energy and temperature.
• $T$ — the absolute temperature in kelvin.

WHY start here. Everything downstream is just this equation wearing different clothes. We change nothing about the chemistry — only the shape we draw it in.

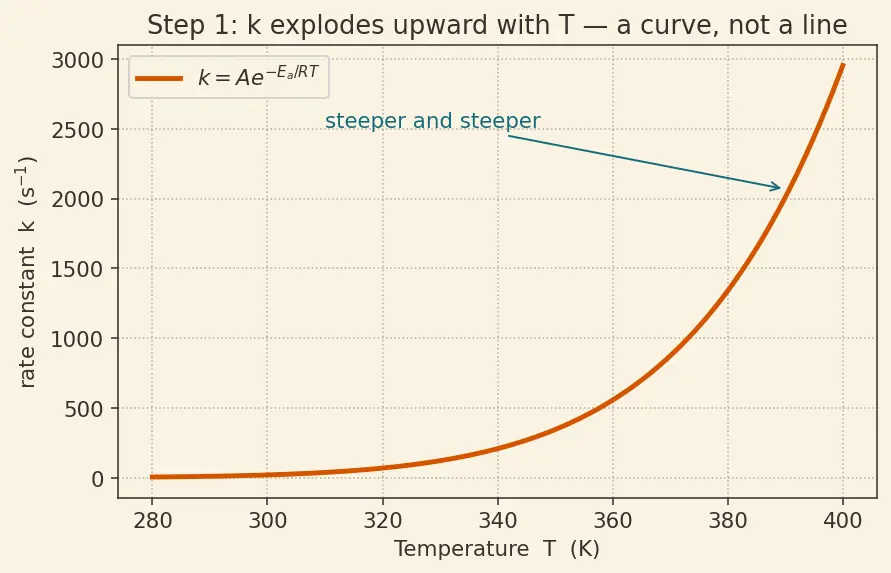

PICTURE. Look at the curve: $k$ shoots upward as $T$ rises. The bend is the enemy — you cannot read $E_a$ off a curve by eyeballing its steepness.

Step 2 — The problem: exponentials curve, and curves hide the slope

WHAT. We ask the honest question: can we read $E_a$ directly off the $k$-vs-$T$ curve?

WHY not. The steepness of that curve changes at every point. There's no single number "the slope" to grab. Any tool we pick must first turn this bending shape into something with one constant slope.

Which tool, and why THIS one? We need a function that cancels an exponential. The natural logarithm, $\ln$, is the exact inverse of $e^x$: it asks "$e$ to what power gives me this?" So $\ln (e^x)=x$. That's the surgical tool for peeling the exponent out of $e^{-E_a/RT}$. No other common function undoes $e^x$ this cleanly.

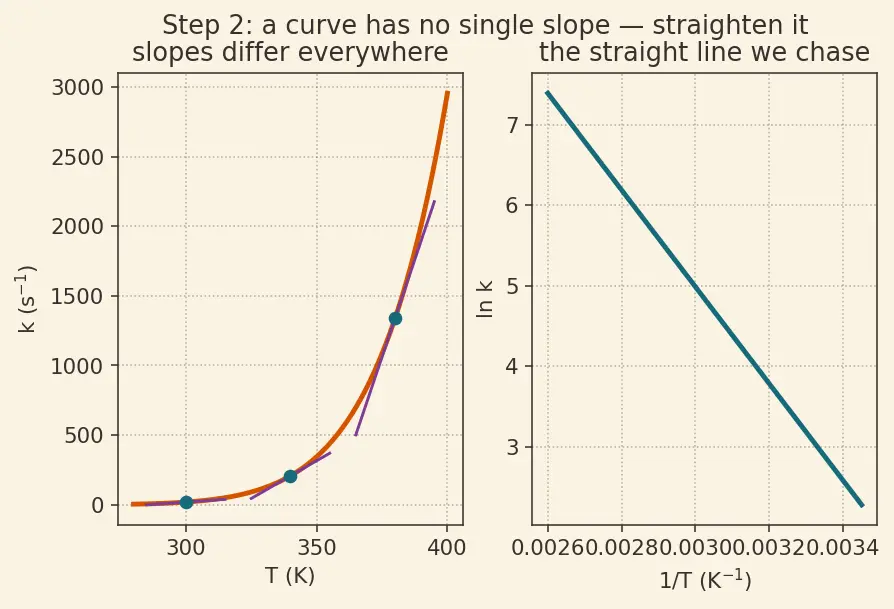

PICTURE. On the left, the raw curve with tangent lines of different slopes at different points — proof it's not a line. On the right, a hint of the straightened version we're chasing.

Step 3 — Apply $\ln$ to both sides (and remember why that's legal)

WHAT. Take $\ln$ of the whole equation. Whatever we do to one side, we do to the other:

$\ln k=\ln \left(A{e}^{-E_a/RT}\right)$

WHY it's allowed. $\ln$ is a one-to-one function: if two things are equal, their logarithms are equal. Applying the same function to both sides never breaks an equality.

PICTURE. A balance scale: $k$ on the left pan, $A{e}^{-E_a/RT}$ on the right pan. Drop the same "$\ln$ weight" on both pans — it stays balanced.

Step 4 — Split the product with the log rule

WHAT. The right side is a product ($A$ times the exponential). The log of a product is the sum of logs:

$\ln (xy)=\ln x+\ln y⟹\ln k=\underset{\text{a constant number}}{\underbrace{\ln A}}+\underset{\text{still has the exponential}}{\underbrace{\ln \left(e^{-E_a/RT}\right)}}$

WHY this rule. Multiplication inside a log becomes addition outside it — that's the defining property of logarithms. Splitting lets us isolate the piece that still traps the exponent.

PICTURE. One box labelled $A{e}^{-E_a/RT}$ splits into two stacked boxes, $\ln A$ and $\ln (e^{-E_a/RT})$, connected by a "+" — showing multiplication became addition.

Step 5 — Cancel the $e$ and reveal the linear form

WHAT. Now the payoff. Since $\ln (e^{\square })=\square$, the log and the exponential annihilate:

$\ln \left(e^{-E_a/RT}\right)=-\frac{E_a}{RT}$

so the equation becomes

$\ln k=\ln A-\frac{E_a}{RT}$

Rearrange the last term to expose the $\frac{1}{T}$:

$\boxed{\ln k=\underset{\text{slope }m}{\underbrace{-\frac{E_a}{R}}}\cdot \underset{x}{\underbrace{\frac{1}{T}}}+\underset{\text{intercept }c}{\underbrace{\ln A}}}$

WHY rearrange like this. Compare to the schoolbook straight line $y=mx+c$:

We deliberately plot against $1/T$ (not $T$) because only then is the relationship perfectly linear — the $T$ sits in a denominator inside the exponent, so its reciprocal is the natural x-variable.

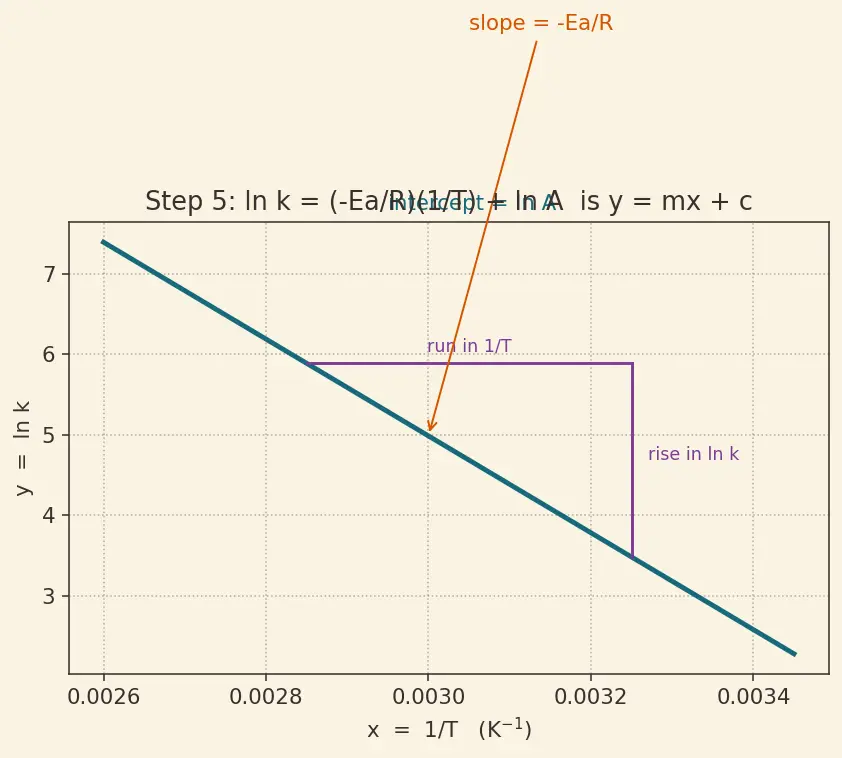

PICTURE. The scary curve of Step 1 is now a clean straight line on axes labelled $1/T$ and $\ln k$, sloping downward, with slope $-E_a/R$ marked.

Step 6 — Why the line slopes DOWN (sign check, no exceptions)

WHAT. We confirm the slope $m=-E_a/R$ is negative for every real reaction.

WHY. $E_a$ is a physical energy hill, so $E_a>0$ always. $R>0$ always. Therefore $-E_a/R<0$ — guaranteed downward. Reading the graph left-to-right (increasing $1/T$ means decreasing $T$, i.e. colder): as it gets colder, fewer molecules clear the barrier, so $k$ drops, so $\ln k$ drops. The line must go down.

Degenerate check — a hypothetical $E_a=0$ reaction: slope becomes $0$, a flat horizontal line. That says rate wouldn't depend on temperature at all — which matches intuition, since a zero barrier means every collision reacts regardless of warmth. Real reactions have $E_a>0$, so a flat line never happens in practice; a steeper down-slope simply means a bigger barrier.

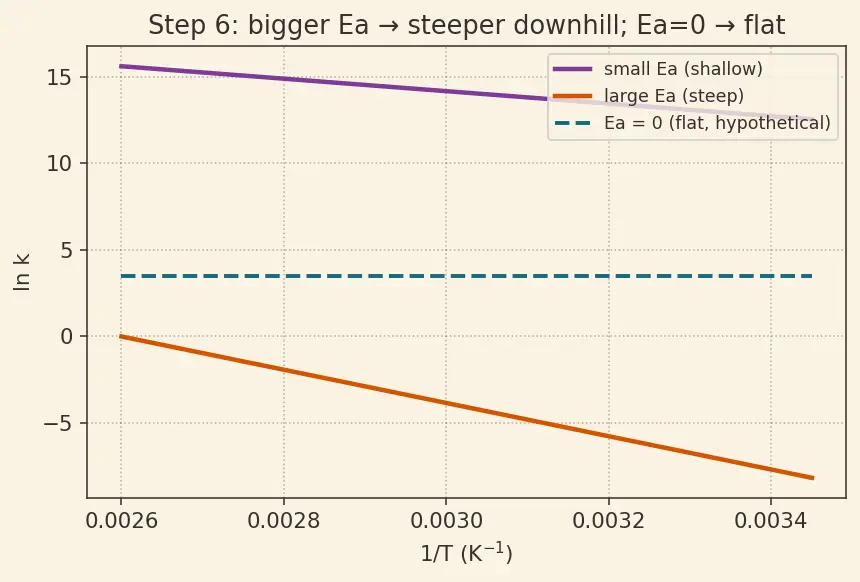

PICTURE. Three straight lines on the same axes: small $E_a$ (shallow down-slope), large $E_a$ (steep down-slope), and the dashed $E_a=0$ flat line — so you see the full range of cases.

Step 7 — Worked slope: pull $E_a$ from four data points

WHAT. Use the parent's Example 1 data. Two points are enough for a straight line; take the coldest and hottest:

$m=\frac{\ln k_2-\ln k_1}{\frac{1}{T_2}-\frac{1}{T_1}}=\frac{-2.083-(-5.404)}{0.002778-0.003333}=\frac{3.321}{-0.000555}\approx -5984\text{K}$

Term by term: the numerator is "rise" in $\ln k$; the denominator is "run" in $1/T$; their ratio is the slope $m$.

$E_a=-mR=-(-5984)(8.314)\approx 49700\text{J/mol}=49.7\text{kJ/mol}$

WHY two points work. All four points lie on one line, so any two give the same slope. Using the extreme pair minimizes reading error.

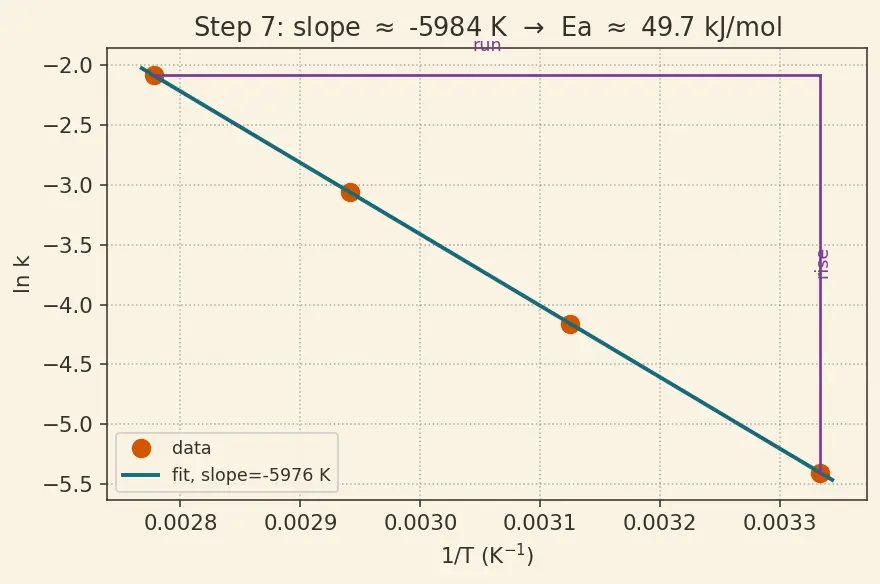

PICTURE. The four data points plotted, the best-fit line through them, and the rise/run triangle drawn on the slope with its numbers labelled.

Solve this yourself first:

Step 8 — Add a catalyst: two lines on one plot

WHAT. A catalyst gives an alternative pathway with a lower barrier, $E_{a,\text{cat}}<E_{a,\text{uncat}}$ (see Catalysis Mechanisms). On the Arrhenius plot both reactions are still straight lines because both obey $\ln k=-\frac{E_a}{R}\cdot \frac{1}{T}+\ln A$.

• Lower $E_a$ → slope $-E_a/R$ is less negative → the catalyzed line is shallower.
• At every temperature $\ln k$ is higher → the catalyzed line sits above the uncatalyzed one.

The rate enhancement (parent Example 3, assuming $A^{\prime }\approx A$):

$\frac{k_{\text{cat}}}{k_{\text{uncat}}}=e^{-\Delta E_a/RT},\Delta E_a=60-85=-25000\text{J/mol}$

$=e^{25000/(8.314\times 300)}=e^{10.02}\approx 22,400$

WHY it doesn't touch equilibrium. The catalyst changes the height of the hill (kinetics), not the depth of the valleys (thermodynamics) — so $\Delta G$ and $K_{eq}$ are untouched (see Equilibrium vs Kinetics).

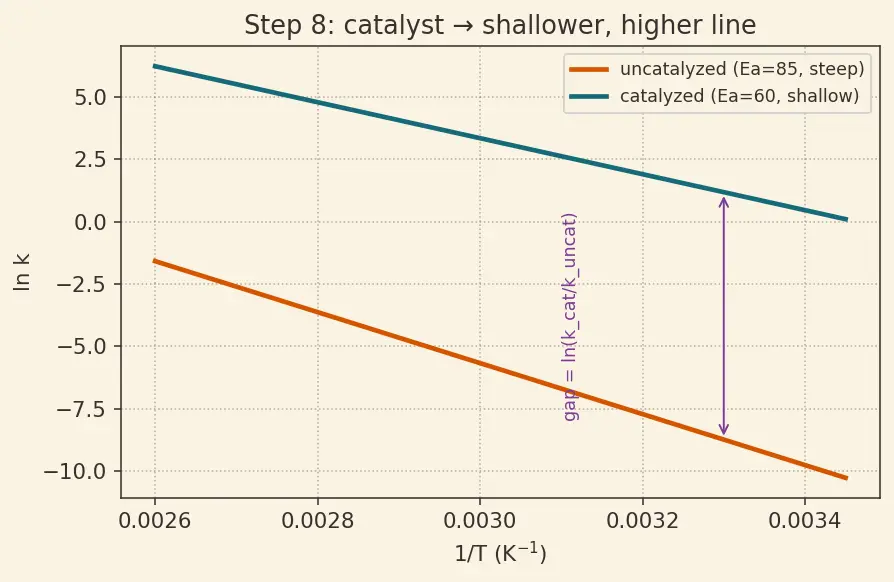

PICTURE. Two straight lines: uncatalyzed (steep, lower) and catalyzed (shallow, higher), diverging as it gets colder, with the vertical gap $\ln (k_{cat}/k_{uncat})$ marked.

The one-picture summary

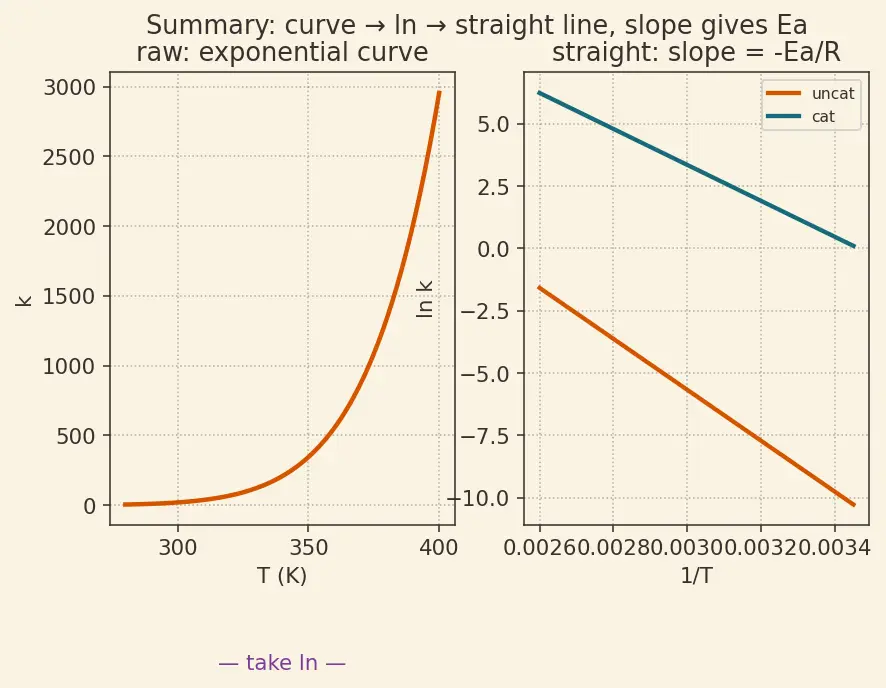

Everything above, compressed: the exponential curve on the left morphs (via $\ln$) into the straight line on the right, whose down-slope is $-E_a/R$, whose intercept is $\ln A$, and onto which a shallower, higher catalyzed line is overlaid.
