Collision theory — frequency factor, steric factor

Overview

Collision theory explains reaction rates at the molecular level: molecules must collide with sufficient energy AND proper orientation to react. The frequency factor (A) quantifies total collision frequency and geometric constraints, while the steric factor (ρ) captures the orientation requirement.

[!intuition] The Core Idea

Think of a lock and key. You can slam the key into the door1000 times per second (collision frequency), but unless:

1. You hit hard enough (activation energy)
2. The key is oriented correctly (steric factor)

...the door won't open. Reactions work the same way.

WHY does this matter? Even if molecules collide with enough energy, most collisions are "glancing blows" at wrong angles. Only a fraction have the geometry to break old bonds and form new ones.

[!definition] Frequency Factor (A)

The frequency factor (also called pre-exponential factor) in the Arrhenius equation:

$k = A e^{-E_a/RT}$

WHAT is A? The maximum possible rate constant if all collisions had enough energy (T → ∞). It combines:

• Collision frequency (Z) — how often molecules collide per unit time/volume
• Steric factor (ρ) — fraction of collisions with correct orientation

$A = \rho Z$

Units: Same as rate constant k (for bimolecular: M⁻¹s⁻¹, for unimolecular: s⁻¹)

Typical values: 10⁸ to 10¹³ for bimolecular gas reactions (M⁻¹s⁻¹)

[!formula] Deriving Collision Frequency (Z)

Step 1: Kinetic Molecular Theory Starting Point

For spherical molecules A and B with radii r_A and r_B:

Collision cross-section: $\sigma_{AB} = \pi(r_A + r_B)^2$

WHY? A collision happens when centers approach within distance (r_A + r_B). Imagine a circle of radius (r_A + r_B) around molecule A — any B center entering this circle means collision.

Step 2: Relative Velocity

Molecules move randomly. The average relative speed:

$\bar{v}_{rel} = \sqrt{\frac{8k_BT}{\pi\mu}}$

where reduced mass $\mu = \frac{m_A m_B}{m_A + m_B}$

WHY relative velocity? What matters is how fast molecules approach each other, not their individual speeds. If both move in the same direction at same speed, relative velocity is zero — no collision.

WHY this formula? From Maxwell-Boltzmann distribution. When you combine two velocity distributions, the relative velocity distribution is also Maxwell-Boltzmann but with reduced mass.

Step 3: Collision Frequency Z

Number of AB collisions per unit volume per unit time:

$Z_{AB} = \sigma_{AB} \bar{v}_{rel} [A][B] = \pi(r_A + r_B)^2 \sqrt{\frac{8k_BT}{\pi\mu}} [A][B]$

HOW to read this:

• Bigger molecules (larger σ) → more collisions
• Higher temperature (larger v̄) → more collisions
• Higher concentrations → more collisions

For identical molecules (A + A):

$Z_{AA} = \frac{1}{2} \sigma_{AA} \bar{v}_{rel} [A]^2$

WHY the 1/2? Avoid double-counting (A₁ hitting A₂ is the same collision as A₂ hitting A₁).

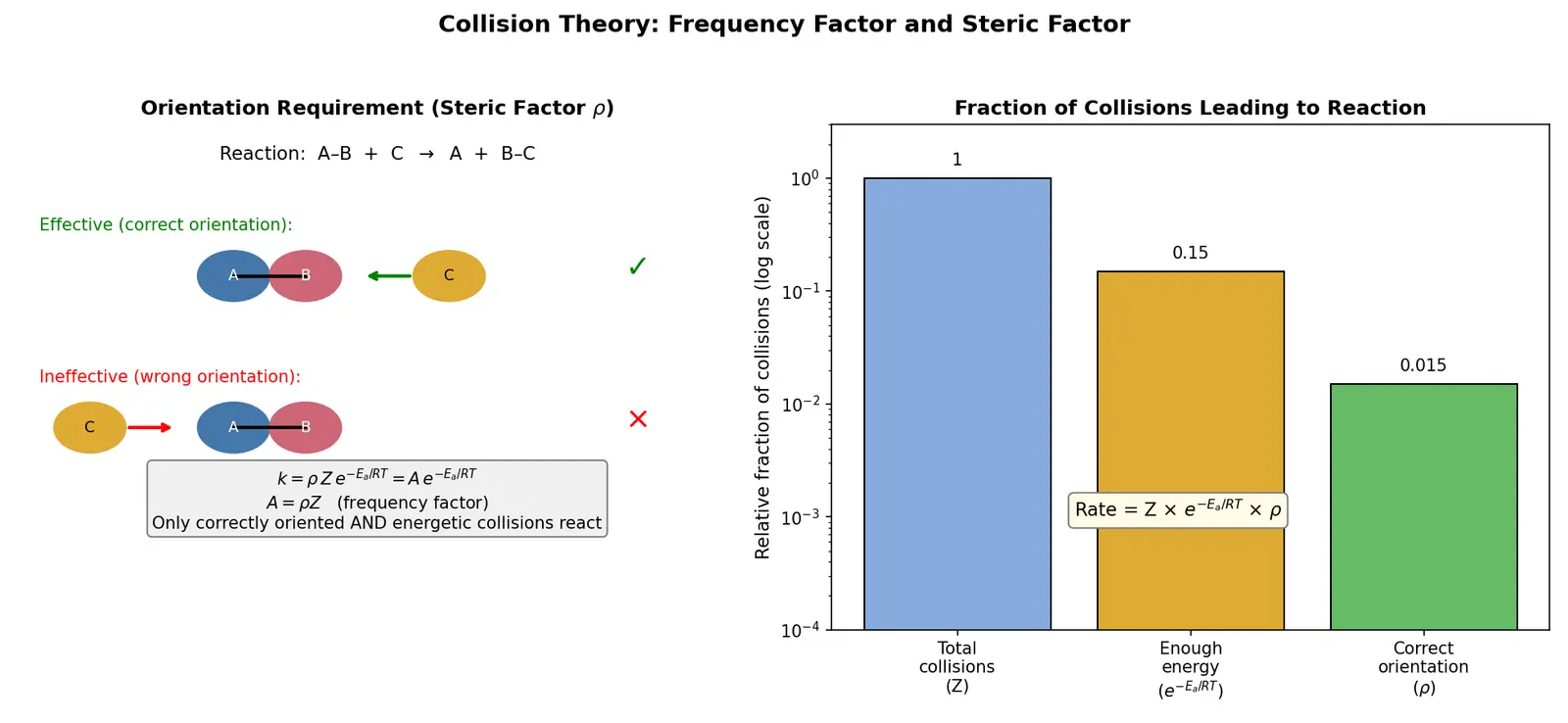

[!formula] Steric Factor (ρ)

$\rho = \frac{k_{observed}}{Z \cdot e^{-E_a/RT}} = \frac{\text{effective collisions}}{\text{energetically favorable collisions}}$

WHAT does ρ represent? The fraction of properly oriented collisions.

Typical values:

• Simple atoms (like noble gases): ρ ≈ 1 (any orientation works)
• Small molecules (H₂ + I₂): ρ ≈ 0.1 to 0.5
• Complex molecules (proteins): ρ ≈ 10⁻⁶ to 10⁻⁴

WHY is ρ < 1?

For reaction A-B + C → A + B-C, the C atom must hit the B end of A-B, not the A end. If the molecule is cylindrical with reaction site covering1/10 of the surface, ρ ≈ 0.1.

Derivation of Complete Rate Expression

Starting from collision theory:

$\text{Rate} = (\text{collision frequency}) \times P(\text{energy} \geq E_a) \times P(\text{correct orientation})$

$\text{Rate} = Z_{AB} \cdot e^{-E_a/RT} \cdot \rho$

$= \rho Z_{AB} e^{-E_a/RT} [A][B]$

For rate law: Rate = k[A][B], we get:

$k = \rho Z_{AB} e^{-E_a/RT}$

Comparing with Arrhenius: $k = A e^{-E_a/RT}$

$\boxed{A = \rho Z_{AB}}$

[!example] Worked Example 1: Calculating Z for H₂ + I₂

Given: T = 500 K, r_H₂ = 1.0 Å, r_I₂ = 2.0 Å, [H₂] = [I₂] = 0.1 M

Find: Collision frequency Z

Solution:

Step 1: Collision cross-section $\sigma = \pi(r_{H_2} + r_{I_2})^2 = \pi(1.0 + 2.0)^2 \times 10^{-20} \text{ m}^2 = 2.83 \times 10^{-19} \text{ m}^2$

WHY add radii? Collision occurs when molecular surfaces touch.

Step 2: Reduced mass $\mu = \frac{m_{H_2} \cdot m_{I_2}}{m_{H_2} + m_{I_2}} = \frac{(2 \text{ g/mol})(254 \text{ g/mol})}{256 \text{ g/mol}} \cdot \frac{1}{N_A} = 3.32 \times 10^{-24} \text{ g}$

WHY reduced mass? It accounts for both molecules moving.

Step 3: Relative velocity $\bar{v}_{rel} = \sqrt{\frac{8k_BT}{\pi\mu}} = \sqrt{\frac{8(1.38 \times 10^{-23})(500)}{3.14(3.32 \times 10^{-27})}} = 631 \text{ m/s}$

WHY does it increase with T? Higher temperature → faster molecular motion.

Step 4: Collision frequency $Z = \sigma \bar{v}_{rel} [H_2][I_2]$

Convert concentrations: [H₂] = 0.1 M = 0.1 mol/L = 6.02 × 10²⁵ molecules/m³

$Z = (2.83 \times 10^{-19})(631)(6.02 \times 10^{25})^2 = 6.5 \times 10^{32} \text{ collisions/(m}^3\text{·s)}$

Physical meaning: In one cubic meter, H₂ and I₂ molecules collide 6.5 × 10³² times per second.

[!example] Worked Example 2: Finding Steric Factor from Experiment

Given: For NO + O₃ → NO₂ + O₂ at298 K:

• Observed rate constant: k = 1.8 × 10⁷ M⁻¹s⁻¹
• Activation energy: E_a = 10kJ/mol
• Calculated collision frequency: Z = 5.0 × 10¹⁰ M⁻¹s⁻¹

Find: Steric factor ρ

Solution:

Step 1: Calculate Boltzmann factor $e^{-E_a/RT} = e^{-10000/(8.314 \times 298)} = e^{-4.03} = 0.018$

WHY use J, not kJ? R = 8.314 J/(mol·K), must match units.

Step 2: Apply collision theory $k = \rho Z e^{-E_a/RT}$

$\rho = \frac{k}{Z e^{-E_a/RT}} = \frac{1.8 \times 10^7}{(5.0 \times 10^{10})(0.018)} = \frac{1.8 \times 10^7}{9.0 \times 10^8} = 0.02$

Interpretation: Only 2% of collisions with sufficient energy have correct orientation.

WHY so low? NO must approach O₃ with the N end toward O₃ (not the O end). Additionally, the approach angle must allow orbital overlap for electron transfer.

[!example] Worked Example 3: Temperature Dependence of A

Question: Does the frequency factor A depend on temperature?

Answer: Slightly YES, through Z.

From $Z \propto \sqrt{T}$, we have $A = \rho Z \propto \sqrt{T}$

Quantitative check:

$A(T_2) = A(T_1)\sqrt{\frac{T_2}{T_1}}$

For 300 K → 600 K (doubling T):

$\frac{A(600)}{A(300)} = \sqrt{2} = 1.41$

WHY does this matter? The exponential term $e^{-E_a/RT}$ changes by factors of 10⁴ to 10⁶ over this range, so the √T change is negligible. We treat A as constant in Arrhenius plots.

Step-by-step reasoning:

• At 300 K: $e^{-E_a/RT} \approx 10^{-20}$ (for typical E_a = 100 kJ/mol)
• At 600 K: $e^{-E_a/RT} \approx 10^{-10}$
• Exponential increases by 10¹⁰
• A increases by 1.4
• Exponential dominates completely

[!mistake] Common Misconception: "A is Just Collision Frequency"

Wrong idea: A equals the number of collisions per second.

Why it feels right: The name "frequency factor" suggests pure collision counting.

Why it's wrong: A includes BOTH collision frequency (Z) and steric factor (ρ). Most collisions fail because molecules are oriented wrong.

The fix: $A = \underbrace{\rho}_{\text{orientation}} \times \underbrace{Z}_{\text{collision frequency}}$

Evidence: For the reaction of complex molecules, A can be 10⁶ times smaller than Z. If A were just Z, all "hard enough" collisions would react — but they don't.

Steel-manning the mistake: Early collision theory (1920s) did equate A with Z because they studied simple atomic reactions whereρ ≈ 1. For Ar + Ar, this actually works! The error emerged when chemists applied it to molecular reactions.

[!mistake] Confusing ρ with Probability of Activation Energy

Wrong idea: Steric factor accounts for molecules having E≥ E_a.

Why it feels right: Both are "fractions" that reduce the reaction rate.

Why it's wrong: The Boltzmann factor $e^{-E_a/RT}$ already handles energy. The steric factor ρ is ADDITIONAL — it applies to the subset of collisions that already have enough energy.

Correct picture:

1. Total collisions: Z[A][B]
2. After energy filter: $Z[A][B] \cdot e^{-E_a/RT}$
3. After orientation filter: $Z[A][B] \cdot e^{-E_a/RT} \cdot \rho$

They multiply, not overlap.

Test: If ρ accounted for energy, increasing T wouldn't change k exponentially — but it does! The exponential temperature dependence proves energy and orientation are separate filters.

[!recall]- Explain to a 12-Year-Old

Imagine you're playing a video game where you throw balls at targets to break them.

Collision frequency (Z): How many balls you throw per minute. If you throw faster or have more balls, Z goes up.

Activation energy filter: The targets have shields. Only balls thrown hard enough (with enough energy) break through. Temperature is like how hard you throw — higher T means harder throws.

Steric factor (ρ): Even if you throw hard enough, you must hit the red bullseye spot, not the blue edges. The red spot might be only 10% of the target. So ρ = 0.1 means only 1 in 10 "hard enough" throws actually breaks the target.

Frequency factor A = ρ × Z: The maximum number of targets you could break per minute if you threw infinitely hard (so the shield didn't matter). It combines how fast you throw (Z) with how good your aim must be (ρ).

In chemistry, molecules are the balls, reactions are breaking targets, and the "red bullseye" is the exact angle where atoms can swap partners.

[!mnemonic] Remembering A = ρZ

"A-ha! Rho Zones the action"

• A-ha: Frequency factor A
• Rho: Steric factor ρ (first letter)
• Zones: Collision frequency Z happens in zones of space

Also remember: "Proper Aim Requires Orientation" → ρ in A comes from orientation requirements.

For typical values: "One Zero" → ρ for simple molecules≈ 0.1 to 1.0, complex molecules go to 0.01 or lower (extra zeros).

Connections

• Arrhenius Equation: A is the pre-exponential factor
• Activation Energy: Only collisions with E ≥ E_a react
• Maxwell-Boltzmann Distribution: Where the $e^{-E_a/RT}$ factor comes from
• Transition State Theory: More sophisticated model that calculates A from molecular vibrations
• Rate Laws: Connection between microscopic collisions and macroscopic rates
• Temperature Dependence of Reaction Rates: Why k increases exponentially with T
• Molecularity: Collision theory applies to elementary reactions only

#flashcards/chemistry

What are the two factors that must be satisfied for a molecular collision to result in a reaction? :: (1) Colliding molecules must have kinetic energy ≥ activation energy E_a (2) Colliding molecules must have proper orientation (captured by steric factor ρ)

Define the frequency factor A in the Arrhenius equation :: The frequency factor A (pre-exponential factor) is the maximum rate constant if all collisions had sufficient energy. It equals A = ρZ, the product of steric factor and collision frequency. Units same as k.

Write the collision frequency Z for bimolecular reaction A + B in terms of molecular parameters :: Z_AB = σ_AB × v̄_rel × [A][B], where σ = π(r_A + r_B)² is collision cross-section and v̄_rel = √(8k_BT/πμ) is average relative velocity. μ is reduced mass.

Explain why A is treated as temperature-independent despite Z∝ √T :: Although A = ρZ increases as √T, this effect is negligible. Doubling T increases A by factor √2 ≈ 1.4, while e^(-E_a/RT) increases by factors of 10⁴ to 10⁶. The exponential term dominates completely.
