Visual walkthrough — Fuel cells — H₂ - O₂ fuel cell (spacecraft relevance)

Everything below is one long argument in six steps: give appetites a number → split the reaction → balance the electrons → subtract to get voltage → cross-check with energy → see when it changes. Keep that spine in mind as each figure fills it in.

---

Step 1 — What "wanting electrons" even means

WHAT. Every chemical substance has a personal appetite for electrons — some grab them hungrily, some hold them loosely. We put a number on this appetite and call it a reduction potential, written $E^{\circ }$. A big positive $E^{\circ }$ means "I really want extra electrons." A negative $E^{\circ }$ means "I would rather give mine away."

WHY this idea and not another. We could try to reason about energy in joules, but voltage is the natural currency here: voltage is literally energy per unit of charge. Since electrons carry charge, a difference in "electron appetite" between two plates is exactly a voltage. So we measure appetite in volts.

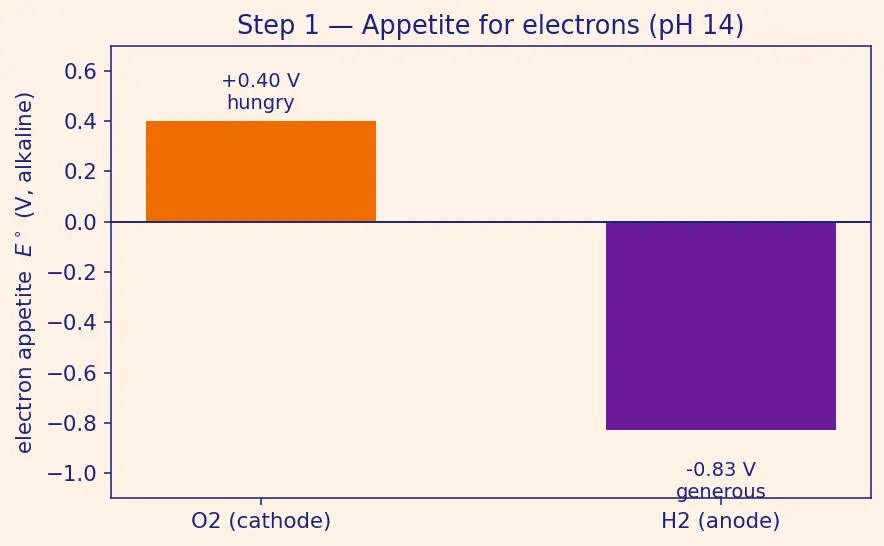

PICTURE. Look at the two appetite bars. Oxygen's bar reaches up to $+0.40\text{V}$ (hungry). Hydrogen's water-forming reaction sits down at $-0.83\text{V}$ (generous).

---

Step 2 — The two half-stories (each plate does one job)

WHAT. We split the whole reaction into two half-reactions, one per plate. At the anode hydrogen lets go of electrons (this is oxidation — losing electrons). At the cathode oxygen collects electrons (this is reduction — gaining electrons). Because we are in alkaline KOH, hydroxide ions (${\text{OH}}^{-}$) are the helpers.

$\underset{\text{fuel}}{\underbrace{2{\text{H}}_2}}+\underset{\text{helper ions}}{\underbrace{4{\text{OH}}^{-}}}\to \underset{\text{product}}{\underbrace{4{\text{H}}_2\text{O}}}+\underset{\text{electrons freed}}{\underbrace{4e^{-}}}$

• $2{\text{H}}_2$ — two hydrogen molecules arriving as gas.
• $4{\text{OH}}^{-}$ — hydroxide ions from the liquid; the minus sign means each carries one extra electron's worth of negative charge.
• $4{\text{H}}_2\text{O}$ — the water we make.
• $4e^{-}$ — the four electrons set free to walk the wire; $e^{-}$ is one electron.

$\underset{\text{oxidant}}{\underbrace{{\text{O}}_2}}+\underset{\text{from liquid}}{\underbrace{2{\text{H}}_2\text{O}}}+\underset{\text{electrons caught}}{\underbrace{4e^{-}}}\to \underset{\text{ions remade}}{\underbrace{4{\text{OH}}^{-}}}$

WHY split it. Because electricity is electrons travelling between the two plates. If we lump the reaction into one line we hide the travel. Splitting makes the electron flow — the whole point — visible.

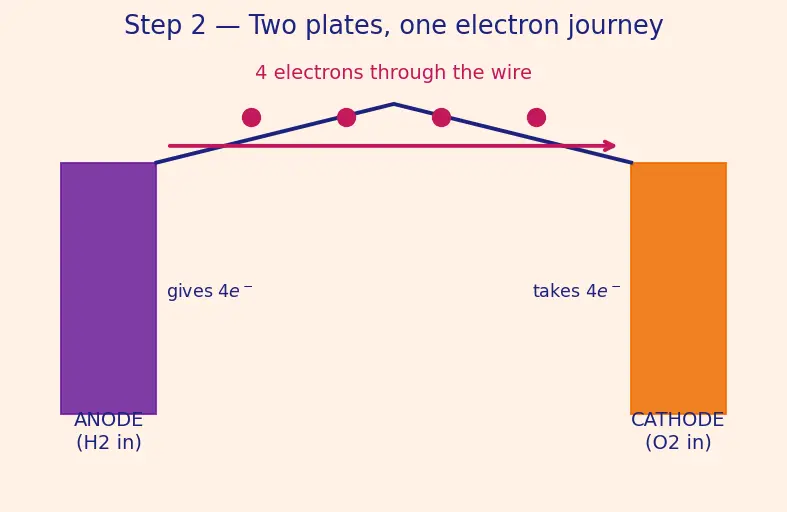

PICTURE. Left plate spits four red electron-dots into the wire; right plate swallows four. Same four. Nothing is created or destroyed.

---

Step 3 — Balancing the electrons (why the number 4 matters)

WHAT. Count the electrons in each half-story. The anode releases $4e^{-}$; the cathode consumes $4e^{-}$. They match. If they did not match, we would multiply one half-reaction by a whole number until they did.

WHY balance. Electrons cannot pile up or vanish — charge is conserved. A voltage only makes sense once every electron that leaves one plate has somewhere to land. Matching the count is what lets the two halves become one honest reaction.

PICTURE. A tally board: 4 out on the left, 4 in on the right, a green check between them.

Now we add the two halves together. Line them up:

$2{\text{H}}_2+4{\text{OH}}^{-}+{\text{O}}_2+2{\text{H}}_2\text{O}+4e^{-}\to 4{\text{H}}_2\text{O}+4e^{-}+4{\text{OH}}^{-}$

Why we cancel identical terms. If exactly the same species appears on both sides of the arrow in the same amount, it is neither made nor used up overall — it is just borrowed and returned. Writing it twice tells us nothing, so we strike matching pairs to reveal the true net change. Here:

• $4e^{-}$ appears on both sides → cancel (electrons stay inside the loop, they don't accumulate).
• $4{\text{OH}}^{-}$ appears on both sides → cancel (the hydroxide the anode uses, the cathode remakes — the electrolyte is not consumed).
• $2{\text{H}}_2\text{O}$ on the left cancels against 2 of the $4{\text{H}}_2\text{O}$ on the right, leaving $2{\text{H}}_2\text{O}$.

What survives is the honest net reaction:

$2{\text{H}}_2(g)+{\text{O}}_2(g)\to 2{\text{H}}_2\text{O}(l)$

That is just "hydrogen plus oxygen makes water" — the exact reaction of a flame, but here the energy leaves as electricity instead of heat.

---

Step 4 — Turning appetites into one voltage

WHAT. The cell voltage is the difference between the electron-appetite of the plate that grabs (cathode) and the plate that gives (anode):

$E_{\text{cell}}^{\circ }=\underset{\text{grabber}}{\underbrace{E_{\text{cathode}}^{\circ }}}-\underset{\text{giver}}{\underbrace{E_{\text{anode}}^{\circ }}}$

• $E_{\text{cell}}^{\circ }$ — the total push the cell offers, in volts.
• $E_{\text{cathode}}^{\circ }$ — appetite of the grabbing plate, $+0.40\text{V}$ (alkaline scale).
• $E_{\text{anode}}^{\circ }$ — appetite of the giving plate, $-0.83\text{V}$ (alkaline scale).

WHY subtract. Voltage is a difference in height, like water only flows between two different levels. The bigger the gap between the two appetites, the harder electrons are pushed. Subtracting cathode minus anode measures exactly that gap.

PICTURE. Two horizontal levels on the appetite ladder; a bright arrow spans the gap between $+0.40$ and $-0.83$.

Plug in the numbers:

$E_{\text{cell}}^{\circ }=0.40\text{V}-(-0.83\text{V})=0.40+0.83=1.23\text{V}$

Notice the double minus becoming a plus — subtracting a negative adds. That is why the giving plate's negativity helps the voltage rather than hurting it.

---

Step 5 — Checking it against energy (the sanity cross-check)

WHAT. There is a second, independent road to the same voltage using energy. The chemical energy available to do electrical work is Gibbs free energy, $\Delta G$ (see Gibbs free energy and spontaneity). It links to voltage by:

$\Delta G=-nF{E}_{\text{cell}}^{\circ }$

• $\Delta G$ — the usable energy released, in joules per reaction.
• $n$ — number of electrons moved per reaction.
• $F$ — Faraday's constant, $96485\text{C/mol}$: the charge carried by one mole of electrons.
• $E_{\text{cell}}^{\circ }$ — the voltage we want.

Match $\Delta G$ to the reaction you wrote. This is the subtle part. Our balanced net reaction from Step 3 is $2{\text{H}}_2+{\text{O}}_2\to 2{\text{H}}_2\text{O}$, which makes two moles of water and moves $n=4$ electrons. The often-quoted $\Delta G=-237000\text{J}$ is for making one mole of water (${\text{H}}_2+\frac{1}{2}{\text{O}}_2\to {\text{H}}_2\text{O}$, $n=2$). For our two-mole reaction we must double it:

$\Delta G=2\times (-237000)=-474000\text{J},n=4$

WHY this tool. Voltage is energy-per-charge. So if we know total energy ($\Delta G$) and total charge ($nF$), dividing gives voltage directly. This tool exists precisely to convert between chemistry's energy language and electricity's voltage language.

PICTURE. Energy $\Delta G$ on the left, divided by charge $nF$ on the right, arrow producing the voltage.

Rearrange and compute — using the matched pair $(\Delta G=-474000,n=4)$:

$E_{\text{cell}}^{\circ }=\frac{-\Delta G}{nF}=\frac{474000}{4\times 96485}=\frac{474000}{385940}\approx 1.23\text{V}$

(You get the identical answer with the one-mole numbers, $\frac{237000}{2\times 96485}$, because both the energy and the electron count halve together.) Two completely different roads — appetites (Step 4) and energy (Step 5) — meet at the same $1.23\text{V}$. That agreement is our confidence the derivation is right.

---

Step 6 — The degenerate cases (when the number changes)

WHAT. The clean $1.23\text{V}$ is a best case. Reality bends it in three named ways:

1. Zero current (open circuit): no electrons actually flowing, so no losses — you get the full $1.23\text{V}$.
2. Real current draw: electrons rush and the voltage sags to about $0.9\text{V}$. The lost $0.33\text{V}$ is spent on overpotential (energy to kick-start the reaction; Catalysis and Pt reduce but never erase this) plus plain resistance.
3. Fuel runs out: if hydrogen stops arriving, the anode has nothing to give, appetite difference collapses, and $E_{\text{cell}}\to 0\text{V}$. The "endless battery" is only endless while fed.

WHY show these. A reader who only meets $1.23\text{V}$ will be baffled by a real spacecraft cell reading $0.9\text{V}$. Every scenario must be on the map. The gap between "what thermodynamics promises" and "what you actually get" is the story of Thermodynamics vs. kinetics.

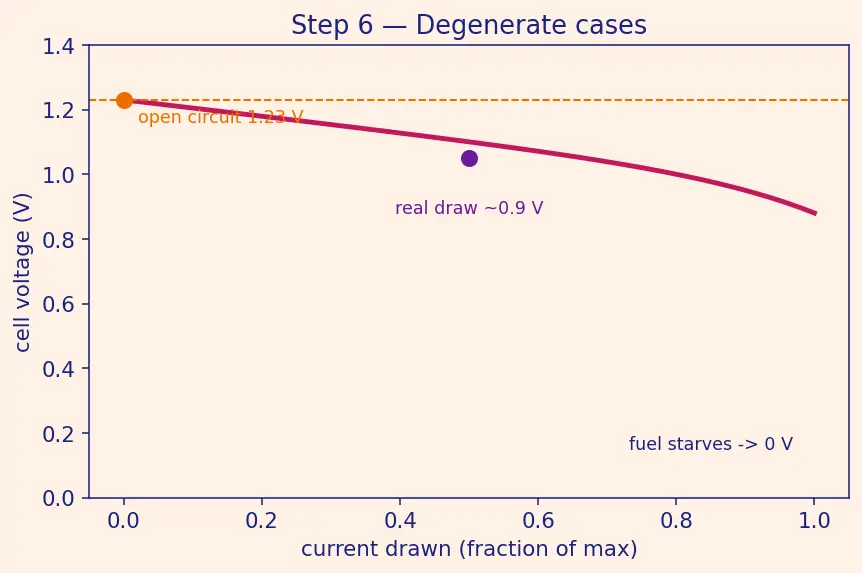

PICTURE. A voltage-vs-current curve: flat $1.23\text{V}$ at zero current, drooping through $0.9\text{V}$ as current rises, crashing to $0$ when fuel starves.

Recall Why does more current mean less voltage?

Overpotential and resistance both eat volts, and both grow with current ::: Pushing more electrons per second demands more "activation" energy and fights more resistance, so the delivered voltage sags below the ideal 1.23 V.

---

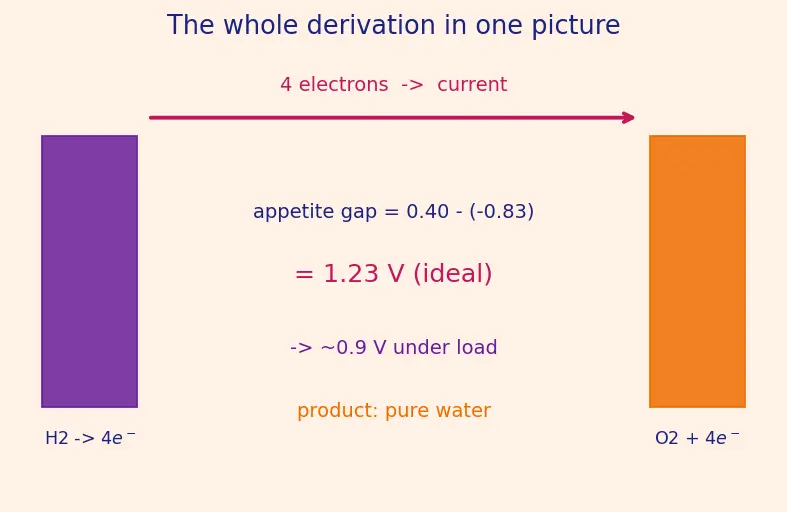

The one-picture summary

Everything on one canvas: gases enter the two porous plates, electrons circle the wire, appetites set the ladder, subtraction gives the gap, energy÷charge confirms it, and real losses trim it down.

Recall Feynman retelling — the whole walk in plain words

Two metal plates sit in a salty liquid. On the left, hydrogen gas is generous and drops off electrons; on the right, oxygen gas is greedy and grabs them. Because greed sits at $+0.40$ and generosity sits at $-0.83$ on our alkaline "appetite ladder," the gap between them is $0.40-(-0.83)=1.23$ volts — that gap is the push. We double-check by a different route: the reaction $2{\text{H}}_2+{\text{O}}_2\to 2{\text{H}}_2\text{O}$ releases $474$ kJ of usable energy while moving $4$ electrons, and dividing that energy by the charge of those electrons gives the same $1.23$ volts. In the lab you actually read a bit less — about $0.9$ volts once current flows — because starting the reaction and fighting resistance both cost voltage, and if the hydrogen ever stops the whole push falls to zero.

---
