Fuel cells — H₂ - O₂ fuel cell (spacecraft relevance)

What is a fuel cell?

Key differences from batteries:

Battery: Fixed amount of reactant sealed inside → dies when depleted.
Fuel cell: Continuous reactant supply → runs indefinitely.

Why it matters: ~60% efficient (vs. ~25% for combustion engines). No moving parts. Silent. Clean byproducts.

The H₂/O₂ fuel cell — Construction and operation

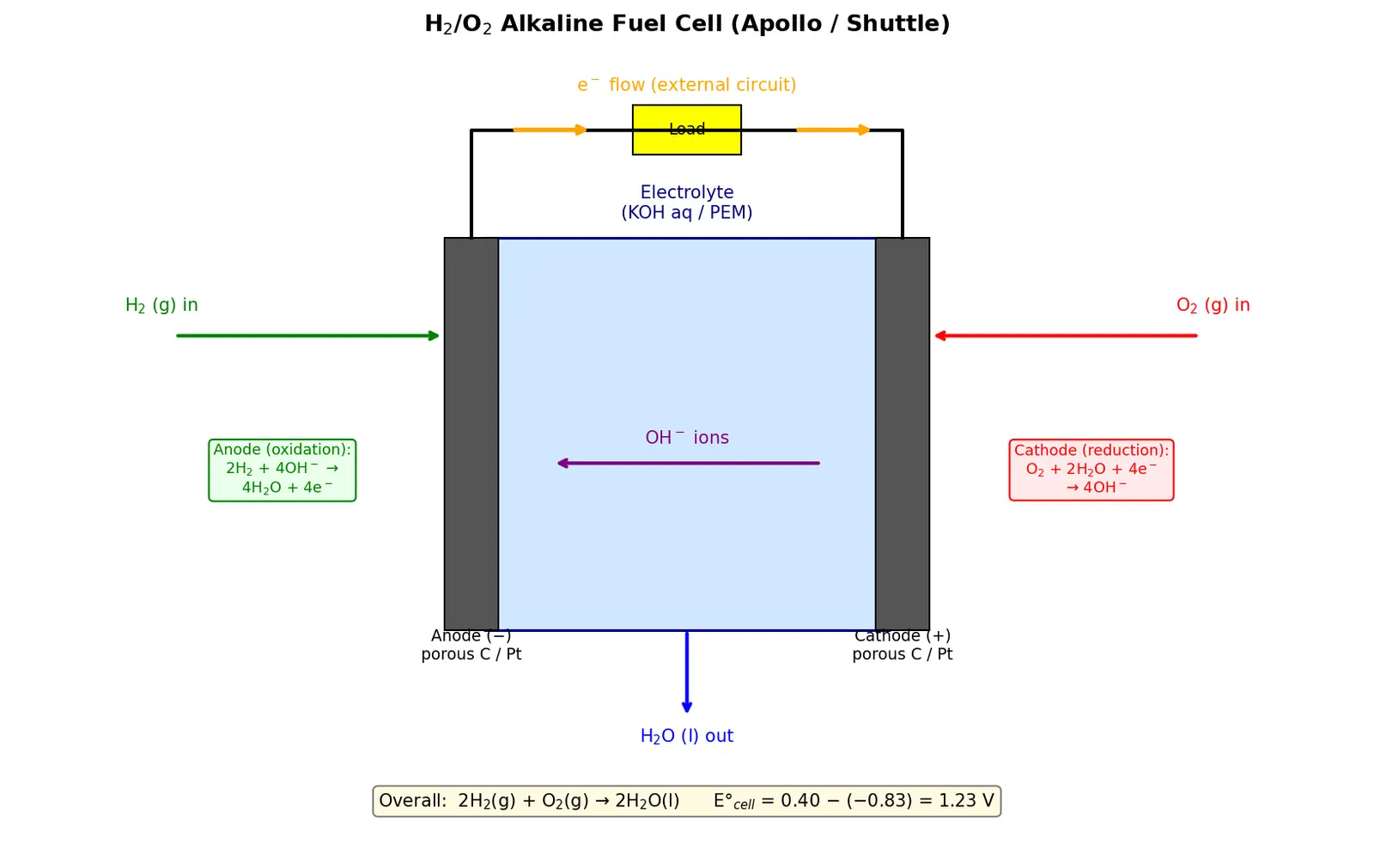

Figure — Fuel cells — H₂ - O₂ fuel cell (spacecraft relevance)

Physical setup

Anode compartment: Porous carbon electrode coated with Pt catalyst. H₂ gas flows in.
Cathode compartment: Porous carbon electrode coated with Pt catalyst. O₂ gas flows in.
Electrolyte: Either hot KOH(aq) (alkaline fuel cell, 200°C) or proton-exchange membrane (PEM, 80°C).
External circuit: Connects anode (−) to cathode (+).

Gas needs to contact both the electrode surface (for electron transfer) and the electrolyte (for ion transfer). Porous carbon maximizes surface area. The Pt catalyst speeds up the slugish reactions—without it, the reaction rate is impractically slow.

Electrochemical reactions

Alkaline fuel cell (used in Apollo missions)

At the anode (oxidation): $2\text{H}_2(g) + 4\text{OH}^-(aq) \rightarrow 4\text{H}_2\text{O}(l) + 4e^-$

Why this happens: H₂ is a strong reducing agent. The Pt catalyst breaks H–H bonds. OH⁻ from the electrolyte grabs the H atoms, forming water and releasing electrons.

At the cathode (reduction): $\text{O}_2\text{(g)} + 2\text{H}_2\text{O(l)} + 4e^- \rightarrow 4\text{OH}^-\text{(aq)}$

Why this happens: O₂ is a strong oxidizer. Electrons from the external circuit reduce O₂. Water from the electrolyte provides H atoms to form OH⁻.

Overall reaction: $2H_2(g) + O_2(g) \rightarrow 2H_2O(l)$

Net result: The same reaction as burning hydrogen, but done electrochemically. The energy is captured as electricity instead of being wasted as heat.

Why two equations add up correctly: Count electrons. Anode releases 4e⁻, cathode consumes 4e⁻. Charge is conserved. OH⁻ is regenerated at the cathode, so the electrolyte doesn't get depleted—it's just a medium for ion transport.

Why spacecraft use this exact fuel cell

Worked example Apollo and Space Shuttle

NASA needed:

Power for electronics and life support (multi-kW for weeks).
Water for drinking—astronauts need ~2 L/day.
Reliability in zero-gravity, vacuum, temperature extremes. The H₂/O₂ fuel cell delivers all three:

Power: 1.4 kW per module (Apollo), 7-12 kW (Shuttle). Stack cells in series for voltage, parallel for current.
Water: 1 kg H₂ + 8 kg O₂ → 9 kg H₂O. Enough for crew and cooling systems.
Safety: No combustion risk (unlike burning H₂). Self-contained. Tested for vibration, radiation.

Worked example — Apollo 11:

Mission: 8 days.
Power need: 1.5 kW average.
Energy: $1.5 \times 24 \times 8 = 288\,\text{kWh}$ .
H₂ consumed: ~25 kg (at 60% efficiency, accounting for heat loss).
Water produced: ~225 kg (far more than crew needs, used for cooling).

Why not solar panels?

Moon has 14-day nights. Batteries for two weeks are too heavy. Fuel cells + cryogenic tanks win on mass.

Efficiency and energy balance

Actual efficiency: ~60% in practice due to:

Activation overpotential: Energy to start the reaction (Pt catalyst helps but doesn't eliminate this).
Ohmic losses: Resistance in electrodes, electrolyte, wiring.
Concentration overpotential: Reactant depletion near electrode surface if supply is slow.

Compare to combustion:

Combustion engine: $\eta \approx 25\%$ (limited by Carnot cycle).
Fuel cell: $\eta \approx 60\%$ (not limited by Carnot—no heat engine!).

Alkaline vs. PEM fuel cells

Feature	Alkaline (KOH)	PEM (Proton Exchange Membrane)
Electrolyte	Hot KOH solution	Solid polymer (Nafion)
Temp	150-200°C	60-80°C
Reactions	OH⁻ migrates anode→cathode	H⁺ migrates anode→cathode
Pros	Cheaper catalysts (less Pt), mature tech	Faster startup, compact easier water management
Cons	Sensitive to CO₂ (forms carbonate), bulky	Expensive membrane, needs pure H₂
Use	Spacecraft (Apollo, Shuttle)	Cars (Toyota Mirai), portable power

Why Apollo used alkaline: 1960s tech. KOH is simple, robust. CO₂ scrubbers already onboard (crew breathing), so CO₂ poisoning manageable.

Why modern cars use PEM: Cold start in seconds. Compact. Water exits as vapor (no liquid management issue in variable gravity).

Common mistakes and steel-manning

The "why" deep-dive: Why this reaction?

Q: Why H₂ and O₂, not something else?

High energy density by mass: H₂ has 142 MJ/kg, vs. gasoline's 46 MJ/kg.
Clean: Only product is water—no CO, CO₂, NOₓ, soot.
Fast kinetics: With Pt, the reactions are fast enough for practical power output.
Available: On spacecraft, you need O₂ for breathing anyway. Carrying H₂ is one extra cryogenic tank, but it's light.

Q: Why not just burn H₂ in a turbine?

A: Combustion → heat → mechanical work → electricity = two conversion steps, each with losses. Fuel cell → electricity = one step, higher efficiency. Also, turbines need moving parts (wear out), are noisy, and produce vibration (bad for spacecraft instruments).

Recall Explain to a 12-year-old

Imagine you have a special box. You feed it hydrogen gas (the lightest gas) and oxygen gas (what we breathe). Inside the box, there are two metal plates covered in a magic dust called platinum. The hydrogen splits apart and the electrons (tiny electric particles) go on a journey through wire, lighting up a bulb. Meanwhile, the hydrogen and oxygen meet up and turn into water—just plain water you can drink! As long as you keep feeding the box gases, it keeps making electricity and water. NASA uses this on spaceships because astronauts need both power and water, and this box gives them both without pollution. It's like a super-smart battery that never dies as long as you keep "feeding" it.

Connections Galvanic cells and cell potential — Fuel cells are galvanic cells with external reactant supply.

Standard electrode potentials — Used to calculate $E^\circ_\text{cell}$ .
Electrolysis of water — Reverse process: electricity → H₂ + O₂.
Gibs free energy and spontaneity — Why $\Delta G$ determines max efficiency.
Catalysis — Pt speeds up H₂ and O₂ reactions without being consumed.
Thermodynamics vs. kinetics — High $\Delta G$ (spontaneous) but slow without catalyst.
Hydrogen economy — Fuel cells as clean energy storage/conversion tech.

#flashcards/chemistry

What is a fuel cell and how does it differ from a battery? :: A galvanic cell that converts chemical energy of continuously supplied reactants into electrical energy. Unlike a battery (fixed reactants, finite lifetime), a fuel cell runs indefinitely as long as fuel flows.

Write the anode reaction in an alkaline H₂/O₂ fuel cell :: 2H₂(g) + 4OH⁻(aq) → 4H₂O(l) + 4e⁻ (oxidation at the negative electrode)

Write the cathode reaction in an alkaline H₂/O₂ fuel cell

O₂(g) + 2H₂O(l) + 4e⁻ → 4OH⁻(aq) (reduction at the positive electrode)

What is the overall reaction in a H₂/O₂ fuel cell?

2H₂(g) + O₂(g) → 2H₂O(l) — same as combustion but electrochemical

Why is platinum used in fuel cell electrodes?

Pt catalyzes the slugish H₂ oxidation and O₂ reduction reactions, lowering activation energy and increasing reaction rate to practical levels.

What is the standard cell potential for a H₂/O₂ fuel cell? :: E°(cell) = 1.23 V (in alkaline conditions), actual operating voltage ~0.9 V due to overpotential losses.

Why did NASA use H₂/O₂ fuel cells on Apollo missions?

Provides both electrical power (kW scale) and drinkable water as a byproduct; reliable in space; no combustion risk; higher efficiency than combustion engines.

What limits the maximum efficiency of a fuel cell?

Maximum efficiency = ΔG/ΔH. Not all enthalpy can do work—some is entropy (TΔS). For H₂/O₂ at 25°C, max is 83%, actual ~60% due to overpotentials and resistance.

What is the role of the electrolyte in a fuel cell?

Allows ion transport between electrodes (OH⁻ in alkaline, H⁺ in PEM) to complete the circuit, while blocking electron flow (forcing electrons through external circuit).

Why are fuel cell electrodes porous?

Maximizes surface area for the three-phase boundary: gas reactant, liquid electrolyte, and solid electrode must all meet for reaction to occur.

What are the main sources of efficiency loss in practical fuel cells?

(1) Activation overpotential (energy to start reactions), (2) Ohmic losses (resistance in materials), (3) Concentration overpotential (reactant depletion at electrode surface).

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Fuel cell ek aisa device hai jo chemical energy ko directly electrical energy mein convert karta hai, bilkul battery ki tarah, lekin ek bada difference hai — battery ke andar reactants fixed hote hain aur khatam ho jate hain, jabki fuel cell mein tum continuously fuel supply karte raho toh woh kabhi band nahi hota. Yeh concept spacecraft ke liye bahut useful hai kyunki astronauts ko lagatar power chahiye aur normal battery kitne din chalegi? H₂/O₂ fuel cell mein hydrogen gas aur oxygen gas daalte hain, aur output mein electricity milti hai aur sath mein pani bhi (drinkable water!)—ek teer se do nishaan.

NASA ne Apollo missions mein yeh technology use ki thi kyunki space mein weight aur reliability dono critical hain. Fuel cell lightweight hai, koi moving parts nahi (matlab maintenance kam), aur sabse important — byproduct sirf pani hai, jo astronauts pee sakte hain. Iske andar platinum catalyst lagta hai jo hydrogen aur oxygen ke bech reaction ko fast karta hai. Bina catalyst ke yeh reaction itna slow hoga ki practical power nahi milega. Anode par hydrogen oxidize hota hai (electrons release karta hai), woh electrons external circuit se hokar cathode tak jate hain (jahaan load hai, jaise light bulb), aur cathode par oxygen reduce hokar pani banata hai. Efficiency combustion engine se kafi zyada hai (60% vs 25%) kyunki yahan direct electrochemical conversion hai, heat engine ki tarah energy waste nahi hota.

Yeh technology aaj bhi modern applications mein use hoti hai—hydrogen cars, backup power systems, aur portable generators. Main challenge abhi bhi hydrogen ka storage aur distribution hai, lekin jab energy density aur cleanliness ki baat aye toh H₂/O₂ fuel cell ekdum perfect hai, especially isolated environments jaise spacecraft ya remote locations ke liye.
