Visual walkthrough — Equilibrium constant from E° - ln K = nFE° - RT

This is the visual companion to the parent topic. Read it slowly; each figure carries one idea.

---

Step 1 — What "equilibrium" and "voltage" even mean

WHAT. Before any formula, meet the two characters.

• A reaction is a crowd of molecules turning into other molecules. It slows down and eventually stops changing. The frozen ratio of products to reactants is the ==equilibrium constant $K$==. Big $K$ = mostly products. Small $K$ = mostly reactants.
• A cell (battery) has a push that shoves electrons around a wire. That push, measured in volts under standard textbook conditions (everything at 1 mol/L, 1 bar, 25 °C), is the ==standard cell potential $E°$==. The little circle ° means "standard conditions."

Let's pin down exactly what "the ratio" means. For a general reaction $a\text{A}+b\text{B}\rightleftharpoons c\text{C}+d\text{D}$, the equilibrium constant is the product concentrations (each raised to its stoichiometric coefficient) divided by the reactant concentrations (same rule), evaluated once the reaction has stopped:

$K=\frac{[\text{C}{]}^c[\text{D}{]}^d}{[\text{A}{]}^a[\text{B}{]}^b}$

• $[\text{C}],[\text{D}]$ — product concentrations (activities), on top because products "win" when $K$ is big.
• $[\text{A}],[\text{B}]$ — reactant concentrations, on the bottom.
• the exponents $a,b,c,d$ — the balancing numbers from the equation; each species is counted as many times as it appears.

WHY. These look unrelated — one is a ratio of jars of stuff, the other is a voltmeter reading. The whole page proves they are the same fact in two costumes.

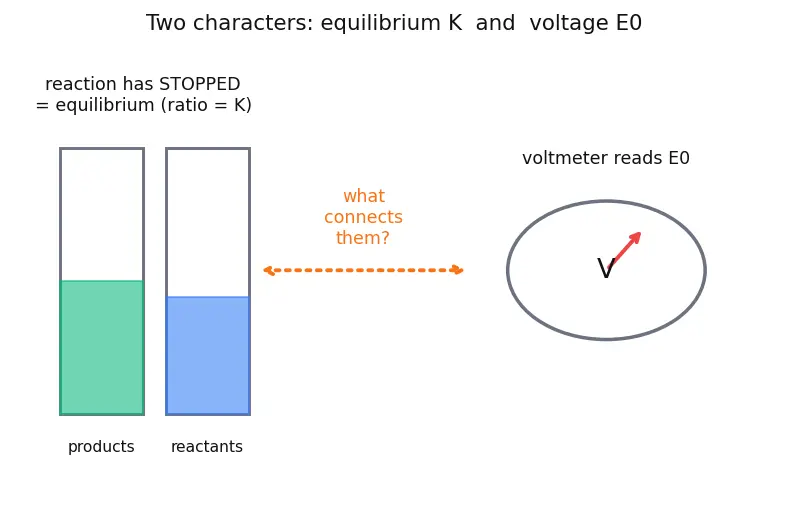

PICTURE. On the left, two beakers stop exchanging colour — that's equilibrium. On the right, a voltmeter needle sits at $E°$. A dotted bridge asks: what connects them?

How to read it: left half = a reaction that has stopped changing, so the beaker heights fix the ratio $K$ (products over reactants). Right half = a voltmeter reading the cell's push $E°$. The dotted orange arrow is the missing bridge this page builds.

---

Step 2 — Energy is the common language: the ΔG hill

WHAT. Both characters secretly report the same thing — how much usable energy the reaction can release. We call that usable energy the ==Gibbs free energy change $\Delta G$==. Read it as "the energy the reaction is willing to give away."

The rule of the hill:

$\underset{\text{energy still available}}{\underbrace{\Delta G}}<0\Rightarrow \text{rolls forward (spontaneous)}$

• $\Delta G<0$: ball rolls downhill on its own.
• $\Delta G=0$: ball sits at the valley floor — this is equilibrium, nothing left to give.
• $\Delta G>0$: uphill, you must push.

WHY. If we can write BOTH $K$ and $E°$ in terms of $\Delta G$, we can set the two expressions equal and $\Delta G$ cancels out — leaving a direct $K$–$E°$ bridge. $\Delta G$ is the translator.

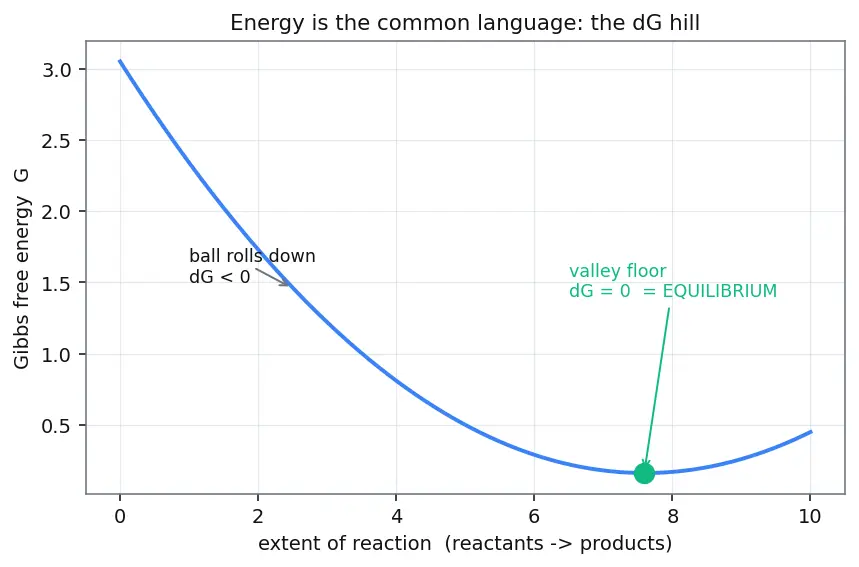

PICTURE. A landscape: the ball starts high (reactants), rolls down, and rests where the slope is flat. The flat spot is $\Delta G=0$ = equilibrium.

How to read it: horizontal axis = how far the reaction has proceeded (left = all reactants, right = all products); vertical axis = Gibbs free energy $G$. The blue curve is the energy landscape; the green dot marks the lowest point, where the slope is flat — that flat spot is $\Delta G=0$ = equilibrium.

See Gibbs Free Energy and Spontaneity for the full hill story.

---

Step 3 — Where the reaction stops: ΔG = ΔG° + RT ln Q

WHAT. As the reaction proceeds, the current mix of products and reactants is measured by the ==reaction quotient $Q$== (same recipe as $K$ from Step 1 — products over reactants, each raised to its stoichiometric power — but computed at any moment, not just at the end). The energy still available is:

$\Delta G=\underset{\begin{array}{c}\text{fixed starting}\\ \text{energy price}\end{array}}{\underbrace{\Delta G°}}+\underset{\begin{array}{c}\text{thermal}\\ \text{energy scale}\end{array}}{\underbrace{RT}}\underset{\begin{array}{c}\text{"how far}\\ \text{along" penalty}\end{array}}{\underbrace{\ln Q}}$

Term by term, right where each symbol sits:

• $\Delta G°$ — the energy the reaction would release starting from standard conditions. A constant for this reaction.
• $R$ — the gas constant, $8.314{\text{J mol}}^{-1}{\text{K}}^{-1}$; it turns temperature into an energy.
• $T$ — absolute temperature in Kelvin (never °C here).
• $\ln Q$ — the natural logarithm of the current product/reactant ratio. As products pile up, $Q$ rises, $\ln Q$ rises, and it eats away at the leftover energy.

WHY $\ln$ and not just $Q$? Because entropy (mixing energy) grows with the logarithm of a ratio, not the ratio itself. Doubling the concentration doesn't double the driving force — it adds a fixed chunk. The log is the natural bookkeeping for "how many ways can molecules arrange."

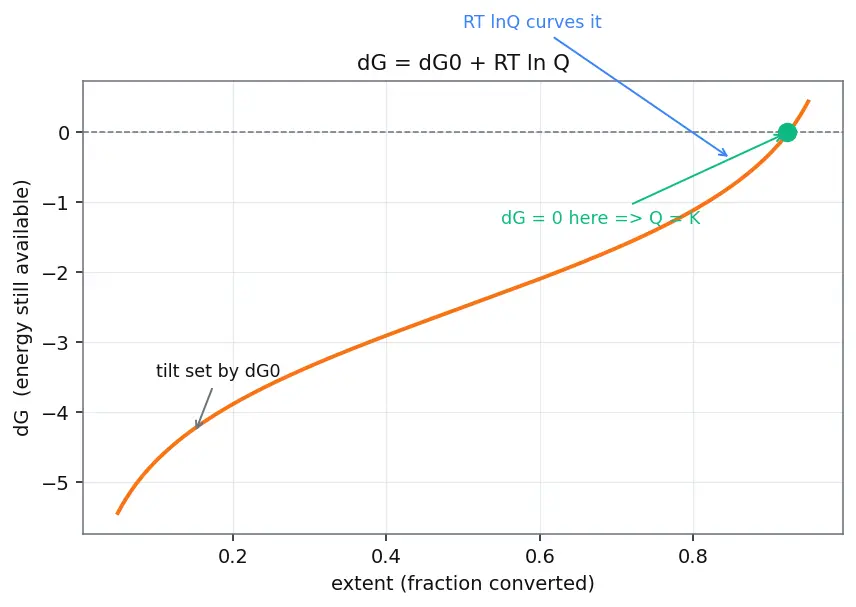

PICTURE. The hill from Step 2 redrawn: height = $\Delta G$, horizontal axis = "extent of reaction." $\Delta G°$ sets the overall tilt; the $RT\ln Q$ term curves the path so it flattens at the bottom.

How to read it: horizontal axis = fraction of reactants converted; vertical axis = the leftover energy $\Delta G$. The orange curve dips and crosses zero at the green dot — where $\Delta G=0$, meaning the current mix $Q$ has become the final mix $K$. The dashed grey line marks $\Delta G=0$.

---

Step 4 — Freeze it at the valley floor: ΔG° = −RT ln K

WHAT. At the valley floor two things are true at once: $\Delta G=0$ (flat) and $Q$ has reached its final value $K$. Substitute both:

$0=\Delta G°+RT\ln K⟹\boxed{\Delta G°=-RT\ln K}(1)$

Term by term:

• The $0$ on the left is the flat slope at equilibrium.
• $Q\to K$ because "the current mix" is now "the final mix."
• Moving $RT\ln K$ across the equals sign flips its sign → the minus.

WHY. This is our FIRST bridge: it expresses the whole reaction's energy price purely in terms of $K$. If $K>1$, $\ln K>0$, so $\Delta G°<0$ (downhill, products win). If $K<1$, $\ln K<0$, so $\Delta G°>0$ (uphill). The sign of $\Delta G°$ and the size of $K$ are locked together.

PICTURE. A number line for $\ln K$: to the right of zero ($K>1$) the arrow points "downhill / products"; to the left ($K<1$) it points "uphill / reactants"; dead centre ($K=1$) is a balanced seesaw.

How to read it: the horizontal axis is $\ln K$. Zero (grey tick) means $K=1$, a perfectly balanced reaction. The green arrow to the right is $\ln K>0$ ($K>1$, products favoured); the red arrow to the left is $\ln K<0$ ($K<1$, reactants favoured). The sign of $\Delta G°$ flips as you cross the centre.

---

Step 5 — The electrical side: ΔG° = −nFE°

WHAT. Now the other costume. Electrical work = charge moved × voltage push. In one round of the reaction:

• $n$ = number of electrons transferred per reaction unit (a pure count: 1, 2, 3...).
• $F$ = the Faraday constant, $96,485$ coulombs per mole of electrons — the charge on one mole of electrons. (See Faraday's Laws of Electrolysis.)
• So $nF$ = total charge (in coulombs) shoved through the circuit.
• $E°$ = volts = joules per coulomb.

Multiply charge by voltage to get energy, and the maximum useful energy a cell delivers equals its free-energy drop:

$\boxed{\Delta G°=-nFE°}(2)$

Term by term:

• $n$ — the electron headcount from the balanced half-reactions.
• $F$ — converts "moles of electrons" into "coulombs of charge."
• $E°$ — converts "coulombs" into "joules" (since volts = J/C).
• The minus sign: work done by the cell on the outside world lowers the system's energy, so a spontaneous cell ($E°>0$) gives a negative $\Delta G°$.

WHY negative? A cell that pushes (positive $E°$) is releasing energy — it should have $\Delta G°<0$. The minus sign enforces that agreement. This is the electrochemistry↔thermodynamics dictionary; more in Thermodynamics of Electrochemical Cells.

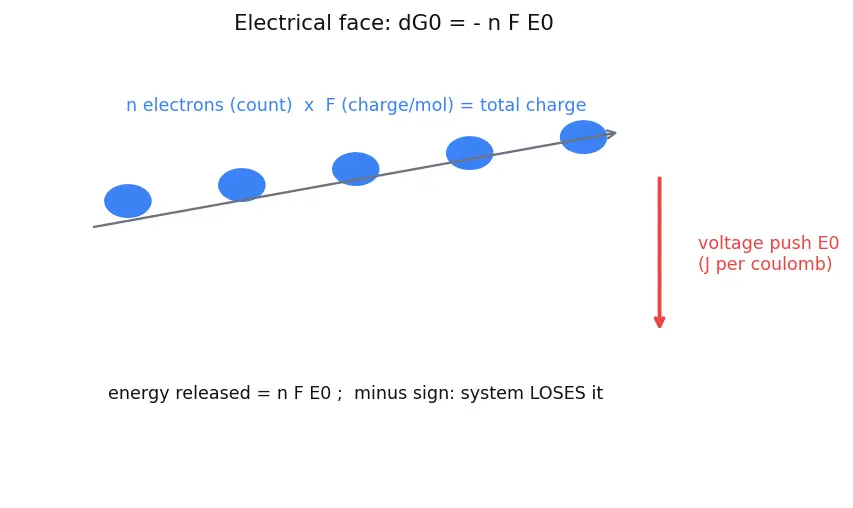

PICTURE. A conveyor belt: $n$ electrons (blue dots) ride up through a voltage drop $E°$; the "energy released" bucket fills by $nFE°$; the negative sign is a downward arrow labelled "system loses this energy."

How to read it: the blue dots are the $n$ moles of electrons; multiplying their count by $F$ gives total charge (top blue label). The red downward arrow is the voltage push $E°$ (joules per coulomb). Charge times voltage = $nFE°$ of energy leaving the system, hence the minus sign in the boxed equation below.

---

Step 6 — Two expressions, one ΔG°: set them equal

WHAT. Equations (1) and (2) both equal the SAME $\Delta G°$. So they equal each other:

$-RT\ln K=-nFE°$

Cancel the minus signs on both sides, then divide both sides by $RT$:

$RT\ln K=nFE°⟹\boxed{\ln K=\frac{nFE°}{RT}}$

Reading the finished bridge, term by term:

• Numerator $nFE°$ = total electrical energy the cell can deliver (bigger push, more electrons ⇒ larger $\ln K$).
• Denominator $RT$ = the thermal jiggle energy that randomises molecules and fights ordering.
• The ratio: driving energy ÷ thermal energy. When the cell's push massively out-muscles thermal noise, $\ln K$ is huge and $K$ is astronomical.

WHY this is the goal. We started with a voltmeter reading and ended holding $K$ — no beakers, no waiting for equilibrium. One measurement predicts the entire final composition.

PICTURE. Two puzzle pieces — the "$-RT\ln K$" piece and the "$-nFE°$" piece — snapping into the same $\Delta G°$ slot, then rearranging into the boxed result.

How to read it: the green box (chemistry face, $-RT\ln K$) and the blue box (electrical face, $-nFE°$) both point down into the same middle line because both equal $\Delta G°$. Setting them equal and dividing by $RT$ gives the orange result box at the bottom — the target formula.

---

Step 7 — The three cases: sign of E° decides everything

WHAT. Because $nF/RT$ is a fixed positive number, the sign of $E°$ alone fixes whether $\ln K$ is positive, zero, or negative:

$E°$	$\ln K$	$K$	meaning
$>0$	$>0$	$>1$	products favoured — runs forward
$=0$	$=0$	$=1$	perfectly balanced — no preference
$<0$	$<0$	$<1$	reactants favoured — needs a push

WHY cover all three? Beginners assume every cell "goes." It doesn't. A negative $E°$ (Example 3 below) gives $K<1$: the reaction barely proceeds. The formula handles all signs identically — you must not drop the minus when $E°<0$. This mirrors Le Chatelier's Principle: the reaction settles wherever energy is balanced.

PICTURE. Three cells side by side. Left (green, $E°>0$): products beaker overflowing. Middle (gray, $E°=0$): equal beakers, seesaw level. Right (red, $E°<0$): reactants beaker still full.

How to read it: three mini-cells, one per sign of $E°$. In each, the left beaker is products (green) and the right is reactants (blue); their relative heights show the equilibrium mix. Green panel ($E°>0$): products dominate, $K>1$. Grey panel ($E°=0$): equal, $K=1$. Red panel ($E°<0$): reactants dominate, $K<1$.

---

Step 8 — The 25 °C shortcut and the two worked checks

WHAT. At $T=298.15\text{K}$ everything in $nF/RT$ except $n$ and $E°$ is a constant. Compute it once:

$\ln K=\frac{nFE°}{RT}=\frac{n(96485)E°}{(8.314)(298.15)}=38.92nE°$

Convert $\ln$ to ${\log }_{10}$ by dividing by $2.303$:

${\log }_{10}K=\frac{38.92}{2.303}nE°=16.90nE°\approx \frac{nE°}{0.0592}(E°\text{ in volts})$

The $0.0592$ is just $2.303RT/F$ at 298 K — the same constant you meet in the Nernst Equation.

Check A (Silver–Zinc, $n=2$, $E°=1.56$ V): $\ln K=\frac{2(96485)(1.56)}{(8.314)(298.15)}=121.4\Rightarrow K=e^{121.4}\approx 10^{52.7}$ Enormous $K$ — reaction runs essentially to completion.

Check B (unfavourable, $n=1$, $E°=-0.03$ V): ${\log }_{10}K=\frac{(1)(-0.03)}{0.0592}=-0.507\Rightarrow K=10^{-0.507}\approx 0.31$ $K<1$: reactants dominate — exactly as Step 7's negative-$E°$ column predicted.

WHY show both signs? To prove the machine works at the extremes: a wildly favourable case and a barely-uphill case, using the same one formula.

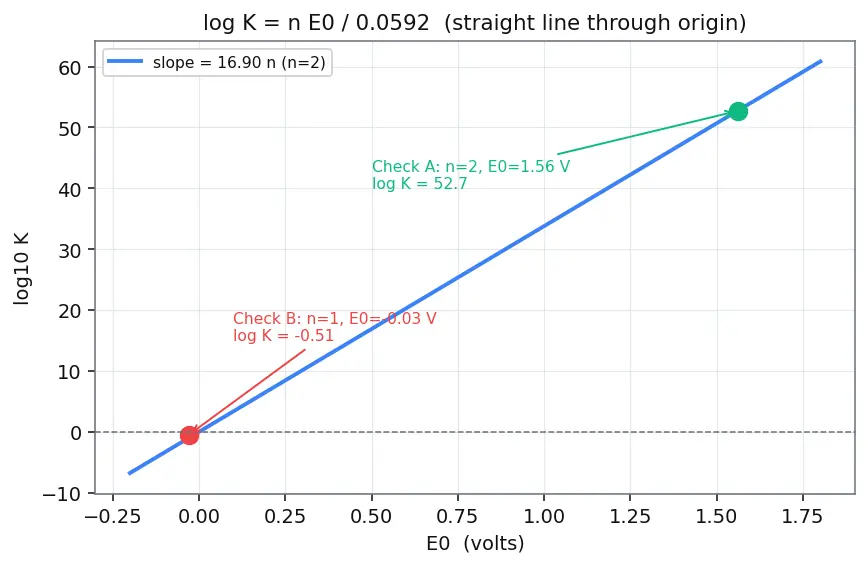

PICTURE. A $\log K$ vs $E°$ line (straight, slope $16.90n$) with Check A plotted far top-right and Check B just below zero.

How to read it: horizontal axis = $E°$ in volts; vertical axis = ${\log }_{10}K$. The blue line is $\log K=16.90nE°$ (a straight line through the origin, slope set by $n$). The green dot far top-right is Check A ($\log K\approx 52.7$); the red dot just below the dashed zero line is Check B ($\log K\approx -0.51$).

---

The one-picture summary

Everything collapses into a single flow: the shared energy $\Delta G°$ has two faces — a chemistry face ($-RT\ln K$) and an electrical face ($-nFE°$) — and gluing them gives $\ln K=nFE°/RT$.

How to read it: read top to bottom. The single shared energy $\Delta G°$ (orange, top) splits into two boxes — the green chemistry face $-RT\ln K$ and the blue electrical face $-nFE°$. Because both equal $\Delta G°$, the four arrows funnel into the red result box: $\ln K=nFE°/RT$.

Recall Feynman retelling (say it out loud)

A reaction is like a ball on a hill; the height still left to fall is its free energy $\Delta G$. When the ball reaches the flat valley floor, nothing is left to fall — that's equilibrium, and the shape of where it settled is the number $K$ (products over reactants, each raised to its balancing number). Now, that same "energy to fall" can be paid out as electricity: shove $n$ electrons (each carrying charge $F$) through a voltage push $E°$, and you get out exactly $nFE°$ of energy. So the chemistry way of measuring the drop, $-RT\ln K$, and the electrical way, $-nFE°$, must be the same drop. Set them equal, cancel the minus signs, divide by $RT$, and out pops $\ln K=nFE°/RT$. The push divided by the thermal jiggle tells you how lopsided the final mixture is: strong push beats jiggle ⇒ giant $K$ ⇒ nearly all products; weak or backward push ⇒ tiny $K$ ⇒ mostly reactants.

Recall Self-test

Why must $\Delta G°$ appear in BOTH the chemistry and electrical equations? ::: Because it's the same stored energy of the reaction, just measured two ways — that shared value is what lets us equate the expressions and cancel it. If you double $n$ (electrons transferred) with $E°$ fixed, what happens to $K$? ::: $\ln K$ doubles, so $K$ gets squared. A cell reads $E°=-0.03$ V, $n=1$. Is $K$ bigger or smaller than 1? ::: Smaller — about $0.31$ — reactants favoured.
