Foundations — Equilibrium constant from E° - ln K = nFE° - RT

Before you can trust the headline formula $\ln K=\frac{nF{E}^{\circ }}{RT}$, you must be able to read every letter in it out loud and see what it means. Below we build each symbol from nothing, in an order where each one leans on the one before. Nothing is assumed.

0. The scene: a reaction that trades electrons

A redox reaction is one where electrons physically hop from one chemical to another. One species loses electrons (gets oxidised), another gains them (gets reduced).

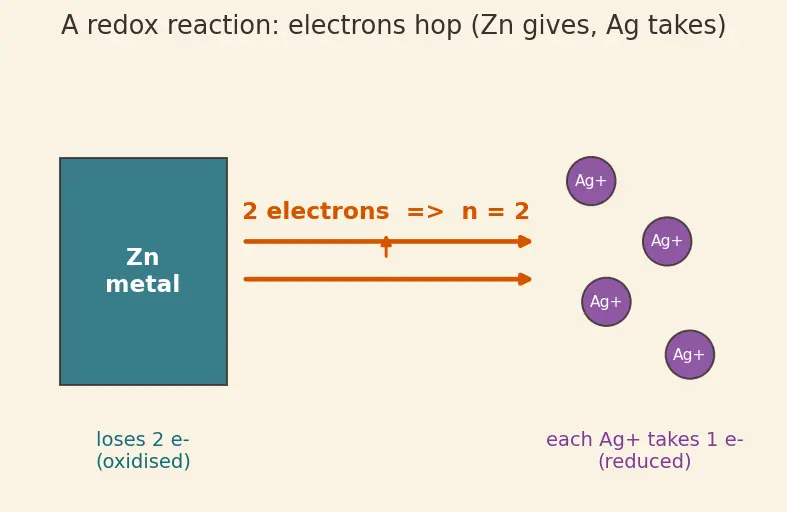

Look at the figure. The zinc metal (left) is dropping electrons; the silver ions (right) are grabbing them. If we force those electrons to travel through a wire instead of jumping directly, we get an electric current — that is a battery. Everything in this topic is about that one picture.

1. $n$ — how many electrons make the trip

$n$ is simply the number of moles of electrons transferred each time the balanced reaction happens once.

The picture: in the figure above, each silver ion ${\text{Ag}}^{+}$ needs exactly one electron to become silver metal. Two silver ions therefore need two electrons — and one zinc atom conveniently hands over exactly two. So here $n=2$.

Why the topic needs it: voltage tells you the push per electron. To get the total energy you must know how many electrons you pushed. $n$ is that count. Forget it and you compute the wrong reaction.

2. Charge, the coulomb, and $F$ — turning "moles of electrons" into "amount of charge"

Electrons carry electric charge, measured in coulombs (C). One electron carries a tiny charge; but chemists work in moles (one mole $=6.022\times 10^{23}$ things). The charge on one whole mole of electrons has a name: the Faraday constant $F$.

$F\approx 96,485\text{C/mol}$

The picture: imagine a bucket that holds exactly one mole of electrons. Weigh out that bucket's charge and you get 96,485 coulombs. $F$ is the conversion factor "moles of electrons → coulombs of charge."

Why the topic needs it: the meter measures energy per coulomb (voltage). To turn that into energy per mole of reaction, we multiply by coulombs per mole $=nF$. So $nF$ is the total charge shoved through the circuit each time the reaction runs.

3. $E^{\circ }$ — the standard cell potential (the "push")

Voltage (potential difference), symbol $E$, measured in volts (V), answers: how much energy does each coulomb of charge carry as it moves? One volt means one joule of energy per coulomb.

$1\text{V}=1\text{J/C}$

The little superscript circle in $E^{\circ }$ means standard conditions: every dissolved species at $1\text{M}$, every gas at $1\text{bar}$, temperature $25^{\circ }\text{C}$. It is a fixed, agreed-upon reference — like measuring heights from sea level.

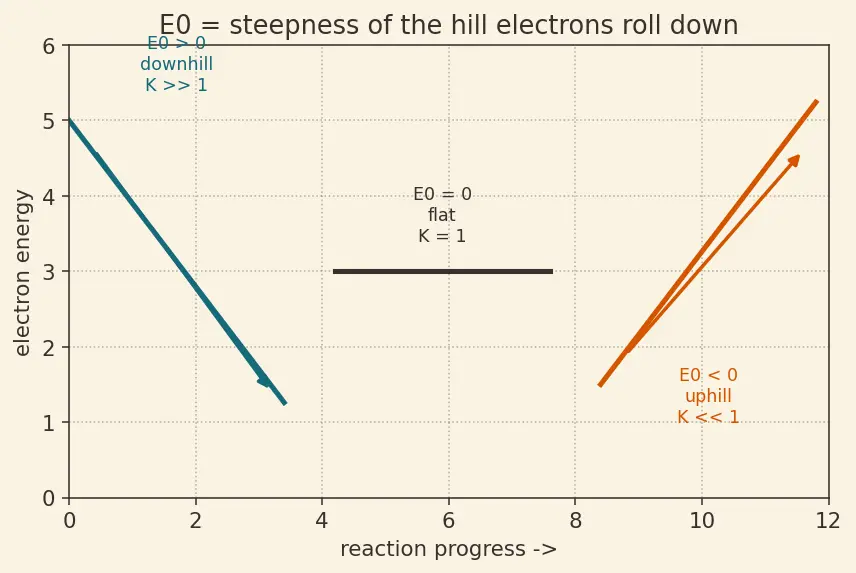

The picture: think of $E^{\circ }$ as the steepness of a hill the electrons roll down. A tall, steep hill (large positive $E^{\circ }$) pushes electrons hard; a flat field ($E^{\circ }=0$) gives no push; an uphill slope (negative $E^{\circ }$) means the electrons would have to be dragged up — the reaction runs backwards on its own.

Why the topic needs it: $E^{\circ }$ is the measurable thing. The whole point is to convert this voltage into a prediction about equilibrium.

4. Energy: joules, and $\Delta G^{\circ }$ — the master accountant

Energy is measured in joules (J). The single quantity that decides whether a reaction happens on its own is the Gibbs free energy change, written $\Delta G$ (the $\Delta$, "delta", just means "change in").

$\Delta G<0\Rightarrow \text{spontaneous forward},\Delta G=0\Rightarrow \text{equilibrium},\Delta G>0\Rightarrow \text{runs backward}.$

$\Delta G^{\circ }$ is that energy change measured under the same standard conditions as $E^{\circ }$.

The picture: $\Delta G$ is the height difference between where the reaction starts and where it ends on the energy hill. Downhill ($\Delta G<0$) releases energy; the bottom of the valley is equilibrium.

Why the topic needs it: $\Delta G^{\circ }$ is the hidden middle-man. Voltage and equilibrium don't talk to each other directly — they both talk to $\Delta G^{\circ }$. That is the entire trick of the derivation:

$\underset{\text{electricity side}}{\underbrace{\Delta G^{\circ }=-nF{E}^{\circ }}}\text{and}\underset{\text{equilibrium side}}{\underbrace{\Delta G^{\circ }=-RT\ln K}}$

Set the two equal and $\Delta G^{\circ }$ cancels — leaving the headline formula. See Gibbs Free Energy and Spontaneity and Thermodynamics of Electrochemical Cells for the full story.

5. $R$ and $T$ — how much the reaction "wiggles"

$T$ is the absolute temperature in kelvin (K). Kelvin starts at absolute zero, so you convert from Celsius by adding 273.15: $25^{\circ }\text{C}=298.15\text{K}$. Temperature must never be negative here.

$R$ is the gas constant, $R=8.314\text{J/(mol⋅K)}$. It is a fixed number that turns temperature into an energy per mole: the product $RT$ is the amount of random thermal jiggling energy available per mole at temperature $T$.

The picture: $RT$ is the size of the random kicks that molecules feel. If the reaction's energy prize ($nF{E}^{\circ }$) is huge compared to these kicks ($RT$), the reaction goes almost all the way ($K$ enormous). If the prize is tiny compared to the kicks, thermal noise scrambles things and products and reactants end up mixed ($K\approx 1$).

Why the topic needs it: $RT$ is the yardstick. $\ln K=\frac{nF{E}^{\circ }}{RT}$ literally reads "energy prize divided by thermal kick size."

6. $Q$ and $K$ — where the reaction is versus where it stops

The reaction quotient $Q$ is the products-over-reactants ratio right now, mid-reaction. The equilibrium constant $K$ is that same ratio once the reaction stops changing — it is $Q$ frozen at the finish line.

$K=\frac{[\text{products}]}{[\text{reactants}]}{|}_{\text{at equilibrium}}$

(each concentration raised to its stoichiometric coefficient).

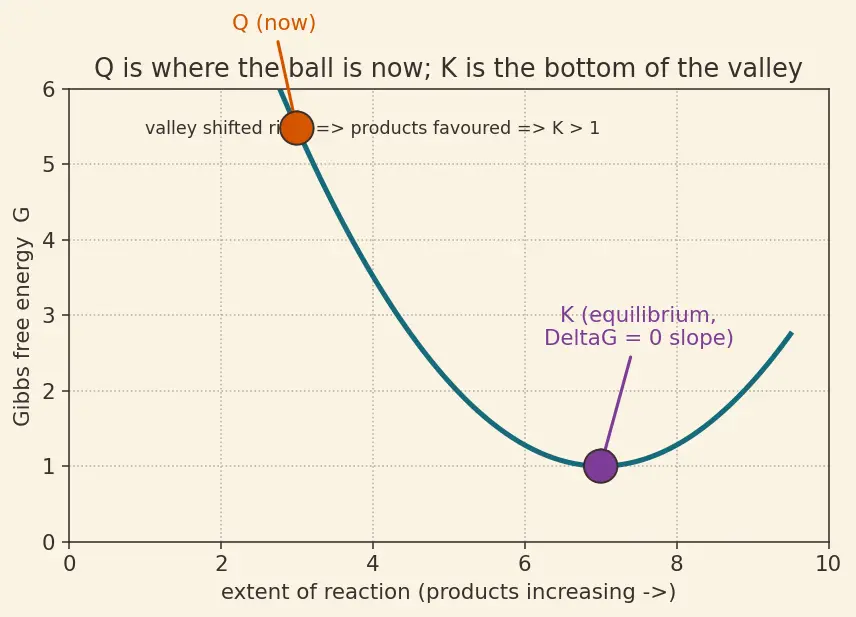

The picture: the graph shows $\Delta G$ as a valley. The reaction is a ball rolling downhill; $Q$ is where the ball is now; the bottom of the valley is $K$. A steep valley shifted far to the right (products) means big $K$; a valley near the middle means $K\approx 1$; tilted the other way means small $K$.

Why the topic needs it: $K$ is the answer we want to predict. Its size tells you whether the reaction essentially finishes ($K\gg 1$), barely moves ($K\ll 1$), or lands in the middle ($K\approx 1$). This is really just Le Chatelier's Principle read as a single number.

7. $\ln$, ${\log }_{10}$, and $e$ — the language of "how many zeros"

Equilibrium constants swing from $10^{-50}$ to $10^{+50}$. Writing those out is madness, so we use logarithms, which count the zeros.

• ${\log }_{10}x$ answers: "10 to what power gives $x$?" So ${\log }_{10}(1000)=3$.
• $\ln x$ is the same idea but with the special number $e\approx 2.718$ instead of 10. It answers "$e$ to what power gives $x$?"
• $e^y$ undoes $\ln$: if $\ln K=y$ then $K=e^y$.

The picture: think of a ruler where each step multiplies by 10 (or by $e$). Logs measure distance along that stretched ruler instead of the raw huge number.

Why the topic needs it: the raw formula gives $\ln K$, a modest number like 121. To read it as a chemist you convert to ${\log }_{10}$ using $\ln x=2.303\times {\log }_{10}x$, so $K$ pops out as a clean power of ten. The same log-of-a-rate idea appears in the Arrhenius Equation.

8. Putting the letters in order — the prerequisite map

Read it top to bottom: electrons ($n$) and voltage ($E^{\circ }$) both feed into the middle-man energy $\Delta G^{\circ }$; the thermal yardstick $RT$ and the ratio $K$ feed the other side of $\Delta G^{\circ }$; the two sides meet and give the headline formula.

9. Sanity check — every case of the sign

Notice the two minus signs in $-nF{E}^{\circ }$ and $-RT\ln K$ cancel when you equate them — that is why positive $E^{\circ }$ ends up meaning positive $\ln K$ (big $K$), not the reverse. Track the signs and no case can surprise you.

Equipment checklist

Cover the right side and see if you can answer each before revealing.
