This page builds the exclusion rule for heterogeneous equilibria from absolute zero. We will not assume you know what "activity" is, what a "ratio to a standard state" means, or why a constant can be swallowed. We earn every symbol with a picture first.

---

Step 1 — What "concentration" secretly means

WHAT. Before we can say "the solid's concentration doesn't change," we need to be honest about what concentration even is. Concentration means how tightly packed the particles are — how many moles of stuff sit inside one litre of space.

WHY this and not "amount". Equilibrium constants compare how crowded each species is, not how much of it there is in total. A drop of water and an ocean have the same crowdedness (same density), even though the ocean has vastly more molecules. That distinction is the whole secret of this page, so we pin it down at the start.

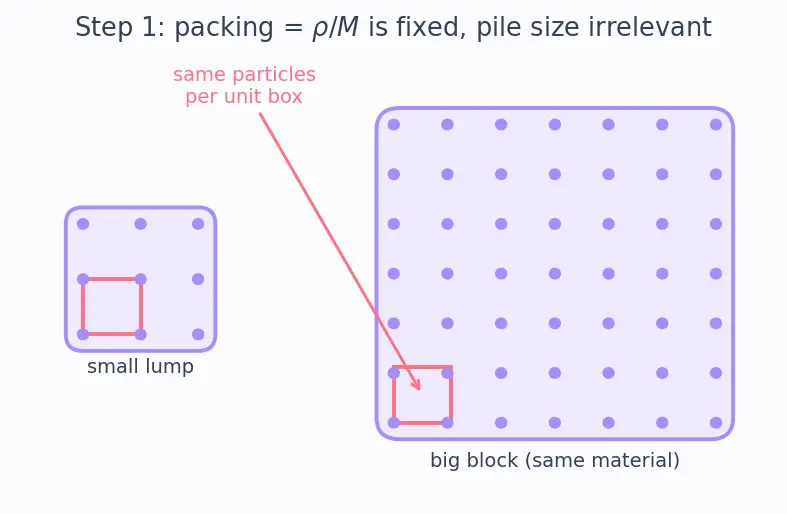

PICTURE. Look at the figure. On the left, a tiny cube of solid; on the right, a huge block of the same solid. Count particles per little box — it is identical. The packing is a property of the material, not of the pile size.

---

Step 2 — The honest currency of equilibrium: activity

WHAT. The true equilibrium constant is not built from raw concentrations. It is built from a cleaned-up quantity called activity, written $a$. Activity is just "concentration, but measured as a fraction of a chosen reference."

WHY we need it. Compare two heights: "3 metres" is a raw number, but "3 metres out of a 6 metre wall = one half" is a ratio — dimensionless, comparable to anything. Equilibrium constants multiply and divide many species together; to keep them consistent, each species must be a plain number with no units. Activity is that plain number.

PICTURE. The figure shows a measuring stick. The real level of a species is the coloured fill; the reference level (the "standard state") is the top mark. Activity is the fraction filled.

---

Step 3 — Choosing the reference cleverly for a pure solid

WHAT. For a gas, the reference $c^{\circ }$ is 1 bar of pressure. For a dissolved ion, it is 1 mole per litre. But for a pure solid or pure liquid, chemists make a special, clever choice: the reference is the pure substance itself.

WHY this choice. We want a reference that is convenient and always available. For a lump of solid CaCO₃, the most natural "yardstick" is... a lump of pure solid CaCO₃. Choosing the reference to be the very same material we are measuring is legal (a standard state is just a chosen zero-point) and — as we are about to see — enormously simplifying.

PICTURE. The measuring stick from Step 2 returns, but now the "top mark" (reference) is drawn at exactly the level of the real solid, because they are the same material.

---

Step 4 — The "1" appears

WHAT. Plug Step 1 into Step 3. The top of the fraction is $\rho /M$. The bottom is also $\rho /M$ — same material, same density, same molar mass. Identical number over identical number.

WHY it must be 1. A number divided by itself is 1. There is no wiggle room. This is the mathematical heart of the whole rule.

PICTURE. The figure shows the fraction with $\rho /M$ written top and bottom, the two cancelling with a diagonal strike, leaving a big pastel 1.

$a_{\text{pure solid/liquid}}=\frac{\rho /M}{\rho /M}=1$

• $\rho /M$ (top) = actual packing of the solid.
• $\rho /M$ (bottom) = reference packing (same material).
• The two are the same fixed quantity, so their ratio is exactly 1, always, at a given $T$ and $P$.

---

Step 5 — Feeding the 1's into a real reaction

WHAT. Take the flagship reaction, limestone decomposing: ${\text{CaCO}}_3(s)\rightleftharpoons \text{CaO}(s)+{\text{CO}}_2(g)$ Write the full thermodynamic constant with activities, then substitute what we learned.

WHY the full form first. We must show that solids were never special-cased by hand. They are in the formula like everyone else — they simply evaluate to 1 and become invisible.

PICTURE. The figure shows three tiles — $a_{\text{CaO}}$, $a_{{\text{CO}}_2}$, $a_{{\text{CaCO}}_3}$ — with the two solid tiles stamped "= 1" and fading out, leaving only the gas tile glowing.

$K=\frac{a_{\text{CaO}}\cdot a_{{\text{CO}}_2}}{a_{{\text{CaCO}}_3}}=\frac{1\cdot a_{{\text{CO}}_2}}{1}=a_{{\text{CO}}_2}$

• $a_{\text{CaO}}=1$ — pure solid product, vanishes from the top.
• $a_{{\text{CaCO}}_3}=1$ — pure solid reactant, vanishes from the bottom.
• $a_{{\text{CO}}_2}$ = the only variable left. For a gas, $a_{{\text{CO}}_2}\approx P_{{\text{CO}}_2}/P^{\circ }$, so:

$\boxed{K_p=P_{{\text{CO}}_2}}$

The equilibrium is fully described by one number: the pressure of carbon dioxide. See Limestone Caves and Stalactites and Cement Production for where this exact result runs the real world.

---

Step 6 — The edge case: what if the solid runs out?

WHAT. Everything above assumed some solid is present. What happens if you start with so little CaCO₃ that it all decomposes?

WHY this matters. Our "$a=1$" argument needed a pure solid phase to exist — you cannot measure the packing of a pile that isn't there. If the last grain vanishes, the reasoning collapses.

PICTURE. Two flasks. Left: solid still present, system sits exactly on the equilibrium line, $P_{{\text{CO}}_2}=K_p$. Right: solid all gone, $P_{{\text{CO}}_2}$ is now free to be anything below $K_p$ — the system is off the line and no longer a heterogeneous equilibrium.

---

Step 7 — The other edge case: liquid water

WHAT. Water gets excluded too — but only when it is a pure liquid or a solvent in vast excess, so that adding or removing a little leaves its packing unchanged ($a_{{\text{H}}_2\text{O}}\approx 1$).

WHY it is not automatic. People memorise "always drop water." That is wrong. If water is a minority reactant whose amount genuinely changes the mixture, its activity varies and it stays in $K$ (see Buffer Solutions (when water matters)).

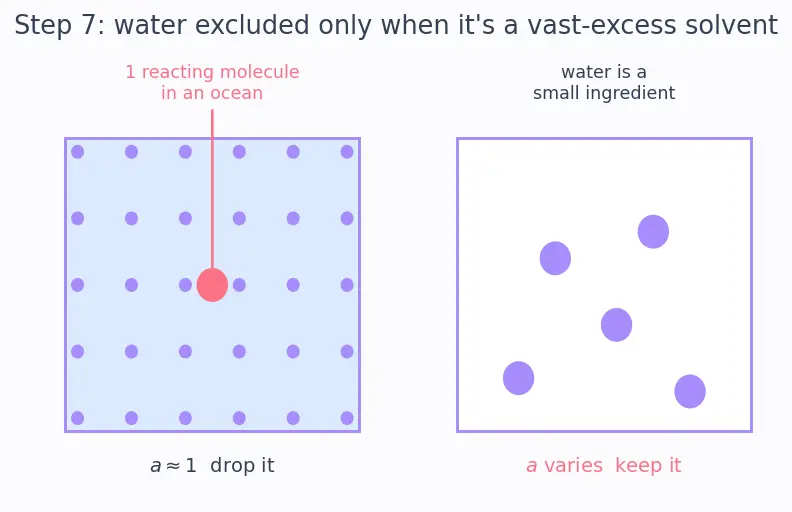

PICTURE. Left: one water molecule reacting among an ocean of solvent — ocean level barely moves, $a\approx 1$, drop it. Right: water as a small ingredient in a nearly-dry mixture — its level swings, keep it.

Include-vs-exclude, at a glance:

---

The one-picture summary

The whole derivation on a single canvas: material packing is fixed ($\rho /M$) → activity is a ratio to a same-material reference → the ratio is $1$ → the $1$'s cancel out of $K$ → only gases and ions survive.

Recall Feynman retelling — say it to a 12-year-old

Imagine a giant, perfectly packed crowd. If you shove ten more people in, the crowdedness doesn't budge — it was maxed out and stays maxed out. A block of solid or a puddle of pure liquid is exactly like that crowd: how tightly its atoms pack is a fixed fact of the material, not of how big the pile is. In chemistry we measure "crowdedness" as a fraction of a chosen yardstick, and for a pure solid we cleverly pick the yardstick to be the same material. A thing divided by itself is 1. So every pure solid or pure liquid quietly contributes a "1" to the equilibrium formula — and multiplying or dividing by 1 changes nothing, so they simply drop out. Only the gases and the dissolved ions, whose crowding really can change, are left to write down. One catch: this trick needs the solid to actually be there. If the last grain dissolves or decomposes away, there is no packing to measure, and the rule stops applying.

Recall Quick self-test

Why is $a=1$ for a pure solid? ::: Its activity is (actual packing $\rho /M$) ÷ (reference packing $\rho /M$), the same number top and bottom, so the ratio is exactly 1. Write $K_p$ for ${\text{CaCO}}_3(s)\rightleftharpoons \text{CaO}(s)+{\text{CO}}_2(g)$. ::: $K_p=P_{{\text{CO}}_2}$ — both solids are 1 and cancel. Does doubling the amount of limestone change $P_{{\text{CO}}_2}$ at equilibrium? ::: No — packing (density) is unchanged, so activity stays 1 and $K_p$ is fixed by temperature only. When is water NOT dropped from $K$? ::: When it is a genuine reactant whose amount changes the mixture, not a pure liquid or vast-excess solvent. What breaks the rule? ::: If all the solid is consumed — no solid phase left means no fixed activity, and the equilibrium equation no longer holds.
