Heterogeneous equilibria — pure solids - liquids excluded: Foundations

Before we can trust that rule, we must earn every symbol the parent note throws at us. We will define each one in plain words, draw the picture it stands for, and say why the topic cannot live without it. Nothing here assumes you have seen chemistry equations before.

1. Phase — the "state of matter" label

The little italic letters in brackets are just tags. When you read $CaCO_{3} (s)$ , say it out loud as "calcium carbonate, the solid." The tag is not decoration — it is the single most important clue for the whole topic, because the exclusion rule looks only at the phase tag to decide who stays and who goes.

Figure — Heterogeneous equilibria — pure solids - liquids excluded

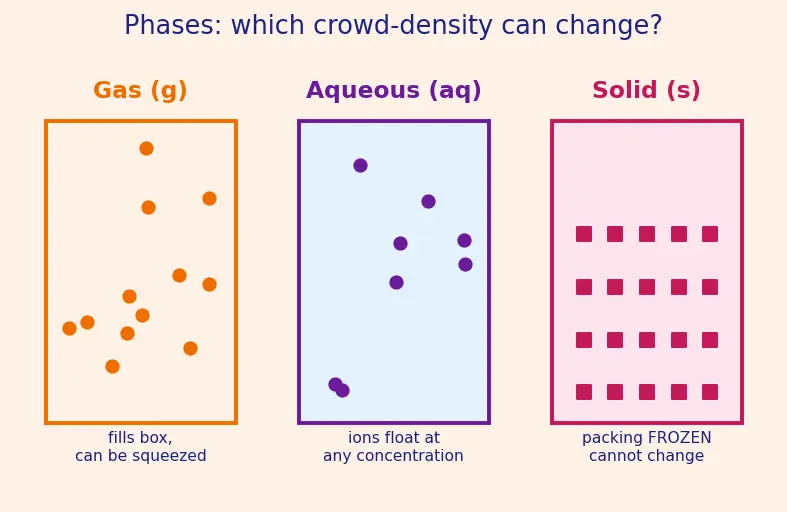

Look at the figure: each beaker holds a different phase. A gas fills its container and can be squeezed (its crowdedness changes). A dissolved ion floats in water at whatever concentration you choose (its crowdedness changes). But the solid at the bottom is a rigid, packed brick — its crowdedness is frozen. Hold onto that last picture; it is the heart of everything.

2. Concentration and the square brackets $[]$

Why "moles"? A mole is just a counting word, like "dozen" but enormous ( $6.02 \times 1 0^{23}$ particles). So $[Ag^{+}] = 2 M$ means "2 moles of silver ions crammed into every litre."

The topic needs $[]$ because the equilibrium score is built entirely out of these crowd-densities.

3. The reversible arrow $⇌$ and equilibrium

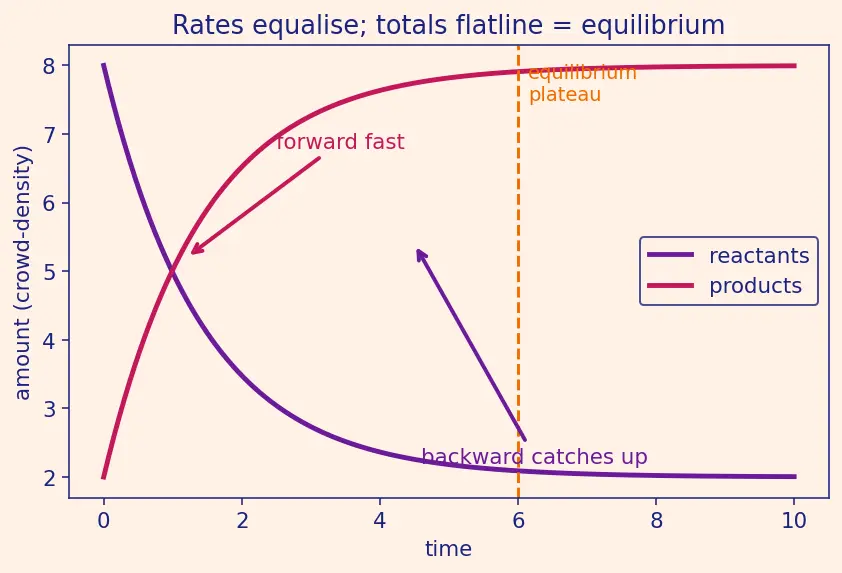

In the figure, watch the two curved arrows. Early on the forward arrow (magenta) is fat and fast, the backward arrow (violet) is thin. As products build up, the backward arrow fattens until the two arrows are equally thick. At that balance point the amounts flatline — that flat plateau is equilibrium. It is dynamic (motion continues) but steady (totals frozen). Every "K" in this topic is measured at that plateau.

4. The equilibrium constant $K$

For a general reaction $a A + b B ⇌ c C + d D$ the constant is $K_{c} = \frac{[ C ] ^{c} [ D ] ^{d}}{[ A ] ^{a} [ B ] ^{b}}$

Why raise to a power? If a reaction needs 3 molecules of $H_{2}$ , then $H_{2}$ 's crowdedness matters three times over — multiplying $[H_{2}]$ by itself three times, i.e. $[H_{2}]^{3}$ . That is what a coefficient-turned-exponent encodes.

The topic exists to answer: when we build this fraction for a mixed-phase reaction, which species do we actually write?

5. Partial pressure $P_{i}$ and $K_{p}$

So for gas-only reactions we build the same fraction but with pressures, and call it $K_{p}$ : $K_{p} = \frac{( P _{products} ) ^{coeff}}{( P _{reactants} ) ^{coeff}}$

You need $P_{i}$ because many heterogeneous reactions (like limestone → CO₂) produce a gas, and pressure is the natural way to weigh a gas.

6. Activity $a_{i}$ — the deepest tool, and WHY we need it

Here is the tool that makes the whole exclusion rule rigorous rather than a memorised trick.

Why invent activity when we already have concentration? Because $K$ must be a clean dimensionless number, and because real crowds behave slightly "non-ideally." Activity is concentration cleaned up and made unitless by dividing by a reference: $a_{i} = γ_{i} \cdot \frac{[ i ]}{c ^{\circ}}$

This is the master key. The true equilibrium constant is a fraction of activities, not concentrations: $K = \frac{\prod a _{products}}{\prod a _{reactants}}$

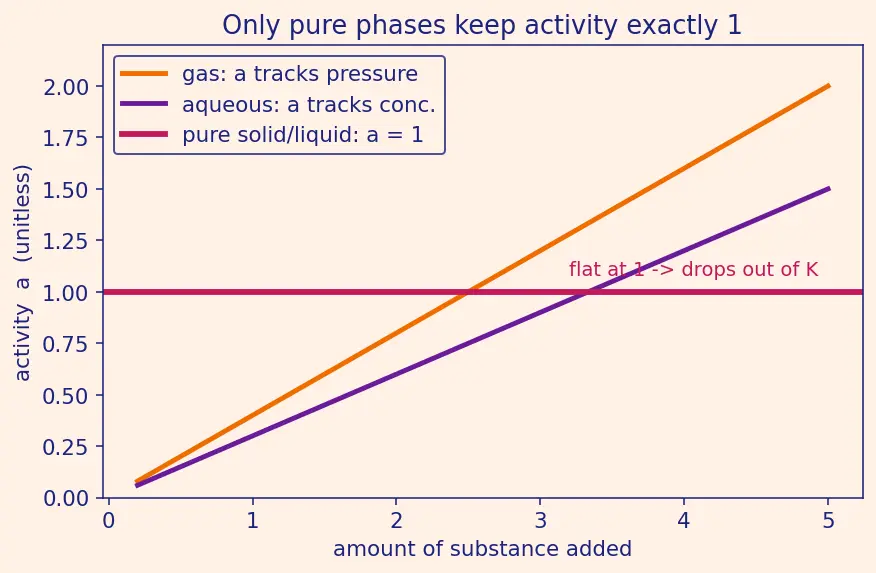

The figure plots activity for three phase-types as you add more of each. The gas and aqueous curves rise (their activity tracks their changing crowdedness). The pure-solid line is dead flat at $a = 1$ : pour in a mountain of solid and its packing density never budges. A flat, constant $1$ is exactly what drops out of a multiplication.

7. Putting the symbols together — a worked read

Every symbol in that last line has now been earned: $K_{p}$ (section 5), $P$ (section 5), the subscript naming the gas, and the reason the two solids vanished (section 6). No mystery survives.

8. How the foundations feed the topic

Read it top to bottom: the phase tag decides everything, concentration and pressure feed both the raw $K$ and the activity idea, and the " $a = 1$ for pure phases" branch is what physically justifies leaving them out.

The activity idea deepens in Activity vs Concentration and Activity Coefficients in Concentrated Solutions.
The general machinery of $K$ lives in Chemical Equilibrium Fundamentals and Equilibrium Constant Expressions.
Where this rule pays off: Solubility Product (Ksp), Metallurgy: Ore Reduction, Cement Production, Limestone Caves and Stalactites.
How equilibria shift: Le Chatelier's Principle and the energy view in Gibbs Free Energy and Equilibrium.

Equipment checklist

Test yourself — cover the right side of each line and answer before revealing.

What does the tag

(s)

(l)

(g)

, or

(a q)

tell you about a species?

Its phase — and thus whether it is kept in

K

(gases, aqueous) or excluded (pure solids, pure liquids).

What does

[X]

mean and in what units?

The concentration (crowd-density) of

X

, in

mol L^{- 1}

(molar, M).

What does the double harpoon

⇌

signify?

A reversible reaction running forward and backward at once.

What is equilibrium in one sentence?

The steady state where forward and backward rates are equal, so concentrations stop changing while particles keep reacting.

How is

K

built from a balanced equation?

Products over reactants, each raised to the power of its coefficient.

What is a partial pressure

P_{i}

The push exerted by gas

i

alone; the gas version of concentration, used in

K_{p}

Write the

K_{p}

–

K_{c}

link and define

Δ n_{g}

K_{p} = K_{c} (R T)^{Δ n_{g}}

, where

Δ n_{g}

= moles of gas products minus moles of gas reactants.

What is activity

a_{i}

and why is it unitless?

Effective crowdedness measured as a ratio to a standard state,

a_{i} = γ_{i} [i] / c^{\circ}

; being a ratio, its units cancel.

Why does a pure solid or liquid have

a = 1

Its reference standard state is itself, so numerator equals denominator; adding more never changes its fixed density-packing.

Because

a = 1

for pure phases, what happens to them in

K

They multiply/divide the fraction by 1 and drop out entirely.

Recall Quick self-quiz

Q: In $AgCl (s) ⇌ Ag^{+} (a q) + Cl^{-} (a q)$ , which species enter $K$ ? ::: Only the aqueous ions: $K_{s p} = [Ag^{+}] [Cl^{-}]$ . The solid AgCl has $a = 1$ and is excluded.
