Reaction quotient Q vs K — direction of shift: Visual walkthrough

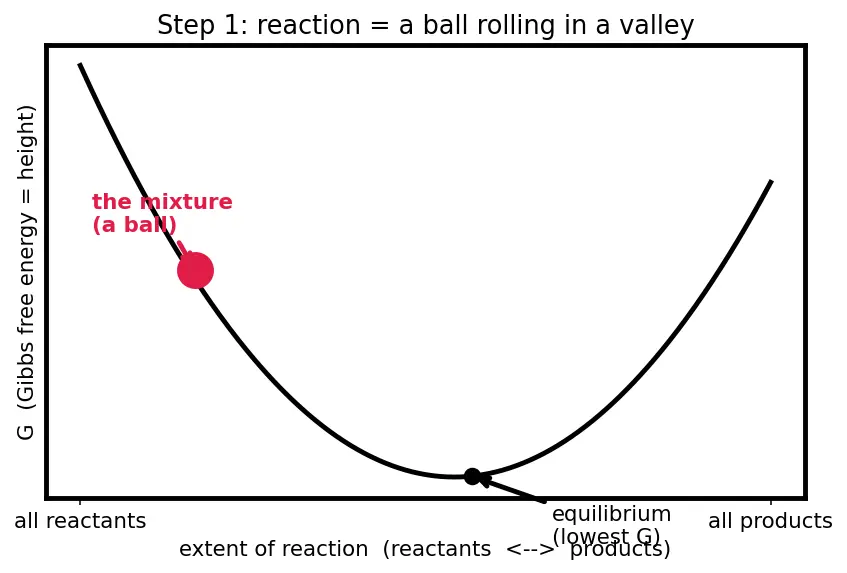

Step 1 — A reaction is a ball rolling in a valley

WHAT. Picture the whole reaction mixture as a single ball sitting somewhere on a curved landscape. The ball's horizontal position tells us "how far the reaction has gone" — all reactants on the far left, all products on the far right. This horizontal axis is called the extent of reaction (just "how much has converted so far").

WHY this picture. Nature always rolls "downhill" — toward lower energy. If we can draw the landscape, the direction of the reaction is just "which way is downhill from where the ball sits." That is the entire secret, and it costs us zero equations.

PICTURE. The height of the ground is the Gibbs free energy $G$ — think of it as the mixture's "stored money" (energy available to do useful work). The bottom of the valley is the lowest $G$ ; that spot is equilibrium. A ball anywhere else will roll toward the bottom.

Figure — Reaction quotient Q vs K — direction of shift

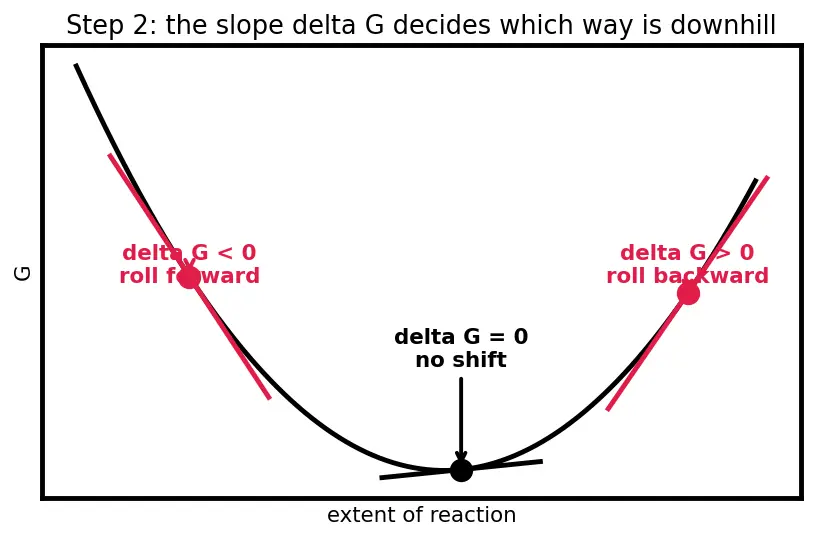

Step 2 — "Downhill" has a name: the slope $Δ G$

WHAT. At the ball's exact spot, the ground has a slope. We give that slope a symbol: $Δ G$ . Read it as "the change in $G$ if the reaction takes one tiny step forward (a little more product)."

WHY a slope and not the height? The ball doesn't care how high up it is in absolute terms — it only cares which way tips downward right here. That is exactly what a slope measures: the direction and steepness of the ground under your feet. So the slope, not the height, decides motion.

PICTURE. Three spots, three slopes:

So the whole problem reduces to: find the sign of $Δ G$ .

Step 3 — The slope has two parts: a fixed tilt plus a "crowding" correction

WHAT. Thermodynamics gives the slope as a sum of two pieces: $Δ G = fixed built-in tilt Δ G^{\circ} + correction for current mixture R T ln Q$

WHY split it this way? One piece is baked into the chemistry itself and never changes at a fixed temperature — the reaction's natural preference. The other piece changes as the mixture changes, because a crowded product side "pushes back." Splitting lets us handle the constant part once and let $Q$ carry all the moment-to-moment change.

Term by term:

$Δ G^{\circ}$ — the "standard" tilt: the slope if everything were at reference amounts (1 mol/L or 1 atm each). A fixed number at fixed $T$ .
$R$ — the gas constant, $8.314 J mol^{- 1} K^{- 1}$ . A positive scaling number that turns "ratios" into "energy."
$T$ — absolute temperature in kelvin; always positive.
$Q$ — the reaction quotient, the current products-over-reactants ratio (defined in the parent). $Q$ small = mostly reactants, $Q$ large = mostly products.
$ln$ — the natural logarithm: it answers "what power do I raise $e \approx 2.718$ to, to get this number?" We use $ln$ because energy adds while ratios multiply, and $ln$ is the tool that turns "multiply" into "add." Also $ln (1) = 0$ , $ln (small) < 0$ , $ln (big) > 0$ — perfectly matching "short of products" vs "excess products."

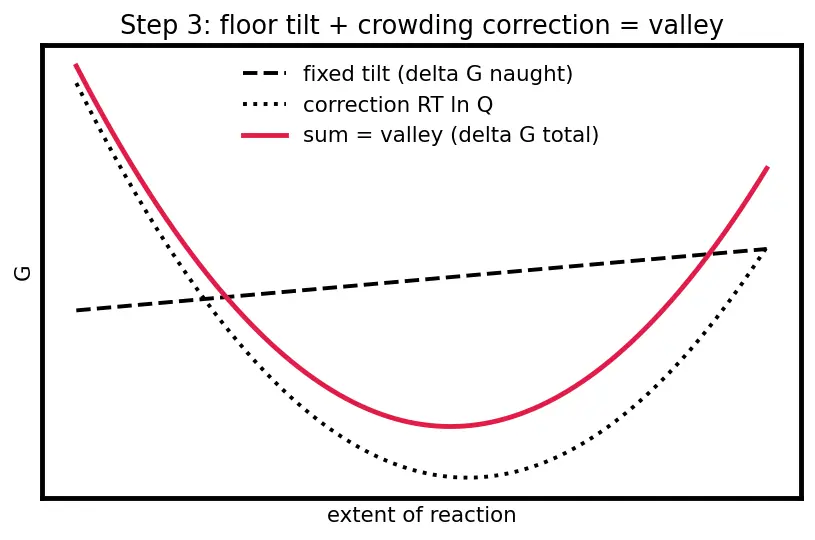

PICTURE. The landscape = a fixed tilted floor ( $Δ G^{\circ}$ ) plus a springy correction ( $R T ln Q$ ) that curves it into a valley.

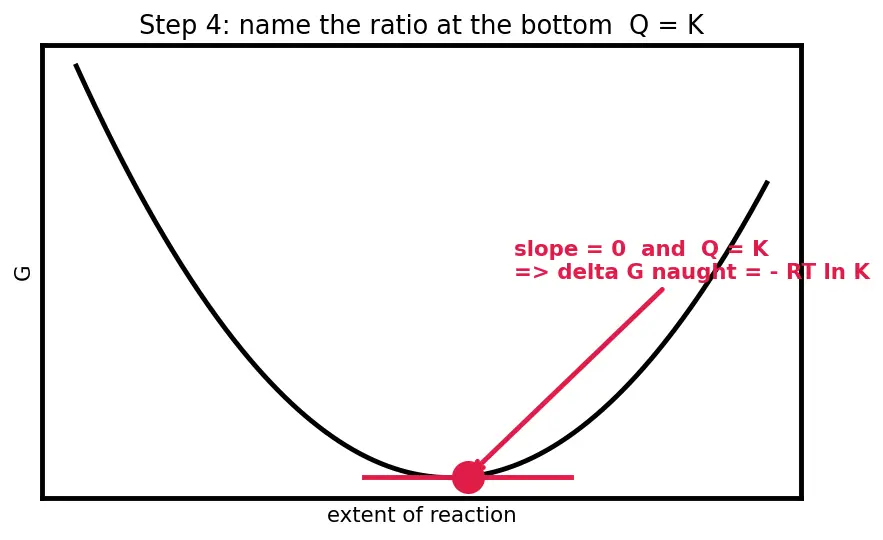

Step 4 — At the valley bottom, name the special ratio $K$

WHAT. The ball stops where the slope is flat: $Δ G = 0$ . Call the value of $Q$ at that exact spot the ==equilibrium constant $K$ == — i.e. $Q = K$ when we're at the bottom.

WHY this pins down $Δ G^{\circ}$ . We now have one known point on the curve (slope $= 0$ , ratio $= K$ ). Plug it into Step 3's equation and the fixed tilt $Δ G^{\circ}$ is forced to a specific value: $0 = Δ G^{\circ} + R T ln K ⟹ Δ G^{\circ} = - R T ln K$ Term by term: setting slope to $0$ and $Q$ to $K$ leaves an equation with only $Δ G^{\circ}$ unknown, so we solve for it. The minus sign appears because we moved $R T ln K$ across the equals sign.

PICTURE. The valley bottom sits at $Q = K$ ; that single anchor point fixes the constant.

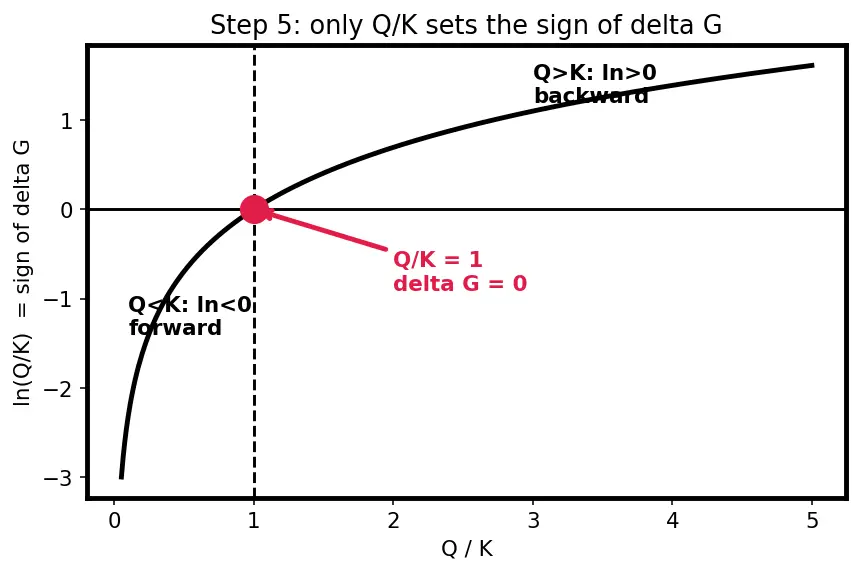

Step 5 — Substitute and the whole thing collapses to one clean law

WHAT. Put $Δ G^{\circ} = - R T ln K$ back into $Δ G = Δ G^{\circ} + R T ln Q$ : $Δ G = - R T ln K + R T ln Q = R T (ln Q - ln K)$

WHY the last simplification. A logarithm law says $ln Q - ln K = ln \frac{Q}{K}$ (subtracting logs = dividing the numbers). This is why we chose $ln$ back in Step 3 — it merges the two terms into a single ratio $Q / K$ , exactly the comparison we wanted.

$Δ G = R T ln \frac{Q}{K}$

Term by term:

$R T$ — always positive, so it cannot flip the sign; it only scales.
$\frac{Q}{K}$ — the "current ratio vs target ratio." This fraction carries all the direction information.
$ln$ of that fraction — negative if $Q < K$ , zero if $Q = K$ , positive if $Q > K$ .

PICTURE. Only the fraction $Q / K$ decides whether the ground tips down, flat, or up.

Formula The three verdicts (all cases covered)

Where is the ball?	$\frac{Q}{K}$	$ln \frac{Q}{K}$	$Δ G$	Rolls
left of bottom (too few products)	$< 1$	$< 0$	$< 0$	forward →
at bottom	$= 1$	$0$	$0$	no shift
right of bottom (too many products)	$> 1$	$> 0$	$> 0$	← backward

This is precisely the parent's rule — but now we see why: it's just "which way is downhill." Same logic drives Le Chatelier's principle.

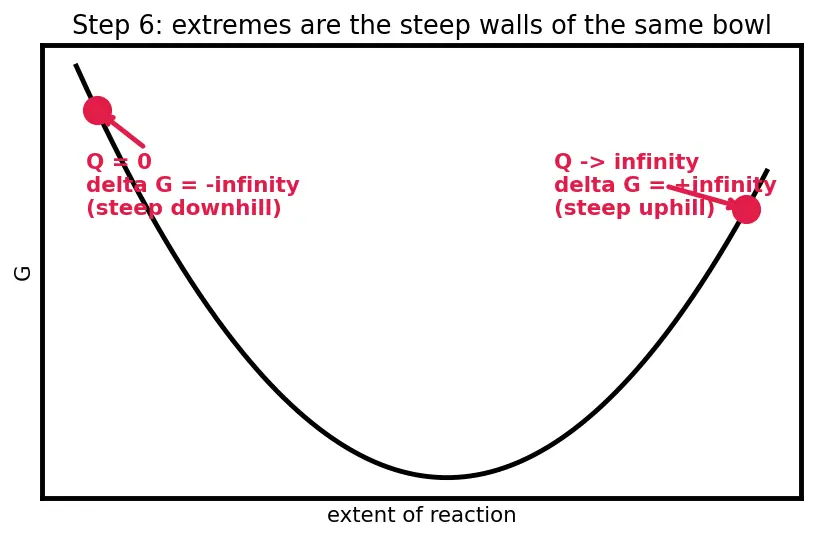

Step 6 — The edge cases: $Q = 0$ , $Q \to \infty$ , and pure solids

WHAT & WHY. A rule you can't push to its extremes isn't understood yet. Let's check the corners.

$Q = 0$ (no products at all). Then $ln (Q / K) = ln 0 = - \infty$ , so $Δ G = - \infty$ : the steepest possible downhill. Makes sense — with zero products the reaction desperately runs forward. The ball is against the far-left wall.
$Q \to \infty$ (no reactants left). $ln (Q / K) \to + \infty$ , so $Δ G \to + \infty$ : steepest uphill. With nothing to make more product, it must run backward. Far-right wall.
A pure solid or liquid in the equation. Its activity is fixed at $1$ , so it contributes a factor of $1$ to $Q$ — it never moves the ratio. We omit it, exactly as in $K$ . (See Activity and why pure solids-liquids are omitted.)
Gases: the identical picture holds using partial pressures — $Q_{p}$ vs $K_{p}$ — via Relation between Kp and Kc. Just compare like with like ( $Q_{c}$ with $K_{c}$ , $Q_{p}$ with $K_{p}$ ).

PICTURE. The valley walls climb steeply at both ends: the extremes are just the far edges of the same bowl.

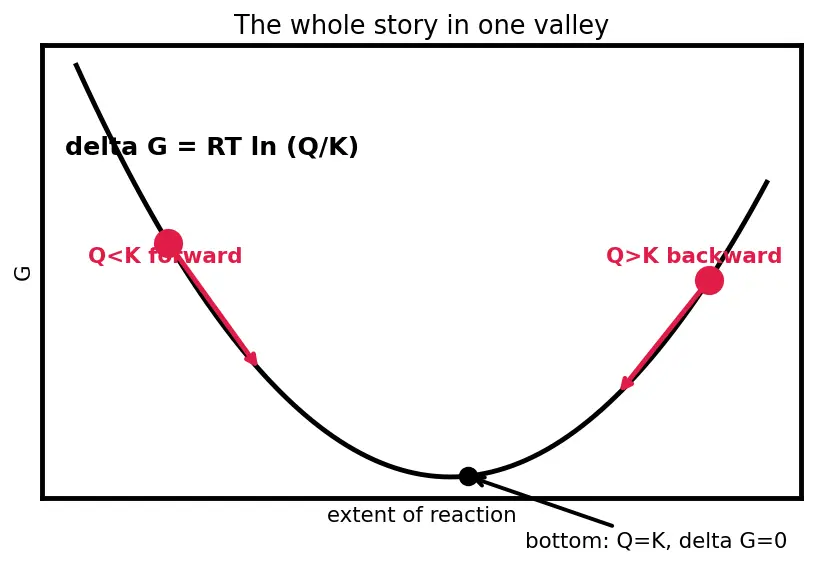

The one-picture summary

Everything above is one bowl. The fixed floor tilt $Δ G^{\circ}$ plus the curving correction $R T ln Q$ make a valley whose bottom sits at $Q = K$ . Wherever the ball is, the sign of the slope $Δ G = R T ln (Q / K)$ points it home.

Recall Feynman retelling — the whole walkthrough in plain words

Imagine the reaction as a ball in a valley. Height is "stored energy" ( $G$ ); the ball always rolls downhill. "Downhill direction" is just the slope of the ground, and we named that slope $Δ G$ : negative means roll right (make products), positive means roll left (remake reactants), zero means you're at the bottom.

Thermodynamics tells us the slope has two parts — a fixed built-in tilt ( $Δ G^{\circ}$ ) and a correction that depends on how crowded the mixture is right now ( $R T ln Q$ ). At the very bottom the slope is flat, and we christened the ratio there $K$ . Plugging that flat-bottom fact back in fixes the built-in tilt, and after one log trick the two parts merge into a single clean law: $Δ G = R T ln (Q / K)$ .

Now direction is trivial. If your current ratio $Q$ is below the target $K$ , the fraction is less than one, its log is negative, the ground tips down forward — go make products. If $Q$ overshoots $K$ , log is positive, ground tips up — roll back. If $Q = K$ , flat, you're done. The extremes ( $Q = 0$ or $Q = \infty$ ) are just the steep walls at the ends of the same bowl. That's the entire story — one valley, one slope, one comparison.
