Visual walkthrough — Hess's law — enthalpy is a state function; enthalpy cycles

We only need one big idea, drawn again and again: enthalpy is a height on a vertical ladder, and a change is a distance between two rungs. Let's earn that picture.

Step 1 — What is enthalpy, as a picture?

WHAT: Draw a vertical axis. Higher up = more enthalpy stored. Each chemical (or mixture of chemicals) is a horizontal shelf at some height.

WHY a height and not a number? Because the parent note's key fact is that $H$ is a state function — its value depends only on which chemical you have right now, never on how you made it. A height on an axis has exactly that property: a shelf is at one height, full stop. There is no "how you climbed" stored in a height.

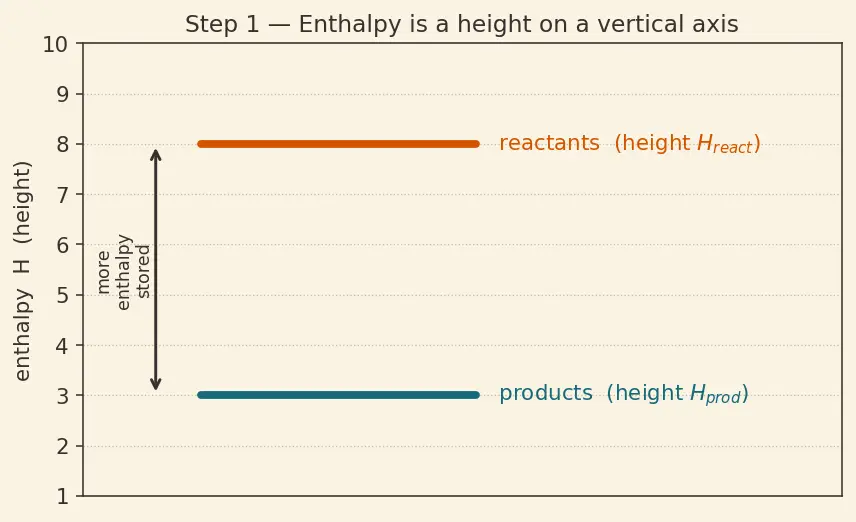

PICTURE: Two shelves. The lower shelf is products (less stored energy), the higher shelf is reactants. The vertical gap between them is what we care about.

The symbol $H_{\text{react}}$ is the height of the top shelf; $H_{\text{prod}}$ the height of the bottom shelf. Nothing else yet.

Step 2 — What is $\Delta H$? A signed distance between two rungs

WHAT: The Greek letter $\Delta$ ("delta") just means "change in" — the final value minus the initial value. So $\Delta H$ is the height you finish at minus the height you started at.

WHY subtract in that order (final − initial)? So the sign tells a story:

• If you end lower (products below reactants), $\Delta H$ is negative — energy was released as heat. This is exothermic.
• If you end higher, $\Delta H$ is positive — you had to pour heat in. This is endothermic.

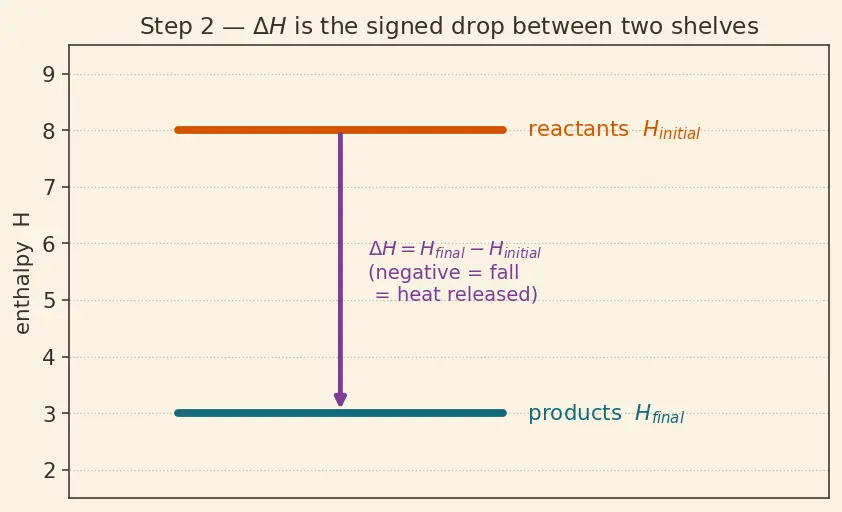

PICTURE: An arrow from the reactant shelf down to the product shelf. Its length is the size of $\Delta H$; its downward direction is the negative sign.

Notice: the arrow depends only on the two shelf heights. It knows nothing about the route. That is the seed of the entire proof.

Step 3 — Two paths, same endpoints

WHAT: Take one reaction, $A\to Z$ (reactant shelf $A$, product shelf $Z$). Now imagine reaching $Z$ a different way: first turn $A$ into some intermediate $B$, then turn $B$ into $Z$. Same start, same finish, different middle.

WHY do this? This is the whole trick. In real chemistry, $A\to Z$ might be impossible to measure directly (like the CO example — it always over-oxidizes). But $A\to B$ and $B\to Z$ might be easy. If both routes must give the same total drop, we can compute the hard one from the easy ones.

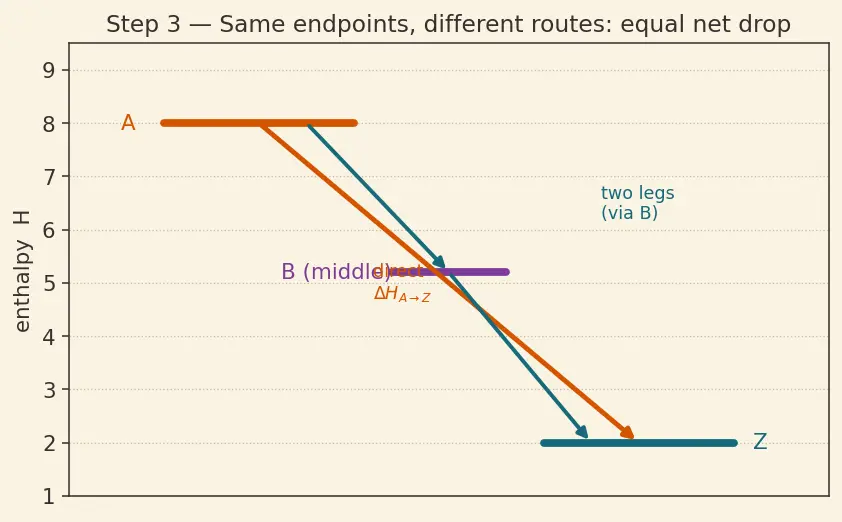

PICTURE: Two coloured paths between the same two shelves — one straight arrow (burnt orange), one two-leg zig-zag through a middle shelf $B$ (teal). Because both start at height $H_A$ and end at height $H_Z$, the net vertical drop is identical.

Step 4 — Telescoping: why the middle heights cancel

WHAT: On the right side, expand the brackets: $H_B-H_A+H_Z-H_B$. The two $H_B$ terms are $+H_B$ and $-H_B$ — they cancel. What survives is exactly $H_Z-H_A$, the left side. True.

WHY is this the proof? Each term $H_B-H_A$ is just a $\Delta H$ (a shelf-to-shelf drop) using our Step 2 definition. So the equation reads: $\Delta H_{A\to Z}=\Delta H_{A\to B}+\Delta H_{B\to Z}.$ The two-leg route's drops add up to the direct drop. That is Hess's law for two steps.

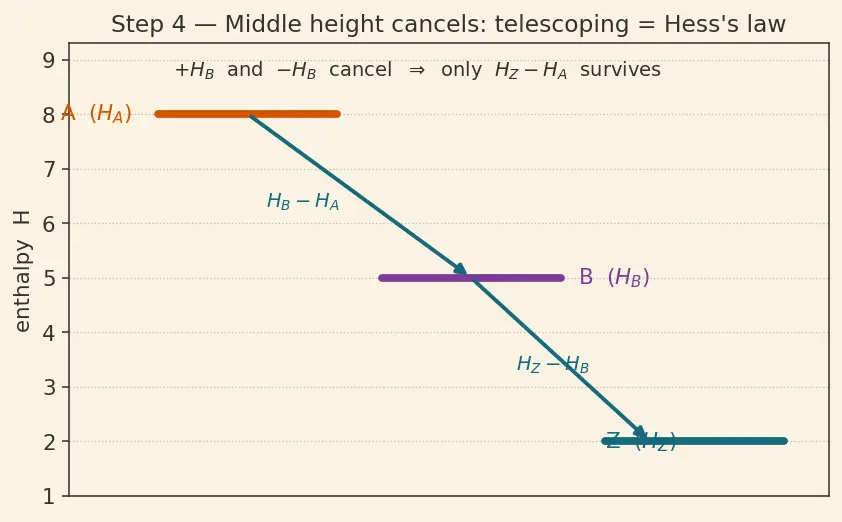

PICTURE: Stack the two teal legs head-to-tail. The up-then-down of the middle rung $H_B$ visibly cancels; only the total drop remains. The label $-H_B$ sits right beside $+H_B$ so you see them annihilate.

Step 5 — Any number of steps (the full telescope)

WHAT: Insert as many middle shelves as you like: $A\to B\to C\to \cdots \to Z$. Write each leg as a height difference: $H_Z-H_A=(H_B-H_A)+(H_C-H_B)+\cdots +(H_Z-H_Y).$

WHY it still works: Every interior height appears twice — once with a $+$ (as the top of one leg) and once with a $-$ (as the bottom of the next leg). Like a collapsing telescope, all interior rungs cancel in pairs. Only the very first ($-H_A$) and very last ($+H_Z$) survive.

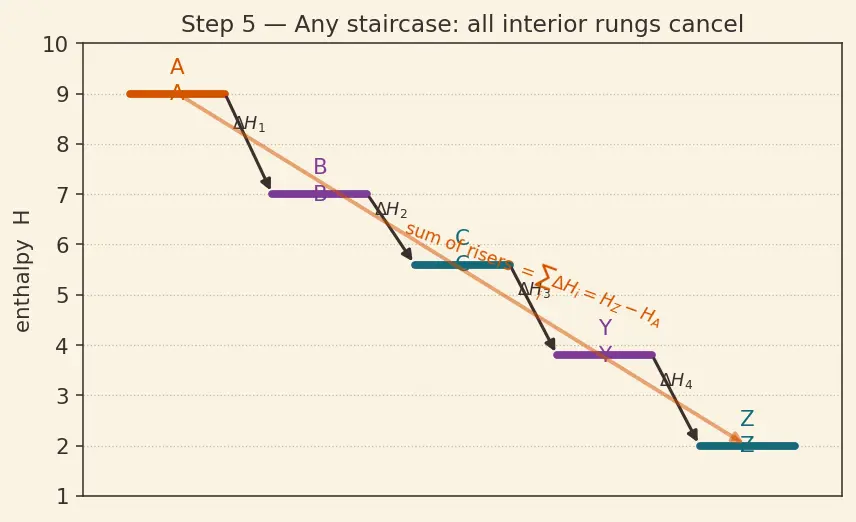

PICTURE: A staircase of shelves. Each riser is one $\Delta H_i$. Sum every riser and you have fallen exactly from the top shelf to the bottom shelf — no matter how many steps.

The symbol ${\sum }_i$ ("sigma, summed over $i$") is just shorthand for "add up all the legs." Nothing mysterious — it is the staircase, added rung by rung.

Step 6 — Rule 1: reverse a reaction, flip the sign

WHAT: Walk the same two shelves but in the opposite direction — start at $Z$, end at $A$. Now "final − initial" is $H_A-H_Z$, which is the negative of before.

WHY we need it: When we assemble a target reaction, a given step might have our desired species on the wrong side. Reversing puts it on the correct side — and the sign must flip to stay honest, because climbing up a drop costs exactly what falling down it released.

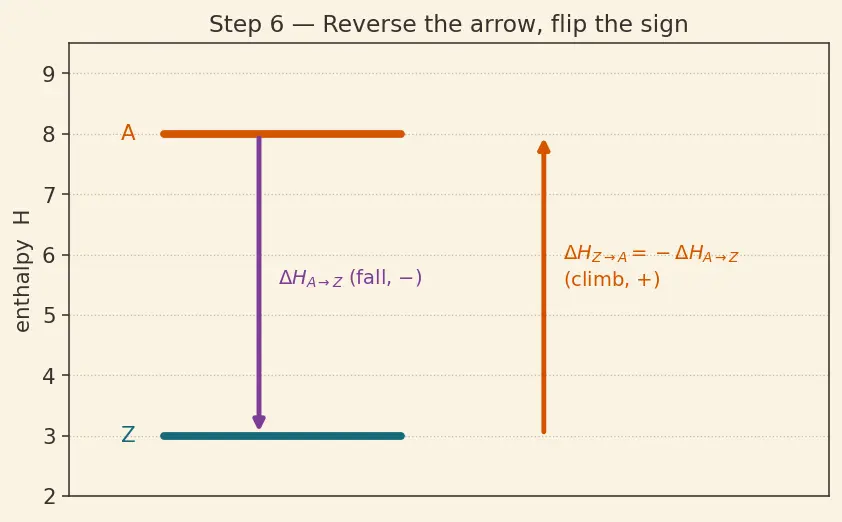

PICTURE: The Step 2 arrow, now pointing up instead of down. Same length, opposite sign. Going down released heat; going back up demands that same heat returned.

Step 7 — Rule 2: scale the reaction, scale $\Delta H$

WHAT: If you run twice as much reaction (double every coefficient), you release twice the heat.

WHY: Enthalpy is extensive — it scales with amount of stuff. Two identical drops side by side are twice one drop. This is not a new law; it is the same height picture, just with a taller shelf gap because there is more material.

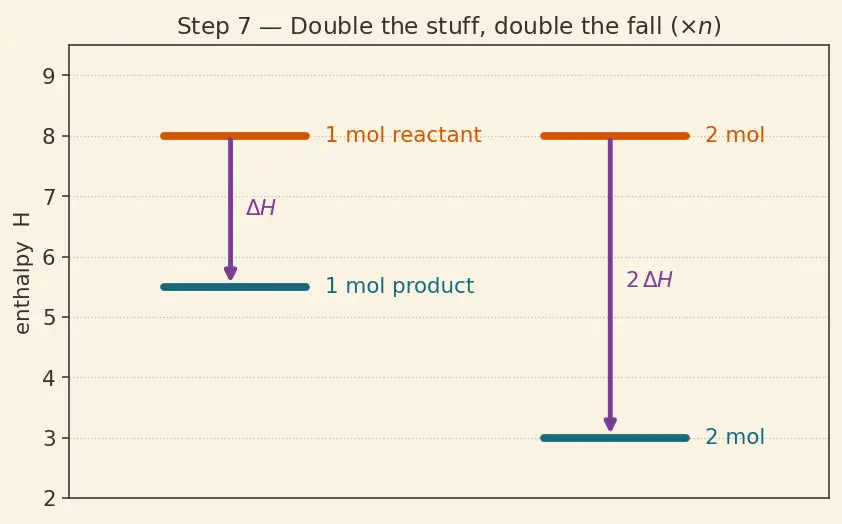

PICTURE: Two identical downhill arrows drawn end-to-end vertically: the combined fall is $2\Delta H$. The multiplier $n$ literally stretches the arrow.

Step 8 — The degenerate cases (never skip these)

WHAT & WHY: We must check the edge cases so the picture never breaks.

Case (a): $\Delta H=0$ — start and finish at the same shelf. If $A=Z$ (or two different chemicals happen to sit at the same height), the drop is zero. Crucially, forming an element from itself goes nowhere on the ladder, so ${\Delta }_f{H}^{\circ }(\text{element in standard state})=0$. That is why elements drop out of formation-enthalpy sums.

Case (b): the loop / cycle — you return to where you began. Go $A\to B\to C\to A$. The heights telescope to $H_A-H_A=0$. Any closed enthalpy cycle sums to zero. This is exactly what a Born–Haber cycle exploits: go all the way around, set the total to zero, solve for the one unknown leg.

Case (c): same species, different phase — NOT the same shelf. $H_{2}O(l)$ and $H_{2}O(g)$ sit at different heights (vaporizing costs energy). "Still water" is a trap: different state = different rung. Never cancel across phases.

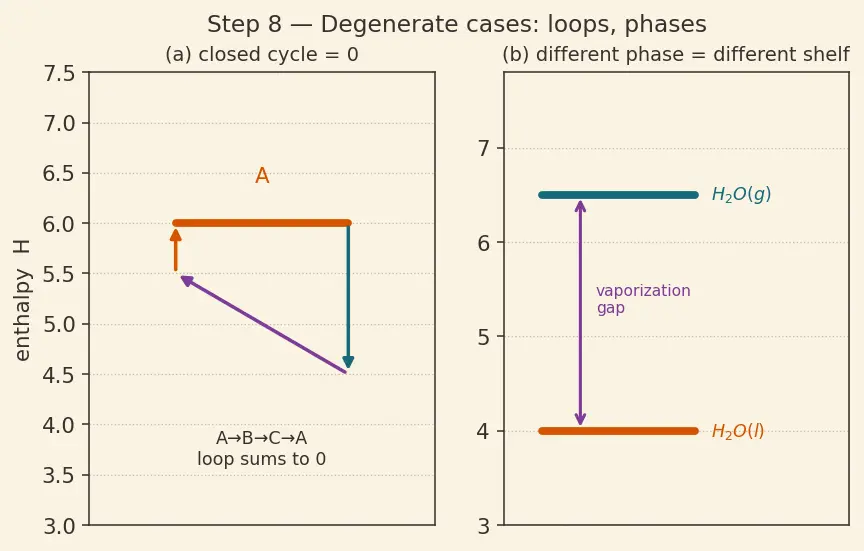

PICTURE: Left panel — a self-loop returning to its own shelf, total drop $0$. Right panel — two water shelves at different heights, a gap labelled "vaporization," warning against treating them as equal.

Worked micro-example, drawn

Recall the parent's CO problem, now as shelves:

• (i) $C+O_2\to C{O}_2$, drop $-393.5$ (deep exothermic — bottom shelf).
• (ii) $CO+\frac{1}{2}{O}_2\to C{O}_2$, drop $-283.0$.

Target: $C+\frac{1}{2}{O}_2\to CO$. Place $CO$ as a middle shelf between $C+O_2$ (top) and $C{O}_2$ (bottom).

$\Delta H_{\text{target}}=\underset{-393.5}{\underbrace{\Delta H_{\text{(i)}}}}\underset{+283.0}{\underbrace{-\Delta H_{\text{(ii)}}}}=-110.5\text{kJ}$

We reverse (ii) (Step 6) because $CO$ must be a product, not a reactant. $C{O}_2$ is the common bottom shelf — it cancels telescopically (Step 4). The middle shelf $CO$ is exactly what we wanted.

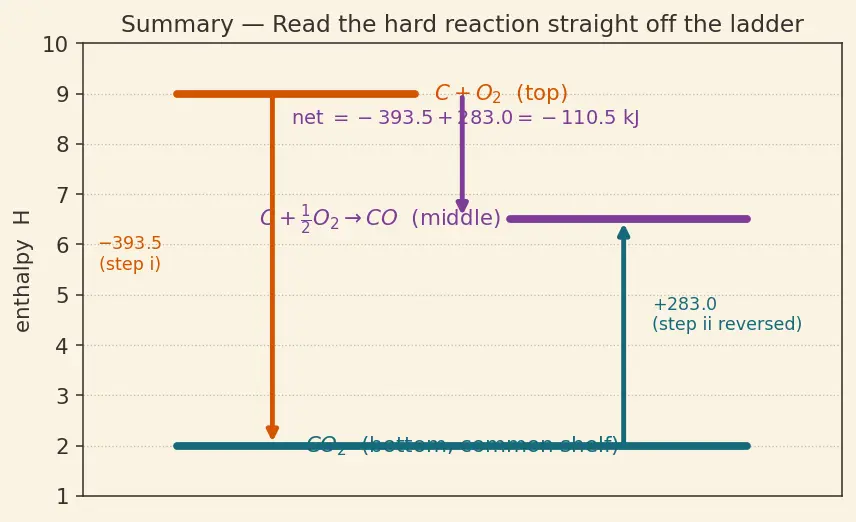

The one-picture summary

Everything on this page is one ladder of shelves with cancelling middle rungs.

Connections

• Parent: Hess's law (topic note)
• State functions vs path functions — why a "height" has no memory of its path.
• First law of thermodynamics — where $H=U+PV$ comes from.
• Enthalpy of formation — the elements-are-zero shelf.
• Born–Haber cycle — the closed-loop-sums-to-zero trick (Step 8b).
• Bond enthalpies · Enthalpy of combustion · Standard states and conventions
