van der Waals equation (P + a - V²)(V − b) = RT — physical meaning of a, b

WHY do we even need a correction?

WHAT ideal gas assumes (recall from KTG):

Volume of molecules themselves = 0.
No forces between molecules (except elastic collisions).

WHY it fails: At high pressure and low temperature, molecules are squeezed close together. Now their finite size and mutual attraction can no longer be ignored. So $PV/nRT \neq 1$ (this ratio is the ==compressibility factor $Z$ ==).

Deriving the volume correction ( $b$ )

HOW we get it from scratch:

Ideal gas: molecules move freely in the whole container volume $V$ . Real gas: each molecule is a hard sphere of radius $r$ . Two molecule-centres can never get closer than $2r$ .

Take two molecules. Around each one, no other centre can enter a sphere of radius $2r$ . That "forbidden" sphere has volume $V_{\text{forbidden(pair)}} = \frac{4}{3}\pi (2r)^3 = 8 \cdot \frac{4}{3}\pi r^3 = 8 v_{\text{mol}}$ Why this step? Because $(2r)^3 = 8r^3$ , the excluded region for a pair is 8× the volume of one molecule.

Split it between the two molecules → excluded volume per molecule $= 4 v_{\text{mol}}$ .

For one mole ( $N_A$ molecules): $b = 4 N_A \cdot \frac{4}{3}\pi r^3 = 4 \times (\text{actual volume of a mole of molecules})$

The correction: the space actually available is $(V - nb)$ , not $V$ . So replace $V \to (V - nb)$ .

Deriving the pressure correction ( $a$ )

HOW we get it from scratch:

A molecule deep inside the gas is pulled equally in all directions → net force zero. A molecule about to hit the wall is pulled backward by the molecules behind it → it strikes the wall with reduced momentum. So the observed pressure $P$ is less than the "internal" ideal pressure.

$P_{\text{ideal}} = P_{\text{observed}} + \Delta P$

How big is $\Delta P$ ? The inward pull on a wall-molecule ∝ (density of molecules pulling it). The number of wall-molecules being pulled ∝ (density again). So: $\Delta P \propto (\text{density})^2 \propto \left(\frac{n}{V}\right)^2$ Why squared? Because attraction is a pair effect — both the molecule being pulled and the molecules doing the pulling scale with density.

Write the proportionality constant as $a$ : $\Delta P = \frac{an^2}{V^2}$

The correction: the true (ideal-like) pressure is $\left(P + \dfrac{an^2}{V^2}\right)$ .

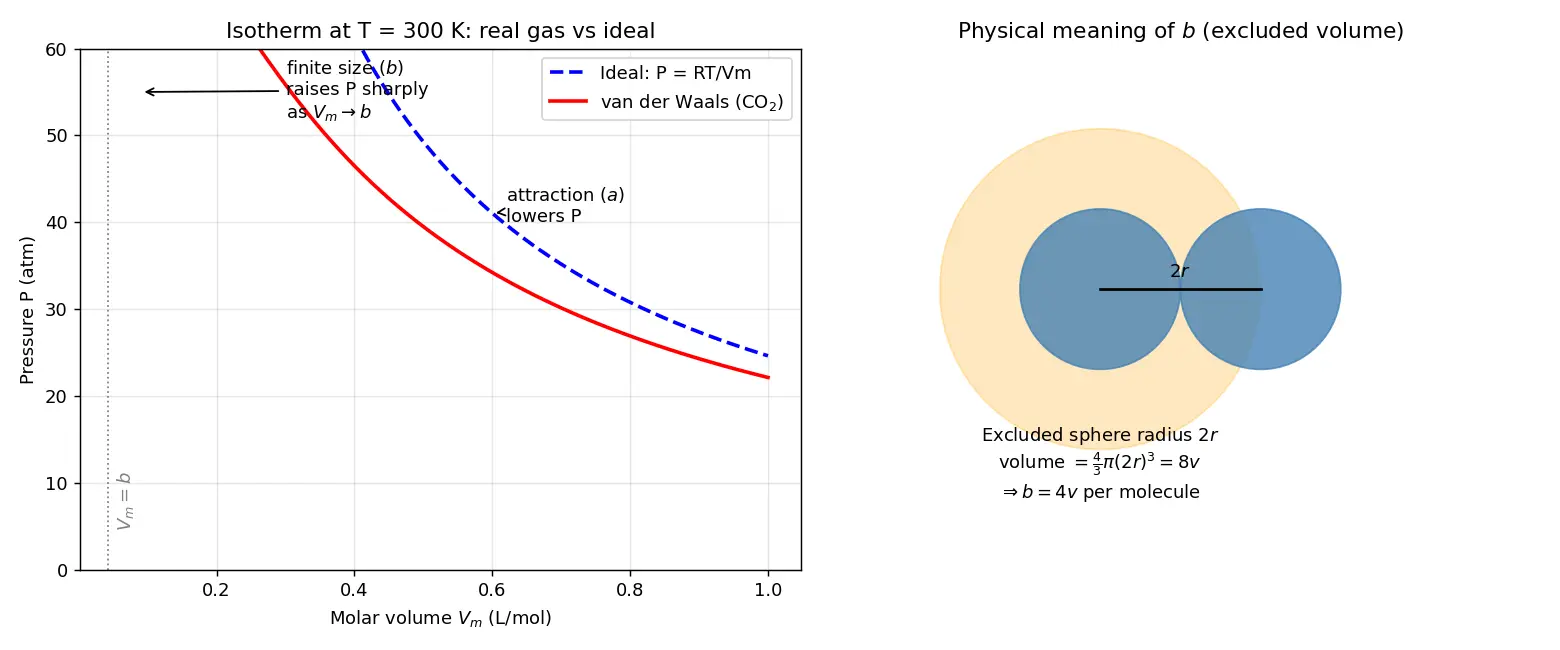

Figure — van der Waals equation (P + a - V²)(V − b) = RT — physical meaning of a, b

Reading $a$ and $b$ off real gases

Compressibility factor $Z$ — the fingerprint

$Z = \frac{PV_m}{RT}$

$Z = 1$ : ideal.
$Z < 1$ : attractions dominate ( $a$ effect) — gas more compressible than ideal. Happens at moderate pressures.
$Z > 1$ : size/repulsion dominates ( $b$ effect) — gas less compressible. Happens at very high pressure.

Why: At low P, molecules are far apart, attraction $\to$ soft pressure $\to Z<1$ . At high P, molecules jammed, finite size $\to$ hard to compress $\to Z>1$ .

Common mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine a room full of bouncy balls that are also slightly magnetic.

Because each ball is fat, they can't use the whole room — some space is always blocked. That blocked space is $b$ .
Because they're magnetic, a ball flying at the wall gets tugged back by its friends, so it hits softer than expected. That softness is the $a$ tug. van der Waals just wrote down "real room = full room minus fat-space" and "real punch = ideal punch minus magnet-tug." Done.

Flashcards

What does the constant

a

physically represent?

The magnitude of intermolecular attractive forces; larger

a

⇒ stronger attractions ⇒ easier to liquefy.

What does the constant

b

physically represent?

Excluded (co-)volume per mole due to finite molecular size; larger

b

⇒ bigger molecules.

Why is the pressure correction proportional to

(n/V)^2

Attraction is a pair effect: both the molecule being pulled and the pullers scale with density, so the product ∝ density².

Write the van der Waals equation for

n

moles.

(P + an^2/V^2)(V - nb) = nRT

Relation between

b

and actual molecular volume?

b = 4\times

actual volume of one mole of molecules (excluded volume of a pair =

8v

, split as

4v

/molecule).

Units of

a

and

b

a

: atm L² mol⁻²;

b

: L mol⁻¹.

What does

Z<1

mean physically?

Attractions dominate; gas more compressible than ideal (moderate pressures).

What does

Z>1

mean physically?

Molecular size/repulsion dominates; gas less compressible than ideal (very high pressure).

Real vs ideal pressure at low pressure?

Real pressure is lower than ideal because attractions soften wall collisions.

Which correction dominates at very high pressure?

The volume term

b

(finite size), making

Z>1

Connections

Kinetic Theory of Gases — the ideal assumptions vdW repairs
Compressibility Factor Z — how $a$ and $b$ show up in $Z$
Critical Constants and Liquefaction — $T_c, P_c, V_c$ in terms of $a,b$
Intermolecular Forces — origin of $a$ (dispersion, dipole, H-bond)
Ideal Gas Law — the $a\to 0, b\to 0$ limit
Boyle Temperature — where $a$ and $b$ effects cancel, $Z\approx1$

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ideal gas law $PV=nRT$ do jhooth bolta hai: (1) molecules ki koi size nahi, aur (2) molecules ek dusre ko attract nahi karte. Reality mein dono galat hain, khaaskar high pressure aur low temperature par jab molecules paas paas aa jaate hain. van der Waals ne is law ko do jagah patch kiya — ek volume par ( $b$ ), ek pressure par ( $a$ ).

$b$ ka matlab hai excluded volume — kyunki molecule ki apni body hoti hai, poora container available nahi hota, isliye asli volume $V$ ki jagah $(V-nb)$ likhte hain. Bade molecule ⇒ bada $b$ . Ek pair molecules ke liye forbidden sphere ka volume $8v$ nikalta hai (kyunki $(2r)^3=8r^3$ ), aur per molecule split karke $b=4v$ aata hai.

$a$ ka matlab hai attraction ki strength. Wall se takrane wale molecule ko peeche wale molecules kheenchte hain, isliye wo deewaar par halka takraata hai — measured pressure kam ho jaata hai. Ye attraction pair effect hai, dono taraf density lagti hai, isliye correction $a n^2/V^2$ hota hai (density ka square). Real pressure ko ideal banane ke liye $(P + a n^2/V^2)$ likhte hain. Yaad rakho: $a$ attracts, $b$ bulks — bada $a$ waala gas (jaise NH₃) aasaani se liquefy hota hai, chhota $a$ waala (H₂) mushkil se.

Ek line mein: van der Waals equation bas ideal gas law hai jisme "asli jagah = poori jagah − fat-space" aur "asli dhakka = ideal dhakka − magnet-tug" jod diya gaya hai. Isse compressibility factor $Z$ samajh aata hai — $Z<1$ (attraction haavi) ya $Z>1$ (size haavi).
