We start from the one law you already trust.

Step 0 — The law we begin with

This law rests on two pretend-facts (from Kinetic Theory of Gases): molecules are points (zero size) and they never attract each other. Our whole job is to un-pretend those two facts, one at a time.

Step 1 — See the two lies of the ideal picture

WHAT: We line up the ideal cartoon against reality.

WHY: Before fixing anything, you must see exactly what is wrong. There are precisely two flaws, and each one will earn its own correction letter.

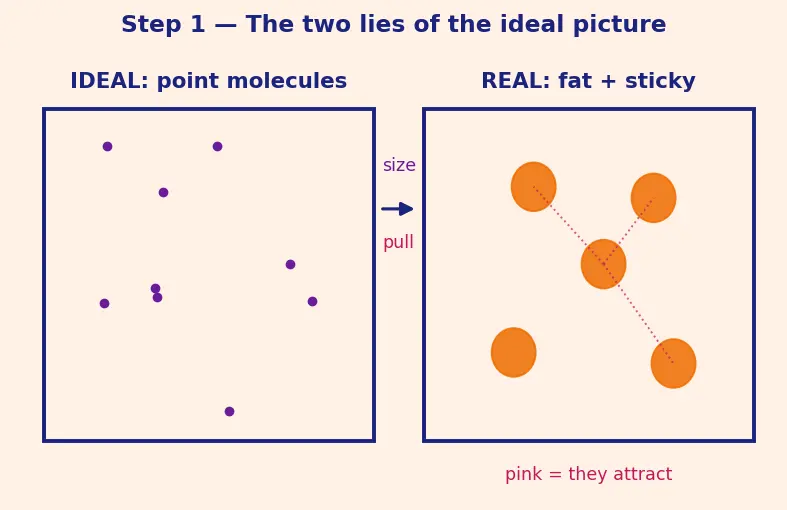

PICTURE: On the left, ideal gas — dots with no width, flying past each other untouched. On the right, real gas — fat balls that bump, and faint pink lines showing they pull on each other.

Figure — van der Waals equation (P + a - V²)(V − b) = RT — physical meaning of a, b

Step 2 — Two fat molecules carve out a forbidden zone

WHAT: We look at just two hard-sphere molecules and ask: how close can their centres get?

WHY: This is the seed of the whole volume correction. If molecules have size, some space is permanently off-limits — and the cleanest way to count it is with a pair.

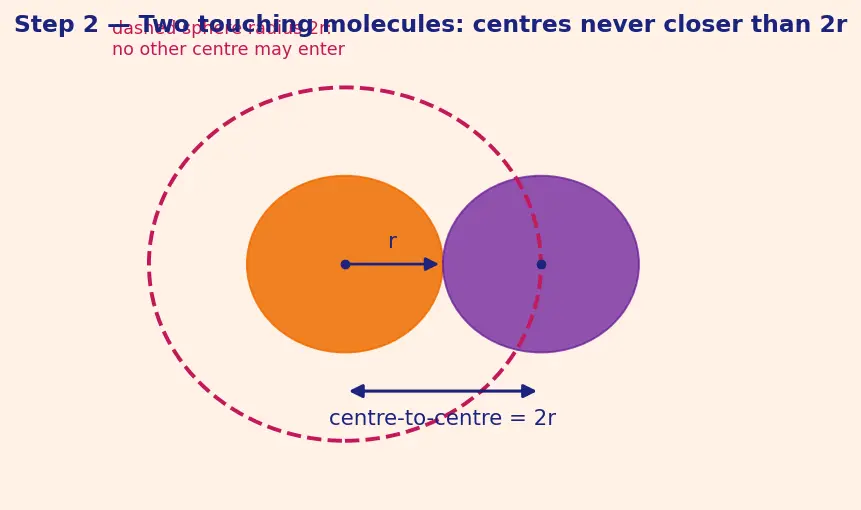

PICTURE: Two spheres, each radius $r$ , touching. Their centres are exactly $2 r$ apart — they can never be closer. Around one centre, draw the dashed sphere of radius $2 r$ that the other centre may never enter.

Why radius $2 r$ and not $r$ ? Because each molecule contributes its own radius $r$ to the gap — one $r$ from each — so the closest approach of the two centres is $r + r = 2 r$ .

Step 3 — Turn the forbidden zone into the number $b$

WHAT: Compute the volume of that forbidden sphere, then split it fairly.

WHY: We need one number — volume blocked per molecule — so we can multiply by $N_{A}$ and get a per-mole constant.

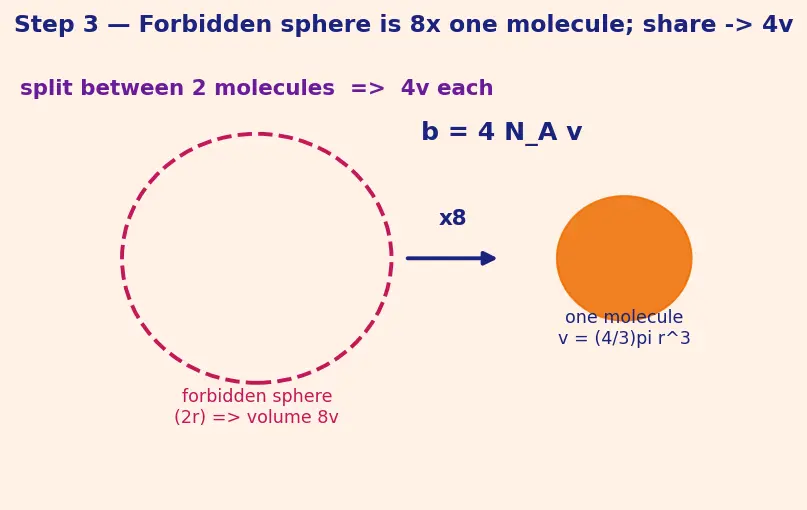

PICTURE: The dashed radius- $2 r$ sphere beside a single radius- $r$ molecule, with a "×8" arrow between them showing the volume jump.

The volume of a sphere of radius $2 r$ : $V_{forbidden} = \frac{4}{3} π (2 r)^{3} = 8 \cdot volume of ONE molecule v_{mol} \frac{4}{3} π r^{3} = 8 v_{mol}$

$\frac{4}{3} π (2 r)^{3}$ ::: standard sphere-volume formula applied to radius $2 r$ .
$(2 r)^{3} = 8 r^{3}$ ::: cubing the $2$ gives the factor $8$ — this is where the "8" is born.
$8 v_{mol}$ ::: the forbidden region for the pair is 8 times one molecule's own volume.

This $8 v$ belongs to a pair, so charge each molecule half of it: $excluded per molecule = \frac{8 v _{mol}}{2} = 4 v_{mol}$

For one mole ( $N_{A}$ molecules): $b = 4 N_{A} v_{mol} = 4 \times (actual volume of a mole of molecules)$

Step 4 — Patch the volume: $V \to V - nb$

WHAT: Replace the room $V$ with the usable room.

WHY: Molecules cannot roam through the excluded space, so the effective volume in the gas law must shrink by $nb$ (that's $b$ per mole, $n$ moles).

PICTURE: A box labelled $V$ ; a chunk of it shaded out and labelled $nb$ ; the leftover, clear region labelled $V - nb$ — "where molecules actually move."

Units check: $[b] = L mol^{- 1}$ , so $nb$ has units of litres — same as $V$ . Good, we may subtract them. Bigger molecules ⇒ bigger $b$ ⇒ more room stolen.

Step 5 — Now the attraction. A molecule at the wall gets tugged back

WHAT: Compare a molecule deep inside the gas to one about to strike the wall.

WHY: This is the seed of the pressure correction. Attraction only matters near the wall, because that's where the pull becomes lopsided.

PICTURE: Inside molecule — neighbours on all sides, pink pull-arrows cancel, net force zero. Wall molecule — neighbours only on the gas side, so the pink arrows all point inward: it is dragged backward just as it tries to hit the wall.

Step 6 — Why the correction is proportional to density squared

WHAT: Figure out how big $Δ P$ is in terms of how crowded the gas is.

WHY: Attraction is a two-body deal. Two separate crowd-counts both scale with density, and they multiply.

PICTURE: A wall region. Count 1: how many molecules are near the wall waiting to be pulled — grows with density. Count 2: how many molecules behind them do the pulling — also grows with density. Two arrows, each labelled $\propto n / V$ , meeting at a "×" that produces $(n / V)^{2}$ .

$Δ P \propto molecules being pulled (\frac{n}{V}) \times molecules doing the pulling (\frac{n}{V}) = (\frac{n}{V})^{2}$

$n / V$ ::: number density — how packed the gas is (moles per litre).
squared ::: both the pulled and the pullers scale with density; a product of two densities.

Attach a proportionality constant, and name it $a$ : $Δ P = \frac{a n ^{2}}{V ^{2}}$

$a$ ::: how strongly a single pair attracts — the "stickiness" of the gas (Intermolecular Forces).
$n^{2} / V^{2}$ ::: the density-squared crowd factor we just built.

So the pressure we put into the gas law is $(P + \frac{a n ^{2}}{V ^{2}})$ .

Step 7 — Snap the two patches together

WHAT: Put the fixed pressure and the fixed volume into $P V = n R T$ .

WHY: Both lies are now repaired independently; the gas law becomes true again once we feed it the real pressure and the real usable volume.

PICTURE: The ideal equation with two coloured overlays — the pressure bracket glowing orange, the volume bracket glowing violet — assembling into the final equation.

Step 8 — The edge cases: does it collapse back correctly?

WHAT: Check the extreme situations. A good correction must vanish when it should.

WHY: If a formula misbehaves at the boundaries, it's wrong. Every case below must land somewhere sensible (Compressibility Factor Z).

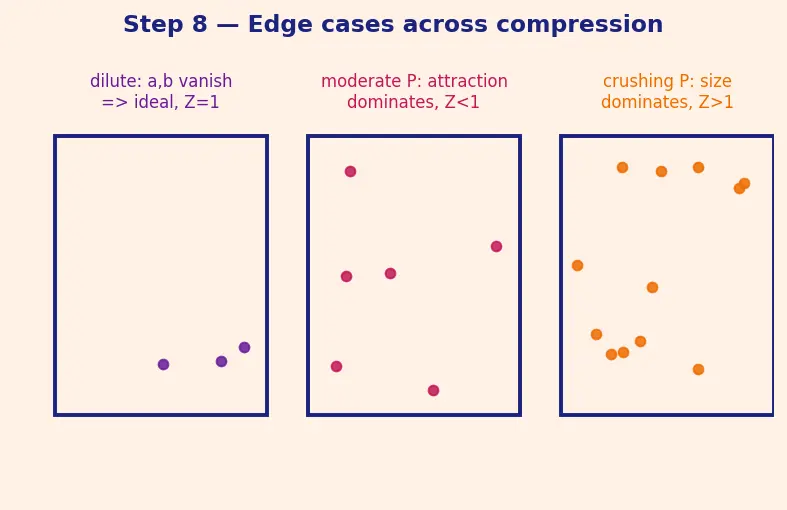

PICTURE: Three panels sweeping from dilute to crushed: (left) low pressure, molecules far apart; (middle) moderate pressure, attraction wins; (right) crushing pressure, fat size wins.

Case A — set $a = 0$ and $b = 0$ (points, no attraction). Both brackets un-patch: $P (V) = n R T$ . We recover the ideal gas law exactly. ✓

Case B — very large $V$ (dilute gas). Then $a n^{2} / V^{2} \to 0$ (denominator huge) and $nb$ is tiny next to $V$ . Again the equation melts back into $P V = n R T$ . Real gases behave ideally when spread thin. ✓

Case C — moderate pressure (attraction dominates). The $a$ term bites hardest; measured pressure sits below ideal, so $Z = \frac{P V _{m}}{R T} < 1$ . This is the Boyle Temperature neighbourhood where attractions rule. ✓

Case D — crushing pressure (size dominates). Molecules jam; $V \to nb$ from above, so $(V - nb) \to 0$ and pressure shoots up, above ideal, giving $Z > 1$ . The gas resists compression because molecules are now shoulder-to-shoulder. ✓

Worked check — real CO₂ pressure

The one-picture summary

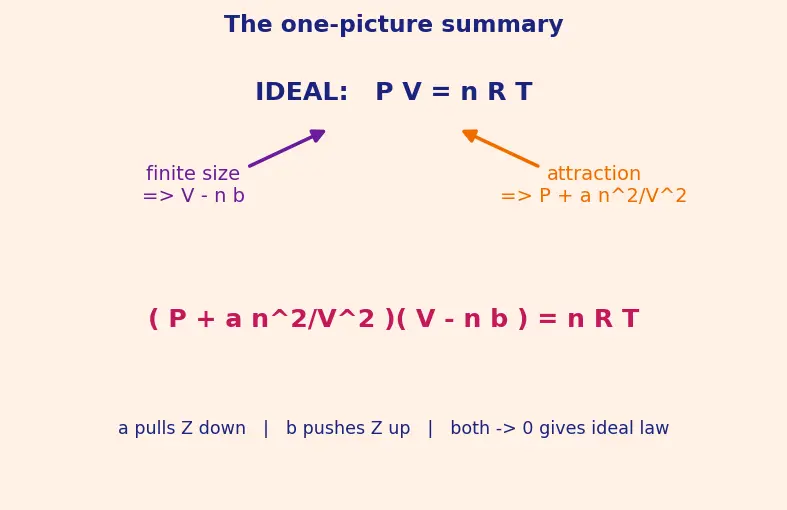

Everything above, compressed into a single frame: ideal law → subtract $nb$ from $V$ → add $a n^{2} / V^{2}$ to $P$ → the two brackets meet as the van der Waals equation, with the edge-case behaviour written along the bottom.

Recall Feynman retelling — the whole walkthrough in plain words

Start with the pretend law for perfect gases: pressure times room equals a temperature number. It lies about two things.

First lie: molecules have no size. But they're fat balls — two of them can't get closer than centre-to-centre $2 r$ . Draw the no-go sphere of radius $2 r$ ; its volume is 8 times one ball; share it between the pair, that's 4 balls' worth each; times a mole gives $b$ . So the real room isn't $V$ , it's $V$ minus $nb$ .

Second lie: no attraction. Deep inside, a ball is tugged from all sides — nothing net. But a ball flying at the wall only has friends behind it, so it gets yanked backward and hits softer. Soft hits mean the gauge reads too low, so we add back a bit of pressure. How much? Attraction needs two crowds — the ones getting pulled and the ones pulling — and each crowd grows with density, so the fix grows with density squared, $a n^{2} / V^{2}$ .

Bolt both fixes into the old law: real pressure (measured plus the tug) times real room (container minus fat-space) equals the same $n R T$ . That's van der Waals. And it's honest at the edges: make the molecules points with no pull, or spread the gas out thin, and it turns right back into the perfect-gas law.
