WHY does Tc exist? Liquefaction needs intermolecular attractions to win over the random thermal jiggling. If molecules move too fast (high T), their kinetic energy always overwhelms attraction — squeezing them just makes a very dense gas, never a liquid. So:
Step 1: Cool below Tc → attractions can now dominate.
Step 2: Compress → forces molecules close enough to condense.
This is why O2 (Tc=155 K) and N2 (Tc=126 K) resist liquefaction at room temperature: you must cool first. He, H2 (tiny Tc) are the hardest.

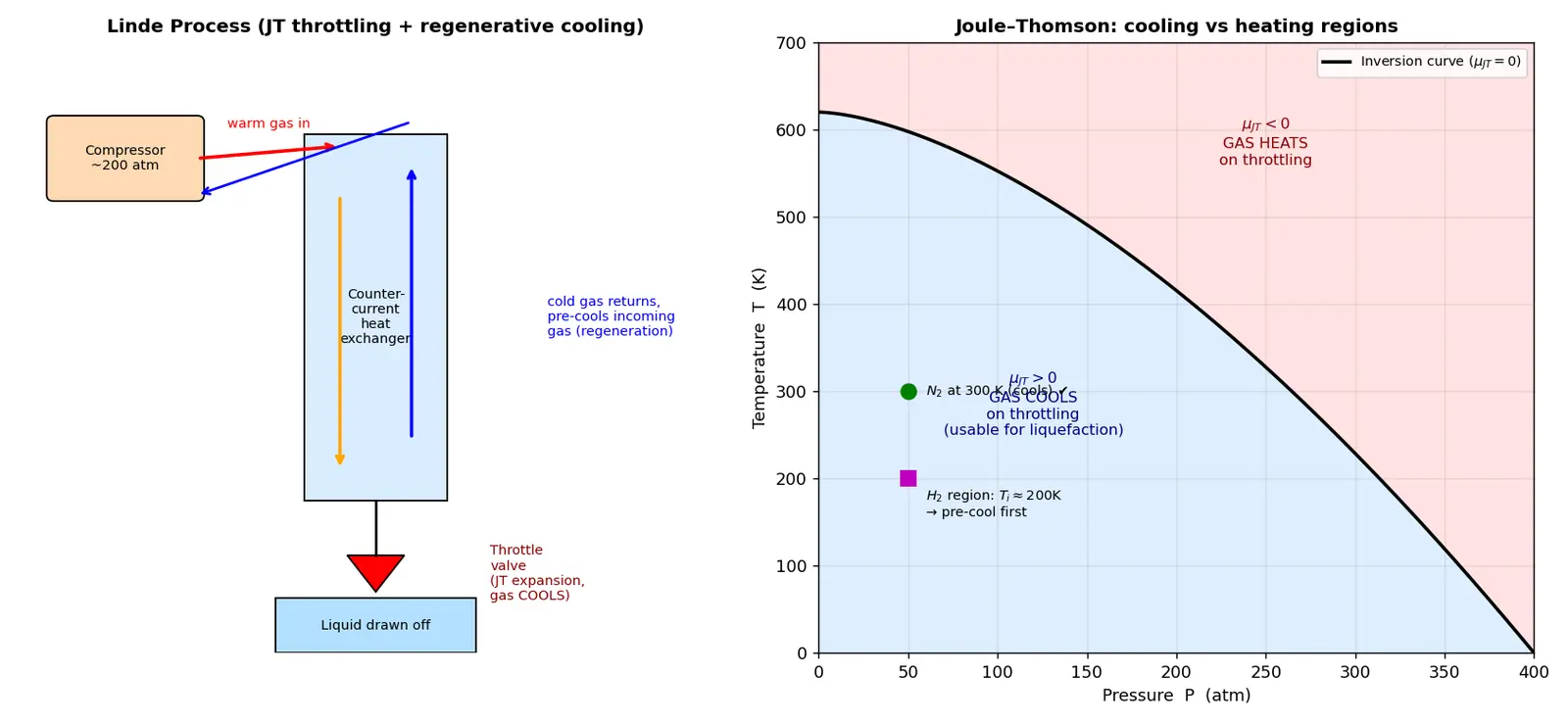

Gas is compressed to high pressure (say 200 atm). Compression heats it → it is cooled back with water/refrigerant.
Compressed gas passes down a counter-current heat exchanger.
It is throttled through a valve/nozzle → JT expansion → it cools.
This newly cooled gas flows back up around the incoming gas, pre-cooling the next batch.
Each cycle starts colder than the last (cascade of cooling) → eventually part of the gas condenses to liquid, which is drawn off. Un-liquefied gas is recompressed and re-circulated.
In throttling, no external work is done — cooling relies only on the modest JT effect.
In an adiabatic expansion doing work, the gas spends its internal energy driving a piston ⇒ ΔU large & negative ⇒ strong cooling even for a near-ideal gas.
Claude therefore reaches lower temperatures faster and is more efficient (recovers some work).
Imagine gas molecules are tiny magnets that gently stick together. To make a gas into a liquid, you must (1) slow the magnets down (cool them) and (2) push them close so they clump. Trick: if you let the gas squeeze out through a tiny hole, the magnets have to pull apart, and pulling sticky magnets apart uses up their energy — so the gas cools itself! In the Linde machine we let that cold gas hug the incoming warm gas so it gets colder and colder each round until it drips out as liquid. In the Claude machine we also let the gas push a little windmill (do work), which cools it even faster. But careful: helium and hydrogen magnets are so weak that at room temperature this trick backfires and warms them — so we cool them first with cold nitrogen.
Dekho, gas ko liquid banane ke liye do cheez chahiye: pehle usse thanda karo (critical temperature Tc se neeche laao) aur phir daba do (pressure). Sirf pressure lagane se kaam nahi chalega agar temperature Tc se upar hai — chahe kitna bhi squeeze karo, bas dense gas banegi, liquid nahi. Isliye O2, N2 room temperature par pressure se liquefy nahi hote; pehle cool karna zaroori hai.
Ab cooling ka jugaad kya hai? Joule–Thomson effect. Jab real gas ek chhote se hole/valve se expand hoti hai (throttling, jisme enthalpy constant rehti hai, na koi kaam hota na heat aati), to molecules door hote hain. Real gas ke molecules ek doosre ko attract karte hain (van der Waals a), so unhe door karne mein energy lagti hai — yeh energy unki apni kinetic energy se nikalti hai, isliye gas khud thandi ho jaati hai. Ideal gas mein attraction hi nahi, so waha koi cooling nahi (μJT=0). Yaad rakho: H2 aur He ka inversion temperature room temp se kam hai, isliye woh throttling par ulta garam ho jaate hain — pehle liquid nitrogen se pre-cool karna padta hai.
Linde process isi JT cooling ko use karta hai, plus ek smart counter-current heat exchanger: jo thandi gas nikalti hai, woh aane wali warm gas ko pre-cool karti hai. Har round thoda-thoda thanda hote-hote gas liquid ban jaati hai. Claude process ek step aage: kuch gas ko turbine/piston mein expand karvate hain jaha woh kaam karti hai — kaam karne se internal energy kharch hoti hai aur cooling bahut zyada hoti hai (yeh ideal gas mein bhi hota hai). Isliye Claude, Linde se zyada efficient hai. Simple mantra: "Linde = sirf leak (throttle); Claude = crank bhi (turbine)."
