Visual walkthrough — Combined gas law and ideal gas equation PV = nRT

Before any symbol, meet the cast in a picture.

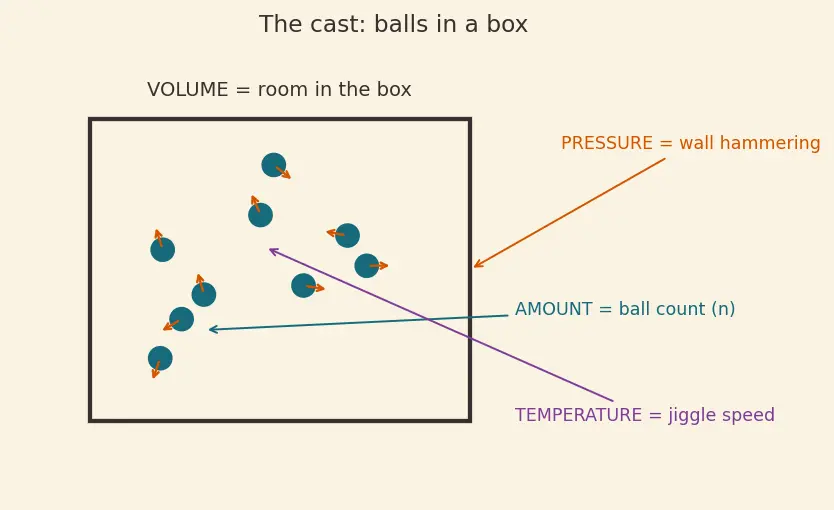

Four words, four things you can point at in the box above:

---

Step 1 — Pressure is "how hard the walls get hit"

WHAT. Fix the amount of gas and the temperature. Now slowly shrink the box.

WHY start here? Because the very first experimental fact (Boyle) is about $P$ and $V$ fighting each other. To build the master rule we must first see that fight cleanly, with everything else frozen.

PICTURE. Compare the two boxes below. Same number of balls, same speed — but the right box is half the size.

In the small box each ball reaches a wall twice as often, so the walls feel twice the hammering. We write this discovery as a proportionality:

$\underset{\text{room}}{\underbrace{V}}\propto \frac{1}{\underset{\text{hammering}}{\underbrace{P}}}(\text{amount and speed frozen})$

---

Step 2 — Heating makes the box want to grow

WHAT. Now freeze the amount and freeze the pressure (imagine a loose lid free to slide so the hammering on it stays constant). Heat the gas.

WHY. We have $P$-vs-$V$. Missing so far: what temperature does. Freeze the two things we already understand and change only heat, so the new effect is unmistakable.

PICTURE. Faster balls (drawn as longer arrows, warmer colour) shove the sliding lid outward until the hammering rate settles back to what it was — so the box is bigger.

$\underset{\text{room}}{\underbrace{V}}\propto \underset{\text{jiggle speed}}{\underbrace{T}}(\text{amount and hammering frozen})$

This is Charles's Law. But which $T$?

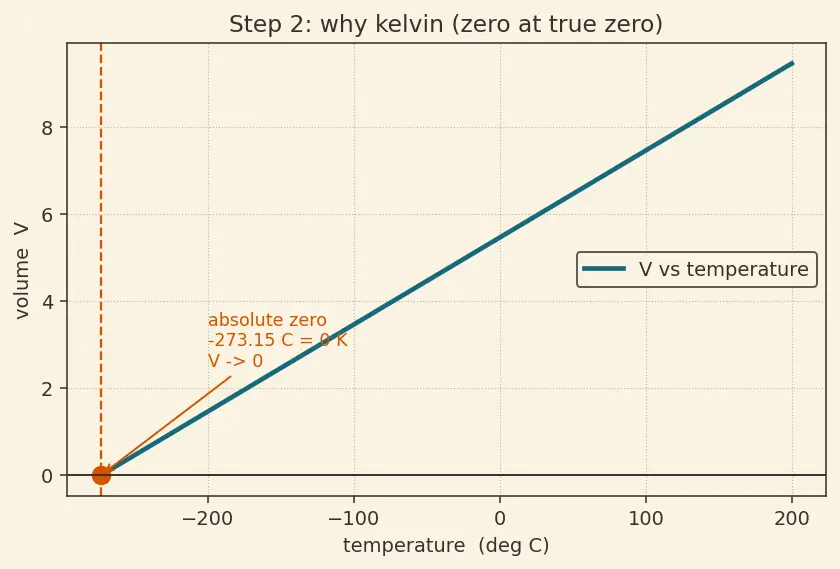

Look at the straight line of $V$ against temperature: extend it back and it hits zero volume at $-273.15°\text{C}$. That crossing point is absolute zero, and it is exactly where we must plant "$T=0$" for the proportionality to be honest. Celsius plants zero in the wrong place; kelvin plants it right on the crossing.

---

Step 3 — More balls need more room

WHAT. Freeze temperature and pressure. Pour in more balls.

WHY. We still have not accounted for amount. Same trick: freeze the two understood quantities, vary only the number.

PICTURE. Twice the balls, same speed, same hammering per unit wall — so the box must double.

$\underset{\text{room}}{\underbrace{V}}\propto \underset{\text{ball count}}{\underbrace{n}}(\text{speed and hammering frozen})$

---

Step 4 — Multiply the three pictures into one

WHAT. We now have three separate truths: $V\propto \frac{1}{P},V\propto T,V\propto n.$ Combine them into a single statement.

WHY can we just multiply them? Here is the key idea, and it deserves its own picture. Each law was measured with the other two things frozen. So each tells us how $V$ responds to one knob at a time. If turning knob-$n$ doubles $V$, and independently turning knob-$T$ triples $V$, then turning both does $2\times 3=6$ times. Independent effects multiply.

PICTURE. Three knobs feeding one output dial.

Stacking the three proportionalities:

$V\propto \underset{\text{Step 3}}{\underbrace{n}}\cdot \underset{\text{Step 2}}{\underbrace{T}}\cdot \underset{\text{Step 1}}{\underbrace{\frac{1}{P}}}⟹V\propto \frac{nT}{P}$

Read the right side: room grows with more balls ($n$ up), with faster balls ($T$ up), and shrinks with harder squeezing ($P$ up, so $1/P$ down). Every piece matches the pictures you already saw.

---

Step 5 — Turn $\propto$ into $=$ with the constant $R$

WHAT. A proportionality has a hidden scale factor. Name it $R$ and write a true equation.

WHY $R$ and why now? $\propto$ tells us the shape of the dependence but not the size of one unit's worth. Experiment pins down the size: for one mole, one kelvin, the numbers always land on the same constant, no matter which gas. That "same for everyone" fact is the whole reason gases feel simple — so the constant earns a capital name.

PICTURE. The proportional relation becomes an equation once we drop in the conversion box $R$.

$V=R\frac{nT}{P}$

Multiply both sides by $P$ to clear the fraction (WHAT: tidy up; WHY: get all four characters on one line, none buried in a denominator):

$\boxed{PV=nRT}$

---

Step 6 — The combined gas law is $PV=nRT$ with $nR$ hidden

WHAT. Take one sealed sample — the same balls, never added or removed. Then $n$ never changes, and $R$ never changes, so the product $nR$ is a frozen number.

WHY bother? Because in "gas goes from state 1 to state 2" problems you often don't know $n$. If $nR$ is a constant you can make it cancel and never need it.

PICTURE. Two snapshots of the same box, before and after; the quantity $PV/T$ reads the same on both dials.

Rearrange the master rule:

$\frac{PV}{T}=\underset{\text{frozen for a sealed box}}{\underbrace{nR}}=\text{constant}$

So for state 1 and state 2 of the same sample the two sides must match:

$\boxed{\frac{P_1{V}_1}{T_1}=\frac{P_2{V}_2}{T_2}}$

Worked check (from the parent). Start $1.0\text{atm},2.0\text{L},300\text{K}$; squeeze to $0.50\text{L}$ and heat to $450\text{K}$: $P_2=P_1\cdot \frac{V_1}{V_2}\cdot \frac{T_2}{T_1}=1.0\times \frac{2.0}{0.50}\times \frac{450}{300}=1.0\times 4\times 1.5=6.0\text{atm}.$ Smaller room and faster balls both raise hammering — pressure climbs, exactly as the pictures promise.

---

Step 7 — Two edge cases, so no scenario surprises you

WHAT & WHY. A rule you trust is a rule you've pushed to its limits. Two limits:

Edge A — the box goes cold toward absolute zero ($T\to 0$ K). $PV=nRT\Rightarrow PV\to 0$. With $n$ fixed, either $P\to 0$ (balls stop hammering) or $V\to 0$ (the ideal model imagines them shrinking to nothing). Real balls have size and stickiness, so real gases quit obeying this and condense first — that's the whole story of Real Gases and van der Waals Equation.

Edge B — you remove all the gas ($n\to 0$). $PV=0$: no balls, no hammering, no pressure. The equation degrades gracefully to "empty box, nothing happens." Good — a rule should say sensible things about nothing.

PICTURE. The $PV=nRT$ surface shown as pressure-vs-volume curves, one per temperature, all collapsing toward the origin as $T$ falls.

Each curve is a hyperbola ($P=nRT/V$, so $P$ falls as $V$ grows). Hotter gas $\Rightarrow$ curve sits higher (more hammering at the same room). Cool toward $0$ K $\Rightarrow$ the curve sinks onto the axes. No quadrant of "possible states" is left unexplained.

---

The one-picture summary

Three frozen-knob experiments $\to$ multiply into one proportionality $\to$ name the scale $R$ $\to$ $PV=nRT$ $\to$ freeze $n$ to get the combined law.

Recall Feynman retelling — say it to a 12-year-old

Picture a box of bouncing balls. First we froze everything but size and squeezed: pressure shot up, so room and hammering trade off ($V\propto 1/P$). Then we froze size-pressure and heated: faster balls pushed the walls out, so room grows with jiggle-speed ($V\propto T$) — but only if we count temperature from the point where jiggling truly stops, which is kelvin. Then we froze speed-pressure and poured in more balls: room grows with headcount ($V\propto n$). Because each test moved only one knob, the three effects just multiply: $V\propto nT/P$. We tape on one number $R$ (the same for every gas, which is the miracle) and tidy up to get $PV=nRT$. Finally, if we never add or remove balls, $nR$ is frozen, so $PV/T$ can't change between two snapshots — that's the combined gas law $P_1{V}_1/T_1=P_2{V}_2/T_2$. Push it to the freezing cold or to an empty box and it still says sensible things. One box of balls, one tidy rule.

---
