Foundations — Combined gas law and ideal gas equation PV = nRT

This page assumes you know nothing. Before you can trust that master rule (built in the parent note), you must own every letter and squiggle it uses. We build them one at a time, each on top of the last.

1. The picture we keep coming back to

Everything below lives inside one mental image: a sealed box of bouncing balls. Fix this picture in your head now — every symbol is just a measurement of this box.

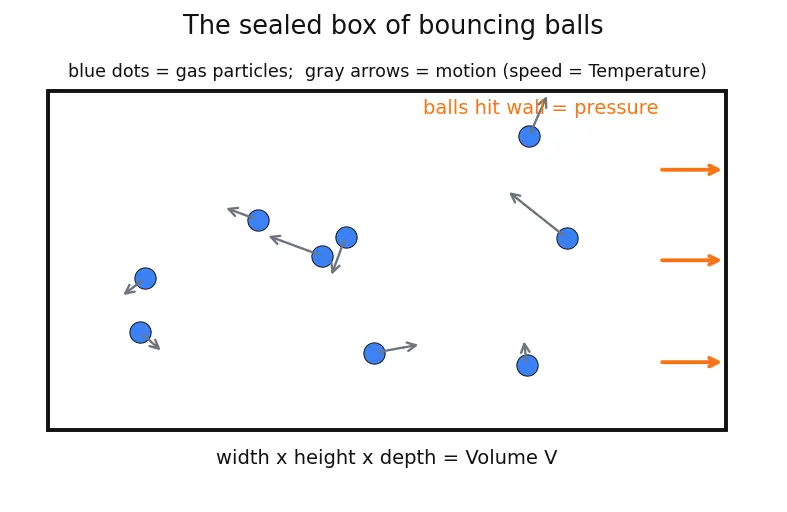

Look at the figure: the balls (blue dots) fly in straight lines until they smack a wall (orange arrows). That smacking is the whole story. Keep pointing back to this box as each symbol appears.

2. $P$ — Pressure: how hard the crowd pushes

Why the topic needs it. Pressure is one of the four dials on the box. Squeeze the box and hits land more often, so $P$ climbs — that is literally Boyle's observation, which the parent turns into $PV=\text{const}$.

3. $V$ — Volume: how much room the box gives

Why the topic needs it. Volume is dial number two. Halving $V$ while keeping everything else fixed doubles how often balls hit each wall — so $P$ doubles. That inverse tug between $V$ and $P$ is the heart of the combined law.

4. Temperature and why it must start from absolute zero

This is the symbol students get wrong, so we build it carefully.

Now the crucial part. Two temperature rulers exist:

• Celsius (${}^{\circ }\text{C}$) — zero is set at water's freezing point, an arbitrary human choice.
• Kelvin ($\text{K}$) — zero is set at absolute zero, the point where the balls stop moving entirely. Nothing can be colder.

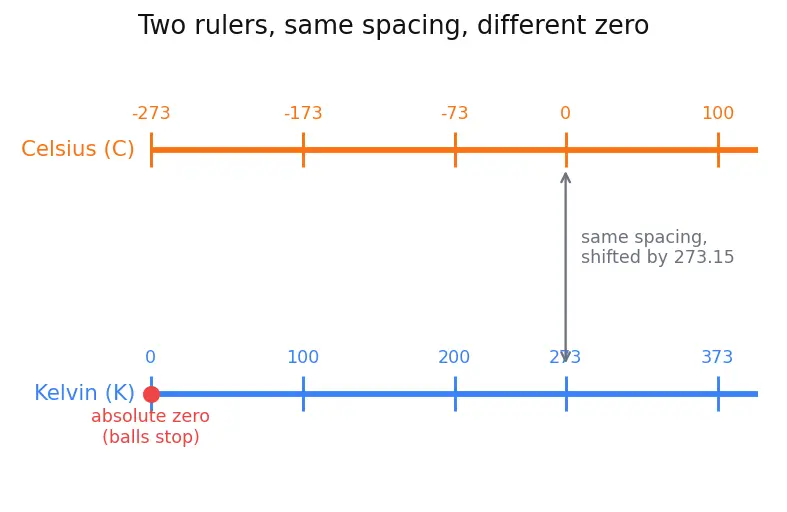

Look at the two rulers in the figure. They have the same spacing (a rise of one degree is the same size on both) but different starting points. To convert:

Why the gas laws demand Kelvin. The law $V\propto T$ says "double the temperature, double the volume." That only makes sense if $T=0$ means zero motion, zero pushing outward. On the Celsius ruler, $0{}^{\circ }\text{C}$ is a bustling, pushing gas — doubling from $10{}^{\circ }\text{C}$ to $20{}^{\circ }\text{C}$ is not doubling the true motion, so the proportion breaks. Only the Kelvin ruler, anchored at true zero, makes $V\propto T$ honest.

5. Counting the balls: the mole and $n$

You cannot count $10^{23}$ balls one by one, so chemists count in packages.

Why the topic needs it. $n$ is dial number three. Avogadro noticed: at the same $P$ and $T$, twice the gas needs twice the room, $V\propto n$. That is the third proportion the parent multiplies together.

6. Mass, molar mass, and how they feed density

The density spin-off in the parent uses three more symbols. Build them now.

Why the topic needs them. The parent substitutes $n=m/M$ into $PV=nRT$ to get $\rho =PM/RT$. Without $m$, $M$ and $\rho$ defined, that line is meaningless symbols.

7. $R$ — the universal constant, and what "$\propto$" means

Two pieces of notation remain: the proportion symbol and the constant it hides.

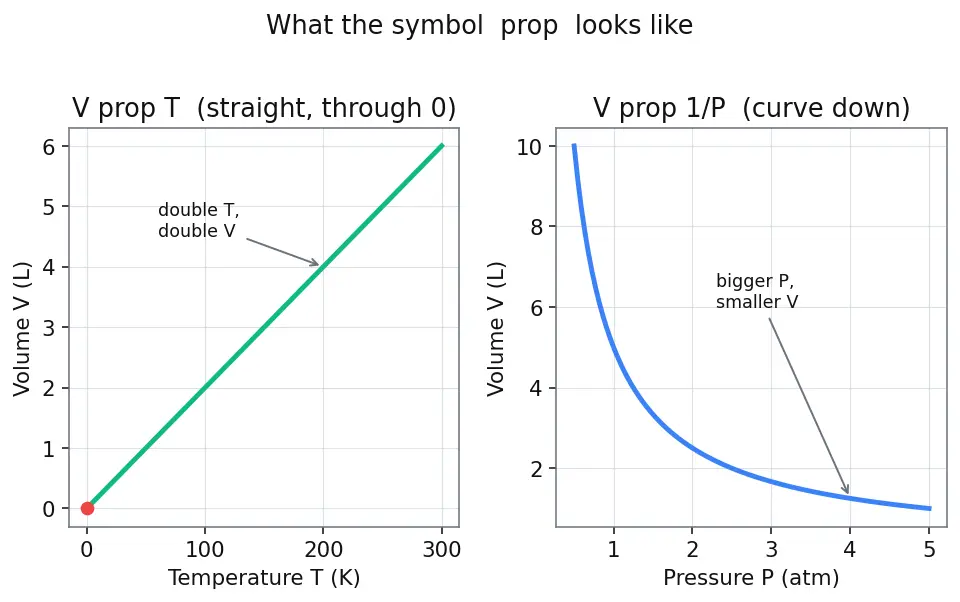

The figure shows the difference: left, $V\propto T$ is a straight line through zero (double $T$, double $V$). Right, $V\propto 1/P$ curves down — as $P$ grows, $V$ shrinks. Both are "proportional," but to $P$ vs to $1/P$.

Turning $\propto$ into $=$. A proportion says "they move together" but not by how many units. To make an equation you insert a constant of proportionality — the exact conversion factor. In gases that factor is $R$.

8. Putting the alphabet together

Every symbol in $PV=nRT$ is now defined from zero:

Read $PV=nRT$ now as a sentence: (push)×(room) equals (count)×(fixed factor)×(speed-from-zero).

Prerequisite map

This map feeds directly into the parent topic. The proportions come from Boyle's Law, Charles's Law and Avogadro's Law; the why balls push at all comes from Kinetic Theory of Gases.

Equipment checklist

Cover the answers and test yourself — you are ready for the parent note only if you can state each.
