The scenario matrix

Before any numbers, let us list what can vary when a problem hands you a diatomic species. Each row is a "cell" — a distinct thing that can trip you. Every worked example below is tagged with the cell(s) it covers.

Cell	The variable	What could go wrong	Covered by
A	Neutral, even e⁻, all paired	forget which MO order	Ex 1 (N₂), Ex 5 (F₂)
B	Neutral, even e⁻, degenerate half-fill	miss Hund → wrong magnetism	Ex 2 (O₂)
C	Add electrons (anion)	where does the extra e⁻ go?	Ex 3 (O₂⁻, O₂²⁻)
D	Remove electrons (cation)	which e⁻ leaves — top MO	Ex 4 (O₂⁺, N₂⁺)
E	Odd total electrons	half-integer bond order	Ex 6 (NO), Ex 4 (N₂⁺)
F	Heteronuclear, isoelectronic	can I borrow N₂'s diagram?	Ex 7 (CO, CN⁻)
G	Zero / degenerate input (BO = 0)	"does it exist?"	Ex 8 (He₂, Be₂)
H	Order-choice boundary ( $Z \approx 8$ )	mixed vs unmixed order flip	Ex 9 (C₂ vs "if O₂ used wrong order")
I	Word problem / real world	translate physics → chemistry	Ex 10 (liquid O₂ on a magnet)
J	Exam twist (trend / ranking)	compare BO across a series	Ex 3, Ex 4 wrap-up

The two MO energy orderings we will keep reaching for (from the parent):

How to read the ordering figure

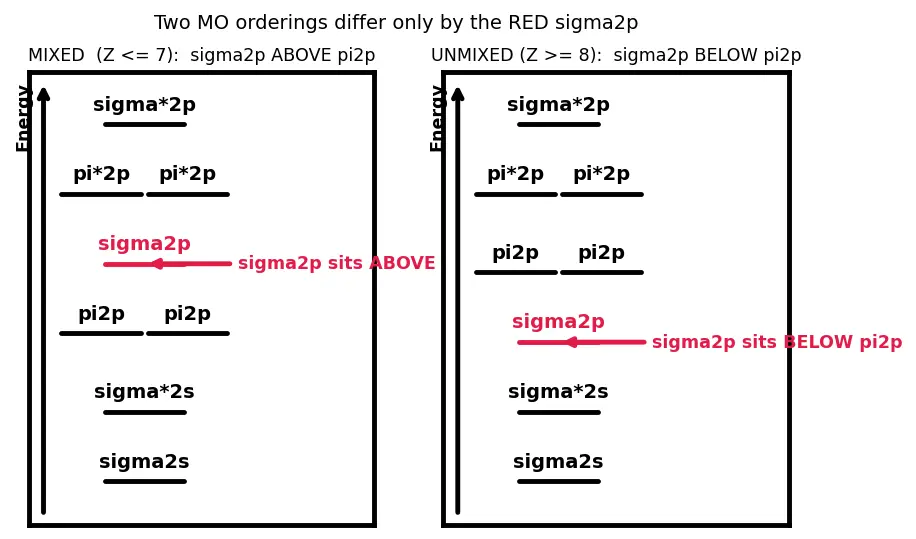

The figure below draws both energy ladders. Energy increases upward (see the vertical arrow). Each horizontal black line is one MO; its height is its energy. The only difference between the two ladders is the height of the red $σ_{2 p}$ line: on the left (mixed) it sits above the two $π_{2 p}$ lines; on the right (unmixed) it drops below them. To fill any molecule, start at the bottom line and climb — put 2 electrons per line, and where two lines are at the same height (degenerate, like the two $π_{2 p}$ ) put one in each before pairing. Watch the red line: its height is the single fact that decides whether $C_{2}$ / $N_{2}$ or $O_{2}$ / $F_{2}$ behaviour applies.

Figure — MO diagrams of H₂, He₂, N₂, O₂, F₂, NO, CO — bond order, magnetism

Worked examples

Ex 1 — N₂ (Cell A: neutral, even, all paired, mixed order)

Worked example Statement

Find the bond order and magnetism of $N_{2}$ (7 electrons per N atom → 14 total).

Forecast: guess before reading — how many bonds, and will it stick to a magnet?

Step 1 — Which order? Nitrogen has atomic number $Z = 7 \leq 7$ , so use the mixed order (in the figure, red $σ_{2 p}$ above the $π_{2 p}$ ). Why this step? The order choice decides everything downstream; picking it first prevents the classic mistake #2 from the parent.

Step 2 — Fill 14 electrons lowest-first. $σ_{1 s}^{2} σ_{1 s}^{* 2} σ_{2 s}^{2} σ_{2 s}^{* 2} π_{2 p}^{4} σ_{2 p}^{2}$ Why this step? Aufbau: two per orbital, the $π_{2 p}$ pair of orbitals holds 4 before we reach $σ_{2 p}$ .

Step 3 — Count. $N_{b} = 2 + 2 + 4 + 2 = 10$ (bonding), $N_{a} = 2 + 2 = 4$ (the two starred sets). $BO = \frac{10 - 4}{2} = 3$ Why this step? Net bonds = the definition.

Step 4 — Magnetism. Every filled MO has a pair. No unpaired electrons → diamagnetic.

Verify: $2 + 2 + 2 + 2 + 4 + 2 = 14$ electrons ✔. BO = 3 matches the famously short, strong N≡N triple bond. ✔ Why verify the electron total? A miscount by even one electron changes the filling of the top MO and can flip both BO and magnetism — so re-summing the superscripts is the cheapest way to catch a slip.

Ex 2 — O₂ (Cell B: degenerate half-fill, the Hund case)

Worked example Statement

Bond order and magnetism of $O_{2}$ (8 per O → 16 total).

Forecast: Lewis says O=O all-paired. Trust it? (Spoiler in Ex 10.)

Step 1 — Which order? Oxygen has atomic number $Z = 8$ , so unmixed ( $σ_{2 p}$ below $π_{2 p}$ — the red line drops in the figure). Why this step? Wrong order here still gives BO = 2, but it can flip the magnetism prediction — see Ex 9.

Step 2 — Fill 16. $σ_{1 s}^{2} σ_{1 s}^{* 2} σ_{2 s}^{2} σ_{2 s}^{* 2} σ_{2 p}^{2} π_{2 p}^{4} π_{2 p}^{* 2}$ The last 2 electrons enter the two degenerate $π_{2 p}^{*}$ orbitals. Why this step? By Hund's Rule and Pauli Exclusion, equal-energy orbitals each take one electron with parallel spin before any pairs up.

Step 3 — Count. $N_{b} = 10, N_{a} = 6$ . $BO = \frac{10 - 6}{2} = 2$ Why this step? We apply the bond-order definition $BO = \frac{N _{b} - N _{a}}{2}$ : net bonds are bonding electrons minus antibonding electrons, per pair.

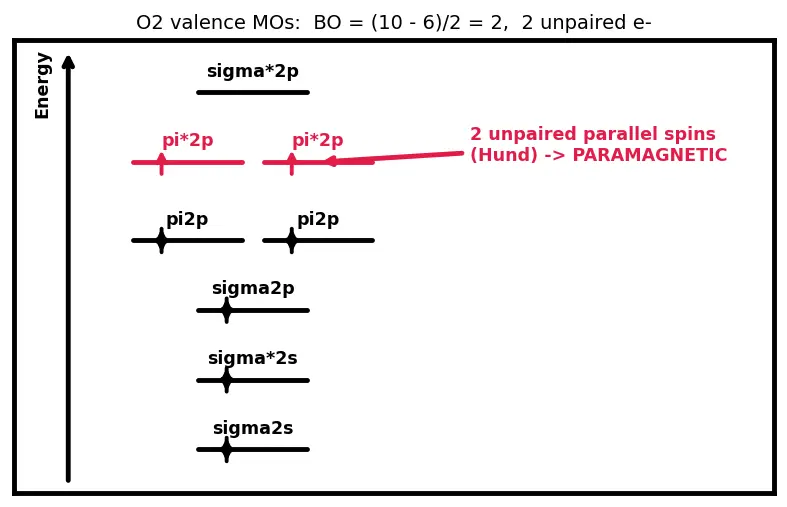

Step 4 — Magnetism. Two singly-occupied $π^{*}$ orbitals → 2 unpaired electrons → paramagnetic. See the red half-filled pair in the figure. Why this step? By Paramagnetism and Diamagnetism, any unpaired electron carries a net magnetic moment, so a species with ≥1 unpaired electron is attracted to a magnetic field (paramagnetic); only fully paired species are diamagnetic.

Verify: total $= 2 + 2 + 2 + 2 + 2 + 4 + 2 = 16$ ✔. BO 2 = double bond. Real liquid O₂ is drawn to a magnet — MO wins over Lewis. ✔ Why verify the electron total? If the total came out as 15 or 17 we would know a superscript was wrong; getting exactly 16 confirms the two half-filled $π^{*}$ orbitals are genuinely the last electrons placed, which is precisely what makes O₂ paramagnetic.

Ex 3 — O₂⁻ and O₂²⁻ (Cell C + Cell J: adding electrons, a trend)

Worked example Statement

Superoxide $O_{2}^{-}$ (17 e⁻) and peroxide $O_{2}^{2 -}$ (18 e⁻). Bond orders and magnetism; then rank the series $O_{2}, O_{2}^{-}, O_{2}^{2 -}$ by bond strength.

Forecast: each added electron — does it strengthen or weaken the bond?

Step 1 — Same (unmixed) order, keep adding into $π_{2 p}^{*}$ .

$O_{2}^{-}$ : one extra e⁻ → $π_{2 p}^{* 3}$ (one orbital paired, one single).
$O_{2}^{2 -}$ : two extra → $π_{2 p}^{* 4}$ (both filled). Why this step? The added electrons go into the lowest available MO, which is the antibonding $π^{*}$ still holding vacancies.

Step 2 — Count.

$O_{2}^{-}$ : $N_{b} = 10, N_{a} = 7 \Rightarrow BO = \frac{10 - 7}{2} = 1.5$ .
$O_{2}^{2 -}$ : $N_{b} = 10, N_{a} = 8 \Rightarrow BO = \frac{10 - 8}{2} = 1$ . Why this step? Antibonding electrons subtract — each one erodes bond order by ½.

Step 3 — Magnetism.

$O_{2}^{-}$ : $π^{* 3}$ has one unpaired → paramagnetic.
$O_{2}^{2 -}$ : $π^{* 4}$ all paired → diamagnetic. Why this step? By Paramagnetism and Diamagnetism, a single unpaired electron gives a net magnetic moment (paramagnetic); once every orbital is doubly filled the moments cancel (diamagnetic).

Step 4 — Rank. $BO : O_{2} (2) > O_{2}^{-} (1.5) > O_{2}^{2 -} (1)$ . By Bond Order, Bond Length, Bond Energy correlation, higher BO ⇒ shorter, stronger bond. So bond strength: $O_{2} > O_{2}^{-} > O_{2}^{2 -}$ ; bond length reverses.

Verify: electron totals 17 and 18 ✔; each extra antibonding e⁻ dropped BO by 0.5 as expected. ✔ Why verify the electron total? Charge sign errors are the commonest slip on ions — confirming 16+1 = 17 and 16+2 = 18 guarantees we added electrons (anion) rather than removed them, so the extra e⁻ correctly landed in the antibonding $π^{*}$ .

Ex 4 — O₂⁺ and N₂⁺ (Cell D + Cell E: removing electrons, one odd)

Worked example Statement

Dioxygenyl $O_{2}^{+}$ (15 e⁻) and $N_{2}^{+}$ (13 e⁻). Bond orders and magnetism.

Forecast: removing an electron — from where, and does the bond get stronger or weaker?

Step 1 — $O_{2}^{+}$ : remove the top electron from $O_{2}$ . The highest occupied MOs in $O_{2}$ are the $π_{2 p}^{*}$ (antibonding). Remove one: $\dots σ_{2 p}^{2} π_{2 p}^{4} π_{2 p}^{* 1}$ Why this step? You always ionise the highest-energy occupied electron — here an antibonding one, which helps the bond. $N_{b} = 10, N_{a} = 5 \Rightarrow BO = \frac{10 - 5}{2} = 2.5$ . One unpaired $π^{*}$ e⁻ → paramagnetic.

Step 2 — $N_{2}^{+}$ : remove top electron from $N_{2}$ (mixed order). The highest occupied is $σ_{2 p}$ (bonding). Remove one: $\dots π_{2 p}^{4} σ_{2 p}^{1}$ Why this step? In the mixed order the topmost filled MO is the bonding $σ_{2 p}$ — so removing it weakens the bond, unlike $O_{2}^{+}$ . $N_{b} = 9, N_{a} = 4 \Rightarrow BO = \frac{9 - 4}{2} = 2.5$ . One unpaired $σ_{2 p}$ e⁻ → paramagnetic.

Step 3 — The lesson. $O_{2} \to O_{2}^{+}$ raises BO ( $2 \to 2.5$ , remove antibonding); $N_{2} \to N_{2}^{+}$ lowers BO ( $3 \to 2.5$ , remove bonding). Same "remove one electron", opposite effect — because of which MO sits on top.

Verify: totals 15 and 13 ✔. Both BO = 2.5, both paramagnetic (odd electron guarantees ≥1 unpaired) ✔. Why verify the electron total? For cations you must confirm you subtracted the right number: 16−1 = 15 and 14−1 = 13. An odd total (15, 13) also acts as an instant check that magnetism must be paramagnetic, since an odd number of electrons can never fully pair.

Ex 5 — F₂ (Cell A: neutral, even, unmixed, all paired)

Worked example Statement

Bond order and magnetism of $F_{2}$ (9 per F → 18 total).

Forecast: stronger or weaker than O₂?

Step 1 — Unmixed order (fluorine has atomic number $Z = 9 \geq 8$ ). Fill 18. $\dots σ_{2 p}^{2} π_{2 p}^{4} π_{2 p}^{* 4}$ Why this step? Two more electrons than O₂ complete both $π^{*}$ orbitals.

Step 2 — Count. $N_{b} = 10, N_{a} = 8 \Rightarrow BO = \frac{10 - 8}{2} = 1$ . Why this step? We apply the bond-order definition $BO = \frac{N _{b} - N _{a}}{2}$ : the eight antibonding electrons cancel eight of the ten bonding ones, leaving one net bond.

Step 3 — Magnetism. All MOs full → diamagnetic. Why this step? By Paramagnetism and Diamagnetism, with every orbital doubly filled there are no unpaired electrons, so all magnetic moments cancel — the species is diamagnetic.

Verify: total 18 ✔. BO 1 < O₂'s 2, consistent with $N_{2} (3) > O_{2} (2) > F_{2} (1)$ : piling electrons into antibonding tears the bond down. ✔ Why verify the electron total? Confirming 18 tells us both $π^{*}$ orbitals are completely full (4 electrons), which is exactly why F₂ is diamagnetic; a miscount to 17 would have wrongly left one $π^{*}$ unpaired.

Ex 6 — NO (Cell E: heteronuclear, odd electron)

Worked example Statement

Nitric oxide $N O$ (7 + 8 = 15 e⁻). Bond order, magnetism, and predict $N O^{+}$ .

Forecast: integer or half-integer BO?

Step 1 — Which order? N is on the light side, so NO uses the N₂-type (mixed) order. Why this step? For heteronuclear molecules of light 2nd-period atoms the mixed order is the standard exam convention.

Step 2 — Fill 15. $\dots π_{2 p}^{4} σ_{2 p}^{2} π_{2 p}^{* 1}$ The 15th electron sits alone in a $π_{2 p}^{*}$ . Why this step? Aufbau: electrons fill MOs strictly lowest-energy first, two per orbital, so after the $π_{2 p}^{4}$ and $σ_{2 p}^{2}$ are full the leftover 15th electron must go into the next level up, a $π_{2 p}^{*}$ .

Step 3 — Count. $N_{b} = 10, N_{a} = 5 \Rightarrow BO = \frac{10 - 5}{2} = 2.5$ . One unpaired → paramagnetic.

Step 4 — $N O^{+}$ (14 e⁻). Remove that lone antibonding electron: $N_{a} = 4$ , $BO = \frac{10 - 4}{2} = 3$ , now all paired → diamagnetic, isoelectronic with N₂ and CO. Why this step? Removing an antibonding electron always raises BO — a clean self-check.

Verify: 15 ✔; $N O \to N O^{+}$ gives $2.5 \to 3$ ✔ (bond shortens, matches experiment). ✔ Why verify the electron total? The odd total 15 immediately guarantees NO is paramagnetic (odd electrons can't all pair), and confirming 14 for NO⁺ proves it is isoelectronic with N₂/CO — the fastest sanity check that BO = 3 must follow.

Ex 7 — CO and CN⁻ (Cell F: isoelectronic borrowing)

Worked example Statement

$C O$ (6 + 8 = 14 e⁻) and cyanide $C N^{-}$ (6 + 7 + 1 = 14 e⁻). Bond orders and magnetism.

Forecast: should they match N₂?

Step 1 — Count electrons and compare. Both have 14 electrons, exactly like N₂. By Isoelectronic species (CO, N₂, CN⁻, NO⁺), same electron count on the same MO scaffold ⇒ same diagram. Why this step? Isoelectronic species share bond order and magnetism — no need to refill from scratch.

Step 2 — Borrow N₂'s filling (mixed order). $\dots π_{2 p}^{4} σ_{2 p}^{2}$ $N_{b} = 10, N_{a} = 4 \Rightarrow BO = 3$ , all paired → diamagnetic for both. Why this step? Isoelectronic species have identical MO fillings on the same energy ladder, hence identical bond order and identical magnetism — so we can copy N₂'s result directly rather than refill.

Verify: both totals = 14 ✔; BO = 3 matches CO's very short strong triple bond (and why CO binds haemoglobin so tightly). ✔ Why verify the electron total? Getting 14 for both (6+8 and 6+7+1) is the whole justification for "borrowing" N₂'s diagram — if either total differed we could not claim isoelectronic, and the copied BO = 3 would be invalid.

Ex 8 — He₂ and Be₂ (Cell G: the zero-bond degenerate case)

Worked example Statement

Do $H e_{2}$ (4 e⁻) and $B e_{2}$ (8 e⁻) exist as stable molecules?

Forecast: any net bond at all?

Step 1 — He₂. Fill 4: $σ_{1 s}^{2} σ_{1 s}^{* 2}$ . $N_{b} = 2, N_{a} = 2 \Rightarrow BO = \frac{2 - 2}{2} = 0$ . Why this step? The antibonding pair exactly cancels the bonding pair — a degenerate/zero input where the machine returns "no bond".

Step 2 — Be₂. Fill 8: $σ_{1 s}^{2} σ_{1 s}^{* 2} σ_{2 s}^{2} σ_{2 s}^{* 2}$ . $N_{b} = 4, N_{a} = 4 \Rightarrow BO = 0$ . Why this step? Same story one shell up — every bonding pair is matched by an antibonding pair.

Step 3 — Conclusion. BO = 0 ⇒ no net glue ⇒ neither is a stable molecule. Both diamagnetic (all paired) even so. Why this step? Bond order counts the net number of electron pairs holding the nuclei together; when $N_{b} = N_{a}$ the destabilising antibonding electrons exactly undo the stabilising bonding ones, so there is no net lowering of energy on approach — nothing binds the atoms, and the molecule does not form.

Verify: He₂ $2 + 2 = 4$ ✔, Be₂ $2 + 2 + 2 + 2 = 8$ ✔; both BO = 0 ✔. Why verify the electron total? The count is the proof: seeing that bonding and antibonding electrons are equal in number (2 = 2, and 4 = 4) is exactly what forces BO = 0 — the totals confirm no unmatched bonding pair survives.

Ex 9 — The order-flip trap: C₂, and "what if we used the wrong order for O₂" (Cell H)

Worked example Statement

(a) Magnetism of $C_{2}$ (12 e⁻). (b) Show that using the wrong MO order for a molecule can flip its predicted magnetism. Does the order choice ever change the answer in practice?

Forecast: is C₂ paramagnetic? Can picking the wrong ladder ever change magnetism?

Step 1 — C₂, correct (mixed) order. Carbon has $Z = 6 \leq 7$ , so use the mixed ladder (red $σ_{2 p}$ above $π_{2 p}$ ). Fill 12: $\dots σ_{2 s}^{* 2} π_{2 p}^{4}$ . The two $π_{2 p}$ orbitals fill completely (4 electrons, all paired). $N_{b} = 8, N_{a} = 4 \Rightarrow BO = \frac{8 - 4}{2} = 2$ . Diamagnetic. Why this step? Because $π_{2 p}$ lies below $σ_{2 p}$ in the mixed order, both π orbitals fill and pair — no unpaired electrons.

Step 2 — C₂ with the WRONG (unmixed) order. Then $σ_{2 p}$ fills first ( $σ_{2 p}^{2}$ ), leaving the last 2 electrons to split across the two degenerate $π_{2 p}$ → 2 unpaired → paramagnetic (incorrect!). Same BO = 2, but wrong magnetism. Why this step? This is exactly parent-mistake #2: the order choice can change which orbitals sit at the filling frontier, hence magnetism.

Step 3 — Does it ever matter for O₂? With the correct unmixed order, O₂'s frontier is the degenerate $π^{*}$ → 2 unpaired → paramagnetic (Ex 2). If you wrongly used the mixed order for O₂, the frontier would still be the degenerate $π^{*}$ (it lies below $σ_{2 p}^{*}$ in both ladders), so O₂ reads paramagnetic either way. Why this step? The order choice changes magnetism only when it moves a degenerate orbital pair to the filling frontier: for C₂ the wrong order exposes the degenerate $π_{2 p}$ (creating false unpaired electrons), whereas for O₂ both ladders leave the degenerate $π^{*}$ on top.

Step 4 — The moral. Always match the order to $Z$ : for early elements like C₂ the choice genuinely changes the magnetism answer; for O₂ it happens not to — but never rely on that luck, always pick by $Z$ .

Verify: C₂ total 12 ✔, correct BO = 2, diamagnetic ✔ (experimentally C₂ is diamagnetic — mixed order is right). ✔ Why verify the electron total? Confirming 12 shows the four bonding $π_{2 p}$ electrons are the last placed under the correct order — that full, paired $π_{2 p}^{4}$ is exactly what makes C₂ diamagnetic, so the count directly backs the magnetism claim.

Ex 10 — Real-world: liquid O₂ clings to a magnet (Cell I)

Worked example Statement

In a famous demo, liquid oxygen poured between the poles of a strong magnet bridges the gap and sticks. Which MO fact explains this, and what would liquid N₂ do?

Forecast: which molecule is attracted, and why?

Step 1 — Recall the magnetic rule. A substance is attracted to a magnet (Paramagnetism and Diamagnetism) only if it has unpaired electrons (paramagnetic). Why this step? This links the demo directly to electron pairing, the output of our machine.

Step 2 — Apply to O₂. From Ex 2, O₂ has 2 unpaired electrons in its $π_{2 p}^{*}$ → paramagnetic → attracted → it bridges the poles. Why this step? Each unpaired electron has a net spin magnetic moment; with two of them uncancelled, O₂ behaves like a tiny magnet that is drawn into the strong field, so it physically sticks between the poles.

Step 3 — Apply to N₂. From Ex 1, N₂ is fully paired → diamagnetic → not attracted → liquid N₂ pours straight through. Why this step? With every electron paired the spin moments cancel exactly, leaving no net moment; a diamagnetic substance is in fact weakly repelled by the field, so it will not cling — it just falls through the gap.

Step 4 — Why this matters. Lewis theory draws O=O with all electrons paired and predicts no attraction; only MO theory predicts the sticking. The magnet demo is direct experimental proof of MO theory over Lewis.

Verify: O₂ paramagnetic (2 unpaired) ✔, N₂ diamagnetic (0 unpaired) ✔ — matches every physics classroom's liquid-O₂ demo. ✔ Why verify against the demo? An MO prediction is only trustworthy if it survives experiment: the fact that real liquid O₂ visibly sticks (and liquid N₂ does not) is the physical "plug-back" that confirms our unpaired-electron count for each molecule.

Recall Quick self-test (reveal answers)

Bond order of $O_{2}^{+}$ ? ::: $2.5$ (remove one antibonding $π^{*}$ electron from O₂'s BO of 2). Bond order of superoxide $O_{2}^{-}$ ? ::: $1.5$ , paramagnetic (one unpaired $π^{*}$ electron). Bond order of peroxide $O_{2}^{2 -}$ ? ::: $1$ , diamagnetic (both $π^{*}$ filled). Is $C_{2}$ para- or diamagnetic, and its BO? ::: Diamagnetic, BO = 2 (both $π_{2 p}$ filled and paired). $N_{2}^{+}$ vs $O_{2}^{+}$ bond order? ::: Both $2.5$ — but N₂⁺ lost a bonding electron (BO fell) while O₂⁺ lost an antibonding one (BO rose). Why do CO and CN⁻ share N₂'s bond order? ::: All three have 14 electrons — isoelectronic, same MO filling, BO = 3, diamagnetic. What does the asterisk in $π_{2 p}^{*}$ mean? ::: Antibonding orbital — node between nuclei, higher energy, its electrons weaken the bond.
