Valence Bond Theory (VBT) — hybridization (sp, sp², sp³, sp³d, sp³d²)

WHY does hybridization even exist?

The problem VBT had to solve. Consider carbon: ground state $1s^2\,2s^2\,2p_x^1\,2p_y^1$ . It has only 2 unpaired electrons, so it "should" form only 2 bonds — yet $CH_4$ has 4 identical C–H bonds at $109.5°$ .

If C used one $2s$ and three $2p$ orbitals directly, the four bonds would not be identical (one from spherical $s$ , three from perpendicular $p$ ).
Experiment says all four bonds are equal in length and energy, arranged tetrahedrally.

HOW to find hybridization fast (the 80/20 rule)

The steric number (SN) decides everything:

$\text{SN} = (\text{no. of }\sigma\text{ bonds / atoms directly bonded}) + (\text{no. of lone pairs on central atom})$

SN	Hybridization	Geometry (electron)	Bond angle
2	$sp$	Linear	$180°$
3	$sp^2$	Trigonal planar	$120°$
4	$sp^3$	Tetrahedral	$109.5°$
5	$sp^3d$	Trigonal bipyramidal	$120°/90°$
6	$sp^3d^2$	Octahedral	$90°$

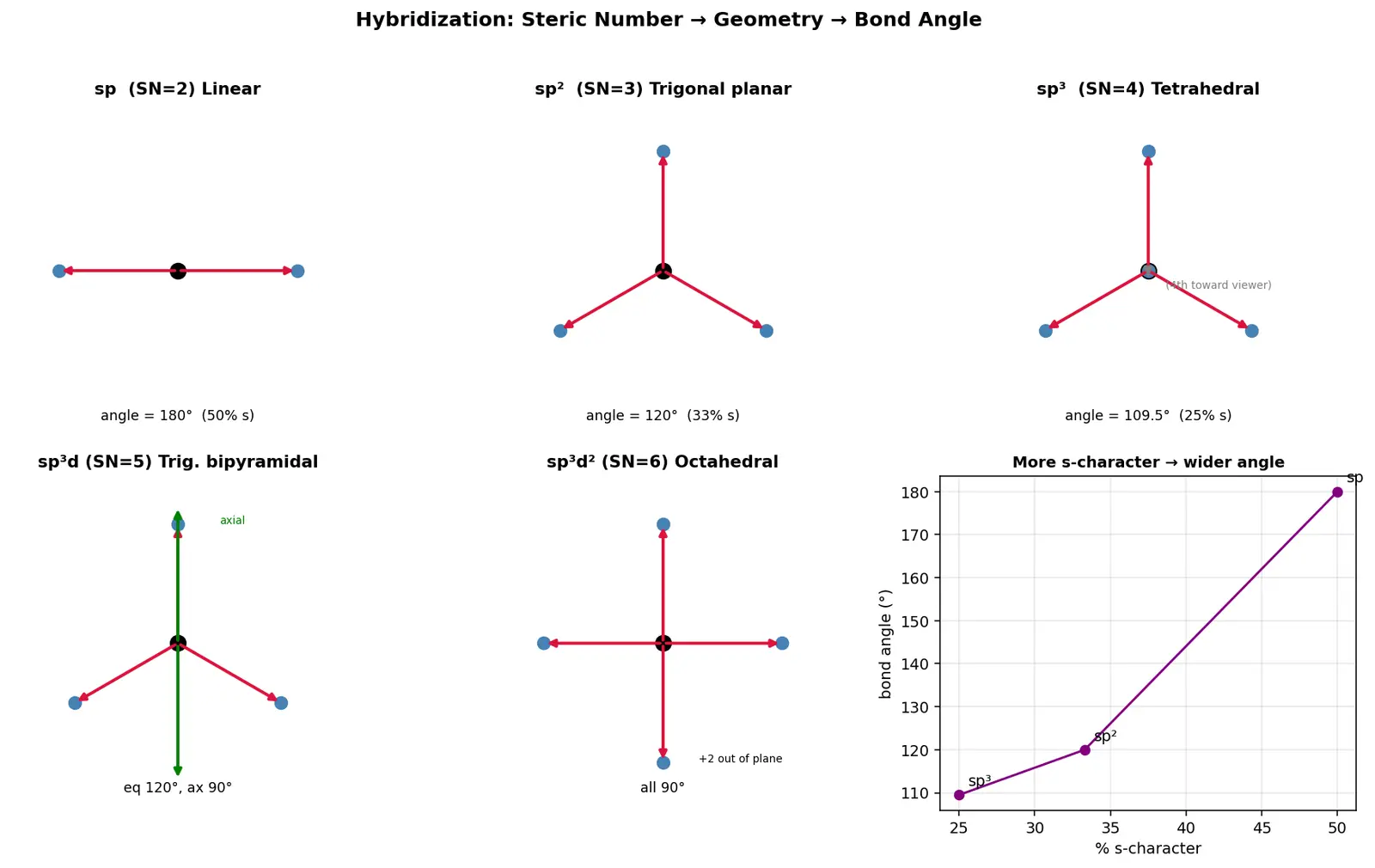

Figure — Valence Bond Theory (VBT) — hybridization (sp, sp², sp³, sp³d, sp³d²)

Why the angles come out that way (dual coding: geometry = repulsion)

s-character controls angle. More %s = orbital held closer to nucleus, fatter lobe, wider angle:

$sp:\ 50\%\,s \Rightarrow 180°,\quad sp^2:\ 33\%\,s \Rightarrow 120°,\quad sp^3:\ 25\%\,s \Rightarrow 109.5°$

Formula Deriving the

$sp^3$ angle $109.5°$ from first principles A tetrahedron's four vertices can be placed at alternate corners of a cube: $A=(1,1,1),\; B=(1,-1,-1),\; C=(-1,1,-1),\; D=(-1,-1,1)$ Angle between two bonds from centre $(0,0,0)$ : $\cos\theta = \frac{\vec A\cdot\vec B}{|\vec A||\vec B|}= \frac{(1)(1)+(1)(-1)+(1)(-1)}{\sqrt3\cdot\sqrt3}= \frac{-1}{3}$ $\theta = \cos^{-1}\!\left(-\tfrac13\right) = 109.47°$ The bond angle is not an arbitrary number — it falls straight out of geometry.

Worked Examples

Common mistake Common mistakes (steel-manned)

Mistake A: "Lone pairs don't count for hybridization." Why it feels right: lone pairs form no bond, so students think they're invisible. Fix: lone pairs occupy hybrid orbitals — they must be counted in SN. Ignoring O's 2 lone pairs would wrongly call water linear.

Mistake B: "sp³ always means exactly $109.5°$ ." Why it feels right: the table says so. Fix: $109.5°$ is the ideal with all four positions identical. Lone pairs / electronegativity differences distort it (water $104.5°$ , ammonia $107°$ ).

Mistake C: counting π bonds toward SN. Why it feels right: a double bond "looks like more bonding." Fix: only σ bonds + lone pairs count. A double bond contributes one to SN. So $CO_2$ (O=C=O): C has 2 σ, 0 LP → SN 2 → $sp$ , linear.

Mistake D: "d orbitals really participate in $SF_6$ ." Why it feels right: the $sp^3d^2$ label. Fix (nuance): modern theory shows d-participation is minimal; for exam VBT we still label $sp^3d^2$ , but know it's a bookkeeping model, not literal heavy d-orbital mixing.

Recall Feynman: explain to a 12-year-old

Imagine an atom has a few differently-shaped "hands" to grab other atoms — one round hand ( $s$ ) and some dumbbell hands ( $p$ ). If it grabbed with these different hands, the bonds would be uneven and wobbly. So the atom blends all its hands into identical new hands (hybrids) and spreads them out as far apart as possible, like spikes on a ball. Count how many things it grabs plus its hidden "resting" pairs — that number tells you the shape: 2 = straight line, 3 = flat triangle, 4 = 3D tetrahedron, 5 and 6 = fancier stars.

Forecast-then-Verify drill

Before checking the table, predict hybridization & shape, then verify:

$NH_3$ → forecast: SN = 3σ + 1LP = 4 → $sp^3$ , pyramidal ( $107°$ ). ✅
$XeF_4$ → forecast: Xe $V=8$ , 4 bonds, LP $=(8-4)/2=2$ → SN 6 → $sp^3d^2$ , square planar. ✅
$SO_2$ → forecast: S 2σ + 1LP → SN 3 → $sp^2$ , bent. ✅

Flashcards

What formula gives hybridization directly?

Steric number SN = (σ bonds/bonded atoms) + (lone pairs on central atom); SN 2..6 → sp, sp², sp³, sp³d, sp³d².

Why does carbon form 4 equal bonds in CH₄ despite 2 unpaired electrons?

A 2s electron is promoted to 2p (4 unpaired), then s+3p hybridize into four equivalent sp³ orbitals at 109.5°.

Derive the sp³ bond angle.

Place bonds at tetrahedron vertices (1,1,1),(1,-1,-1),(-1,1,-1),(-1,-1,1); cosθ = -1/3 → θ = 109.47°.

Why is water's angle 104.5° not 109.5°?

Two lone pairs on O (sp³) repel more than bonding pairs, squeezing H–O–H below ideal tetrahedral.

Which orbitals make π bonds?

Unhybridized p orbitals overlapping sideways — never hybrid orbitals.

Does a double bond count as 1 or 2 toward SN?

One (only σ bonds + lone pairs count; the π part is ignored for SN).

Relationship between %s-character and bond angle?

More s-character → wider angle: sp(50%)=180°, sp²(33%)=120°, sp³(25%)=109.5°.

Hybridization and shape of XeF₄?

sp³d², square planar (SN = 4 bonds + 2 lone pairs = 6).

Why axial bonds in PCl₅ are longer?

Axial bonds face 3 equatorial neighbours at 90°, suffering more repulsion than equatorial bonds.

Connections

VSEPR Theory — geometry rules that agree with VBT SN counting.
Sigma and Pi Bonds — hybrids → σ, leftover p → π.
Molecular Orbital Theory (MOT) — alternative that explains paramagnetism of $O_2$ where VBT fails.
Bond Angle and Bent's Rule — refined angle predictions.
Atomic Orbitals (s, p, d shapes) — the raw ingredients being mixed.
Formal Charge and Lewis Structures — needed before counting lone pairs.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, hybridization ka core idea simple hai: ek atom ke paas alag-alag shape ke orbitals hote hain — round wala $s$ aur dumbbell wale $p$ (aur kabhi $d$ ). Agar atom in alag-alag orbitals se seedha bond banaye to bonds uneven ho jaate, lekin experiment kehta hai ki $CH_4$ ke chaaron C–H bond bilkul equal hain. Isliye atom apne orbitals ko mix karke naye identical orbitals bana leta hai — inhe hybrid orbitals kehte hain. Jitne orbitals mix karo, utne hi hybrid milte hain.

Sabse fast trick exam ke liye: steric number (SN) nikaalo = (central atom se directly jude atoms/σ bonds) + (central atom pe lone pairs). SN = 2,3,4,5,6 ke liye hybridization = $sp, sp^2, sp^3, sp^3d, sp^3d^2$ , aur shapes hoti hain linear, trigonal planar, tetrahedral, trigonal bipyramidal, octahedral. Yaad rakho — double bond ko SN mein sirf 1 count karte hain, kyunki extra π bond unhybridized $p$ orbital se banta hai, hybrid se nahi.

Angle ka logic bhi seedha hai — jitna zyada %s-character, utna wide angle. $sp$ mein 50% s → $180°$ , $sp^2$ mein $120°$ , $sp^3$ mein $109.5°$ . Aur $109.5°$ koi random number nahi hai — tetrahedron ki geometry se $\cos\theta = -1/3$ aata hai, bas. Ek important baat: lone pairs bonding pairs se zyada repel karte hain, isliye water ka angle $109.5°$ ki jagah $104.5°$ ho jaata hai. Ye samajh lo to Chemical Bonding ka aadha chapter cover ho jaata hai — high yield topic hai, isliye SN formula pakka ratt lo.
