σ vs π bonds — overlap, strength — Chemistry notes

WHY do we even split bonds into σ and π?

WHAT is the problem? When two atoms come close, their orbitals can merge in more than one geometric way. A single line joining the nuclei (the internuclear/bond axis) is the reference. The region of overlap relative to this axis changes the strength, so we classify:

σ bond: overlap region lies symmetrically ON the bond axis.
π bond: overlap region lies OFF the axis (parallel lobes, one above + one below).

WHY does more overlap = stronger bond? More electron density is shared between the nuclei. That shared density screens the nuclear repulsion and glues both nuclei together. So:

$\text{Bond strength} \;\propto\; \text{extent (magnitude) of orbital overlap}$

This is the master principle. Everything below is a consequence.

The ways σ can form (all head-on)

HOW σ forms — the possible head-on overlaps:

$s$ – $s$ overlap (e.g. H–H).
$s$ – $p$ overlap (the $p$ points along the axis).
$p$ – $p$ end-to-end overlap (both $p$ lobes point along the axis).

Also note: hybrid orbitals ( $sp$ , $sp^2$ , $sp^3$ ) always form σ bonds, because they are directional and point straight at the neighbour. These are not a fundamentally separate category — a hybrid is just a linear combination of $s$ and $p$ , so its head-on overlap is really an $s/p$ mixture doing the same thing as cases 1–3.

How π forms (sideways)

WHY weaker? The lobes overlap off-axis. The overlap magnitude is smaller for the same distance, and the density is spread away from the internuclear line where binding is less effective.

Formula Overlap integral (why "amount of overlap" is a real number)

The overlap of two orbitals $\psi_A,\psi_B$ is measured by the overlap integral $S \;=\; \int \psi_A\,\psi_B \,d\tau$ Derivation of the idea (from scratch): the stabilisation of a molecular orbital comes from the resonance/interaction matrix element $H_{ab}=\int\psi_A\,\hat{H}\,\psi_B\,d\tau$ , and the two atoms only "feel" each other where their orbitals actually overlap. Since $H_{ab}$ tracks the region where $\psi_A\psi_B$ is non-zero, a larger overlap integral $|S|$ generally means a larger $|H_{ab}|$ and hence more stabilisation. (Strictly, bonding energy depends on both $S$ and $H_{ab}$ , not $S$ alone — but qualitatively bigger overlap ⇒ stronger bond.) For head-on $p_z$ – $p_z$ : lobes point at each other, big product $\psi_A\psi_B$ near the axis ⇒ large $S_\sigma$ . For sideways $p_x$ – $p_x$ : lobes are parallel and displaced ⇒ smaller $S_\pi$ . Hence $S_\sigma > S_\pi \Rightarrow$ σ stronger than π. No formula memorised — it follows from geometry.

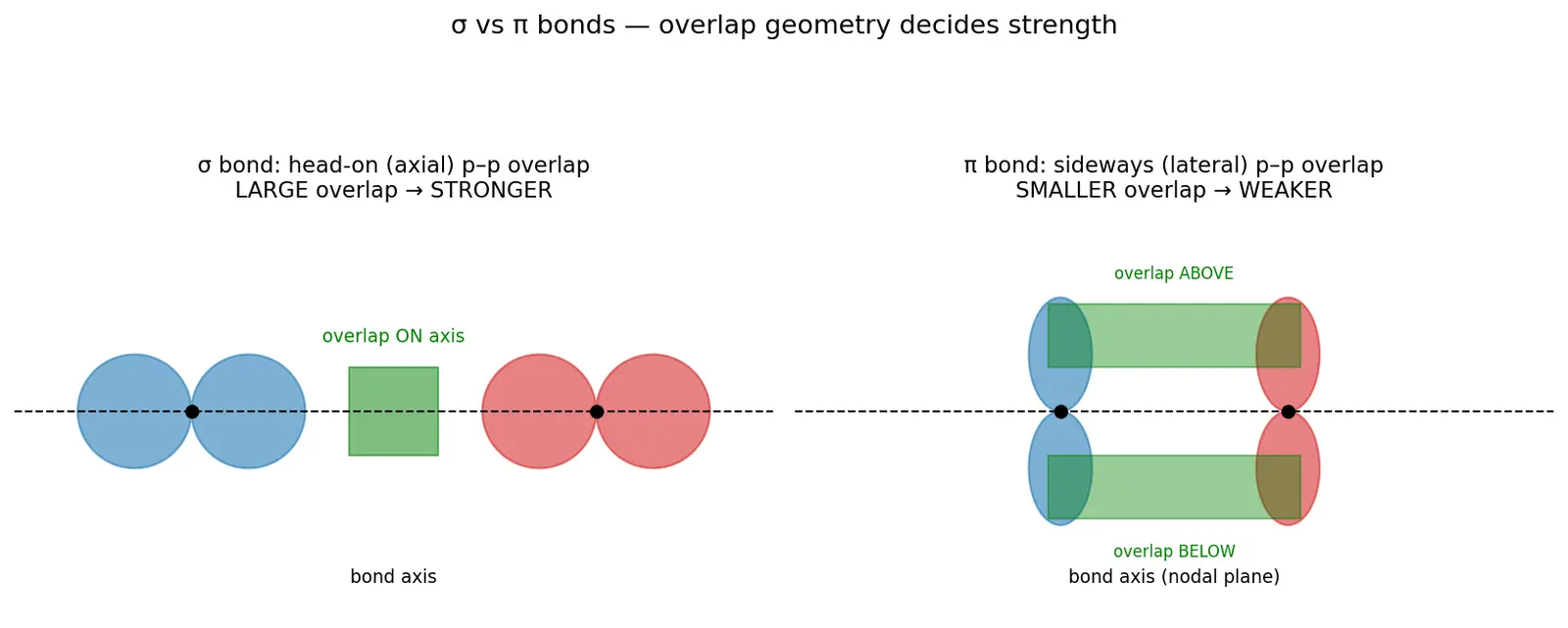

Figure — σ vs π bonds — overlap, strength

Key consequences (the 80/20 you must own)

Property	σ bond	π bond
Overlap type	head-on (axial)	sideways (lateral)
Strength	stronger	weaker
Overlap magnitude $S$	larger	smaller
Free rotation about axis?	yes	no (breaks the sideways overlap)
Can exist alone?	yes (single bond)	no — always with a σ first
Density location	on the axis	above & below axis
Reactivity	less reactive	more reactive (exposed π electrons)

Common mistake Steel-manned common errors

Mistake 1: "Double bond is twice as strong as single, so π = σ." Why it feels right: two lines drawn in the structure ⇒ "two equal bonds." Fix: the two bonds are of different type (1σ+1π). The π adds less because sideways overlap is smaller. Numbers above prove it.

Mistake 2: "π bonds don't exist without a σ, so π is unimportant." Why it feels right: it's always the 'extra' one. Fix: π electrons are exposed and loosely held ⇒ they drive most organic reactivity (addition reactions, colour, conjugation). Small energy ≠ small importance.

Mistake 3: "You can rotate a double bond freely like a single bond." Why it feels right: single bonds rotate, both are "just bonds." Fix: rotating breaks the sideways π overlap (needs the two $p$ orbitals parallel). σ is cylindrically symmetric so rotation is fine; π is not.

Mistake 4: "More bonds = weaker because atoms crowd." Fix: more shared electrons between nuclei = shorter, stronger, higher total bond energy. Bond energy increases single<double<triple.

Recall Feynman: explain to a 12-year-old

Imagine two magnets you push together. If you push them tip-to-tip in a straight line, they lock really hard — that's a σ bond. Now imagine laying two bar magnets side by side, touching along their length — they still stick, but more weakly and they can slide/twist apart easily — that's a π bond. Two atoms always do the strong tip-to-tip stick first, and only then can they add the weaker side-by-side one. That's why a "double bond" is really one strong stick plus one weak stick, and why you can't twist a double bond without snapping the weak side-by-side hold.

Flashcards

What geometric overlap forms a σ bond?

Head-on / axial / end-to-end overlap along the bond axis.

What geometric overlap forms a π bond?

Sideways / lateral overlap of parallel p orbitals, density above & below the axis.

Which is stronger, σ or π, and WHY?

σ, because head-on overlap gives a larger overlap integral S (more electron density between nuclei).

What is the overlap integral S and what does it control?

S=\int\psi_A\psi_B\,d\tau

; larger |S| generally means larger interaction element H_ab, hence more stabilisation and a stronger bond.

Compose a single, double, and triple bond in terms of σ/π.

Single = 1σ; Double = 1σ+1π; Triple = 1σ+2π.

Why can a σ bond rotate freely but a π bond cannot?

σ is cylindrically symmetric about the axis; rotating a π bond misaligns the parallel p orbitals and destroys the sideways overlap.

Can a π bond exist without a σ bond?

No — atoms form the head-on σ first, then leftover parallel p orbitals form π.

Why are π electrons more reactive?

They lie above/below the axis, are less tightly held/more exposed, so they participate readily in reactions.

Do hybrid orbitals form a new bond category?

No — a hybrid is a linear combination of s and p, so its head-on overlap still gives an ordinary σ bond.

In N₂, which orbitals form which bonds?

p_z

–

p_z

→ σ;

p_x

–

p_x

and

p_y

–

p_y

→ two π; total 1σ+2π.

Using C–C=348 and C=C=615 kJ/mol, show π<σ.

π contribution = 615−348 = 267 kJ/mol < 348 (the σ), so π is weaker.

Connections

Hybridisation (sp, sp2, sp3) — hybrid orbitals always form σ bonds.
Molecular Orbital Theory — bonding/antibonding from the overlap integral.
Bond order, length and energy — more π bonds ⇒ shorter, stronger.
Resonance and conjugation — delocalised π systems.
cis-trans isomerism — restricted rotation from π bonds.
VSEPR and molecular geometry — σ framework sets the shape.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, bond banta hi hai orbitals ke overlap se. Ab overlap ka geometry sab kuch decide karta hai. Agar do orbitals seedha aamne-saamne (head-on), bond axis ke along milte hain, to banta hai sigma (σ) bond — yeh sabse strong hota hai, kyunki electron density theek dono nuclei ke beech mein aa jaati hai jahan wo maximum "gond" ka kaam karti hai.

Ab agar do parallel $p$ orbitals side se, upar aur neeche (sideways) overlap karte hain, to banta hai pi (π) bond. Yeh weaker hota hai kyunki overlap kam hai aur density axis se hatke hai. Isko ek number se samjho — overlap integral $S=\int\psi_A\psi_B\,d\tau$ . Jitna bada $S$ , utna zyada interaction ( $H_{ab}$ ) aur utna strong bond. Head-on mein $S$ bada, sideways mein chhota — bas isliye σ > π. Ek baat yaad rakho: hybrid orbitals ( $sp,sp^2,sp^3$ ) koi alag category nahi — wo bas $s$ aur $p$ ka mixture hain, to wo bhi head-on milke normal σ hi banate hain.

Ek important cheez: atom pehle σ banata hai (closest, head-on), phir bacha hua parallel $p$ orbital sirf sideways overlap kar sakta hai, to π banta hai. Isliye single bond = 1σ, double = 1σ+1π, triple = 1σ+2π. Aur yahi wajah hai ki double bond ghoom nahi sakta — ghumaoge to parallel $p$ orbitals ka sideways overlap toot jaayega (cis-trans isomerism yahi se aata hai).

Exam trick: yaad rakho "σ = Straight, Strong, Spins; π = Parallel, Puny, Paralysed." Aur data se proof: C–C = 348, C=C = 615 kJ/mol — agar π strong hota to 696 hota, par sirf 615 hai, matlab π ka contribution (267) σ (348) se kam hai. Simple!
